MCRP100

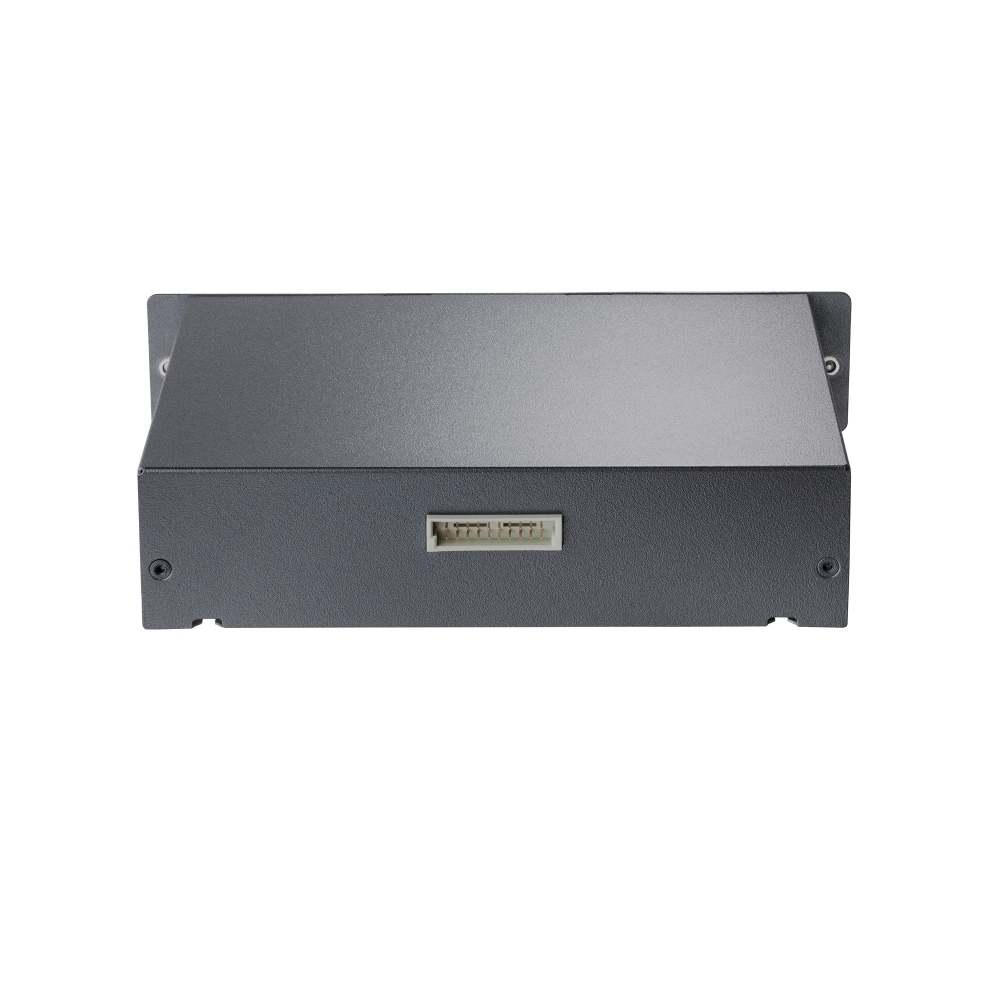

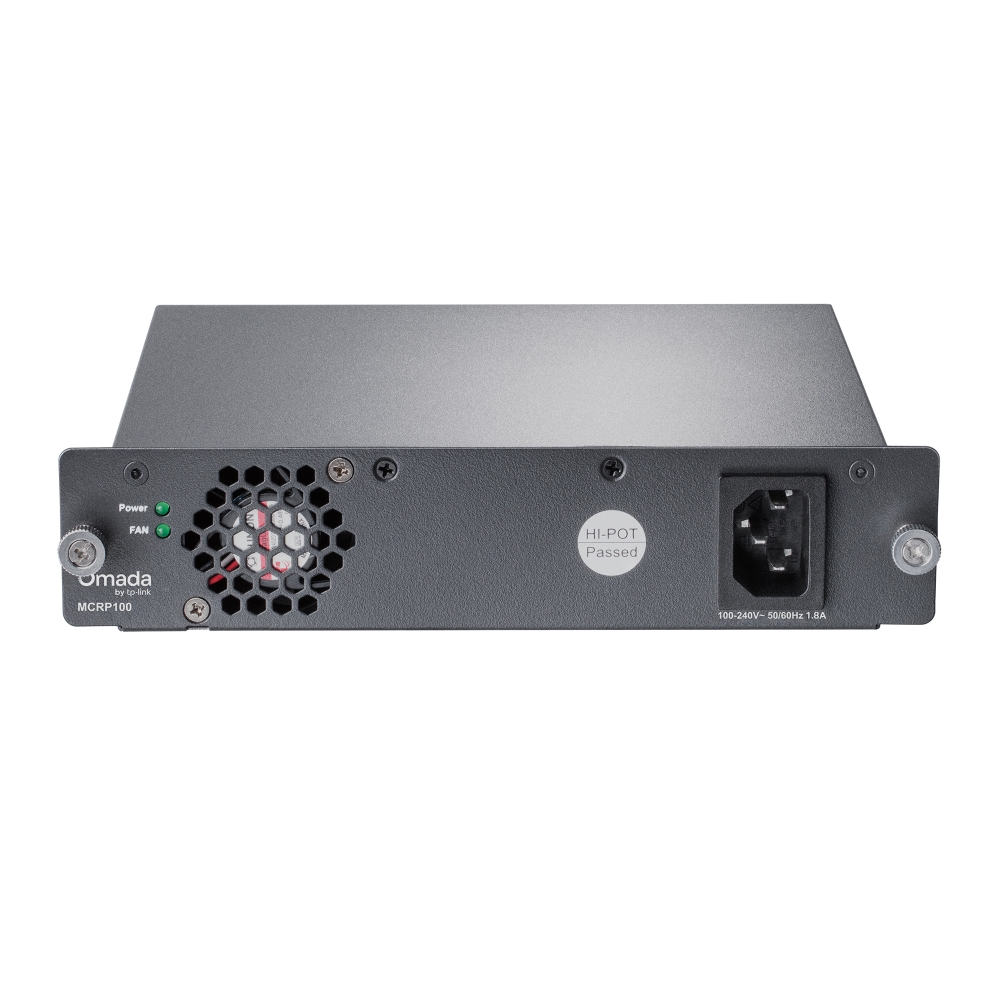

Omada 100-240V Redundant Power Supply Module
- Up to 75 watts output power
- Output over-voltage/short circuit/over-current protection
What this product does
The Redundant Power Supply Module MCRP100 is an AC-input and DC-output power supply module. It can convert 100-240V 50/60Hz input voltage into 12VDC output with rated wattage of 75W. The power supply module supports output over-voltage/short circuit/over-current protection. MCRP100 is applicable to 14-Slot Rackmount Chassis MC1400.
| HARDWARE FEATURES | |
|---|---|
| Fan Quantity | 1 |
| Redundant Power Supply | |
|---|---|
| AC Power Supply | 100-240V~ 50/60Hz 1.8A |
| DC Power Output | 12V/6.25A |
| Dimensions ( W x D x H ) | 193.4*162.3*42.2 mm |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity:10%~90%RH non-condensingStorage Humidity: 5%~95%RH non-condensing |
