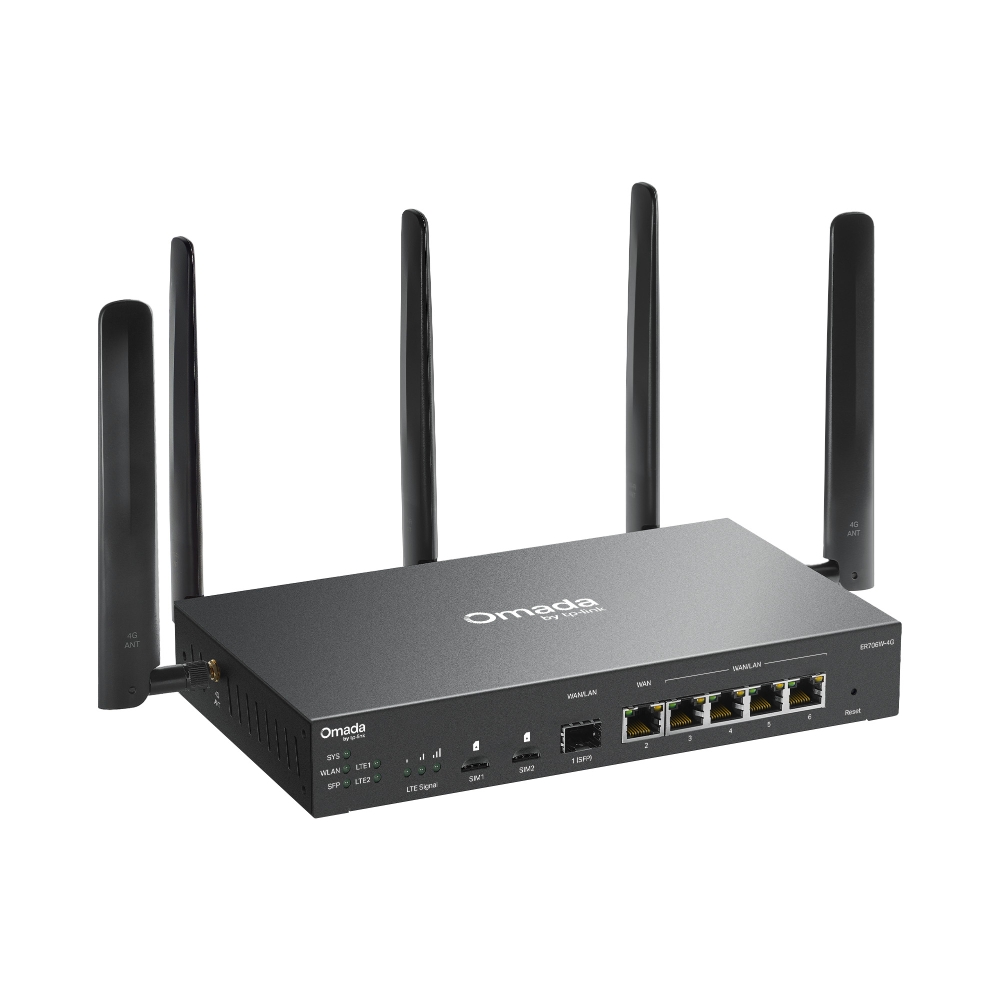

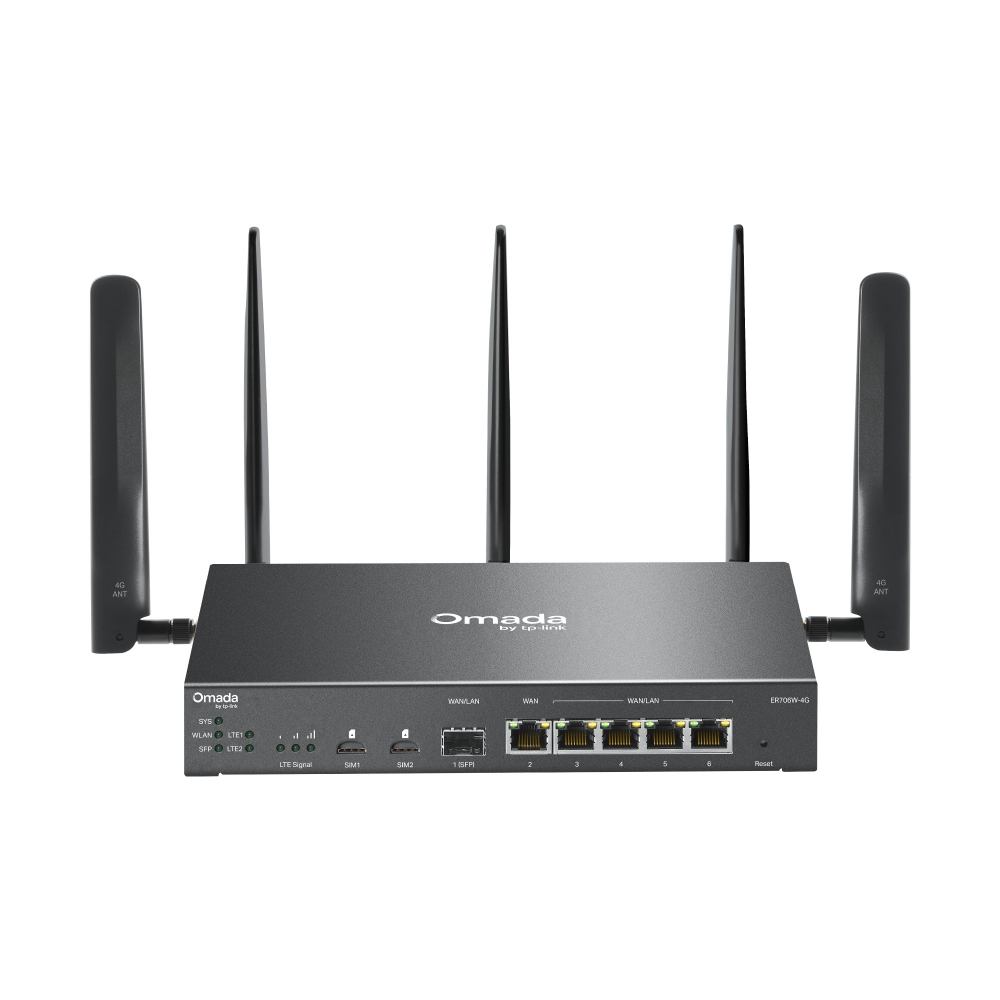

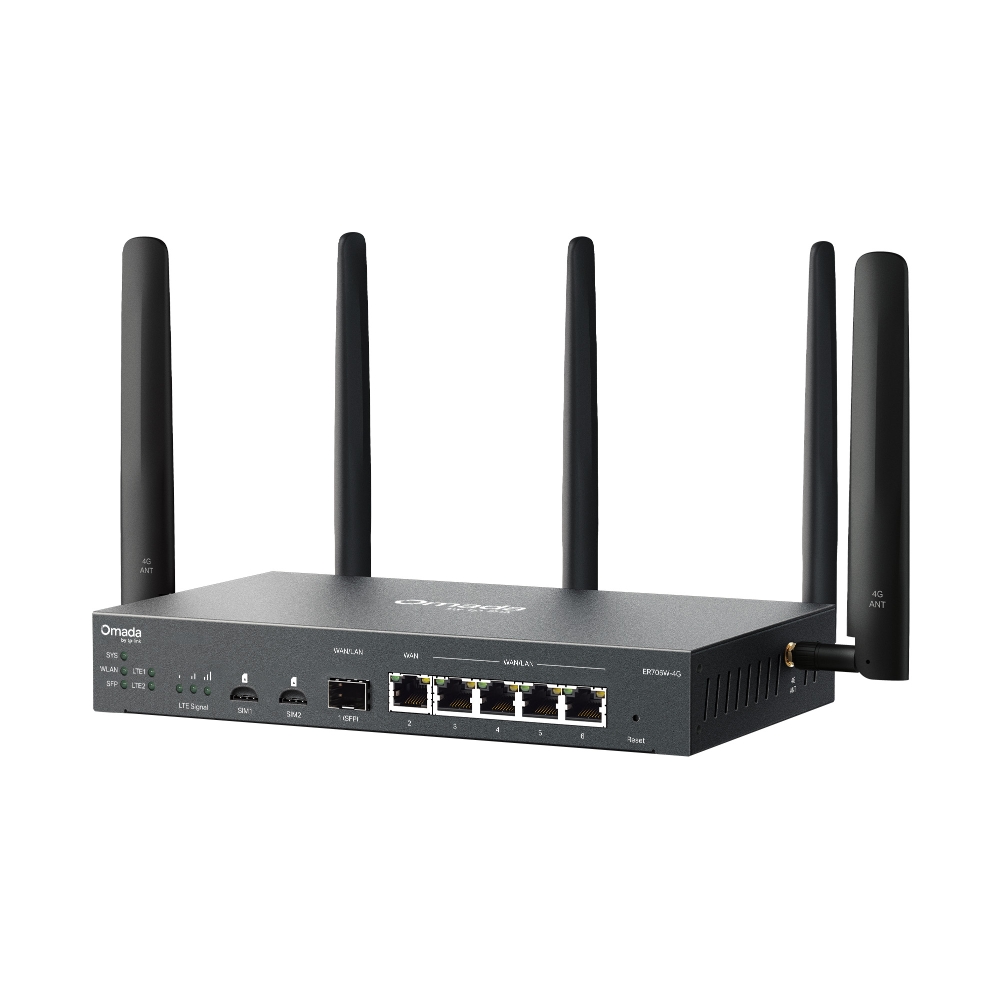

ER706W-4G V2.2

Coming Soon

Omada 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit VPN Gateway

Support 4G+ Cat6 up to 300 Mbps*
Dual-Band AX3000 Wi-Fi 6 (2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz)^**
1× Gigabit WAN SPF Port, 5× Gigabit RJ45 Ports (1× WAN, 4× WAN/LAN)
5× High-Gain Detachable Antennas (2× LTE Antennas, 3× Wi-Fi Antennas)
2× Nano SIM Card Slots for 4G/LTE Failover
Load Balancing Between 4G and Ethernet WAN
Supports IPSec/L2TP/PPTP/OpenVPN/GRE^†/WireGuard/SSL VPN
Centralized Cloud Management

Learn more about Omada Cloud SDN>

4G+ Cat6 up to
300 Mbps*
2402 Mbps +
574 Mbps**
5× Gigabit
Ethernet Ports
2× Nano SIM
Card Slots
IPSec/L2TP/PPTP/ OpenVPN/GRE^†/ WireGuard/SSL VPN
Load Balancing Between 4G and Ethernet WAN
Centralized Cloud
Management
Manage via
Omada App

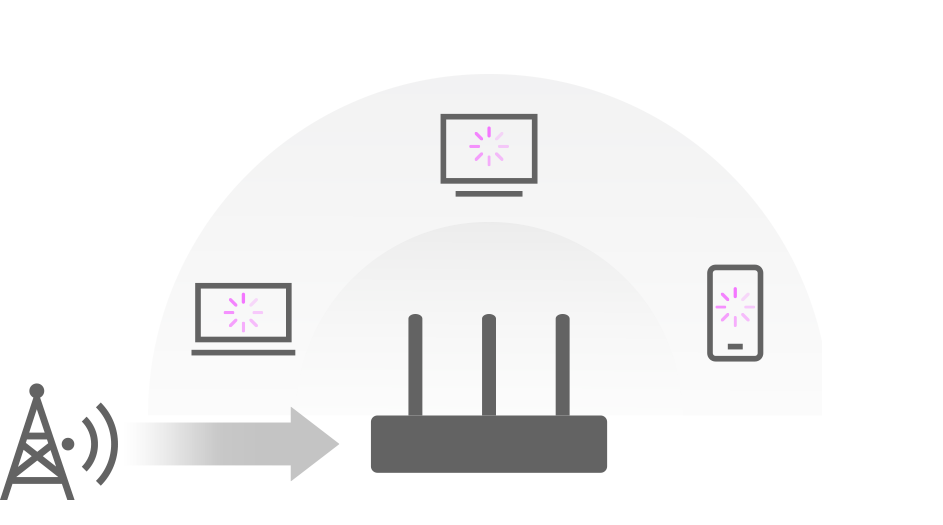

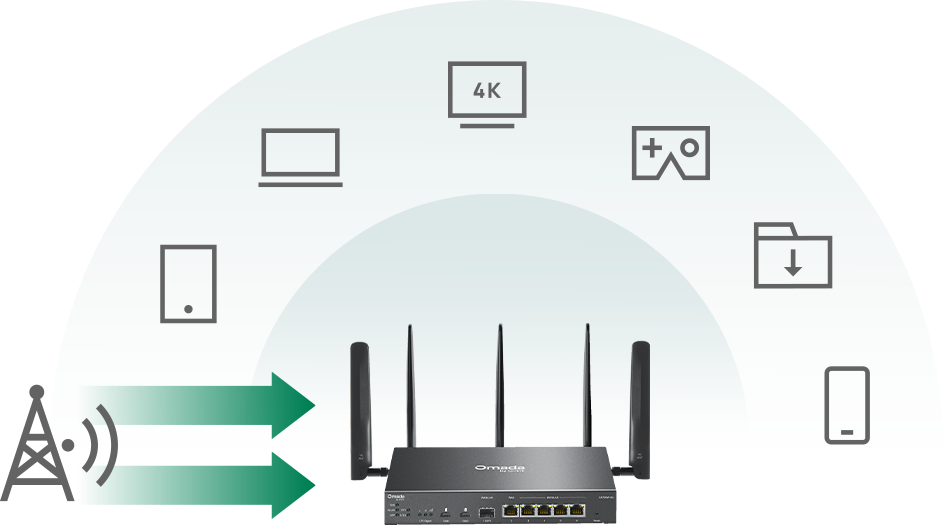

Get Instant 4G+ LTE Internet up to 300 Mbps

CH#1

150 Mbps

4G LTE Gateway
CH#1

CH#2

2X
LTE Speed

300
Mbps

4G+ Cat6 Gateway

Always-Online with AX3000 Wi-Fi 6

5 GHz 2402 Mbps
2.4 GHz 574 Mbps

Dual Band
HE160
OFDMA
1024 QAM

Dual SlM Ensures Business Continuity

In scenarios involving automatic failover mechanisms, backup WAN connections, and various network switching situations, the system ensures your business stays up and running.

SIM1
Active

SIM2
Standby

Normal
SIM1
Fault

SIM2
Active

Fault

Empowering Businesses with Reliable Omada
SDN Solutions

Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.

On-Premises Controllers

Omada Central (Cloud-Based)

Hardware

Software

Omada Ceiling
Mount AP

Omada Wall
Plate AP

Omada
Outdoor AP

Omada
POE Switch

Internet

Cloud Access

Omada App

Web Browser

Omada
VPN Gateway ER706W-4G

Standard version or Essentials version

Easy Management with the Omada App

ER706W-4G

4G
Network Type	LTE Band of EU: • 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz) • 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz) • 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz) Carrier Aggregation of EU: B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 B3+B3/B5/B7/B8/B20/B28/B38/B40/B41 B5+B5/B7/B38/B40/B41 B7+B7/B8/B20/B28/B32 B8+B32/B38/B40/B41 B20+B32/B38/B40 B28+B32/B38/B40/B41 B38+B38 B40+B40 B41+B41
SIM Type	2× Nano SIM slots (4G+ Cat6)
Frequency	• Downlink: 300 Mbps; • Uplink: 50 Mbps

SECURITY
DPI	• Deep Packet Inspection • Support 2000+ type Applications • Max Throughput (Upload / Download) 942.7Mbps/937.3Mbps
Access Control	• Source/Destination IP Based ACL • Stateful ACL • IPv4/IPv6 ACL • National Based ACL • FQDN
Filtering	• Web Group Filtering^† • URL Categories and URLs Filtering • Web Security^†
ARP Inspection	• Sending GARP Packets • ARP Scanning^† • IP-MAC Binding • ARP Detection
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN

HARDWARE FEATURES

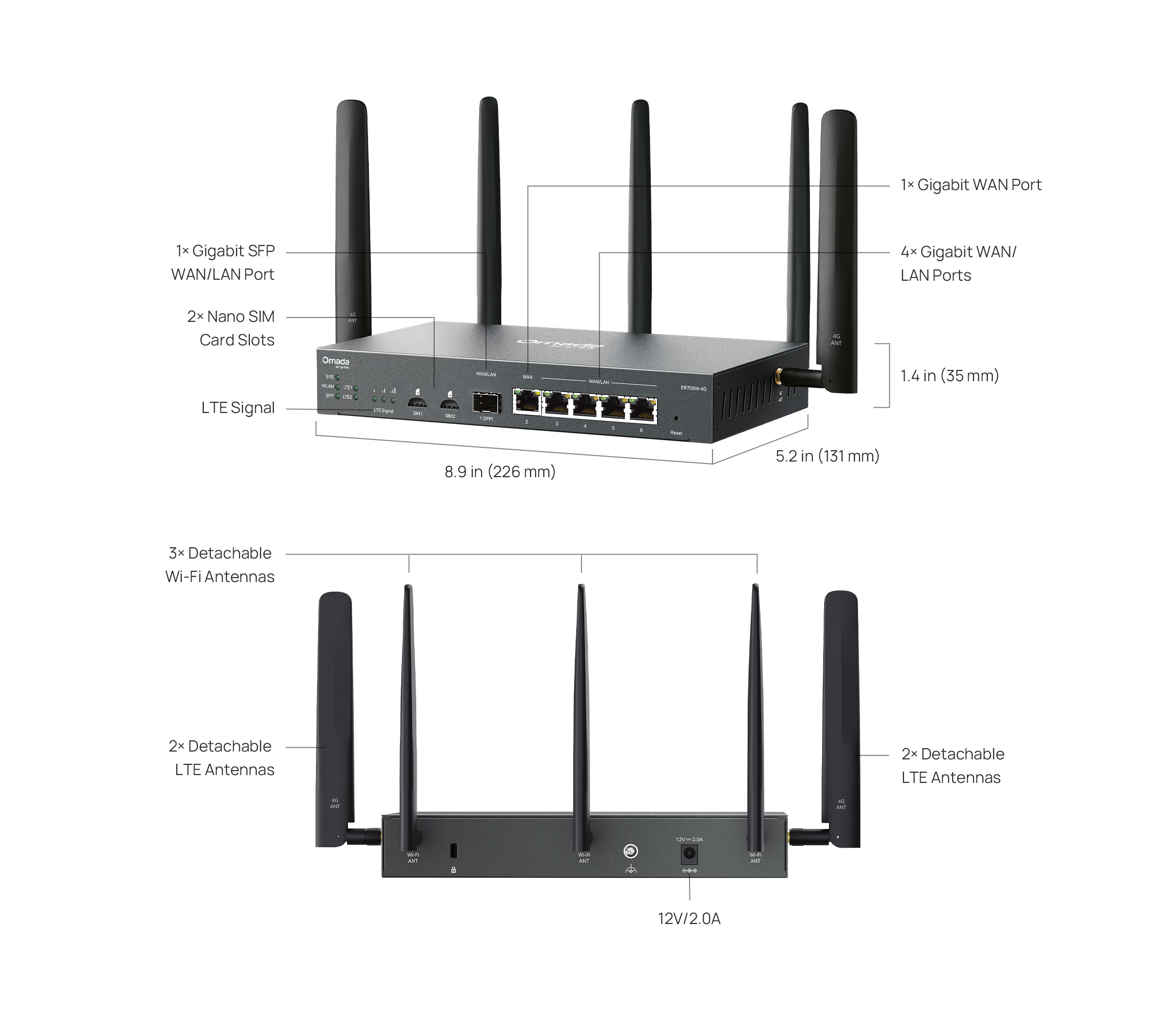

Interface	• 1× Gigabit SFP WAN/LAN Port • 1× Gigabit WAN Port • 4× Gigabit LAN/WAN Ports
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Button	Reset Button
Power Supply	12VDC / 2A Power Adapter
Wi-Fi Frequency & Signal Rate	• 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160)
Flash	256MB NAND
DRAM	512 MB DDR4
LED	SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
Dimensions ( W x D x H )	8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included)

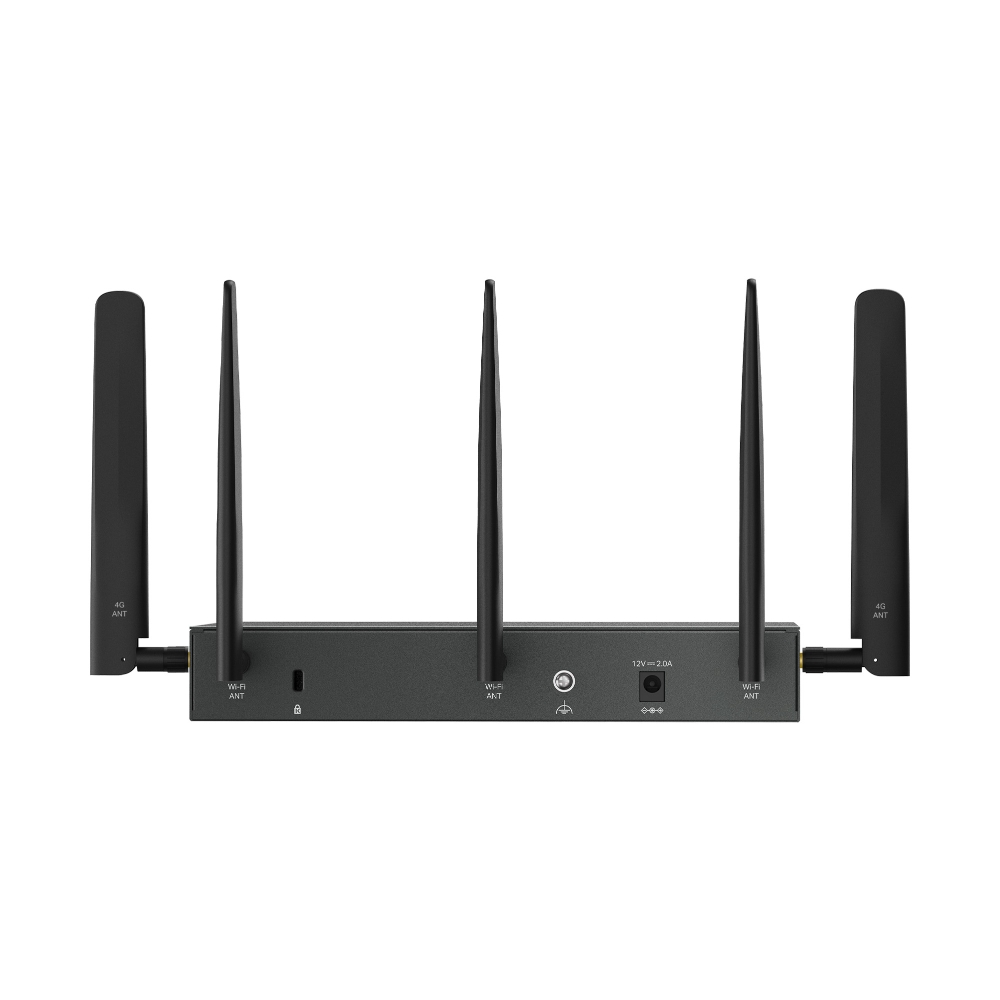

Antenna	• Wi-Fi: 3× 5GHz 5dBi & 2.4GHz 3.5dBi dual-band detachable antennas • LTE: 2× 4.0dBi omnidirectional detachable antennas

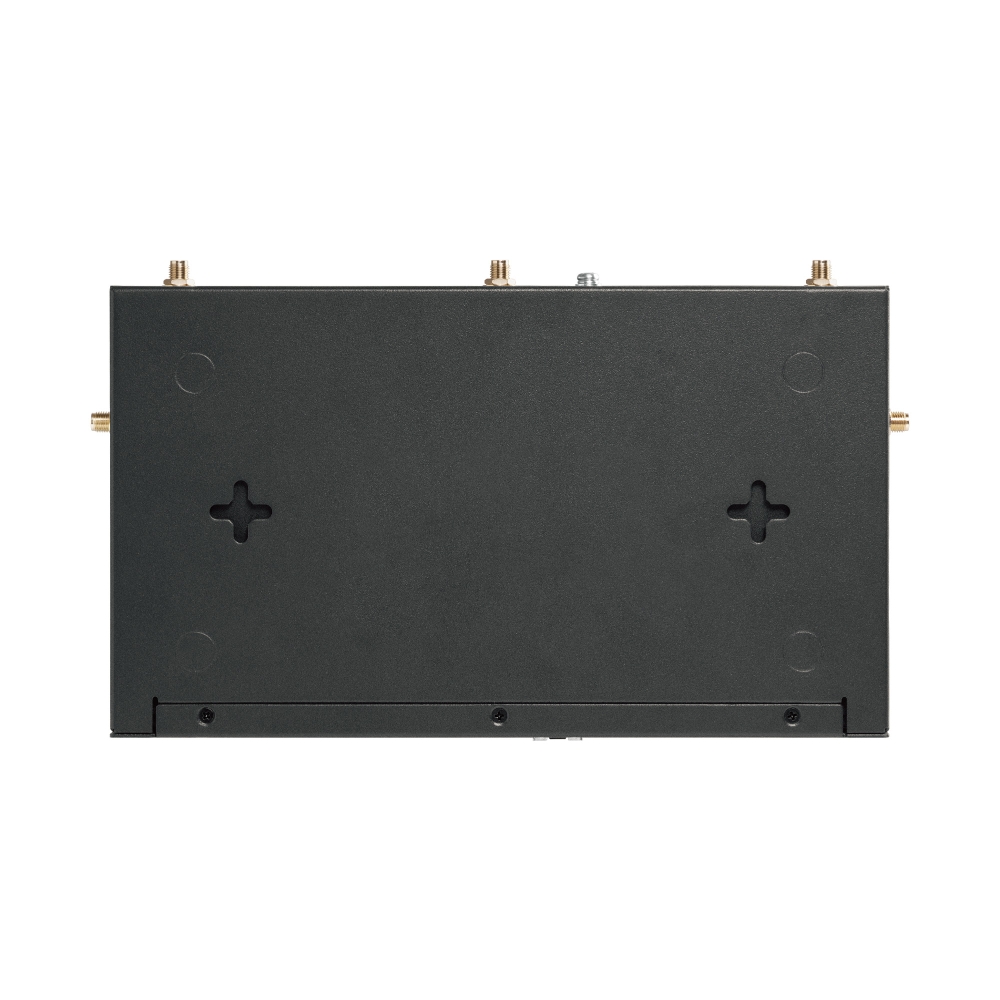

Mounting	Desktop/ Wall-mounting/Rackmount (rackmount kit not provided)
Max. Power Consumption	EU: 15.4W

PERFORMANCE
DPI Throughput	• TCP: 933 Mbps • UDP: 927 Mbps
GRE	• Unencrypted: 532.2 Mbps • Encrypted: 289.1 Mbps
WireGuard VPN	335.1 Mbps
Concurrent Session	150,000
New Sessions /Second	5,100
NAT (Static IP)	• Upload: 943 Mbps • Download: 941 Mbps
NAT(DHCP)	• Upload: 942 Mbps • Download: 941 Mbps
NAT(PPPoE)	• Upload: 940 Mbps • Download: 937 Mbps
NAT (L2TP)	• Upload: 868 Mbps • Download: 877 Mbps
NAT (PPTP)	• Upload: 845 Mbps • Download: 889 Mbps
IPsec VPN Throughput	• ESP-SHA1-AES256: 627.5 Mbps • ESP-SHA256-AES256: 606.8 Mbps • ESP-SHA384-AES256: 620.0 Mbps • ESP-SHA512-AES256: 620.9 Mbps
OpenVPN	101.8 Mbps
L2TP VPN Throughput	• Unencrypted: 990.0Mbps • Encrypted: 502.5 Mbps
PPTP VPN Throughput	• Unencrypted: 1057.5 Mbps • Encrypted: 204.6 Mbps
SSL VPN Throughput	114.6 Mbps
66 Byte Packet Forwarding Rate	1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate	81,274 pps/ 81,275 pps

WIRELESS FEATURES
Advanced Features	• Seamless Roaming • Mesh (with EAP that supports Mesh) • OFDMA • Beamforming • MU-MIMO • Rate Limit: Based on SSID/Client • Airtime Fairness • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise • Multiple SSIDs: 16 in total (8 per radio) • Load Balance • Airtime Fairness • Band Steering • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast • Guest Network • Automatic Channel Selection Algorithm • Transmit Power Control: Adjust transmit Power on dBm

WIRELESS FEATURES

Advanced Features

• Seamless Roaming
• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• MU-MIMO
• Rate Limit: Based on SSID/Client
• Airtime Fairness
• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
• Multiple SSIDs: 16 in total (8 per radio)
• Load Balance
• Airtime Fairness
• Band Steering
• RADIUS Accounting
• MAC Authentication
• Reboot Schedule
• Wireless Schedule
• Enable/Disable Wireless Radio
• Enable/Disable SSID Broadcast
• Guest Network
• Automatic Channel Selection Algorithm
• Transmit Power Control: Adjust transmit Power on dBm

BASIC FUNCTIONS
WAN Connection Type	• Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP
MAC Clone	Modify WAN Address
DHCP	• DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP • WAN DHCP 60
Stateful ACL	√
Quality of Service	√
Bridge VLAN	√
SMS	Receive / Send SMS
mDNS Repeater	√
IPv6	StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Features
Advanced Routing	• Static Routing • Policy Routing • RIP^† • OSPF^†
Bandwidth Control	IP-Based Bandwidth Control
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup(Timing, Failover) • Online Detection
NAT	• One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering^† • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP • Disable NAT
Session Limit	IP-Based Session Limit

VPN
GRE	√ (Only in Standalone Mode)
SD-WAN	√ (Only in Controller Mode)
SSL VPN	50 Tunnels
IPsec VPN	• 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server • PPTP VPN Client (10)^△ • 50 Tunnels • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • L2TP VPN Client (10)^△ • 50 Tunnels • L2TP over IPSec
OpenVPN	• OpenVPN Server • OpenVPN Client (5)^△ • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode
WireGuard VPN	√

AUTHENTICATION
Web Authentication	• No Authentication • Simple Password^§ • Hotspot (Local User / Voucher^§ / SMS^§ / Radius^§) • External Radius Sever • External Portal Sever^§ • LDAP

Management Features
Omada App	Yes.
Centralized Management	• Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes.
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance	• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize^† • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support
Zero-Touch Provisioning	Yes. Require the use of an Omada Controller.
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration

OTHERS
Network Services Enabled by Default	Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP _____________________________________________________ TDP Server Device discovery • Port: 20003 Protocol: UDP _____________________________________________________ DHCP Server Handle DHCP packets • Port: 67 Protocol: UDP _____________________________________________________ DNS Handle DNS packets • Port: 53 Protocol: TCP/UDP
Certification	CE, RoHS

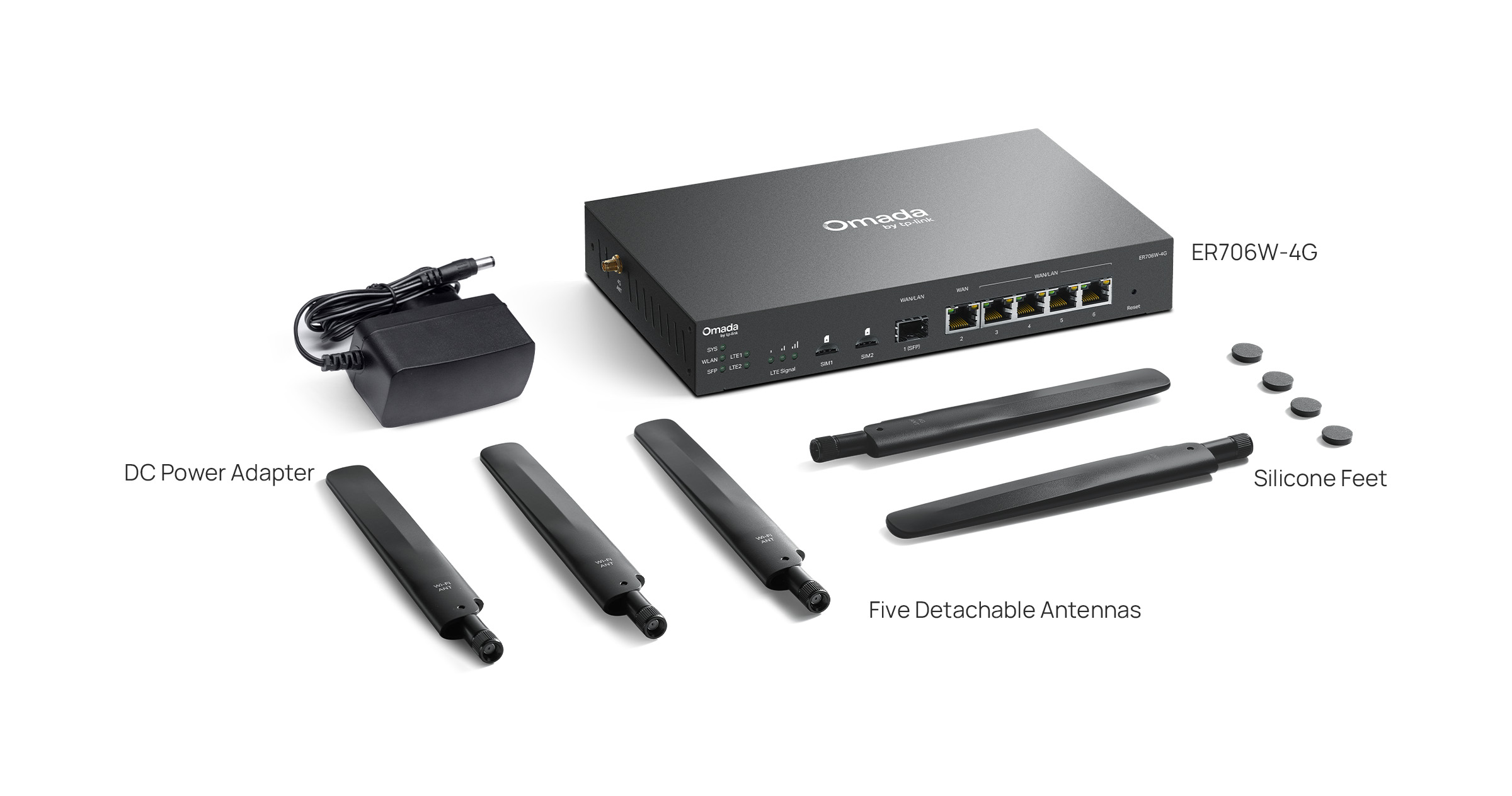

Package Content	• ER706W-4G • Power Adapter • Rubber Feet • Quick Installation Guide
System Requirements	• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux
Environment	• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing

For additional version information, please go to the support page.

^*Actual 4G downlink speeds vary between buildings. Factors affecting 4G speeds include the internet service plan, real-time network capacity, equipment and client limitations, and environmental factors.

^**Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and coverage are not guaranteed and will vary.

^‡Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, requires clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions or countries due to regulatory restrictions.

^†These features are supported only in Standalone Mode.

^§These feature are supported only in Controller Mode.

^△For PPTP VPN and L2TP VPN, ER706W-4G can connect with up to 10 VPN servers. For OpenVPN, ER706W-4G can connect with up to 5 VPN servers.
