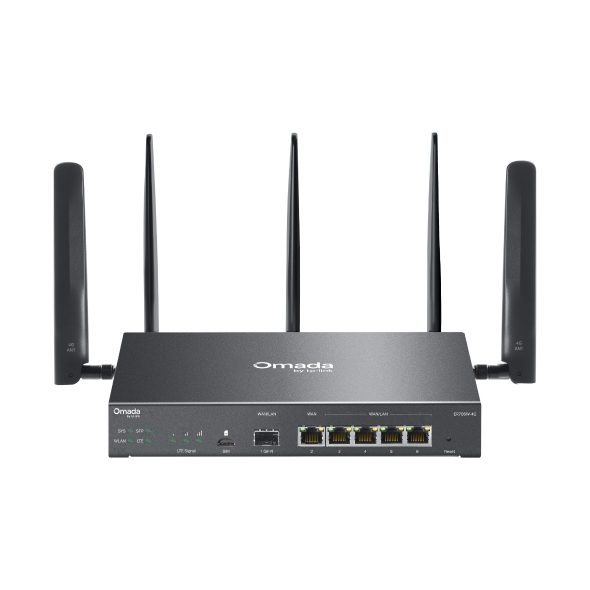

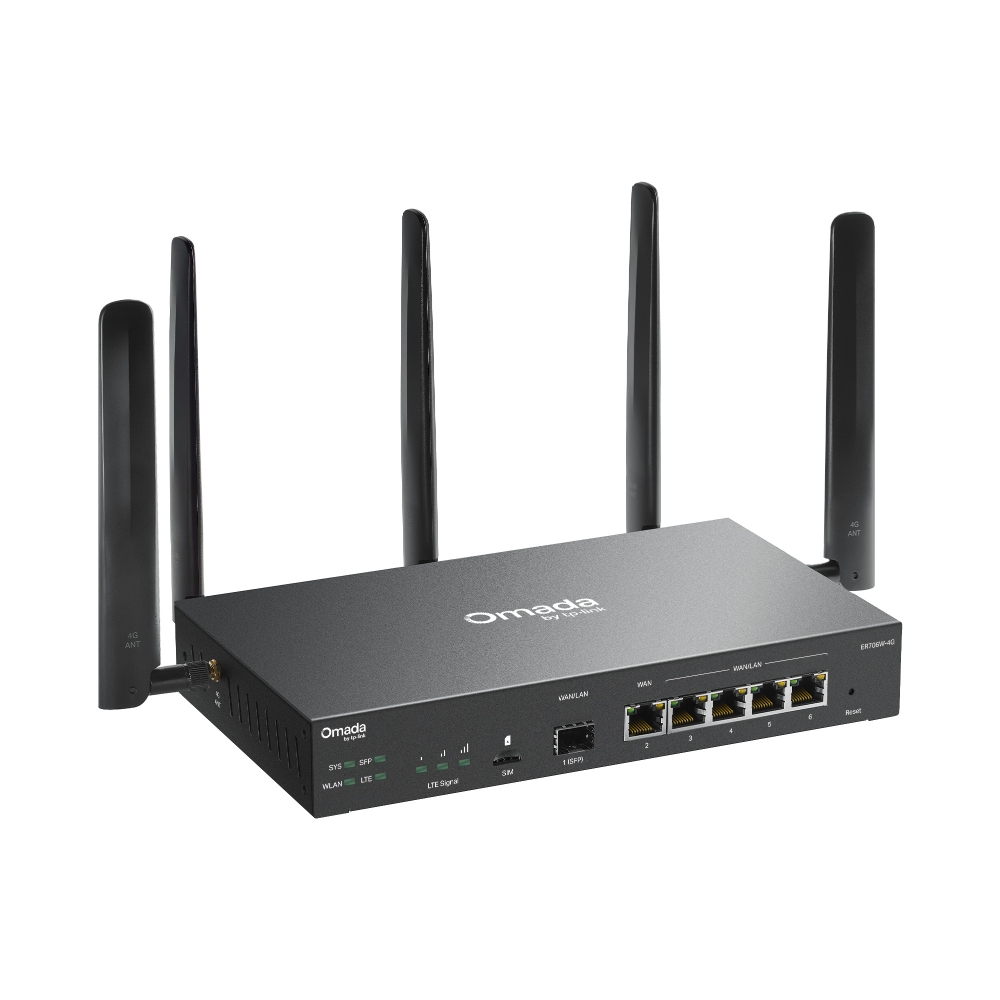

Omada 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit VPN Gateway
- Support 4G+ Cat6 up to 300 Mbps*
- Dual-Band AX3000 Wi-Fi 6 (2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz)**
- 1× Gigabit WAN SPF Port, 5× Gigabit RJ45 Ports (1× WAN, 4× WAN/LAN)

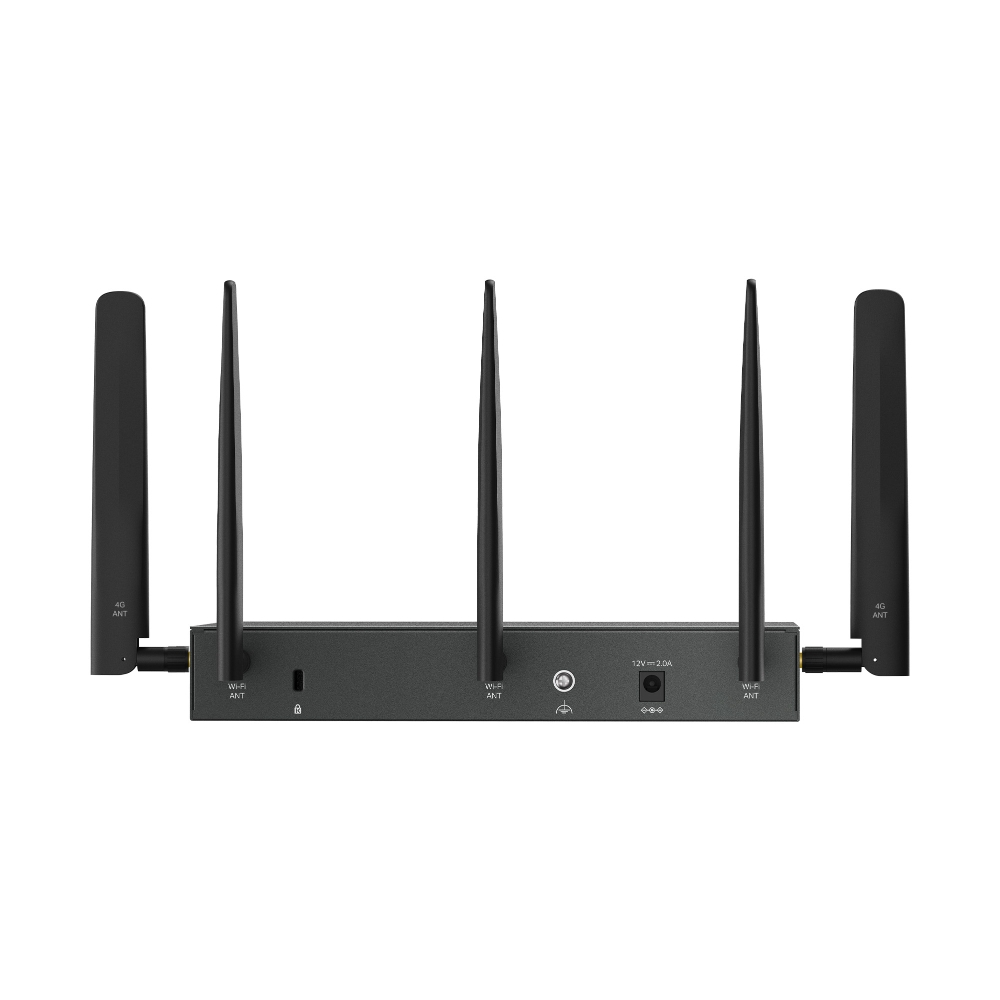

- 5× High-Gain Detachable Antennas (2× LTE Antennas, 3× Wi-Fi Antennas)
- 1× Nano SIM Card Slot
- Load Balancing Between 4G and Ethernet WAN
- Supports IPSec/L2TP/PPTP/OpenVPN/GRE†/WireGuard/SSL VPN
- Centralized Cloud Management
Learn more about Omada Cloud SDN>
-
4G+ Cat6 up to
300 Mbps* -
2402 Mbps +
574 Mbps** -
5× Gigabit
Ethernet Ports -
1× Nano SIM
Card Slot -
IPSec/L2TP/PPTP/ OpenVPN/GRE†/ WireGuard/SSL VPN
-
Load Balancing on
Between 4G and Ethernet WAN -
Centralized Cloud
Management -
Manage via
Omada App

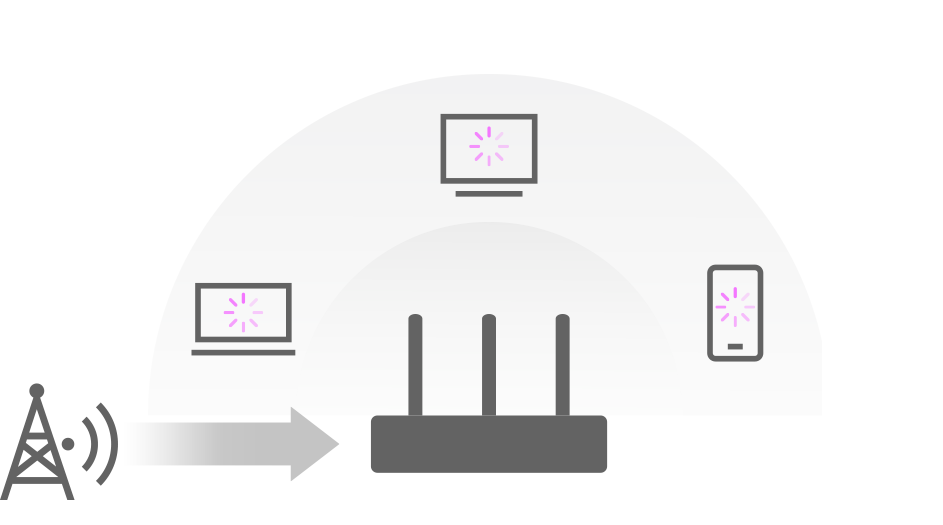

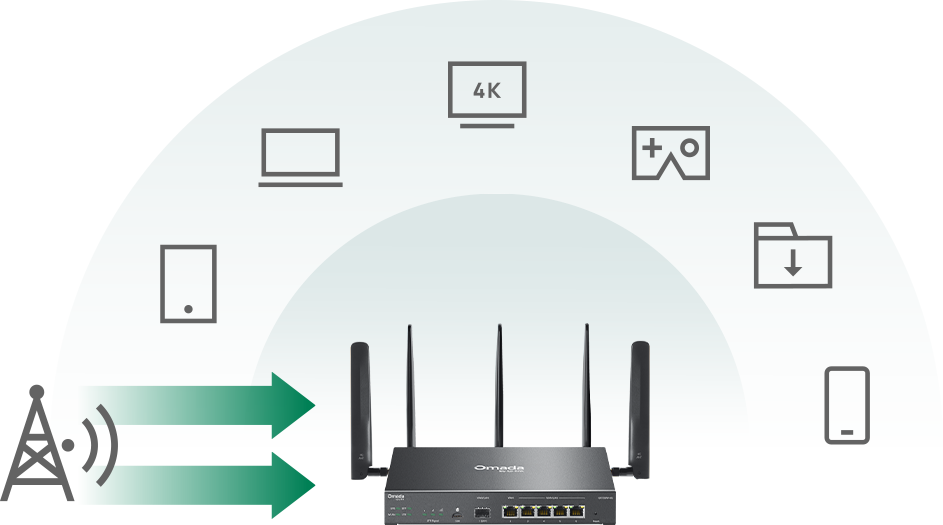

Get Instant 4G+ LTE Internet up to 300 Mbps
CH#1
150 Mbps
4G LTE Gateway
CH#1
CH#2
2X
LTE Speed300
Mbps4G+ Cat6 Gateway
Always-Online with AX3000 Wi-Fi 6
-
5 GHz 2402 Mbps
-
2.4 GHz 574 Mbps
-
Dual Band
-
HE160
-
OFDMA
-
1024 QAM
Empowering Businesses with Reliable Omada
SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
On-Premises Controllers
Or
Or
Omada Central (Cloud-Based)
Hardware
Software
Omada Ceiling
Mount AP
Omada Wall
Plate AP
Omada
Outdoor AP
Omada
POE Switch
Internet
Cloud Access
Omada App
Web Browser
Omada
VPN Gateway ER706W-4G
VPN Gateway ER706W-4G
Standard version or Essentials version
Easy Management with the Omada App
| 4G | |
|---|---|
| Network Type | LTE Band of US:• 4G LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71(1950/2100/850/2600/750/750/750/1950/850/700/2350/2150/650 MHz)• 4G LTE-TDD: B41/B48 (2500/3600 MHz)Carrier Aggregation of US:B2+B2/B4/B5/B7/B12/B13/B14/B29/B30/B48/B66/B71B4+B4/B5/B7/B12/B13/B29/B30/B71B5+B5/B7/B25/B30/B41/B66B7+B7/B12/B66B12+B12/B25/B30/B66B13+B66B14+B30/B66B25+B25/B26/B41B26+B41B29+B30/B66B30+B66B41+B41B48+B48B66+B66/B71 |
| SIM Type | 1× Nano SIM Card |
| Frequency | • Downlink: 300 Mbps;• Uplink: 50 Mbps |
| SECURITY | |
|---|---|
| DPI | Application control via DPI / Updated app library |
| Access Control | • Source/Destination IP Based ACL• Stateful ACL• IPv4/IPv6 ACL• National Based ACL• FQDN |
| Filtering | • Web Group Filtering†• URL Categories and URLs Filtering• Web Security† |
| ARP Inspection | • Sending GARP Packets• ARP Scanning†• IP-MAC Binding• ARP Detection |
| Attack Defense | • TCP/UDP/ICMP Flood Defense• Block TCP Scan (Stealth FIN/Xmas/Null)• Block Ping from WAN |
| HARDWARE FEATURES | |
|---|---|
| Interface | • 1× Gigabit SFP WAN/LAN Port• 1× Gigabit WAN Port• 4× Gigabit LAN/WAN Ports |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Button | Reset Button |
| Power Supply | 12VDC / 2A Power Adapter |
| Wi-Fi Frequency & Signal Rate | • 2.4 GHz: 574 Mbps• 5 GHz: 2402 Mbps (HE160) |
| Flash | 128 MB NAND |
| DRAM | 512 MB DDR4 |
| LED | SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act) |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included) |
| Antenna | • Wi-Fi: 3× 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas• LTE: 2× 4.0dBi omnidirectional detachable antennas |
| Mounting | Desktop/ Wall-mounting/Rackmount (rackmount kit not provided) |
| Max. Power Consumption | US: 17.3W |
| PERFORMANCE | |
|---|---|
| DPI Throughput | • TCP: 933 Mbps• UDP: 927 Mbps |
| GRE | • Unencrypted: 532.2 Mbps• Encrypted: 289.1 Mbps |
| WireGuard VPN | 335.1 Mbps |
| Concurrent Session | 150,000 |
| New Sessions /Second | 5,100 |
| NAT (Static IP) | • Upload: 943 Mbps• Download: 941 Mbps |
| NAT(DHCP) | • Upload: 942 Mbps• Download: 941 Mbps |
| NAT(PPPoE) | • Upload: 940 Mbps• Download: 937 Mbps |
| NAT (L2TP) | • Upload: 868 Mbps• Download: 877 Mbps |
| NAT (PPTP) | • Upload: 845 Mbps• Download: 889 Mbps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 627.5 Mbps• ESP-SHA256-AES256: 606.8 Mbps• ESP-SHA384-AES256: 620.0 Mbps• ESP-SHA512-AES256: 620.9 Mbps |
| OpenVPN | 101.8 Mbps |
| L2TP VPN Throughput | • Unencrypted: 990.0Mbps• Encrypted: 502.5 Mbps |
| PPTP VPN Throughput | • Unencrypted: 1057.5 Mbps• Encrypted: 204.6 Mbps |
| SSL VPN Throughput | 114.6 Mbps |
| 66 Byte Packet Forwarding Rate | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate | 81,274 pps/ 81,275 pps |
| WIRELESS FEATURES | |
|---|---|
| Advanced Features | • Seamless Roaming• Mesh (with EAP that supports Mesh)• OFDMA• Beamforming• MU-MIMO• Rate Limit: Based on SSID/Client• Airtime Fairness• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise• Multiple SSIDs: 16 in total (8 per radio)• Load Balance• Airtime Fairness• Band Steering• RADIUS Accounting• MAC Authentication• Reboot Schedule• Wireless Schedule• Enable/Disable Wireless Radio• Enable/Disable SSID Broadcast• Guest Network• Automatic Channel Selection Algorithm• Transmit Power Control: Adjust transmit Power on dBm |
| BASIC FUNCTIONS | |
|---|---|
| WAN Connection Type | • Static IP• Dynamic IP• PPPoE (supports MRU Configuration)• PPTP• L2TP |
| MAC Clone | Modify WAN Address |
| DHCP | • DHCP Server• DHCPv6 PD Server (only in Standalone Mode)• DHCP Options Customization• DHCP Address Reservation• Multi-IP Interfaces• Multi-Net DHCP• WAN DHCP 60 |
| Stateful ACL | √ |
| Quality of Service | √ |
| Bridge VLAN | √ |
| SMS | Receive / Send SMS |
| mDNS Repeater | √ |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| Advanced Features | |
|---|---|
| Advanced Routing | • Static Routing• Policy Routing• RIP†• OSPF† |
| Bandwidth Control | IP-Based Bandwidth Control |
| Load Balance | • Intelligent Load Balance• Application Optimized Routing• Link Backup(Timing, Failover)• Online Detection |
| NAT | • One-to-One NAT• Multi-Net NAT• Virtual Server• Port Triggering†• NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG• UPnP• Disable NAT |
| Session Limit | IP-Based Session Limit |
| VPN | |
|---|---|
| GRE | √ (Only in Standalone Mode) |
| SD-WAN | √ (Only in Controller Mode) |
| SSL VPN | 50 Tunnels |
| IPsec VPN | • 100 IPSec VPN Tunnels• LAN-to-LAN, Client-to-LAN• Main, Aggressive Negotiation Mode• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm• IPsec Failover• IKE v1/v2• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm• NAT Traversal (NAT-T)• Dead Peer Detection (DPD)• Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server• PPTP VPN Client (10)△• 50 Tunnels• PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server• L2TP VPN Client (10)△• 50 Tunnels• L2TP over IPSec |
| OpenVPN | • OpenVPN Server• OpenVPN Client (5)△• 55 OpenVPN Tunnels• "Certificate + Account" Mode• Full Mode |
| WireGuard VPN | √ |
| AUTHENTICATION | |
|---|---|
| Web Authentication | • No Authentication• Simple Password§• Hotspot (Local User / Voucher§ / SMS§ / Radius§)• External Radius Sever• External Portal Sever§• LDAP |
| Management Features | |
|---|---|
| Omada App | Yes. |
| Centralized Management | • Omada Central (Cloud-Based)• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface• Remote Management• Export & Import Configuration• SNMP v1/v2c/v3• Diagnostics (Ping & Traceroute)• NTP Synchronize†• Port Mirroring• CLI (only in Standalone Mode)• Syslog Support |
| Zero-Touch Provisioning | Yes. Require the use of an Omada Controller. |
| Management Features | • Automatic Device Discovery• Intelligent Network Monitoring• Abnormal Event Warnings• Unified Configuration• Reboot Schedule• Captive Portal Configuration |
| OTHERS | |
|---|---|
| Network Services Enabled by Default | Web ServerManage and configure device through web (HTTP/HTTPS)• Port: 80/443 Protocol: TCP_____________________________________________________TDP ServerDevice discovery• Port: 20003 Protocol: UDP_____________________________________________________DHCP ServerHandle DHCP packets• Port: 67 Protocol: UDP_____________________________________________________DNSHandle DNS packets• Port: 53 Protocol: TCP/UDP |
| Certification | FCC, RoHS |
| Package Content | • ER706W-4G• Power Adapter• Rubber Feet• Quick Installation Guide |
| System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11• MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)• Operating Humidity: 10% to 90% non-condensing• Storage Humidity: 5% to 90% non-condensing |
*Actual 4G downlink speeds vary between buildings. Factors affecting 4G speeds include the internet service plan, real-time network capacity, equipment and client limitations, and environmental factors.
**Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and coverage are not guaranteed and will vary.
‡Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, requires clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions or countries due to regulatory restrictions.
†These features are supported only in Standalone Mode.
§These feature are supported only in Controller Mode.
△For PPTP VPN and L2TP VPN, ER706W-4G can connect with up to 10 VPN servers. For OpenVPN, ER706W-4G can connect with up to 5 VPN servers.
