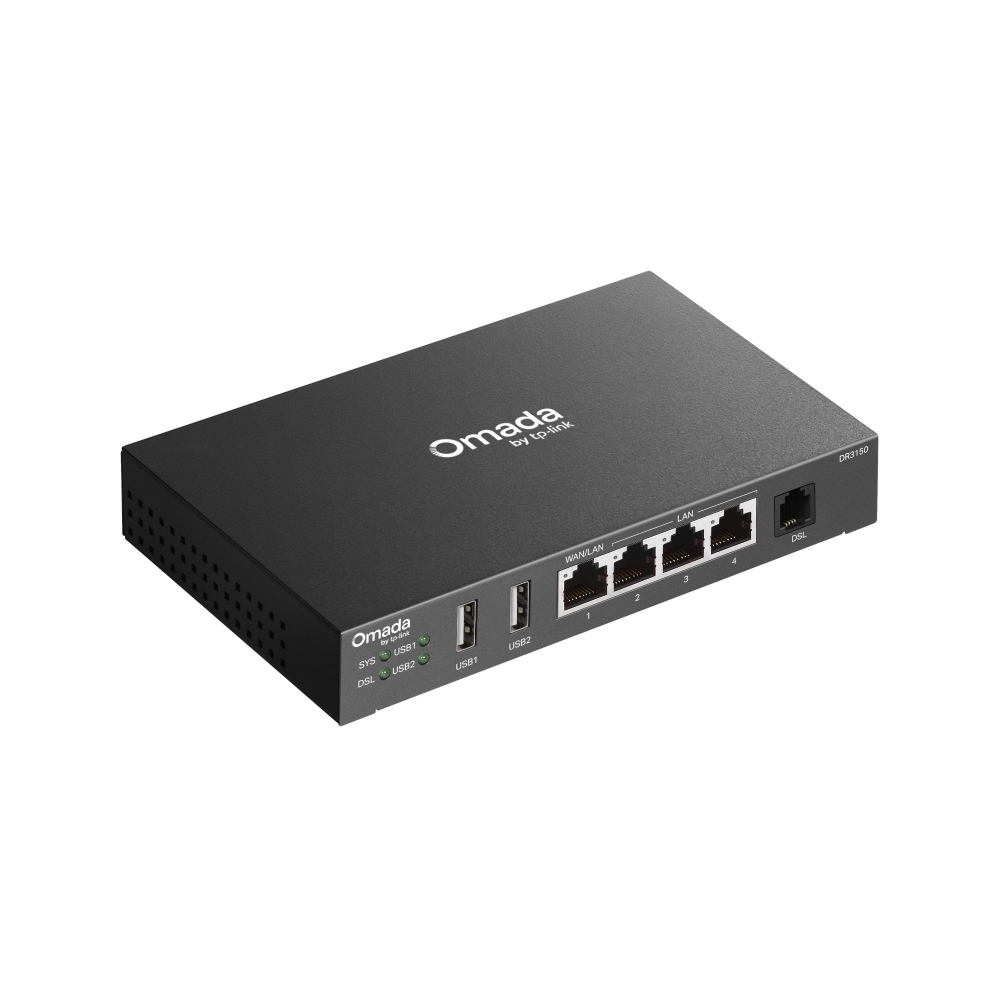

DR3150

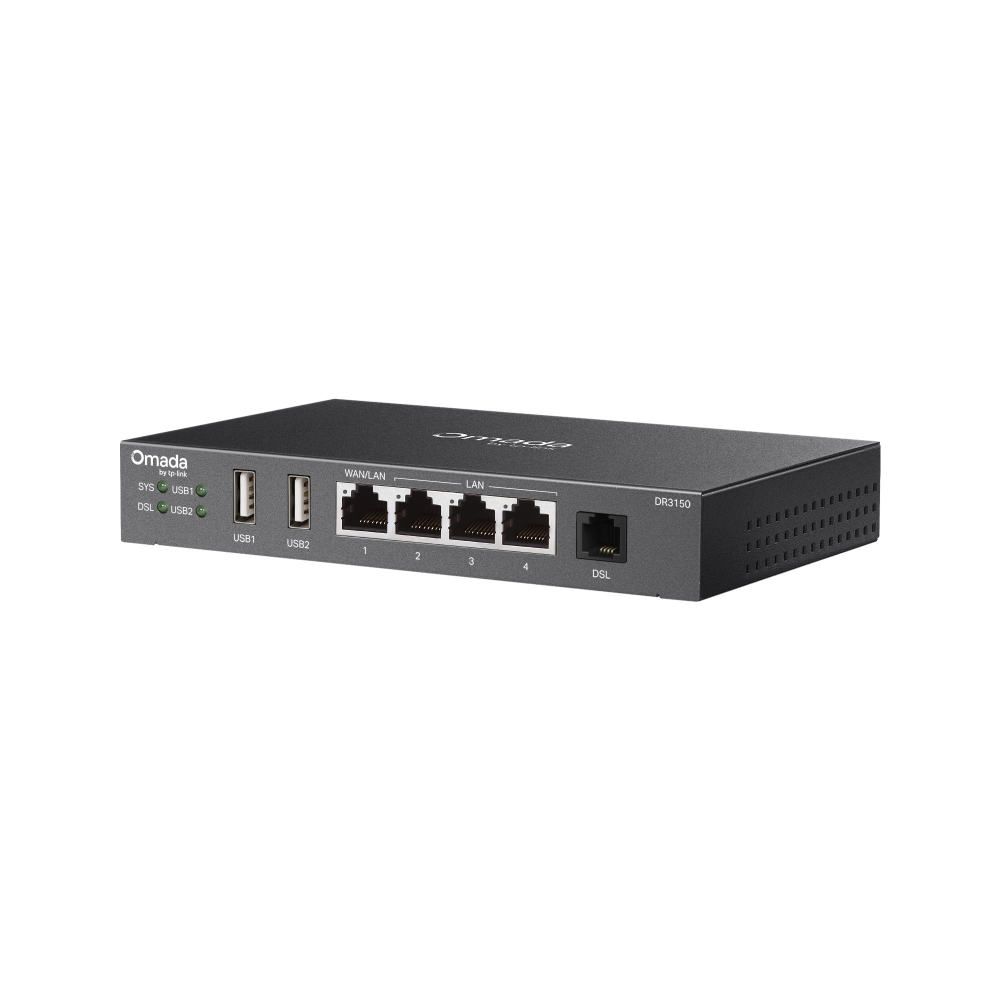

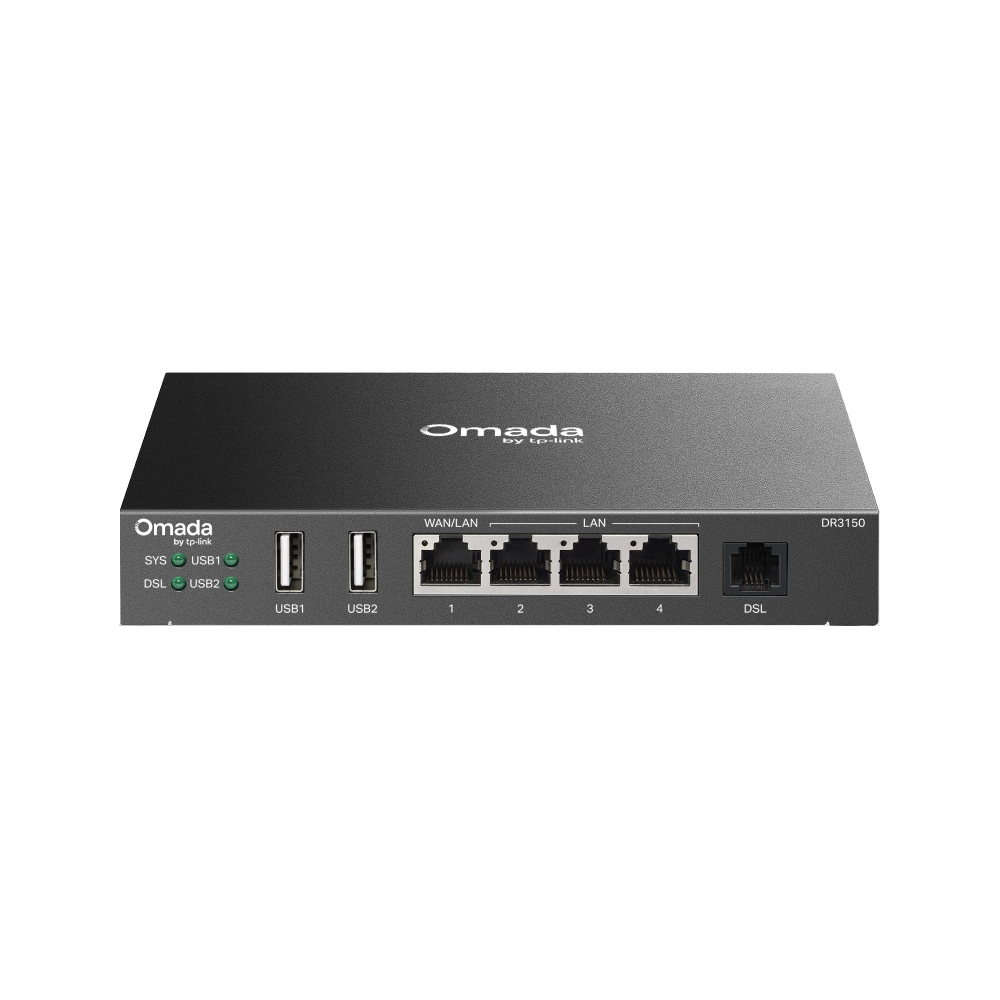

Coming SoonOmada Gigabit Desktop DSL Gateway
- VDSL2 35b: Supports 350 Mbps DSL Access†
- VDSL2/ADSL2+/ADSL2/ADSL Compatibility

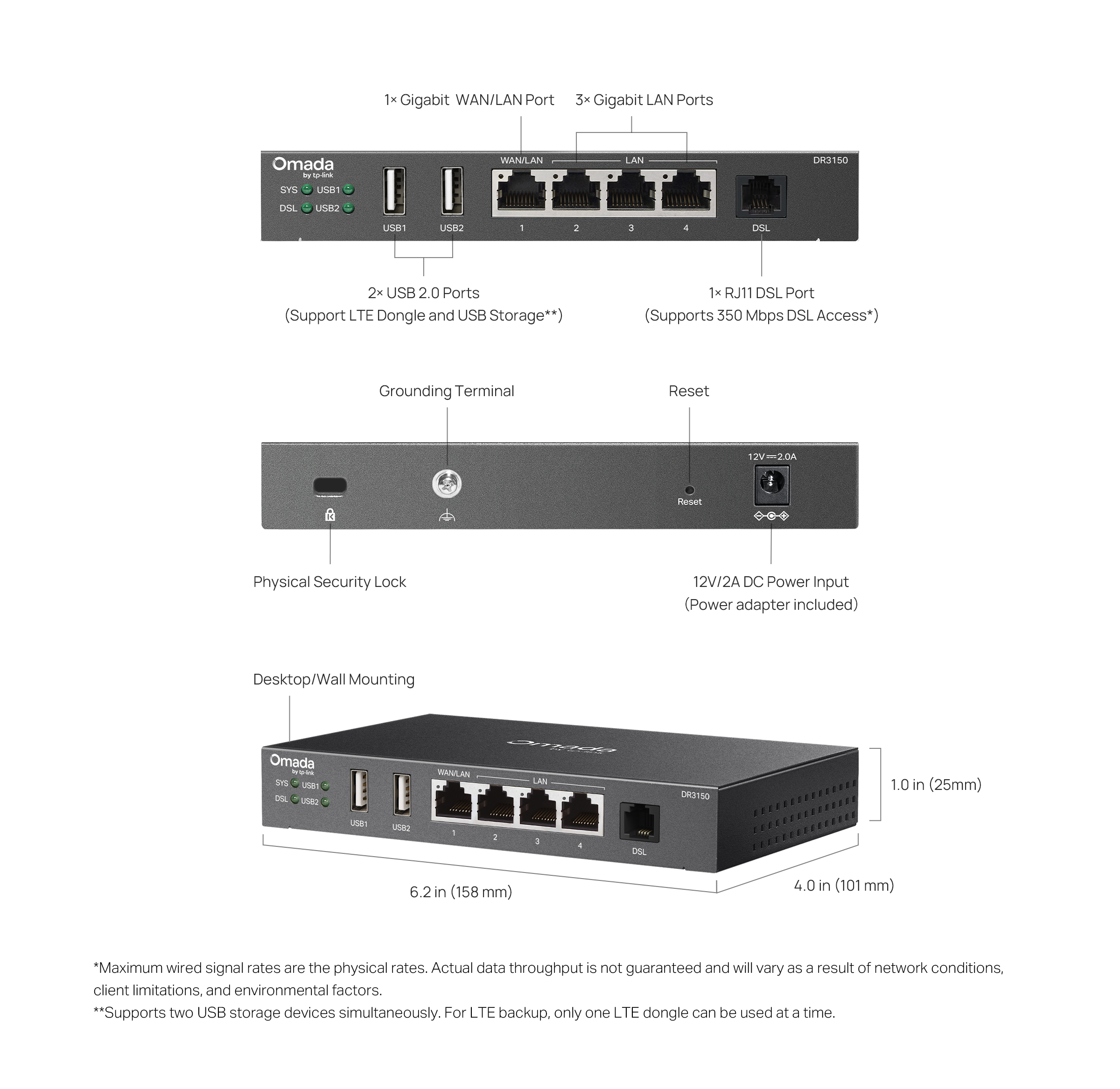

- 1× RJ11 Port & 4× Gigabit RJ45 Ports (1× WAN/LAN, 3× LAN), 2× USB 2.0 Ports
- Load Balancing Between DSL and Ethernet WAN
- IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE§ VPN
- Centralized Cloud Management via Web or Omada App

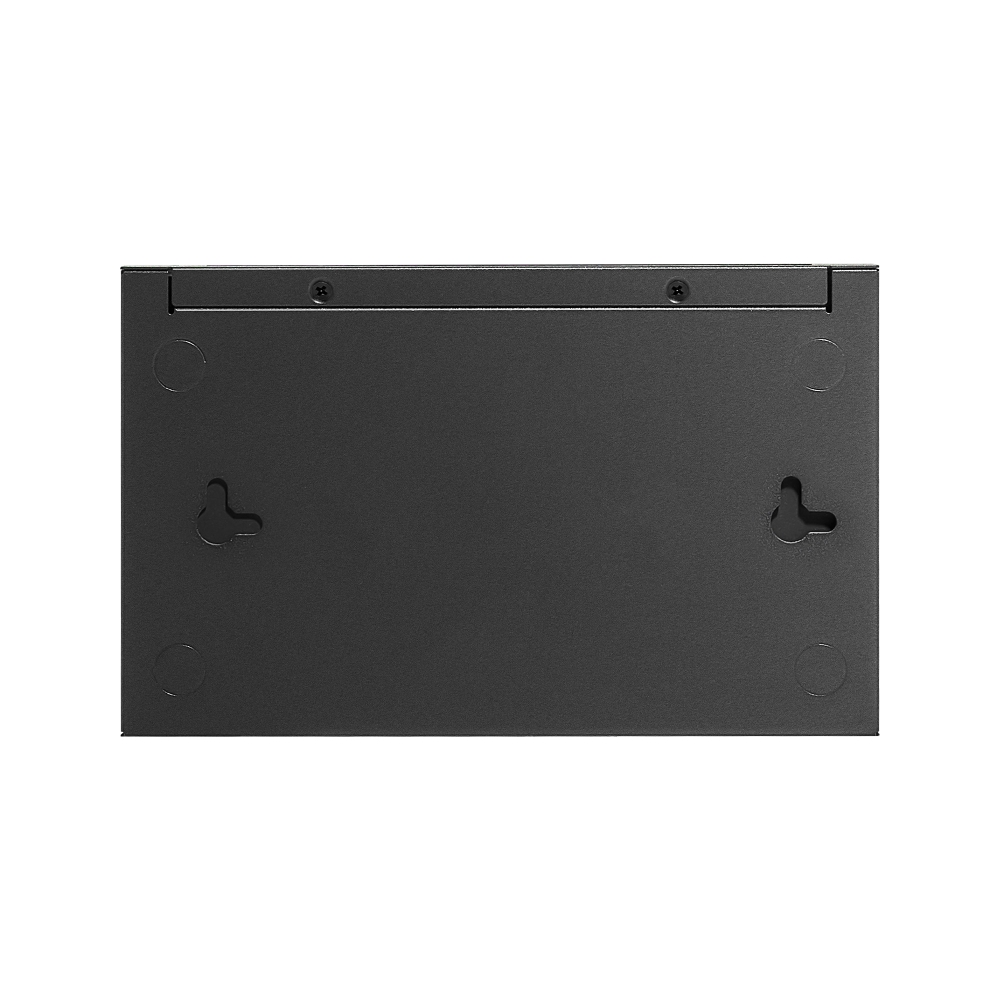

- Desktop/Wall Mounting
High‑Speed DSL Meets Versatile Connectivity
Omada Gigabit Desktop DSL Gateway
DR3150
VDSL2 35b
(Up to 350 Mbps)†
VDSL2/ADSL2+/
ADSL2/
ADSL Compatibility
VDSL2/ADSL2+/ADSL2/
ADSL Compatibility
4× Gigabit
RJ45 Ports &
1× RJ11 Port
2× USB 2.0 Ports
(Support LTE Dongle
and USB Storage*)
2× USB 2.0 Ports
(Support LTE Dongle
and USB Storage*)
IPSec/PPTP/L2TP/
GRE§/WireGuard/
OpenVPN
Enhanced
Security
Load Balancing
Between DSL and
Ethernet WAN
Centralized Cloud
Management**
High-Speed DSL with Universal Compatibility
Supports VDSL2/ADSL2+/ADSL2/ADSL connections, DR3150 delivers high speeds and broad ISP compatibility to provide an ideal IP-based connection for small businesses.
Versatile Connectivity Power Reliable, Scalable Networks
Equipped with DSL, Gigabit Ethernet, and USB ports for versatile connectivity. Load Balancing between DSL and Ethernet WAN maximizes bandwidth, ensuring a stable, flexible connection to keep your business running smoothly.
1× RJ11 Port
DSL Connection
Wide ISP Compatibility
1× WAN/LAN, 3× LAN
4× Gigabit
RJ45 Ports
2× USB 2.0 Ports
LTE Backup & Storage
Versatile USB Connectivity*
High-Security and High-Performance VPN
IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE§ VPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study in distributed environments.

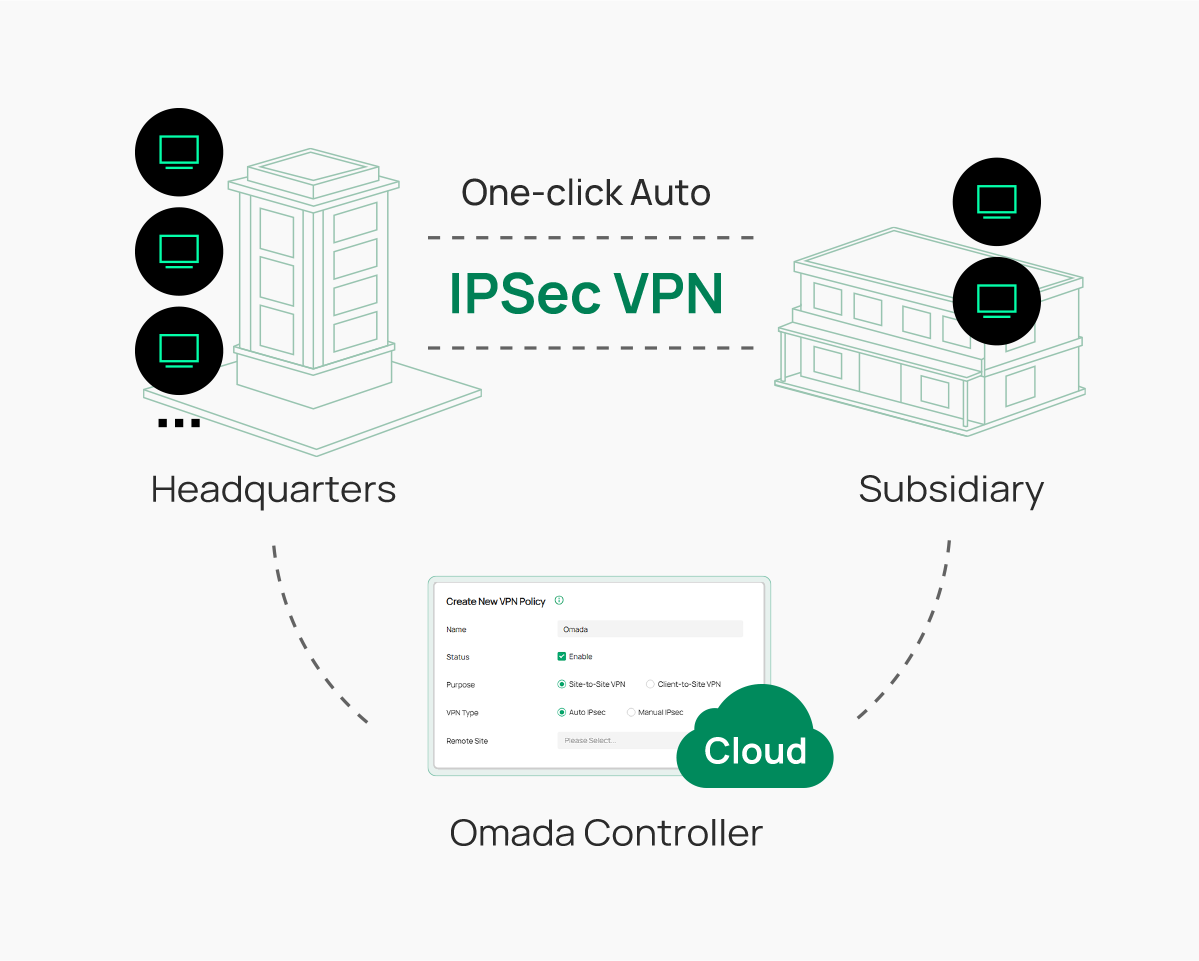

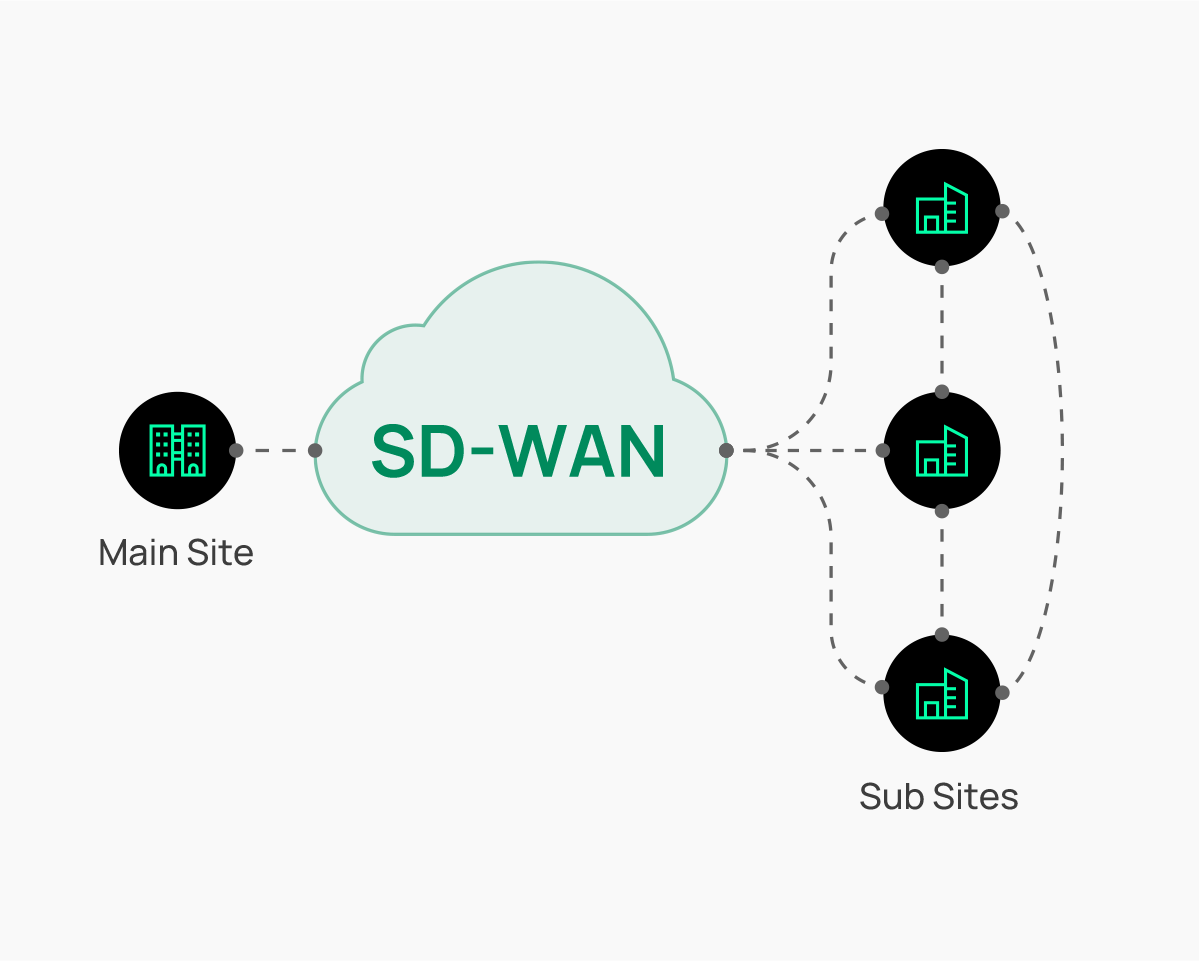

SD-WAN for Multi-Site Connectivity
Connect branch offices to headquarters in just a few clicks-no complex VPN setup required. Centralized management delivers reliable site-to-site connectivity and seamless scalability as the network grows.Δ
Always-On Security with Intelligent and Proactive Defense
Powerful
Firewall
IP/MAC/URL
Filtering
Convenient
VLAN Support
IP-MAC
Binding
DoS
Defense
One-Click
ALG Activation
Empowering Businesses with Reliable Omada SDN Solutions
Omada's Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
Essentials Version
DSL GateWay
DR3150
PoE Switch
Access Points

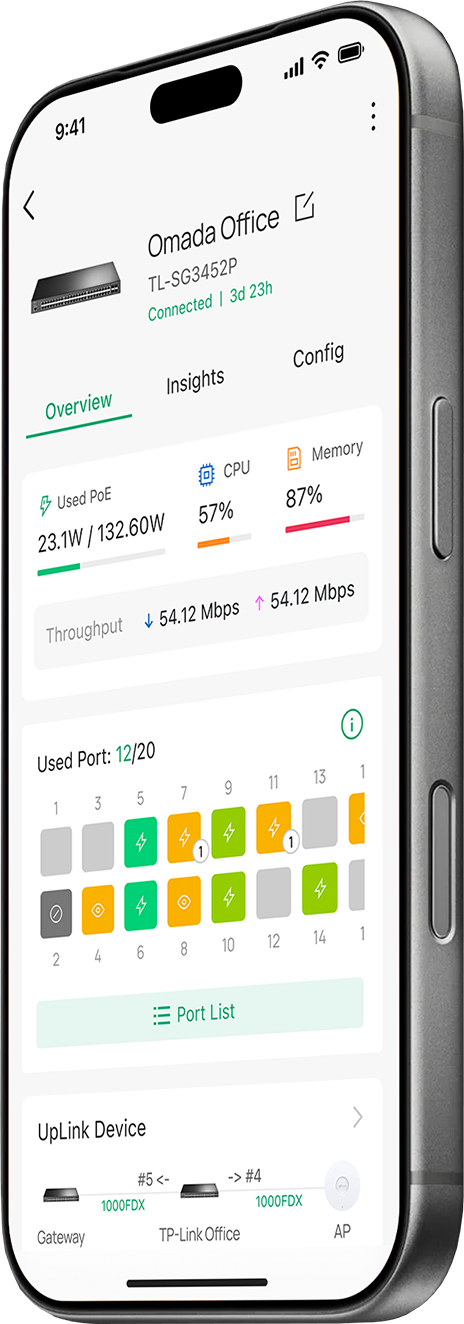

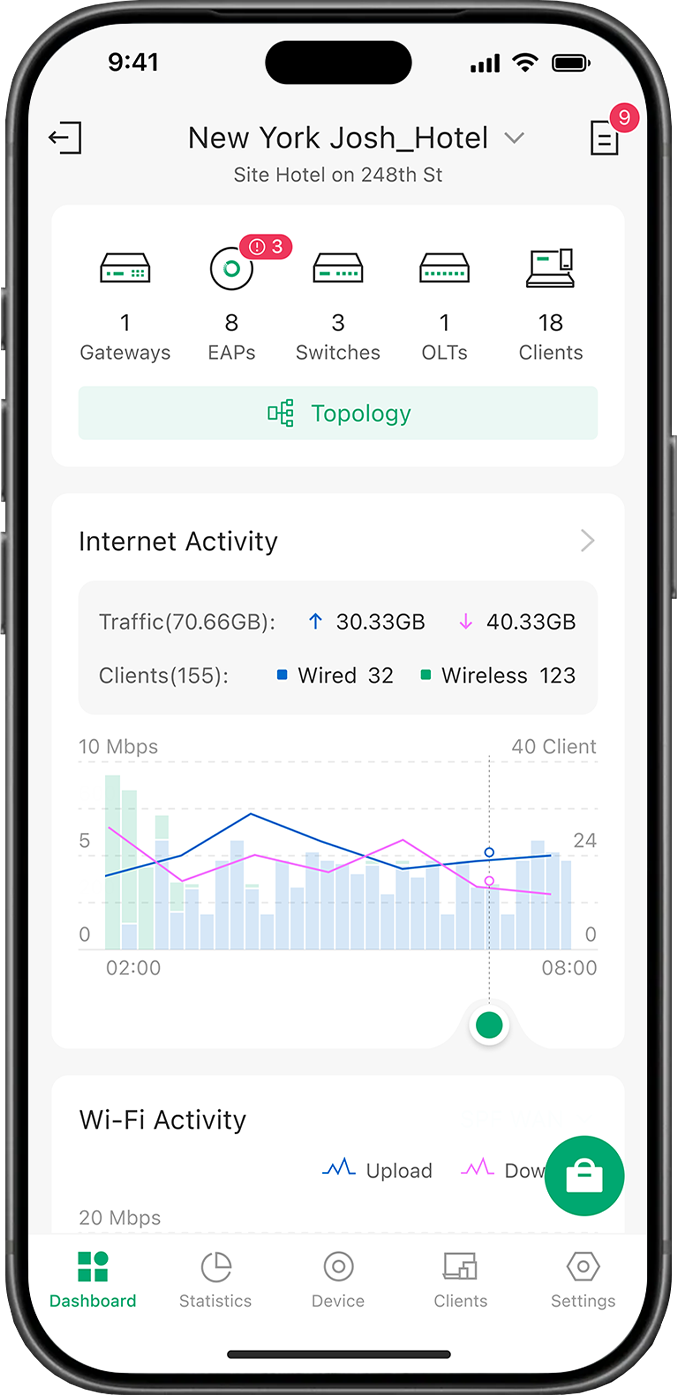

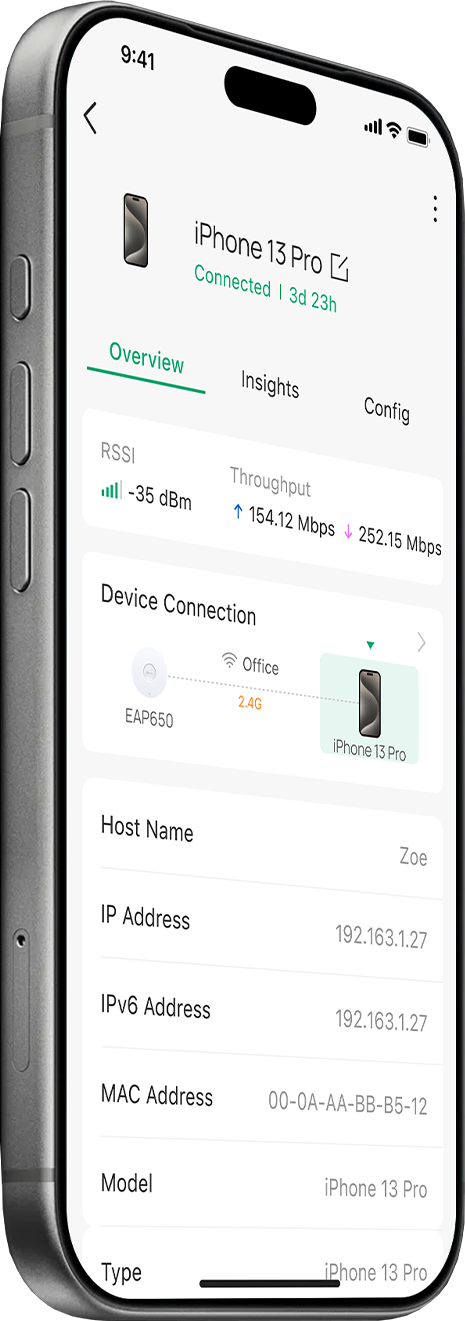

Easy Management with the Omada App
| SECURITY | |
|---|---|
| Access Control | • Source/Destination IP Based ACL • Stateful ACL • IPv4/IPv6 ACL • National Based ACL• FQDN |
| DPI | • Deep Packet Inspection • Support 2466 type Applications |
| DNS Proxy | DNSSEC, DoH, DoT, and DNS Override |
| Filtering | • Web Group Filtering§• URL Filtering#• Web Security§ |
| Attack Defense | • TCP/UDP/ICMP Flood Defense• Block TCP Scan (Stealth FIN/Xmas/Null)• Block Ping from WAN |
| ARP Inspection | • Sending GARP Packets§• ARP Scanning§• IP-MAC Binding• ARP Detection |
| VPN | |
|---|---|
| GRE | √ (Only in Standalone Mode) |
| IPsec VPN | • 20 IPSec VPN Tunnels• LAN-to-LAN, Client-to-LAN• Main, Aggressive Negotiation Mode• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm• IPsec Failover• IKE v1/v2• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm• NAT Traversal (NAT-T)• Dead Peer Detection (DPD)• Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server• PPTP VPN Client (10)***• 16 Tunnels• PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server• L2TP VPN Client (10)***• 16 Tunnels• L2TP over IPSec |
| OpenVPN | • OpenVPN Server• OpenVPN Client (10)***• 50 OpenVPN Tunnels• "Certificate + Account" Mode• Full Mode |
| WireGuard VPN | √ |
| SD-WAN | √ (Only in Controller Mode) |
| HARDWARE FEATURES | |
|---|---|
| DSL Standards | • VDSL2: ITU G.993.2, ITU-T G.997.1• VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b• ADSL2+: ITU-T G.992.5• ADSL2: ITU-T G.992.3• ADSL: ITU-T G.992.1(G.dmt), ITU-T G.992.2 (G.lite) |
| DSL Speed | Up to 350 Mbps |
| Standards and Protocols | IEEE 802.3, IEEE 802.3i, EEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, LLDP |
| Compatibility | VDSL2/ADSL2+/ADSL2/ADSL |
| Interface | • 1× RJ11 Ports• 4× RJ45 Gigabit Ports (1× WAN/LAN, 3× LAN)• 2× USB 2.0 Ports ((Supports USB LTE dongle and USB Storage*) |
| Button | Reset Button |
| Power Supply | 12V/2A external DC power adapter |
| Flash | 128 MB NAND |
| DRAM | 256 MB DDR |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
| Mounting | Desktop/Wall Mount |
| Max. Power Consumption | • Power adapter not included: 13.44 W• Power adapter included: 15.12 W |
| PERFORMANCE | |
|---|---|
| Concurrent Session | 50,000 |
| New Sessions /Second | 2,500 |
| NAT (Static IP) | • Upload: 945 Mbps • Download: 945 Mbps |
| NAT(DHCP) | • Upload: 945 Mbps • Download: 945 Mbps |
| NAT(PPPoE) | • Upload: 940 Mbps• Download:940 Mbps |
| NAT (L2TP) | • Upload: 703 Mbps• Download: 496 Mbps |
| NAT (PPTP) | • Upload: 703 Mbps• Download: 496 Mbps |
| 66 Byte Packet Forwarding Rate | • Upload: 727,679 pps• Download: 598,214 pps |
| 1,518 Byte Packet forwarding rate | • Upload: 76,147 pps• Download: 76,555 pps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 230 Mbps• ESP-SHA256-AES256: 233 Mbps• ESP-SHA384-AES256: 54 Mbps• ESP-SHA512-AES256: 34 Mbps |
| GRE | • Unencrypted: 623 Mbps• Encrypted: 205 Mbps |
| WireGuard VPN | 66 Mbps |
| OpenVPN | 15 Mbps |
| L2TP VPN Throughput | • Unencrypted: 433 Mbps• Encrypted: 175 Mbps |
| PPTP VPN Throughput | • Unencrypted: 511 Mbps• Encrypted: 44 Mbps |
| DPI Throughput | • TCP: 995 Mbps• UDP: 762 Mbps |
| Management Features | |
|---|---|
| Omada App | Yes. Require the use of an Omada Controller. |
| Centralized Management | • Omada Central (Cloud-Based)• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface• Remote Management• Export & Import Configuration• SNMP v1/v2c/v3• Diagnostics (Ping & Traceroute)• NTP Synchronize§• Port Mirroring• CLI§• Syslog Support• TR-069 (data models of TR-098 and TR181 are supported) |
| Zero-Touch Provisioning | Yes. Require the use of an Omada Controller. |
| Management Features | • Automatic Device Discovery• Intelligent Network Monitoring• Abnormal Event Warnings• Unified Configuration• Reboot Schedule• Captive Portal Configuration |
| BASIC FUNCTIONS | |
|---|---|
| LAN DNS | √ |
| WAN Connection Type | • Static IP• Dynamic IP• PPPoE (supports MRU Configuration)• PPTP• L2TP |
| MAC Clone | Modify WAN/LAN MAC Address‡ |
| DHCP | • DHCP Server• DHCPv6 PD Server§• DHCP Options Customization• DHCP Address Reservation• Multi-IP Interfaces• Multi-Net DHCP• WAN DHCP 60 |
| Stateful ACL | √ |
| Quality of Service | √ |
| Bridge VLAN | √ |
| mDNS Repeater | √ |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| Advanced Features | |
|---|---|
| Advanced Routing | • Static Routing• Policy Routing• RIP§• OSPF§ |
| Bandwidth Control | IP-Based Bandwidth Control |
| Load Balance | • Intelligent Load Balance• Application Optimized Routing• Link Backup(Timing, Failover)• Online Detection |
| NAT | • One-to-One NAT• Multi-Net NAT• Port Forwarding• Port Triggering§• NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG• UPnP• Disable NAT |
| Session Limit | IP-Based Session Limit |
| AUTHENTICATION | |
|---|---|
| Web Authentication | • No Authentication• Simple Password• Hotspot (Local User / Voucher△ / SMS△ / Radius△)• External Radius Sever• External Portal Sever△• LDAP§ |
| OTHERS | |
|---|---|
| Network Services Enabled by Default | Web ServerManage and configure device through web (HTTP/HTTPS)• Port: 80/443 Protocol: TCP_____________________________________________________TDP ServerDevice discovery• Port: 20003 Protocol: UDP_____________________________________________________VOIP ServerMonitor SIP messages• Port: 5060 Protocol: UDP_____________________________________________________DHCP ServerHandle DHCP packets• Port: 67 Protocol: UDP_____________________________________________________DNSHandle DNS packets• Port: 53 Protocol: TCP/UDP |
| Certification | CE, FCC, RoHS |

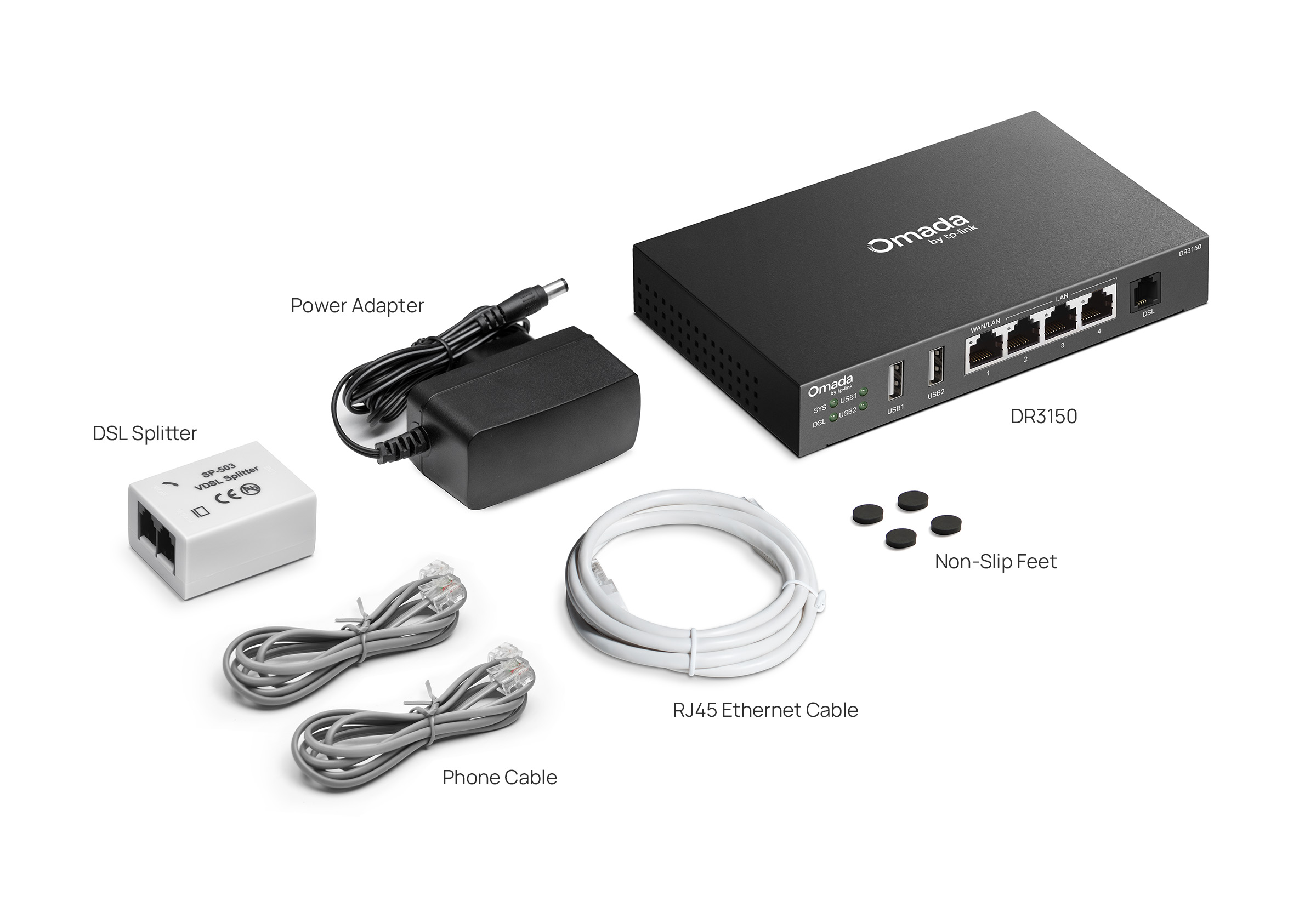

| Package Content | • DR3150• Power Adapter• Ethernet Cable• Phone Cable• External Splitter• Mounting Feet• Quick Installation Guide |
| System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11• MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)• Operating Humidity: 10% to 90% non-condensing• Storage Humidity: 5% to 90% non-condensing |
†Maximum wired signal rates are the physical rates. Actual data throughput is not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors.
‡LAN MAC Address can be modified only in Standalone Mode.
§These features are supported only in Standalone Mode.
△These features are supported only in Controller Mode.
*Supports two USB storage devices simultaneously. For LTE backup, only one LTE dongle can be used at a time.
**These features require the use of an Omada controller.
***DR3150 can work as a VPN client and can connect with up to 10 VPN servers.
#This model supports manual URL entry only and does not support category-based URL Filtering.
