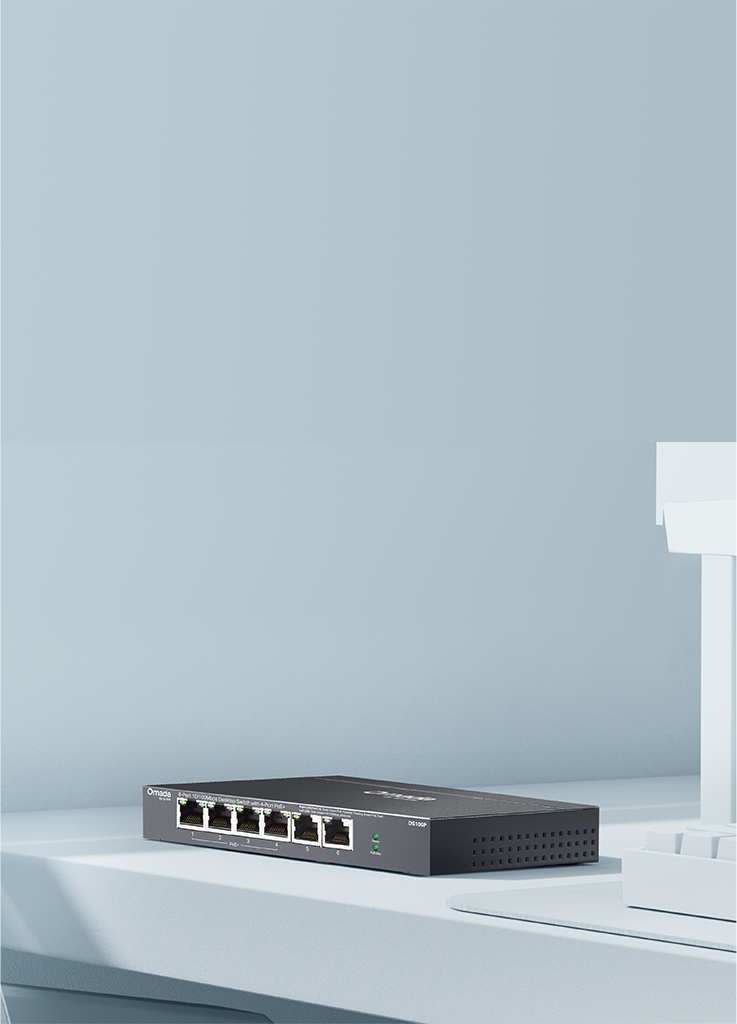

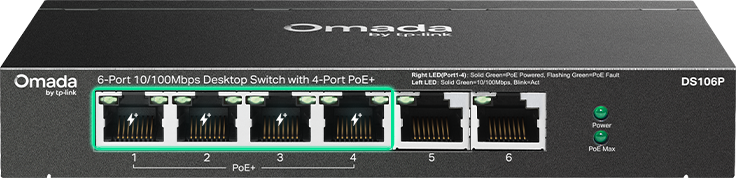

Omada 6-Port 10/100Mbps Unmanaged Desktop Switch with 4-Port PoE+
- 6× 10/100 Mbps RJ45 ports
- 4× PoE+ Ports, transfer data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 67 W for all PoE ports*
- Up to 250m (820ft) data and power transmitting range under Extend Mode**

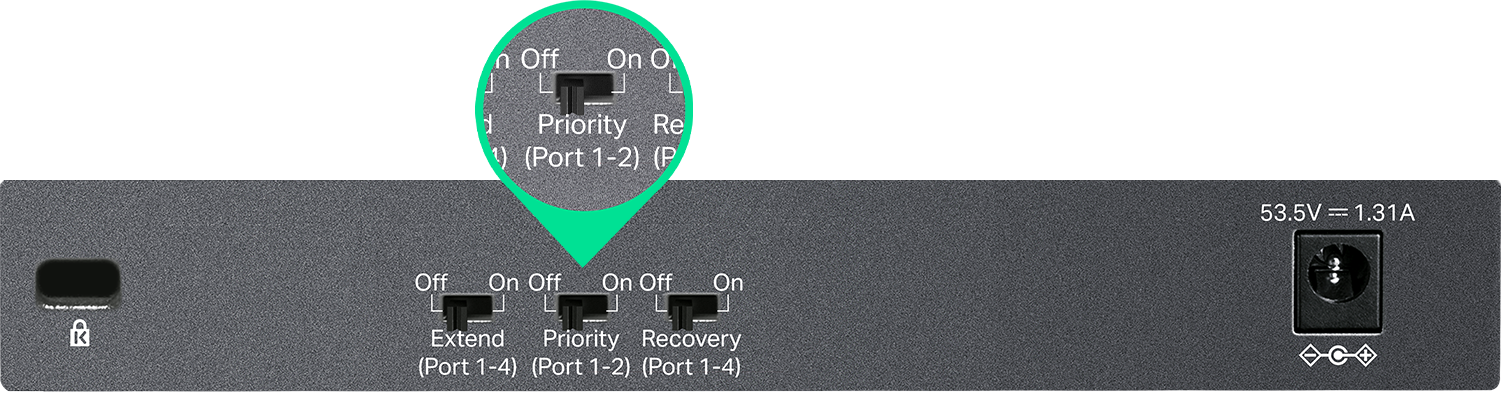

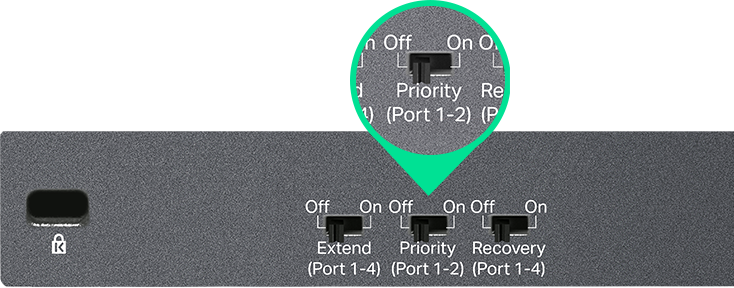

- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application

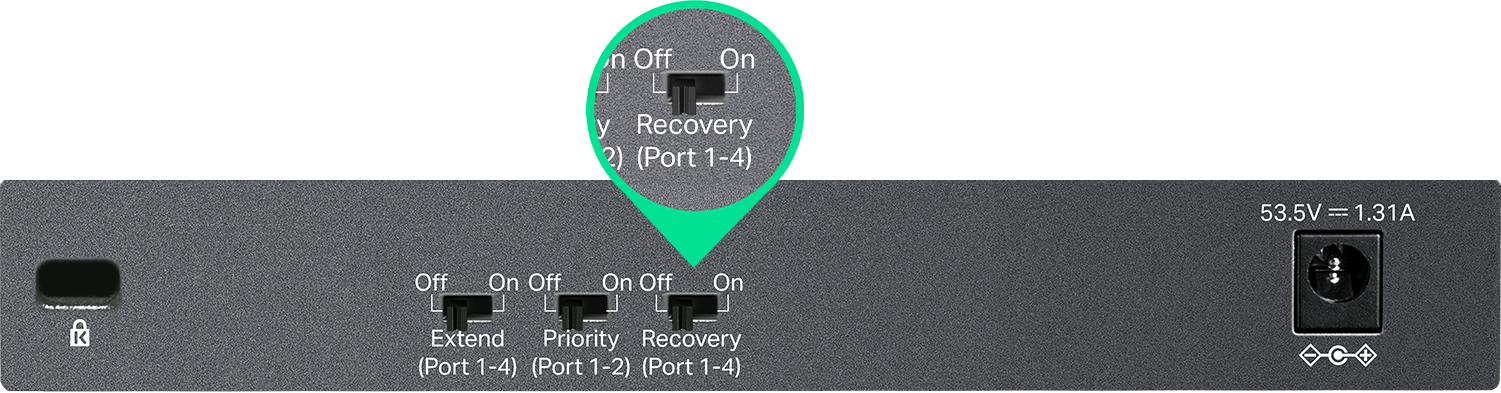

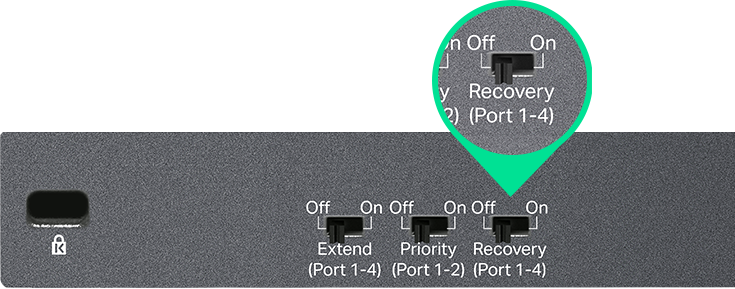

- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play. No configuration or central management required.†
Omada 6-Port
10/100Mbps
Unmanaged Desktop
Switch
with 4-Port
67 W PoE Budget*
Long-Range PoE+ (250m**)
One-Click Priority Mode
PoE Auto Recovery
Desktop or Wall-Mounting
Plug and Play
Fanless Design for Silent Operation
Durable Metal Casing
Power over Ethernet, Flexible Network Deployment
Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 67 W with 30 W max per PoE+ port. When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority ports power to protect devices from damage.
Access
Point
IP
Phone
IP
Camera
Network
Video Recorder
Computer
Network
Video Recorder
Computer

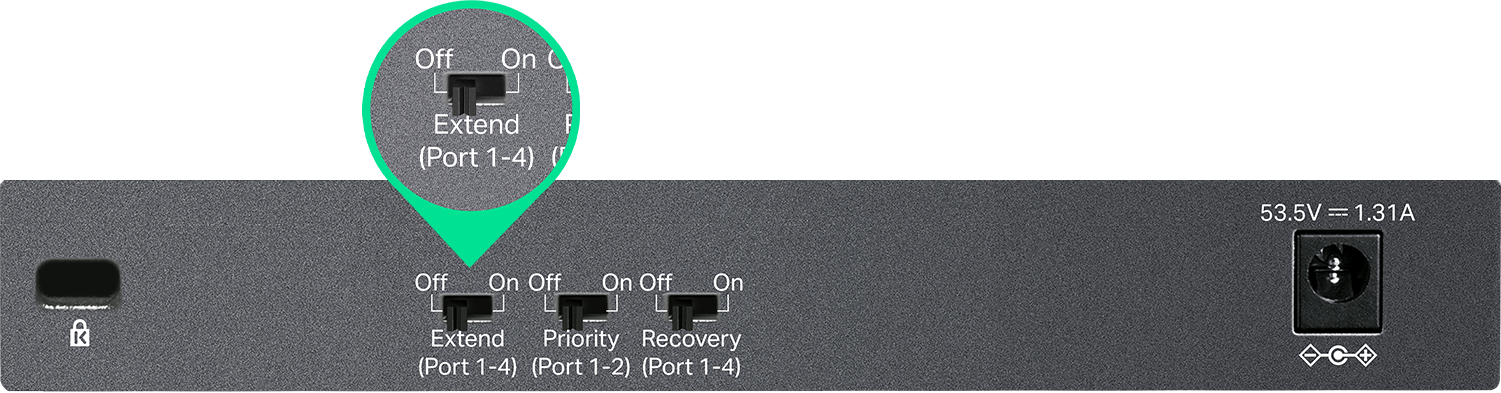

Instantaneous Multi-mode Toggles△

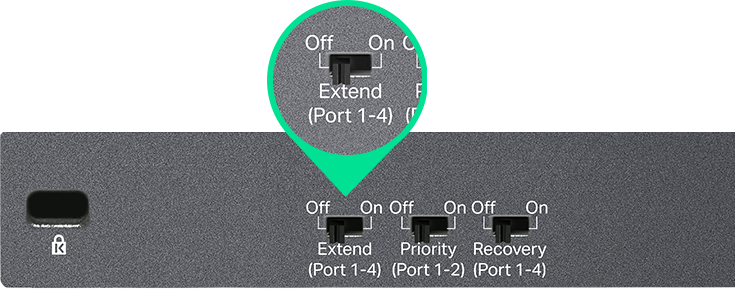

Up to 250m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**
—perfect for IP Camera deployment in large areas.

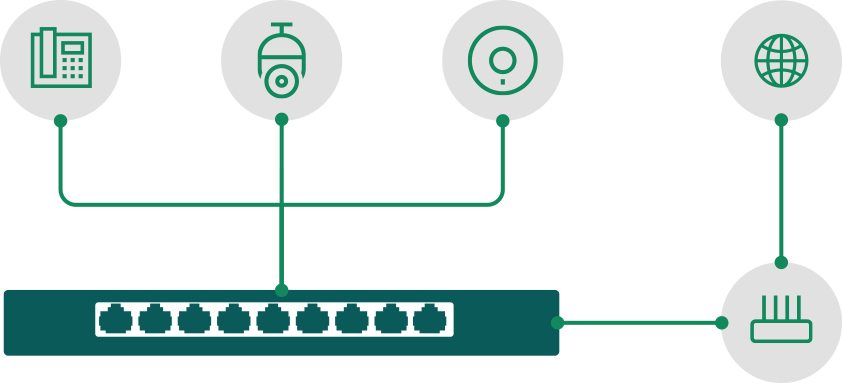

Plug and Play

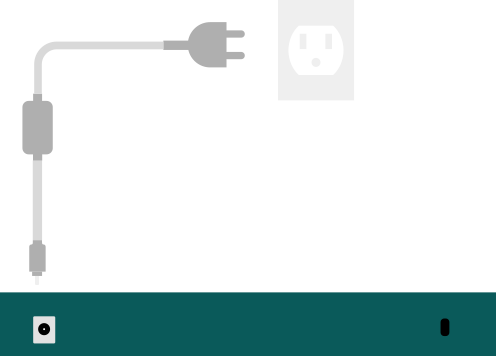

1. Connect to Power
2. Connect the Devices
IP
Phone
IP
Camera
Access
Point
Router
Internet
3. Enjoy
| HARDWARE FEATURES | |
|---|---|
| Interface | • 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+)• AUTO Negotiation• AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5 V DC / 1.31 A) |
| Packet Forwarding Rate | 0.8928 Mpps |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant• PoE Ports: Ports 1–4• Power Supply: 67 W |
| Mac Address Table | 2K |
| Jumbo Frame | 2 KB |
| Switching Capacity | 1.2 Gbps |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
| Max. Power Consumption | • 2.52 W (220 V / 50 Hz, no PD connected)• 75.4 W (220 V / 50 Hz, with 67 W PD connected) |
| Max Heat Dissipation | • 8.59 BTU/h(no PD connected)• 257.11 BTU/h(with 67 W PD connected) |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | • Compatible With IEEE 802.3af/at Compliant PDs• Extend Mode: Ports 1–4• Priority Mode: Ports 1–2• PoE Auto Recovery: Ports 1-4• Mac Address Auto-Learning and Auto-Aging• IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode |
| Transmission Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Content | • DS106P• Power Adapter• Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
△Numbers after different modes represent the effective ports for that mode.
†Omada Unmanaged Switches do not support Omada SDN central management.
