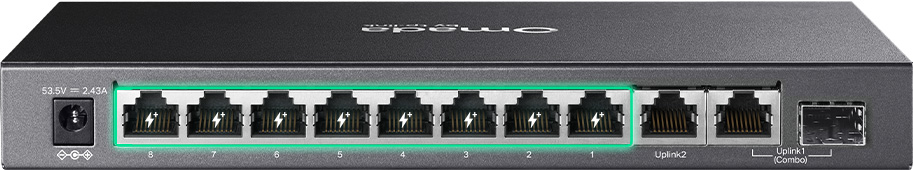

Omada 10-Port Gigabit Unmanaged Desktop Switch with 8-Port PoE+
- 9× Gigabit RJ45 ports, and 1× Gigabit combo SFP/RJ45 Port
- 8× PoE+ ports transfer data and power via a single cable with a total power budget of 123 W*
- Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
- Up to 250 m (820ft) data and power transmission range under Extend Mode**

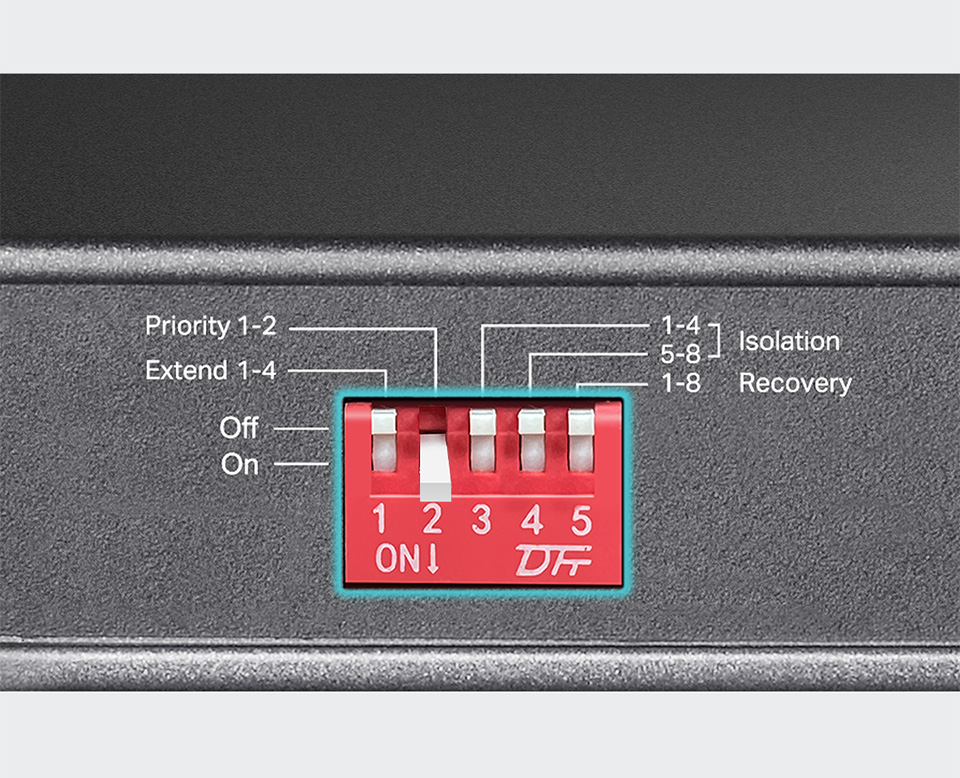

- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications

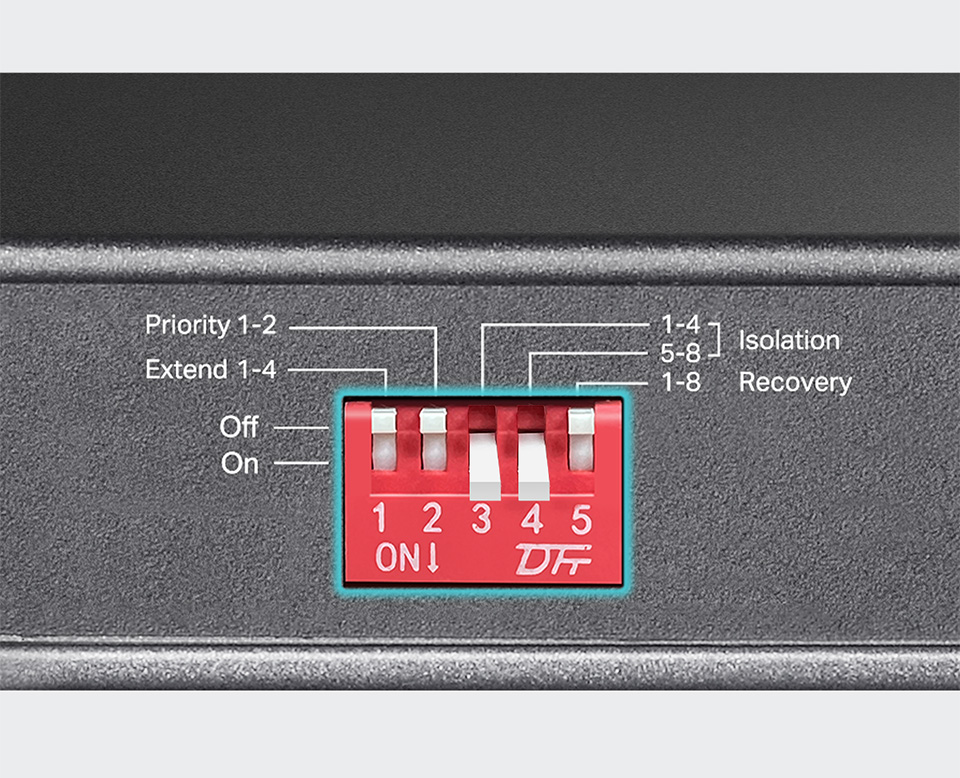

- Isolation Mode allows one-click client traffic separation for higher security and performance

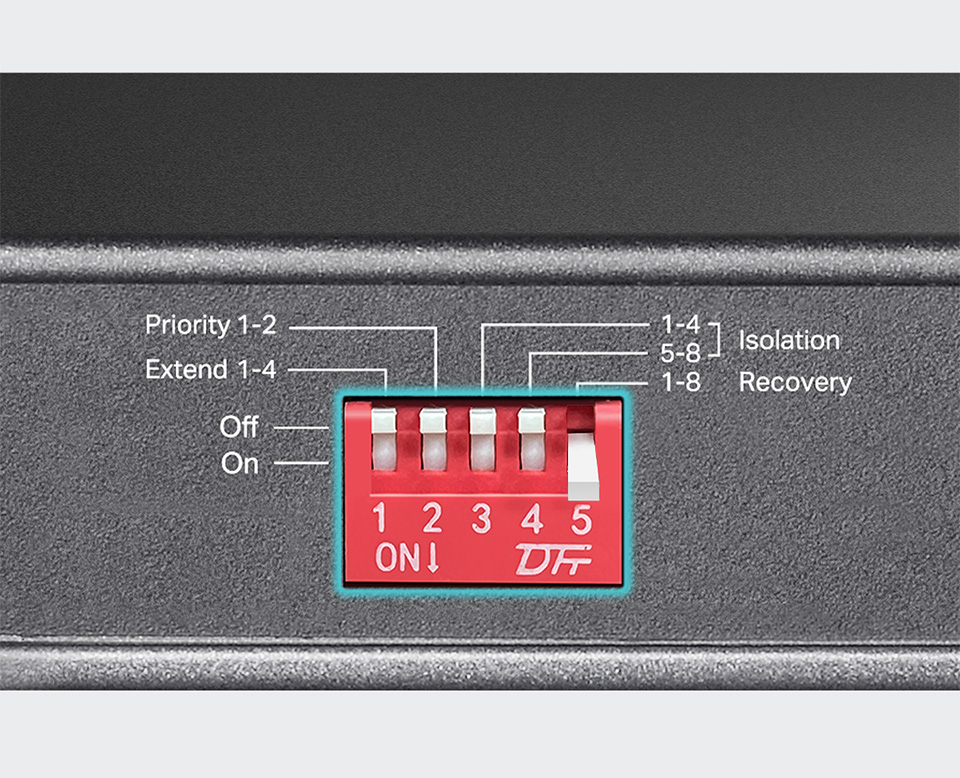

- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.
- Plug and Play. No configuration or central management required.†
- Fanless design reduces power consumption and works silently in its location
Omada 10-Port Gigabit Unmanaged Desktop Switch with 8-Port PoE+
123 W PoE Budget*
Long-Range PoE+ (250m**)
One-Click Priority Mode
Isolation Mode for Security
PoE Auto Recovery
Plug and Play
Silent Operation
Durable Metal Casing
Power over Ethernet, Flexible Network Deployment
Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 123 W with 30 W max per PoE+ port . When total power consumption exceeds 123 W, the intelligent power management will cut the lower priority ports power to protect devices from damage.
Access Point
IP Phone
IP Camera
4K Video
Network Video Recorder
Computer
Instantaneous Multi-mode TogglesΔ

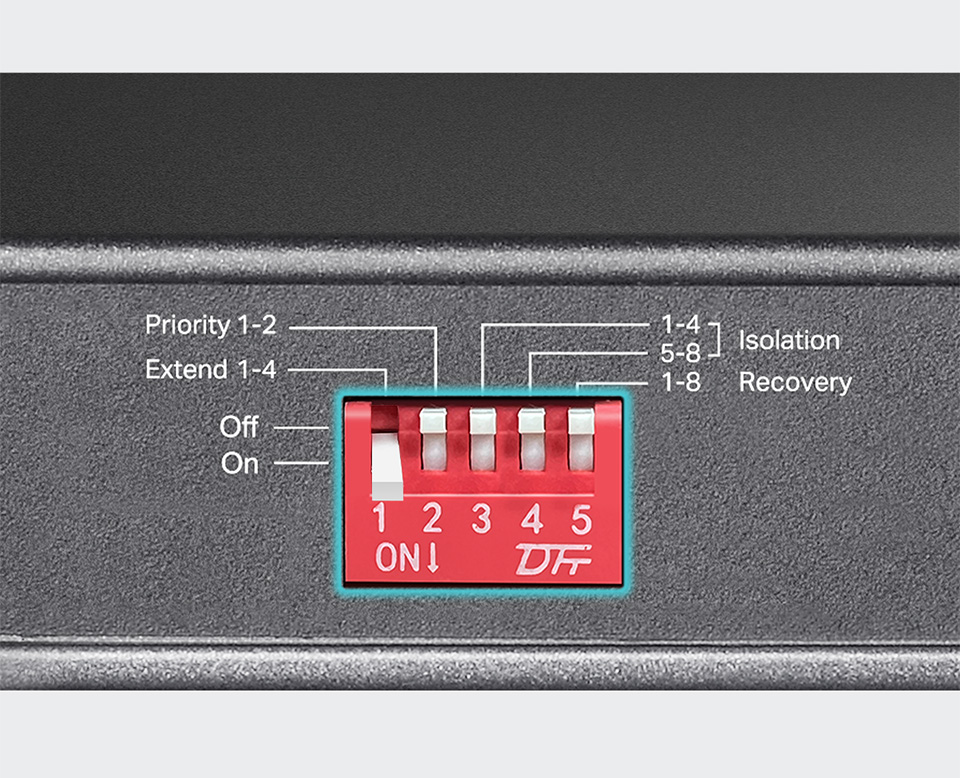

With extend mode, the PoE transmission distance reaches up to 250m** - perfect for IP Camera deployment in large areas.
Plug and Play

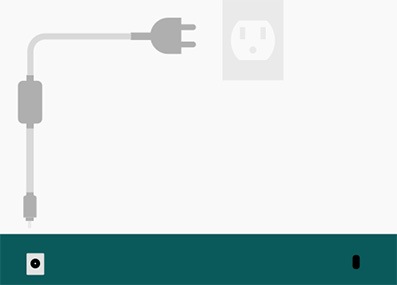

1. Connect to Power
2. Connect the Devices
3. Enjoy
| HARDWARE FEATURES | |
|---|---|
| Interface | • 9× 10/100/1000 Mbps RJ45 Ports• 1× 1000 Mbps Combo SFP/RJ45 Port• AUTO Negotiation• AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5VDC / 2.43A) |
| Packet Forwarding Rate | 14.88 Mpps |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant• PoE Ports: Ports 1–8• Power Supply: 123 W |
| Mac Address Table | 4K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 20 Gbps |
| Dimensions ( W x D x H ) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| Max. Power Consumption | • 7.93 W (220V / 50Hz with no PD connected)• 141.40 W (220V / 50Hz with 123 W PD connected) |
| Max Heat Dissipation | • 27.04 BTU/h (220V / 50Hz with no PD connected)• 482.17 BTU/h (220V / 50Hz with 123 W PD connected) |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | • Compatible With IEEE 802.3af/at Compliant PDs• Extend Mode: Ports 1–4• Priority Mode: Ports 1–2• Isolation Mode: Ports 1–4/5-8• PoE Auto Recovery: Ports 1-8• Mac Address Auto-Learning and Auto-Aging• IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode |
| Transmission Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Content | • DS110GMP• Power Adapter• Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
△Numbers after different modes represent the effective ports for that mode.
†Omada Unmanaged Switches do not support Omada SDN central management.
