EAP110
300Mbps Wireless N Ceiling Mount Access Point
- Smooth Wi-Fi 4: Up to 300 Mbps Wi-Fi with 2×2 MIMO.†
- 1× Fast Ethernet Port: Provides a reliable wired connection for standard network access.
- Optimized Network Performance: Load Balance, Scheduling, and QoS (WMM) work in concert to deliver a smooth and responsive experience.
- Flexible Deployment and Easy Setup: Supports 24V Passive PoE for flexible installation and Omada SDN for one-click setup.
- Advanced Features: Supports centralized management, mesh, and 802.11r seamless roaming.△
- Stable Capacity and Coverage: Supports 100+ concurrent clients** and covers up to 650 ft² (60 ㎡)* for reliable wireless connectivity.
300 Mbps Wireless N Ceiling Mount Access Point
EAP110
300 Mbps Wi-Fi 4
Load Balancing
1× Fast RJ45 Port
24V Passive PoE
Seamless Roaming△
Centralized Management
Enhanced Security
Easy, Quick Setup
Smooth Wi-Fi 4 Speeds at 2.4Ghz
300 Mbps (2.4 GHz)
Load Balance
QoS
Scheduling
Unlock Effortless Deployment with Passive PoE Port
EAP110 supports 24V Passive PoE to make deployment effortless and flexible.
24V Passive PoE Port
Boosted Network Security
Secure Guest Network with up to 8 SSIDs
Boost Your Business with SMS Login
WPA2 for Worry‑Free Open Public Networks
Rogue AP Detection
Seamless Integration into Omada SDN
Omada Wi-Fi 4 Ceiling Mount AP EAP110
Omada Wall Plate AP
Omada Outdoor AP
Omada PoE Switch
Omada VPN Gateway
Cloud Access
Web Browser
Omada App
On-Premises Controllers
Hardware
Or
Software
Internet
| HARDWARE FEATURES | |
|---|---|
| Interface | 1 x 10M/100M Ethernet Port (RJ45); (Support Passive PoE) |
| Button | Reset |
| Power Supply | 24V/0.5A Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Max. Power Consumption | 2.8 W |
| Weight | • Main Unit: 0.22 kg (0.485 lbs) • Mounting Bracket: 0.031 kg (0.068 lbs) • Shipping Unit: 0.72kg (1.59 lbs) |

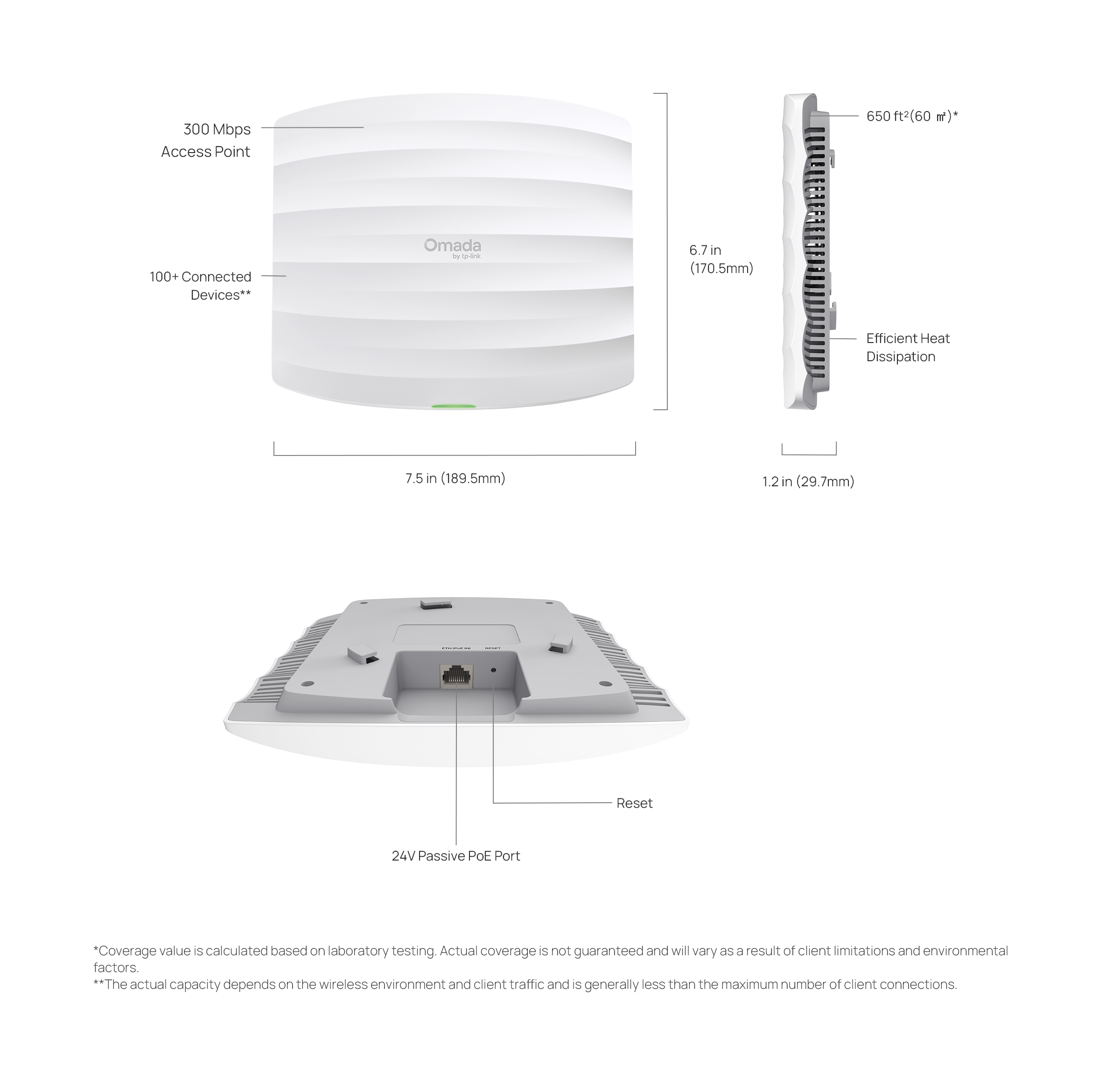

| Dimensions ( W x D x H ) | 7.5 × 6.7 × 1.2 in (189.5 × 170.5 × 29.7mm) |
| Antenna | Internal 2× 4 dBi Omni |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 650 ft² (60 ㎡)* |
| Concurrent Clients | 100+** |
| Wireless Standards | 2.4 GHz: IEEE 802.11b/g/n |
| Frequency | 2.400 to 2.4835 GHz ISM |
| Signal Rate | • 11n: Up to 300 Mbps (dynamic)• 11g: Up to 54 Mbps (dynamic)• 11b: Up to 11 Mbps (dynamic) |
| Wireless Functions | • Multiple SSIDs （Up to 8 SSIDs）• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control （Adjust Transmit Power on dBm）• QoS(WMM)• Seamless Roaming(802.11r)• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication• Access Control• Wireless MAC Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK |
| Transmission Power | • CE:10-19 dBm (2.4GHz, EIRP)• FCC:6-21 dBm (2.4GHz) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada on-premises controller. |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC |
| Package Content | • EAP110• Passive PoE Adapter• Power Cord• Mounting Kits• Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | • Operating Temperature: 0 ℃–40 ℃ (32 ℉–104 ℉)• Storage Temperature: -40 ℃–70 ℃ (-40 ℉–158 ℉)• Operating Humidity: 10%–90% RH non-condensing• Storage Humidity: 5%–90% RH non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
△These features require the use of an Omada on-premises controller.
