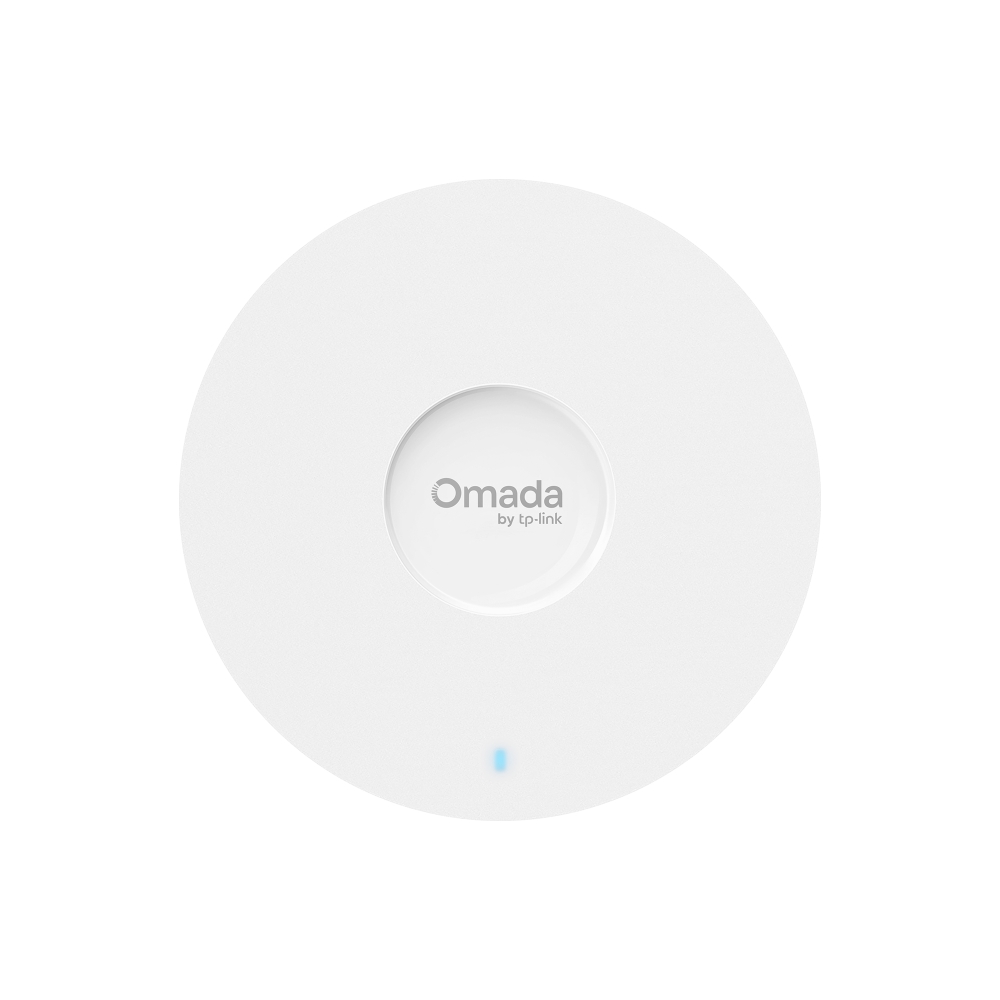

AX1800 Ceiling Mount WiFi 6 Access Point
- 4-Stream Dual-Band Wi-Fi 6: 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.†
- High-Density Connectivity: Up to 1000+ Concurrent connections in crowded network environments.**
- 1× Gigabit Port: Ensures fast connectivity throughout the network.
- Low Latency and Interference: MU-MIMO, OFDMA, and 1024-QAM ensure high performance for your network.‡
- Flexible Deployment and Easy Setup: Supports both 802.3at PoE and DC Power supply for flexible installation. Omada SDN for one-click setup.
- Advanced Features: Supports centralized cloud management, mesh, and seamless roaming.△
- Wider Coverage: Covers up to 1500 ft² (140 m2) for reliable and extensive wireless connectivity.*
Learn more about Omada Wi-Fi 6>
Learn more about Omada Cloud SDN>
-
AX1800 Dual-Band
Wi-Fi 6 -
High-Density
Connectivity -
1× Gigabit Port
-
802.3at PoE
-
Omada Mesh &
Seamless Roaming△ -
Centralized Cloud
Management -
Enhanced
Security -
Easy, Quick Setup
Power Up Your Business
with New-Era Wi-Fi 6
Lightning-Fast AX1800 Wi-Fi 6 Speeds
-
5 GHz 1201 Mbps
-
2.4 GHz 574 Mbps
Wi-Fi 6 with OFDMA
Wi-Fi 5 with OFDM
Higher Efficiency with OFDMA
More Simultaneous Connections with
MU-MIMO
Reliable Performance for
High-Density Scenes
OFDMA and Uplink/Downlink MU-MIMO provide simultaneous connections for dozens of clients, optimizing network
efficiency in high-density deployments. Leverage multi-user capabilities and upgrade your business like never before.
Optimized Wired
Performance with Gigabit
PoE+ Port
Boost overall network efficiency with a
high-performance Gigabit PoE+ port, delivering blazing-fast data speeds. Compatibility with 802.3at PoE is ideal for flexible deployment.
Boosted Network Security
Secure Guest Network
with up to 16 SSIDs
Boost Your Business
with SMS Login
WPA3 for Worry-Free Open Public Networks
Rogue AP Detection
Empowering Businesses
with Reliable Omada SDN Solutions
Omada's Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed
switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
Ceiling Mount AP
EAP620 HD
Wall Plate AP
Outdoor AP
PoE Switch
VPN Gateway
Access
App

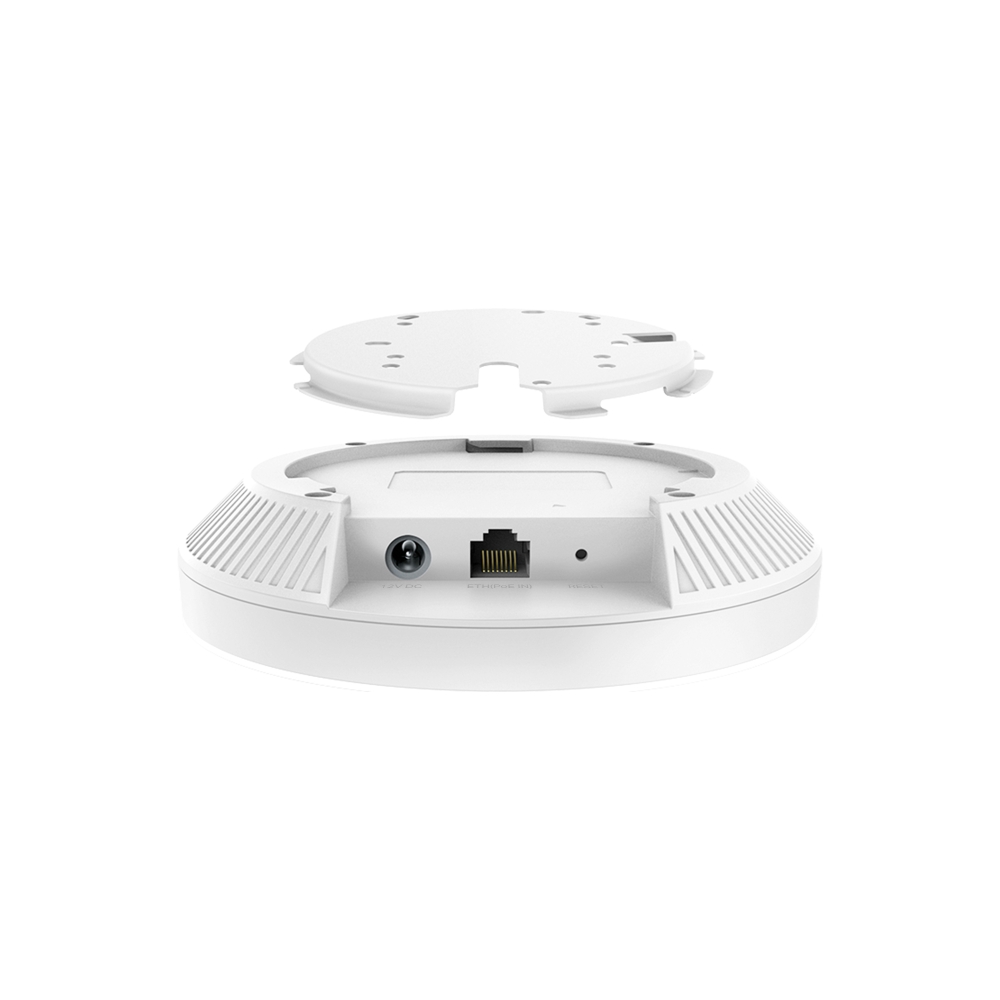

| HARDWARE FEATURES | |
|---|---|
| Interface | 1× Gigabit Ethernet Por |
| Button | Reset |
| Power Supply | • 802.3at PoE• 48 V Passive PoE• 12 V/1.5 A DC |
| Max. Power Consumption | • EU: 14.4 W (For PoE); 13.1 W (For DC)• US: 14.9 W (For PoE); 13.4 W (For DC) |

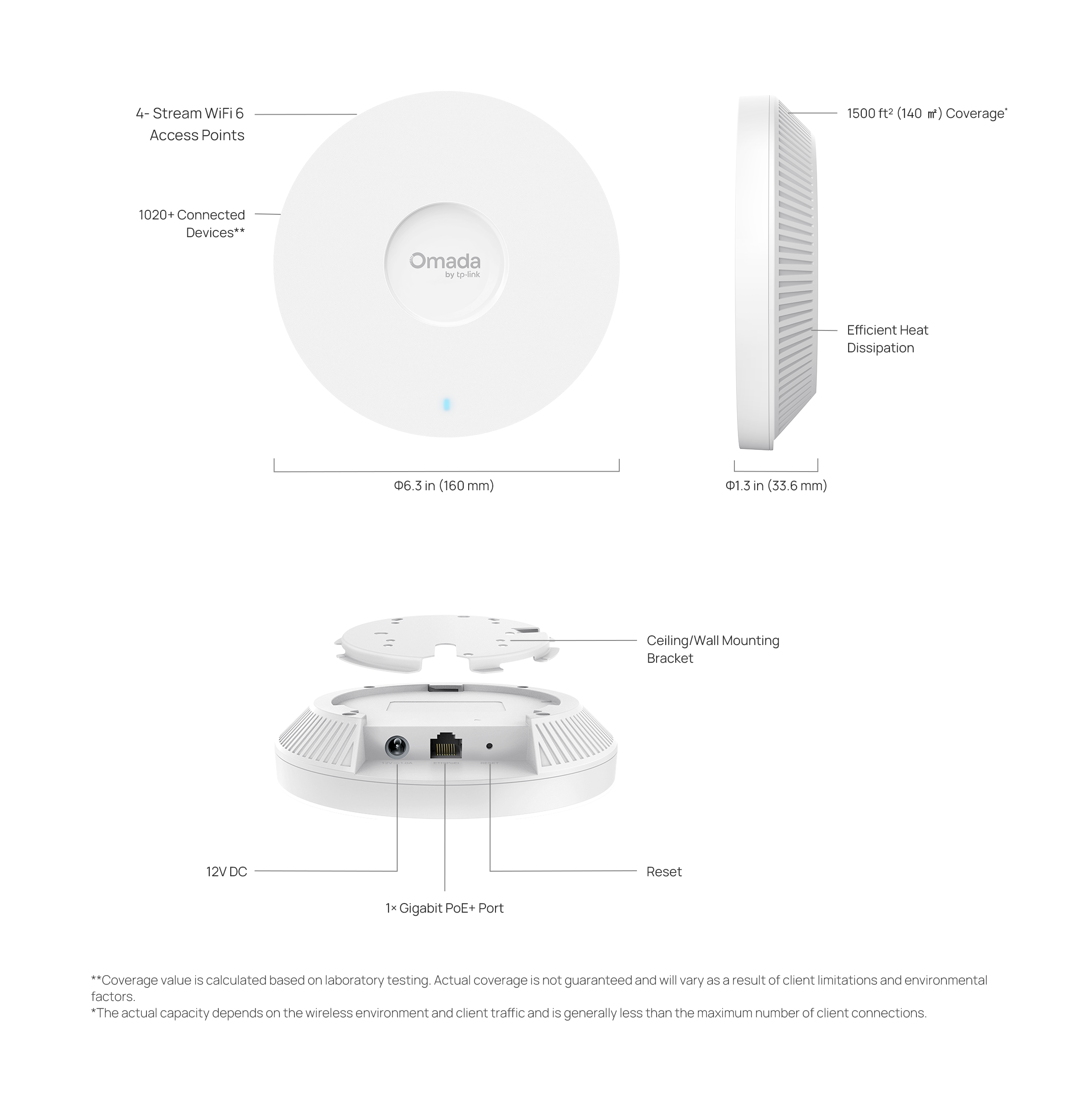

| Dimensions ( W x D x H ) | 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Antenna | • 2.4 GHz: 2× 4 dBi• 5 GHz: 2× 5 dBi |

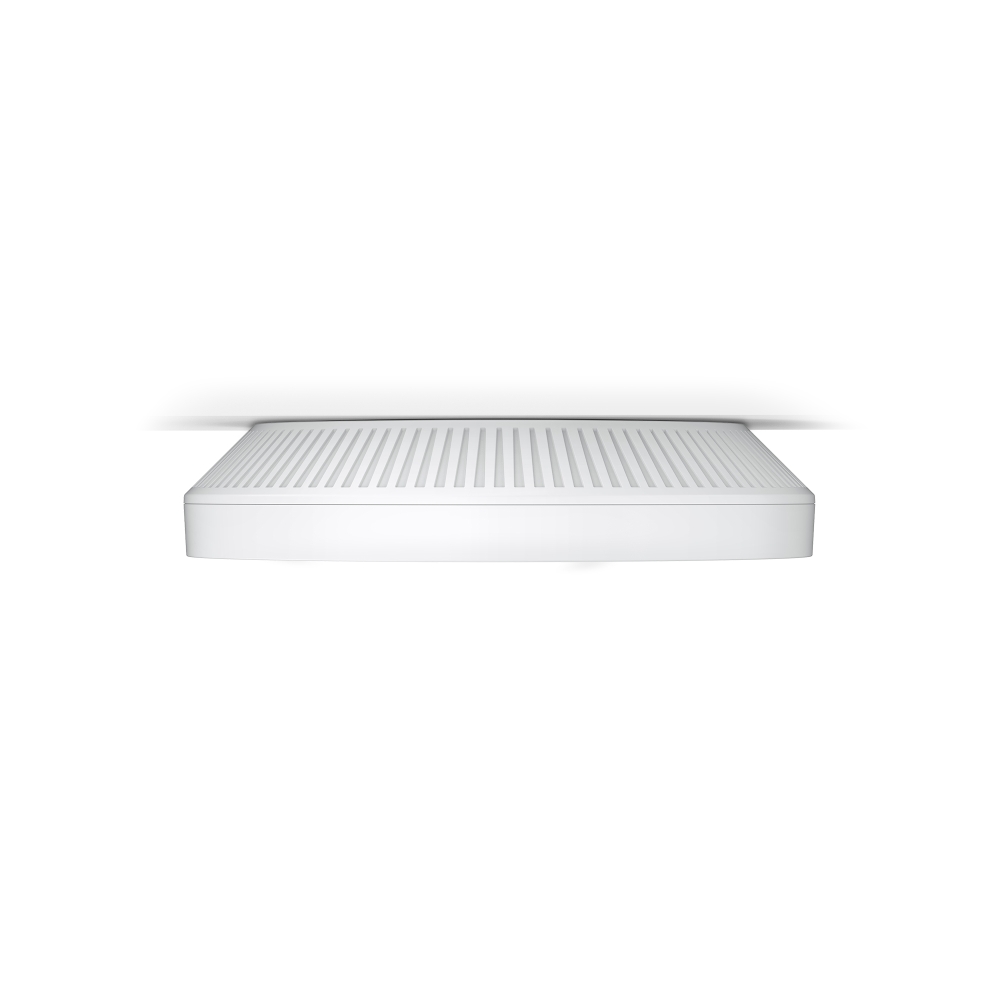

| Mounting | Ceiling /Wall Mounting/Junction Box Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 1500 ft²(140㎡)* |
| Concurrent Clients | 1,020+** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 574 Mbps (2.4 GHz) + 1201 Mbps (5 GHz)† |
| Wireless Functions | • 1024-QAM• 4× Longer OFDM Symbol• OFDMA• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• MU-MIMO • Seamless Roaming(802.11k/v/r)△• Omada Mesh△• Band Steering• Load Balance• Airtime Fairness • Beamforming• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication△• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE:7-20 dBm(2.4 GHz, EIRP)7-23 dBm(5 GHz, U-NII-1 & U-NII-2A, U-NII-2C, EIRP) 7-30 dBm (5 GHz, U-NII-2C, EIRP)• FCC:4-25 dBm (2.4 GHz)4-25 dBm (5 GHz, U-NII-1, U-NII-2A, U-NII-2C, U-NII-3) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Central (Cloud-Based)• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of Omada Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Require the use of Omada Controller. (Supported by EAP620 HD v2.0 and above) |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • EAP620 HD• Power Adapter• Ceiling/Wall/Junction Box Mounting Kits• Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 6 (802.11ax), and features including 160 MHz Bandwidth, OFDMA, MU-MIMO, and 1024-QAM requires clients to also support the corresponding features.
*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
△Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada controller
