AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
- Seamless 1.2 Gbps Wi-Fi Speeds: 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz.†
- Dual-Band Omnidirectional Coverage: Up to 300 m (984 ft) long-range coverage.§
- PoE Support: Support both standard 802.3af and Passive PoE (PoE adapter included) for flexible installations.
- Ideal for Outdoor Environments: IP65 weatherproof, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C.△
- Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup.
- Advanced Features: Omada Mesh, Seamless Roaming, and Centralized Cloud Management.*
-
AC1200 Speeds up to 1.2Gbps
-
MU-MIMO
-
Centralized Cloud Management
-
Omada Mesh
-
Fast Roaming
-
802.3af PoE/Passive
PoE -
1× Gigabit Port
-
IP65 Waterproof & Dustproof
AC1200 Wave 2 Speeds up to 1.2Gbps
-
5 GHz 876 Mbps
-
2.4 GHz 300 Mbps
-
MU-MIMO
-
Beamforming
-
Band Steering
-
Airtime Fairness

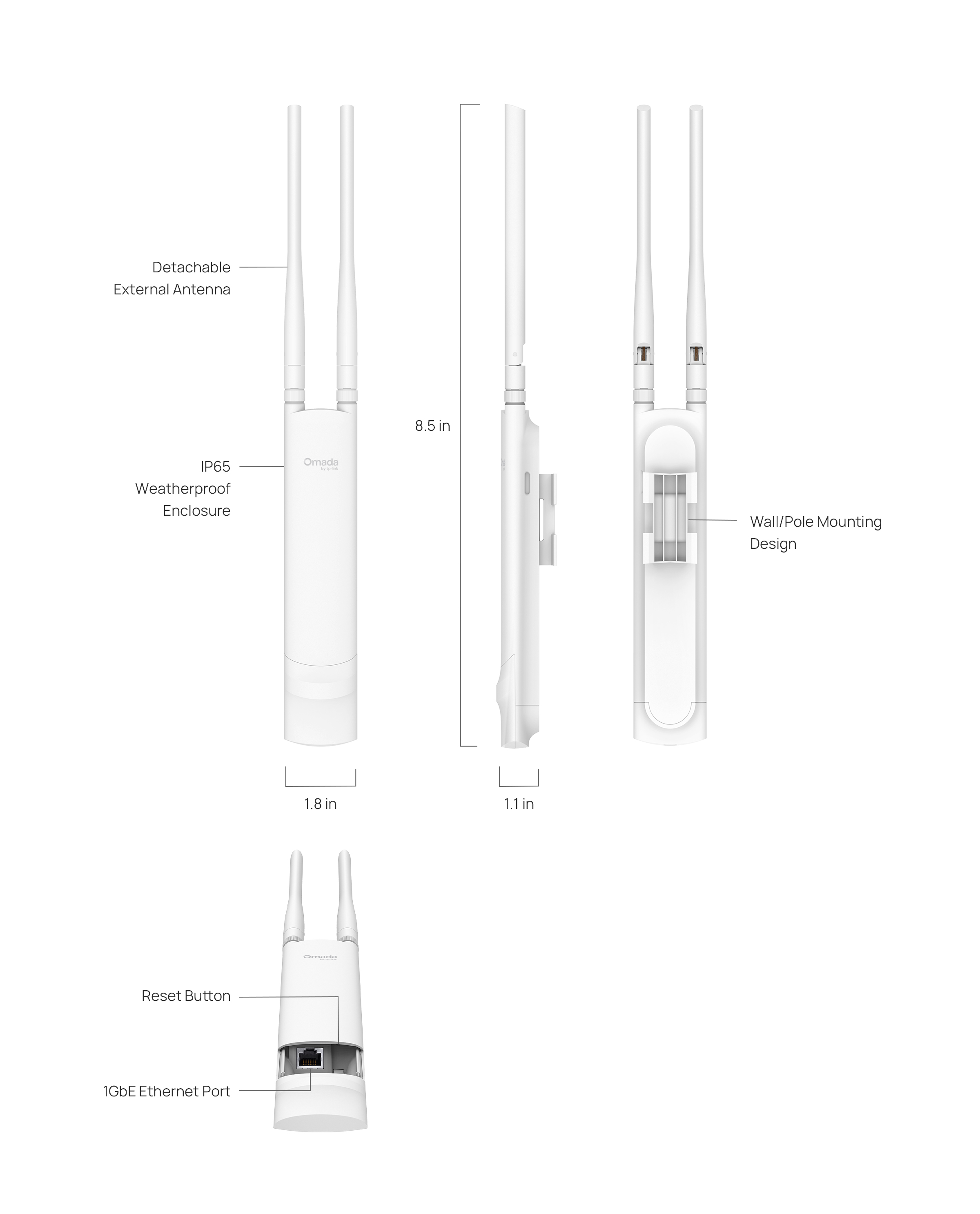

Professional Hardware Design
With special design of its antenna, appearance, power options, and installation methods, EAP225-Outdoor can perfectly fit indoor and outdoor scenarios.
-
Detachable
Omni MIMO
Antennas
-

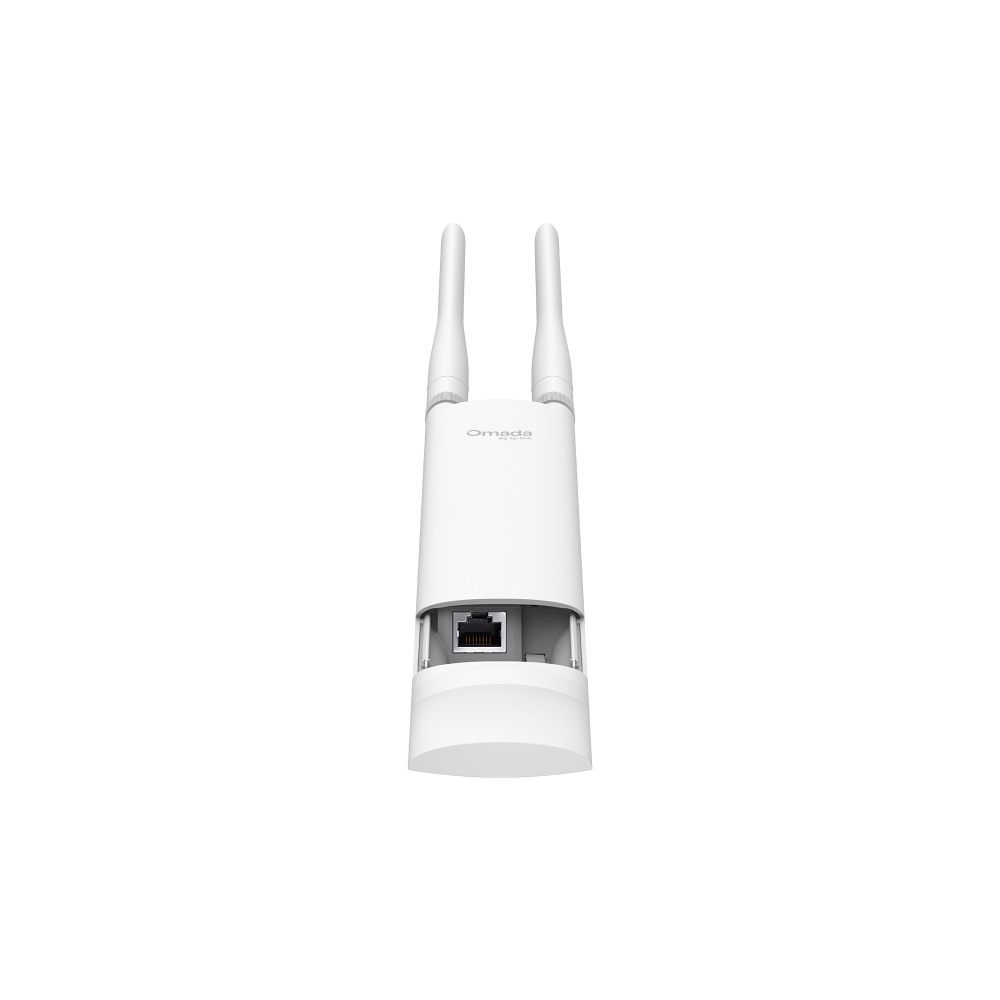

1× Gigabit
PoE
RJ45 Port
-
Robust
IP65
Weatherproof Enclosure
-
Reliable
6kV
Lightning Protection
Long-Range Coverage
Dedicated high-power amplifier and professional antennas along with the latest generation 802.11ac Wave 2 MU-MIMO technology, ensure superior Wi-Fi performance and long-range coverage over 2.4 GHz (200 m) and 5 GHz (300 m) wireless bands.§
Seamless Connectivity with Mesh and Roaming
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
PoE+
Omada PoE+ Switch
Easy and Quick Setup
Easy Installation Through Pole and Wall Mount Options
Pole Mounting
Wall Mounting
Works with Omada SDN for One-Click Setup
Omada SDN allows users to quickly set up the EAP225-Outdoor through automatic device identification and one-click adoption.
Empowering Businesses
with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
Ceiling Mount
Wi-Fi 6 AP
Wall Plate
Wi-Fi 6 AP
Outdoor AC1200 Wave 2 AP
EAP225-Outdoor
PoE Switch
VPN Gateway
(Cloud-Based)
| HARDWARE FEATURES | |
|---|---|
| Interface | 1× Gigabit Ethernet (RJ-45) Port (Support 802.3af/at PoE (Alternative A) and Passive PoE) |
| Button | Reset |
| Power Supply | • 802.3af PoE• 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included - For Dry Indoor Use Only) |
| Max. Power Consumption | 10.5W |
| Dimensions ( W x D x H ) | 1.8 × 1.1 × 8.5 in (46 × 26.7 × 214.9 mm)(without antenna & mounting kit) |
| Antenna | 2 Dual-Band Omni Antennas (External Detachable)• 2.4 GHz: 2× 3 dBi• 5 GHz: 2× 5 dBi |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole/Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Frequency | 2.4GHz, 5GHz |
| Signal Rate | • 802.11ac: 6.5 Mbps to 867 Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) • 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT 20/40)• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps• 802.11b: 1, 2, 5.5, 11Mbps• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Functions | • Multiple SSIDs（Up to 16 SSIDs, 8 for each band）• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control （Adjust Transmit Power on dBm）• QoS(WMM)• MU-MIMO• Seamless Roaming(802.11k/v/r)*• Omada Mesh*• Airtime Fairness• Beamforming• Band Steering• Load Balance• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication*• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support |
| Transmission Power | • CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP)• FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • Access Point EAP225-Outdoor• Passive PoE Adapter• Power Cord• Mounting Kits• Installation Guide• Waterproof Ruber Insert• Waterproof Antenna |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: -30–70 ℃ (-22–158 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
§The advertised coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of the performance of the equipped antennas, client limitations, and environmental factors.
△Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.
*Omada Mesh, Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. Please go to Omada Mesh Product List to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.
