Beam Bridge 7 KIT
Coming SoonOmada Wi-Fi 7 5 GHz & 6 GHz MLO PtP Wireless Bridge
- Fiber-Grade Performance: Delivers multi-gigabit wireless throughput within 0.6 mi (1 km).*
- Plug-and-Play with Preconfigured Kit: Preconfigured for instant PtP auto-pairing, the bridges deliver instant connectivity right out of the box.
- 6 GHz Band Unlocked by AFC: AFC enables the 6 GHz band for outdoor uses, minimizing congestion and interference.**
- Seamless 5 GHz / 6 GHz Auto-Failover: Improve service continuity with 6 GHz/5 GHz MLO‡ redundancy and 5 GHz static puncturing to retain high usable bandwidth.
- Flexible Multi-Gigabit Connectivity: Features 1× 2.5 GbE port and 1× SFP+ port to fully maximize Wi-Fi 7 bandwidth. Supports flexible deployments with standard 802.3at PoE+ or 54V Passive PoE.
- Outdoor-Ready Durability: Features an IP68-rated weatherproof enclosure, UV-resistant coating, and 6kV lightning protection.
- App-Guided Alignment: Visualized app-guided alignment for long-distance setups and instant speed testing for installation verification.
- Remote Monitoring & Management: Standalone mode or Omada SDN mode for remote centralized management via web UI or app.†
-
Multi-Gig Wireless Transmission Within
0.6 mi (1 km)* -
AFC-Enabled
6 GHz -
Seamless
5 GHz / 6 GHz Auto-Failover -
IP68 Weatherproof
Enclosure -
Auto-Pairing with Preconfigured Kit
-
1× 2.5G RJ45 Port &
1× SFP+ Port -
802.3at PoE or 54V Passive PoE
-
Centralized
Management via
Web or App
Fiber-Grade PtP Wireless Backbone
Driven by integrated 14 dBi directional antennas, experience multi-gigabit throughput that turns your point-to-point link into a fiber-gride extension of your high-speed local network at a long distance.
Multi-Gig Speeds Within 0.6 mi (1 km)*Based on TP-Link’s real field testing, the bidirectional wireless transmission is over 3.5 Gbps at 0.6 mi (1 km) using Wi-Fi 7’s 5 + 6 GHz MLO technology,
while over 1.4 Gbps at the same distance with 5 GHz only. Actual performance varies as a result of local regulations, environmental factors, and network configuration.
Plug-and-Play Effortless Installation
-

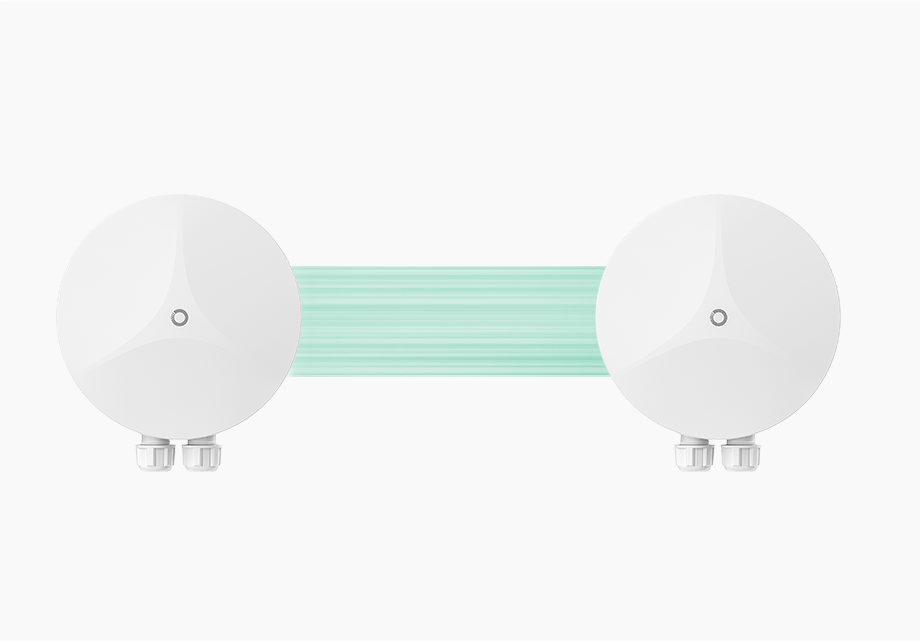

Auto-PairingAuto-Pairing,
No Manual Setup Needed -
Agile LED Signal Indicators
for Easy Alignment
6 GHz Band Unlocked by AFC for Outdoor Uses
AFC compliance unlocks the 6 GHz band, offering cleaner spectrum and minimized interference essential for reliable outdoor connectivity.*
*Active internet connection is required for initial AFC (Automated Frequency Coordination) verification to enable 6GHz transmission.
Ultra-Reliable, Always-On Dual-Band PtP Link
5 GHz
6 GHz

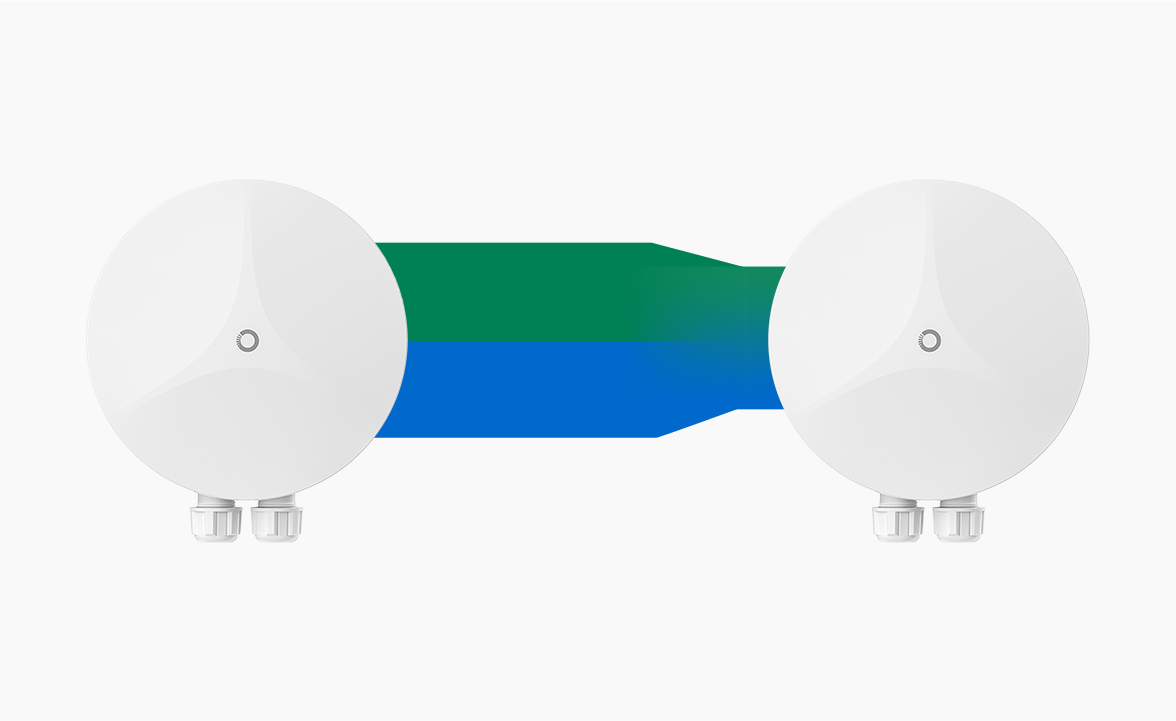

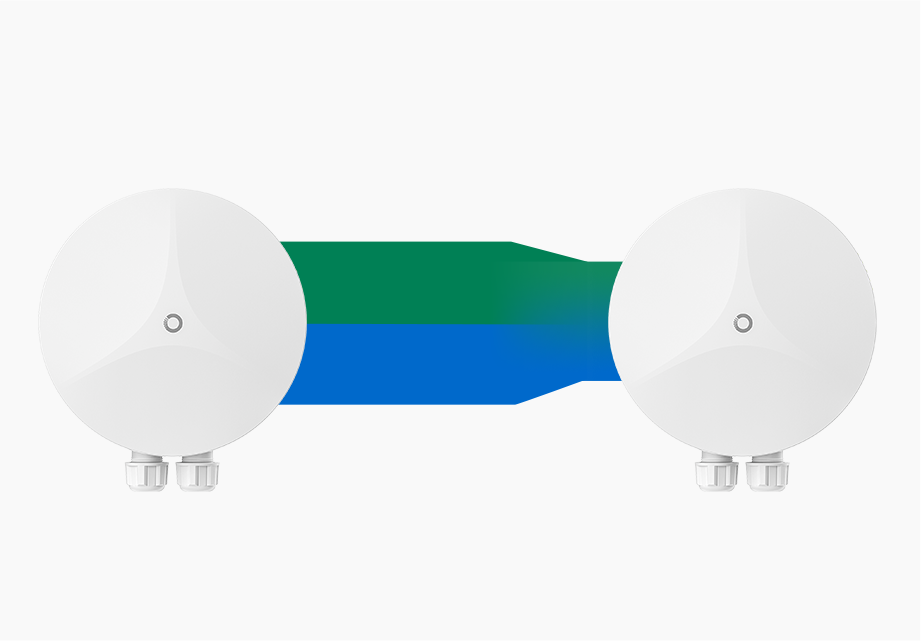

6 GHz & 5 GHz MLO Redundancy
Ensures seamless backup and zero downtime by intelligently aggregating and switching between bands.
Fixed Puncturing Pattern
Excluded by a Fixed Bitmap
Kept Available for Data Transmission
Resulting Usable Channel
Retain 240 MHz with Static Puncturing
A fixed puncturing pattern excludes an 80 MHz segment, enabling 240 MHz of usable channel bandwidth.
Versatile Connectivity Options for Seamless Integration
Equipped with a 2.5G PoE+ port and an SFP+ port, it eliminates wired bottlenecks to fully unleash Wi-Fi 7 speeds. Maximize your deployment flexibility with convenient single-cable PoE power for local installs, or leverage fiber connectivity for long-distance runs.
2.5G Port
SFP+ Port
(Supports 802.3at PoE or 54V Passive PoE)
Easy Alignment with Adjustable Mounting Bracket & App Guidance
-
Before Alignment
-
After Alignment
Effortless App-Guided Alignment
Wall/Pole Mounting with Adjustable Bracket
Industry-Leading IP68 Weatherproof with Anti-UV Coating
Ensures reliable performance and durability in harsh outdoor conditions, protecting the device from water, dust, and UV damage.
IP68 Weatherproof Enclosure
6kV Lightning Protection
-30 °C to 70 °C Working Range
High-Throughput Backhaul for Complex Environments
Beam Bridge 7 KIT creates a long-distance point-to-point link for your critical infrastructure, delivering fiber-grade stability wirelessly.
Business Campuses
Bridge multiple office buildings with a multi-gigabit wireless backbone.
Industrial Facilities
Connect distributed factories and warehouses with a robust wireless link.
Outdoor Campsites
Cover remote camping zones, powering multiple outdoor APs for dispersed guests.
Expansive Estates
Expand the main home’s network for whole-property coverage.
Standalone & Remote Monitoring with SDN Management
(Cloud-Based) Network Video Recorder Omada Switch Omada Gateway Main Bridge Sub-Bridge Internet Cloud Access to Omada Controller Web Browser Omada App
| HARDWARE FEATURES | |
|---|---|
| Interface | • 1× 2.5G Ethernet Port (RJ45)• 1× 10G SFP+• 1× Grounding Terminal |
| Button | 1× Reset Button |
| Power Supply | • 802.3at PoE• 54V Passive PoE (Passive PoE Adapter Included) |
| Max. Power Consumption | 18.18W |
| Dimensions ( W x D x H ) | 7.87 × 8.92 × 2.12 in (200 × 226.7 × 54 mm) (without mount) |
| Antenna | 14 dBi |
| Antenna Beamwidth | Horizontal: 45°, Vertical: 45° |
| Weatherproof Enclosure | IP68 |
| Bandwidth | • 5 GHz: 20 MHz/40 MHz/80 MHz/160 MHz/240 MHz• 6 GHz: 20 MHz/40 MHz/80 MHz/160 MHz/320 MHz |
| Mounting | Pole / Wall Mounting (Kits Included) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Central (Cloud-Based)• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| Zero-Touch Provisioning | Yes |
| WIRELESS FEATURES | |
|---|---|
| PtP | Yes |
| Transmission Distance | 3 km (1.9 mi) |
| Wireless Standards | IEEE 802.11 a/n/ac/ax/be |
| Frequency | 5 GHz, 6 GHz |
| Signal Rate | • 5 GHz: Up to 4324 Mbps• 6 GHz: Up to 5765 Mbps |
| Wireless Functions | • Preamble Puncturing• BSS Coloring• Multi-Link Operation (MLO)• MU-MIMO• Maximum number of associated STAs: 16• Speed Test• Channel Optimization• Antenna Alignment• ACS (Automatic Channel Selection)• Rate Limit• Guest Network |
| Wireless Security | • VLAN• Rogue AP Detection• Wireless Encryption |
| Transmission Power | FCC: 4-25 dBm (5 GHz, U-NII-1 & U-NII-3)4-21 dBm (5 GHz, U-NII-2A & U-NII-2C)4-25 dBm (6 GHz) |
| OTHERS | |
|---|---|
| Certification | FCC, IC, BSMI, NCC |
| Package Content | • Beam Bridge 7 KIT• Installation Guide• Mounting Kits• Passive PoE Adapters• Power Cords• Waterproof Seals |
| Lightning Protection | Ethernet Ports: ±6 kV |
| Environment | • Operating Temperature: -30 ℃–70 ℃ (-22 ℉–158 ℉);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing |
| Weight | 1.1 kg (2.43 lb) |
* Based on TP-Link’s real field testing, the bidirectional wireless transmission is over 3.5 Gbps at 0.6 mi (1 km) using Wi-Fi 7’s 5 + 6 GHz MLO technology, while over 1.4 Gbps at the same distance with 5 GHz only. Actual performance varies as a result of local regulations, environmental factors, and network configuration.
** An active internet connection is required for initial AFC verification to enable 6 GHz transmission. AFC availability varies by region and country. For supported areas, refer to: https://www.omadanetworks.com/support/faq/4373/
† These functions require the use of an Omada controller.
‡ This function requires the use of an Omada controller (V6.3 or above).
