ER701-5G-Outdoor

โปรเจกต์

Omada 5G Outdoor Gateway

5G NR up to 7.01 Gbps (SA)/4.5 Gbps (NSA)*
2× Nano SIM Ensures Business Continuity
1× 2.5G PoE In Port
9× internal Cellular Antennas and1× Internal Wi-Fi Antenna
App-Guided Antenna Alignment for Optimal 5G Performance
Omada SDN for One-Click Setup, Pole/Wall/Window Mounting
Centralized Cloud Management^Δ
IP66 Weatherproof

Learn more about Omada Cloud SDN>

5G NR up to
7.01 Gbps
2× Nano SIM for
5G NR Failover
Enhanced Signal
with 9× High-Gain
Cellular Antennas
1× 2.5G PoE In
Port
Effortless App-Guided
Alignment
Centralized
Management via App
or Web
IP66
Weatherproof
Easy Setup

Blazing-Fast 5G NR Network Connections

Powered by 5G NR (SA & NSA), ER701-5G-Outdoor delivers speeds of up to 7.01 Gbps, extending coverage to remote outdoor areas without extra wiring.

SA Mode

7.01Gbps

1.25Gbps

NSA Mode

4.5Gbps

730Mbps

Higher Speed
Lower Latency
Larger Capacity

Dual SlM Ensures Business Continuity

In scenarios involving automatic failover mechanisms, backup WAN connections, and various network switching situations, the system ensures your business stays up and running.

SIM1
Active

SIM2
Standby

Normal
SIM1
Fault

SIM2
Active

Fault

Unmatched 5G Performance with Advanced Hardware

With 9× high-gain directional internal cellular antennas, ER701-5G-Outdoor guarantees strong, stable 5G signals. Its 2.2 GHz quad-core CPU ensures high-speed processing with ultra-low latency, while the 2.5G PoE port simplifies outdoor deployment by reducing wiring complexity.

9× Internal Cellular Antennas

Quad-Core 2.2 GHz CPU

2.5G PoE In Port

App-Guided Antenna Alignment for Optimal 5G Performance

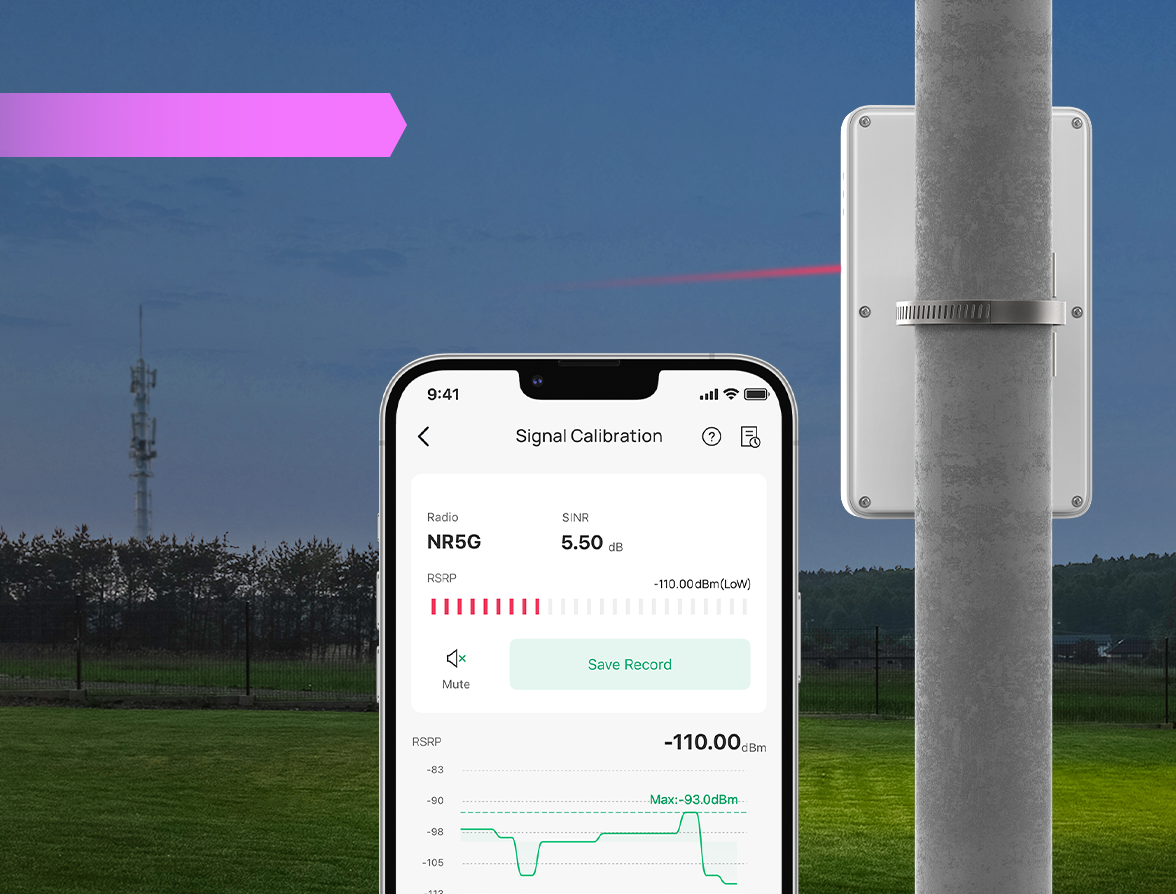

Before Alignment

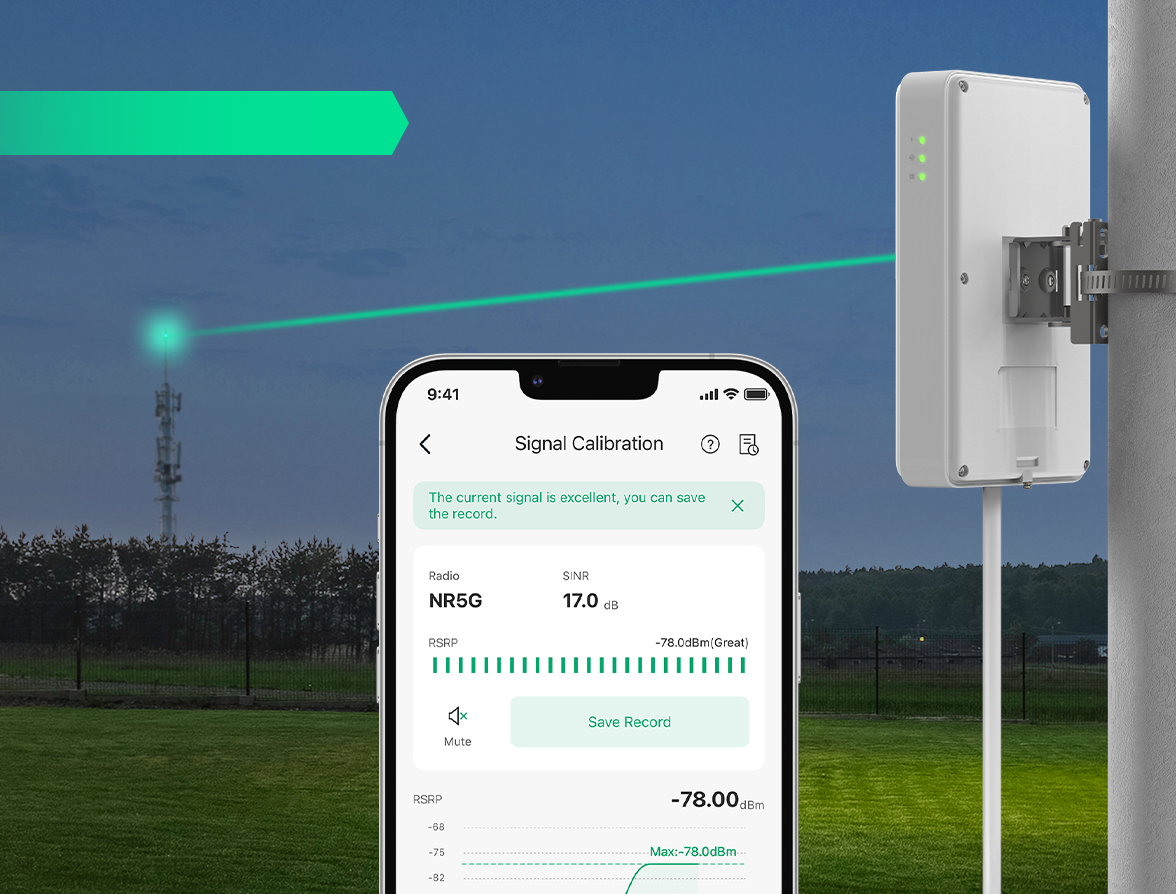

After Alignment

Robust Outdoor Design for Long-Lasting Reliability

The fully sealed ER701-5G-Outdoor is dustproof, waterproof, and built to endure prolonged submersion and extreme outdoor conditions.

IP66
Weatherproof
6kV Lightning
Protection
-30 °C to 60 °C
Operating Range
Wind
Resistance

Flexible Mounting Solutions for Easy Setup

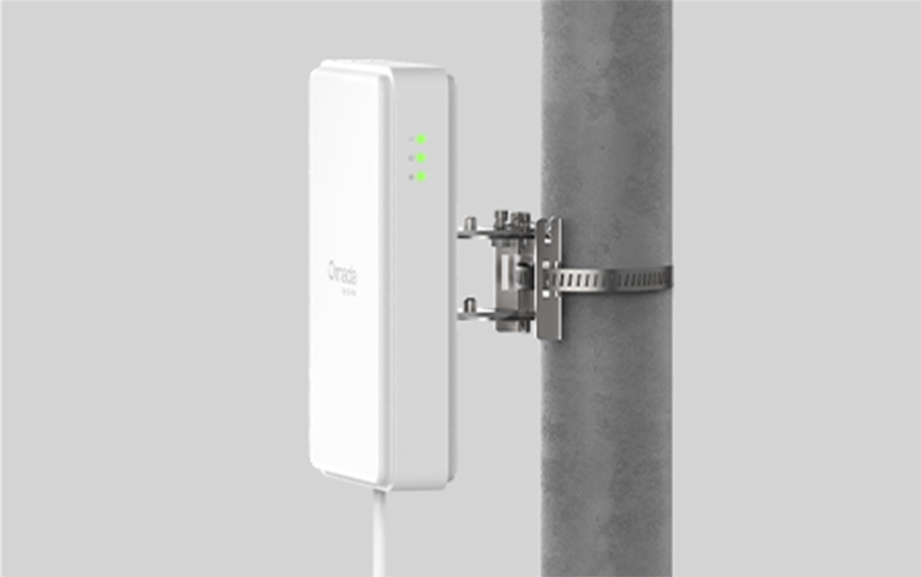

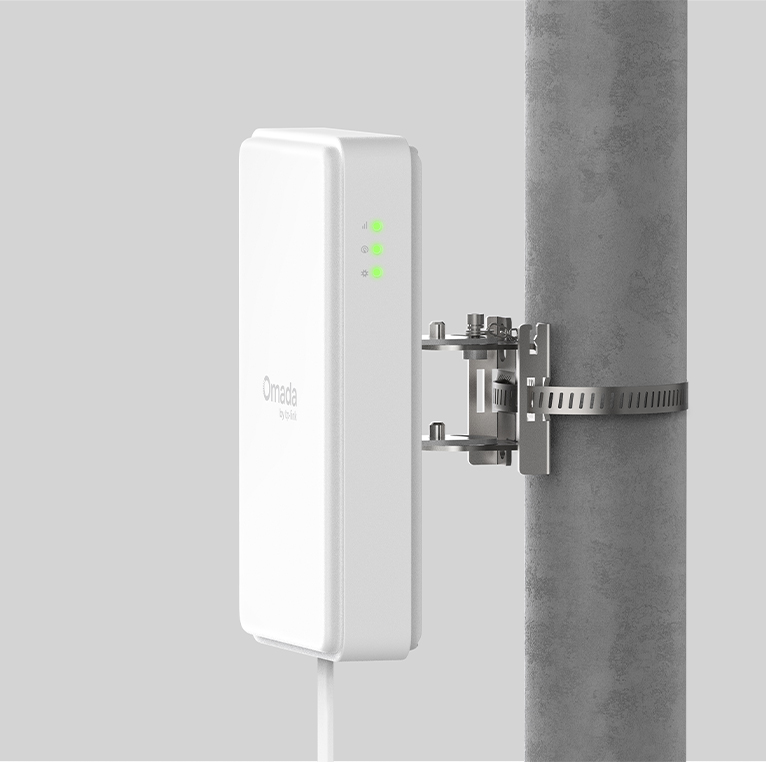

Pole Mounting

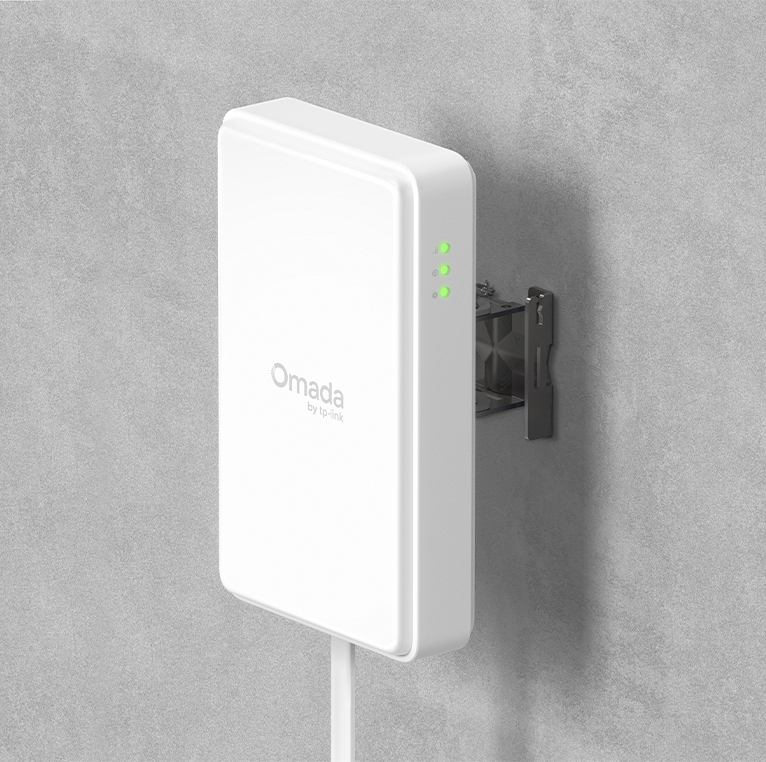

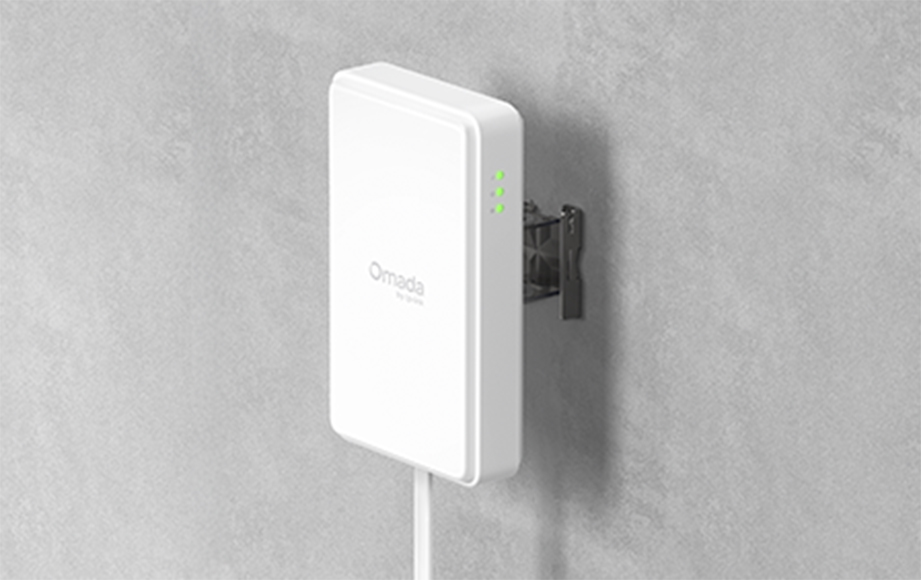

Wall Mounting

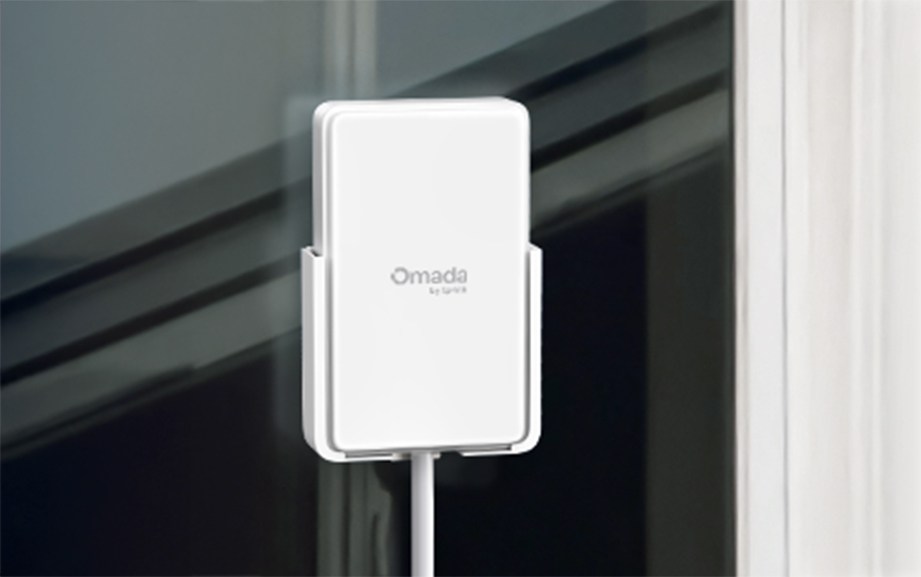

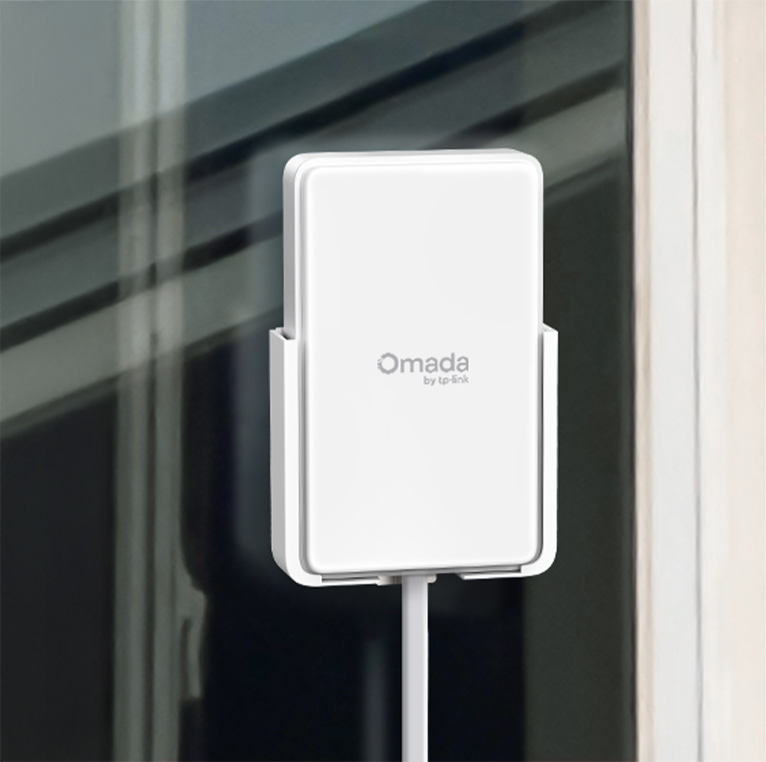

Window Mounting

Empowering Businesses with Reliable Omada SDN Solutions

Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.

On-Premises Controllers

Omada Central

Hardware

Software

Omada Ceiling
Mount AP

Omada Wall
Plate AP

Omada
Outdoor AP

Omada
POE Switch

Omada
VPN Gateway

Internet

Cloud Access

Omada App

Web Browser

Omada 5G Gateway ER701-5G-Outdoor

Standard version or Essentials version

5G/4G

Easy Management with the Omada App

Equipped with 2.4G WiFi technology, the ER701-5G-Outdoor supports seamless provisioning and management through the Omada app.

5G outdoor

5G/4G/3G
Speed

SECURITY
DPI	Deep Packet Inspection
Access Control	Source/Destination IP Based Access Control
Filtering	• Web Group Filtering (only in Standalone Mode) • URL Filtering • Web Security (only in Standalone Mode)
ARP Inspection	• Sending GARP Packets • ARP Scanning (only in Standalone Mode) • IP-MAC Binding
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN

HARDWARE FEATURES

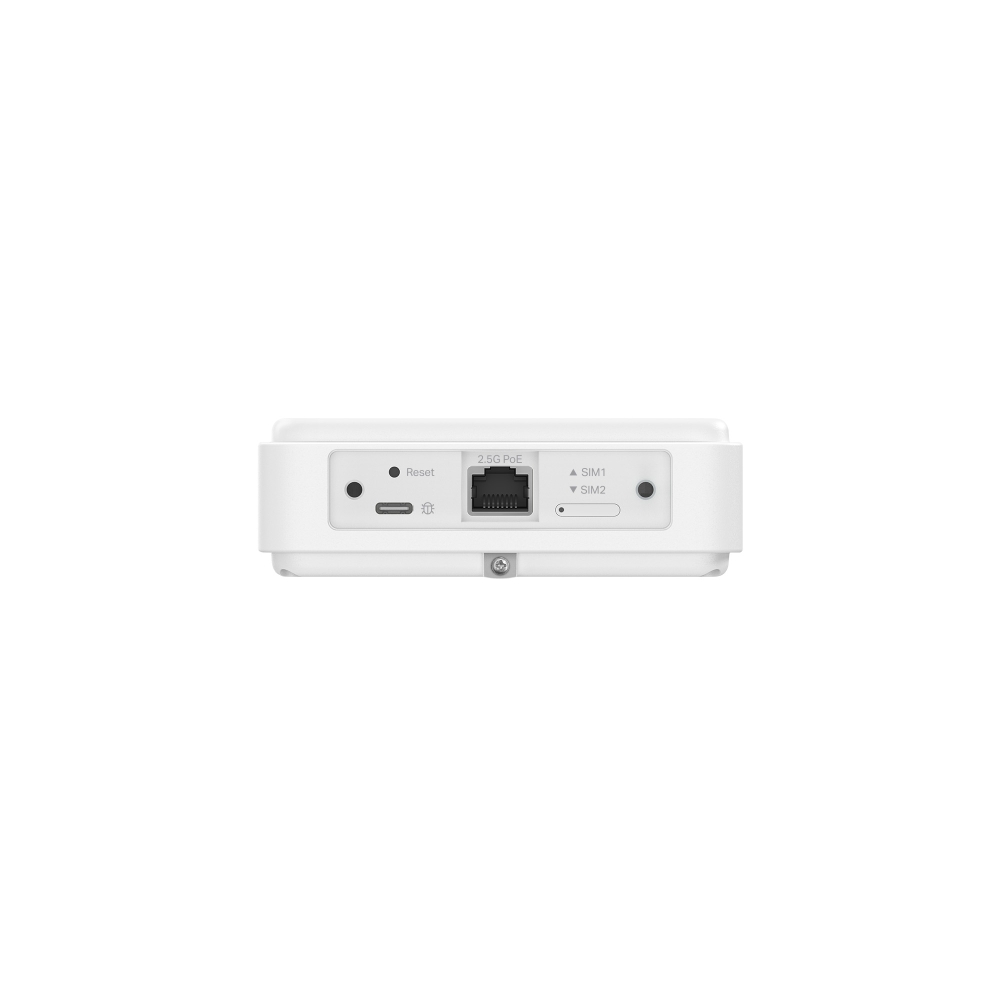

Interface	1×2.5G RJ45 Port
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) • 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Button	Reset Button
Power Supply	• 802.3at PoE: 42-57V 0.6A • Passive PoE: 48V 0.375A
Flash	4GB eMMC Flash
DRAM	2GB LPDDR4x
LED	System, Network Type, Signal Strength

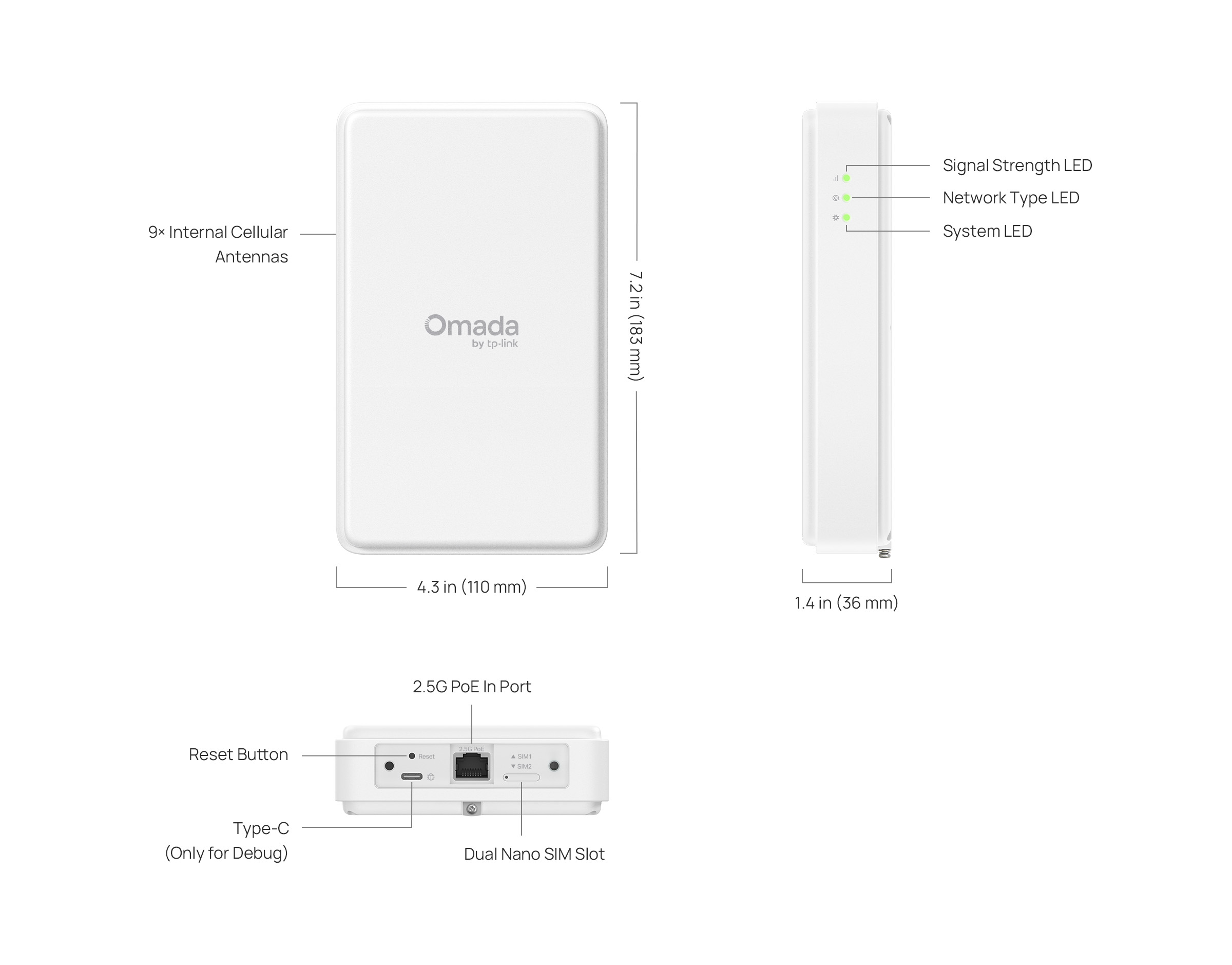

Dimensions ( W x D x H )	7.2 × 4.3 × 1.4 in (183 × 110 × 36 mm)
Antenna	• 9× internal Cellular antennas • 1× internal Wi-Fi antenna
SIM Slot	1×Dual Nano SIM slot
Mounting	Wall/Pole/Window Mounting
Max. Power Consumption	15.3W (802.3at PoE or Passive PoE)

PERFORMANCE
Concurrent Session	500, 000
New Sessions /Second	6,100

WIRELESS FEATURES
Wireless Speeds	5G NR Speed • SA: Downlink: 7.01 Gbps, Uplink: 1.25 Gbps • NSA: Downlink: 4.5 Gbps, Uplink: 730 Mbps LTE Speed • Downlink: 1.6 Gbps, Uplink: 211 Mbps Wi-Fi Speed • 2.4 GHz: 150 Mbps
Wireless	• 802.11n: 6.5 Mbps to 150 Mbps (MCS0-MCS7, HT20/40) • 802.11g: 6, 9, 12, 18, 24, 36, 48 ,54 Mbps • 802.11b: 1, 2, 5.5, 11 Mbps
Advanced Features	• Wireless Encryption: WPA/WPA2 Personal • SSID: 1 • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast • Automatic Channel Selection Algorithm • Transmit Power Control: Adjust transmit Power on dBm

BASIC FUNCTIONS
WAN Connection Type	5G/4G/3G
DHCP	• DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP
Stateful ACL	Yes
Quality of Service	Yes
Bridge VLAN	Yes
SMS	Receive / Send SMS
VLAN	802.1Q VLAN

Advanced Features
Bandwidth Control

TRANSMISSION
NAT	• Multi-Net NAT • Virtual Server • Port Triggering (only in Standalone Mode) • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP
Routing	• Static Routing • OSPF (only in Standalone Mode)
Session Limit	IP-based Session Limit
Bandwidth Control	IP-based Bandwidth Control

AUTHENTICATION
Web Authentication	• No Authentication • Simple Password • Hotspot (Local User / Voucher / SMS / Radius) • External Radius Sever • External Portal Sever • LDAP

Management Features
Omada App	Yes.
Centralized Management	• Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller • Omada App
Cloud Access	Yes.
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance	• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration

OTHER
Network Services Enabled by Default	Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP _____________________________________________________ TDP Server Device discovery • Port: 20003 Protocol: UDP _____________________________________________________ DHCP Server Handle DHCP packets • Port: 67 Protocol: UDP _____________________________________________________ DNS Handle DNS packets • Port: 53 Protocol: TCP/UDP

OTHER

Network Services Enabled by Default

Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
_____________________________________________________
TDP Server
Device discovery
• Port: 20003 Protocol: UDP
_____________________________________________________
DHCP Server
Handle DHCP packets
• Port: 67 Protocol: UDP
_____________________________________________________
DNS
Handle DNS packets
• Port: 53 Protocol: TCP/UDP

OTHERS
Certification	Certification CE, NCC, BSMI, RoHS
Package Content	• ER701-5G-Outdoor Gateway • Passive PoE Adapter • Mounting Kits, • Quick Installation Guide
System Requirements	• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux
Environment	• Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 5% to 95% non-condensing • Storage Humidity: 5% to 90% non-condensing • Surge Protection: 6 kV surge protection

สำหรับข้อมูลเวอร์ชันเพิ่มเติม โปรดไปที่หน้าการสนับสนุน

*Actual 5G downlink speeds vary between buildings. Factors affecting 5G speeds include the internet service plan, real-time network capacity, equipment and client limitations, and environmental factors.

^ΔThis function requires the use of an Omada controller.
