ER703WP-4G-Outdoor
Coming SoonOmada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway
- 4G+ Cat6 up to 300 Mbps*
- AX3000 Wi-Fi 6 with 2402 Mbps on 5GHz and 574 Mbps on 2.4GHz†

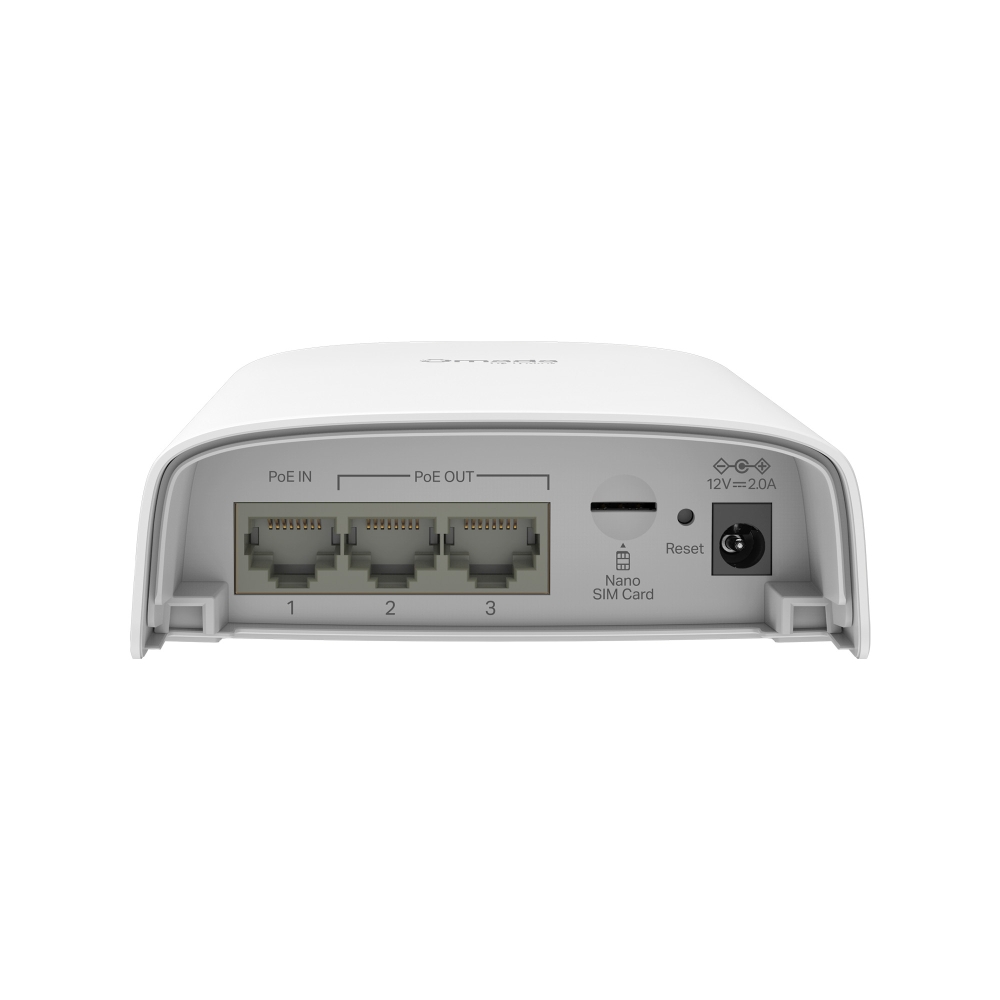

- 3 × Gigabit WAN/LAN Ports (2 × PoE Out, 1 × PoE In)
- 1 × Nano SIM Card Slot
- 802.3at/bt PoE or 12V/2A DC Power Supply
- 4G and Ethernet WAN Auto Backup with Load Balancing
- IPSec/L2TP/PPTP/OpenVPN/GRE§/WireGuard/SSL VPN
- Centralized Cloud Management△
- IP55 Weatherproof
Learn more about Omada Cloud SDN>
| 4G | |
|---|---|
| Network Type | LTE Band of US: 4G LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71 (1950/2100/850/2600/750/750/750/1950/850/700/2350/2150/650 MHz) 4G LTE-TDD: B41/B48 (2500/3600 MHz) Carrier Aggregation: B2+B2/B4/B5/B7/B12/B13/B14/B29/B30/B48/B66/B71 B4+B4/B5/B7/B12/B13/B29/B30/B71 B5+B5/B7/B25/B30/B41/B66 B7+B7/B12/B66 B12+B12/B25/B30/B66 B13+B66 B14+B30/B66 B25+B25/B26/B41 B26+B41 B29+B30/B66 B30+B66 B41+B41 B48+B48 B66+B66/B71 |
| SIM Type | 1× Nano SIM Card |
| Frequency | • Downlink: 300 Mbps• Uplink: 50 Mbps |
| SECURITY | |
|---|---|
| DPI | Deep Packet Inspection Support 2421 type Applications |
| Access Control | • Source/Destination IP Based ACL Stateful ACL • IPv4/IPv6 ACL • National Based ACL • FQDN |
| DNS Proxy | DNSSEC, DoH, DoT, DNS Override |
| Filtering | • Web Group Filtering§• URL Filtering• Web Security§ |
| ARP Inspection | • Sending GARP Packets• ARP Scanning§• IP-MAC Binding• ARP Detection |
| Attack Defense | • TCP/UDP/ICMP Flood Defense• Block TCP Scan (Stealth FIN/Xmas/Null)• Block Ping from WAN |
| HARDWARE FEATURES | |
|---|---|
| Interface | • 3 Gigabit WAN/LAN Ports |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Button | Reset Button |
| Power Supply | 802.3at/bt PoE/Passive PoE/DC Power Supply(DC Power Adapter is not included) |
| Wi-Fi Frequency & Signal Rate | • 2.4 GHz: 574 Mbps• 5 GHz: 2402 Mbps (HE160) |
| Max. Power Consumption | • 14.5W without PoE• 63W with PoE |
| Flash | 256 MB NAND |
| DRAM | 512 MB DDR4 |
| LED | 4G Signal, WLAN, WAN/LAN, SYS |
| Net Weight | 0.430 Kg (including antennas) |

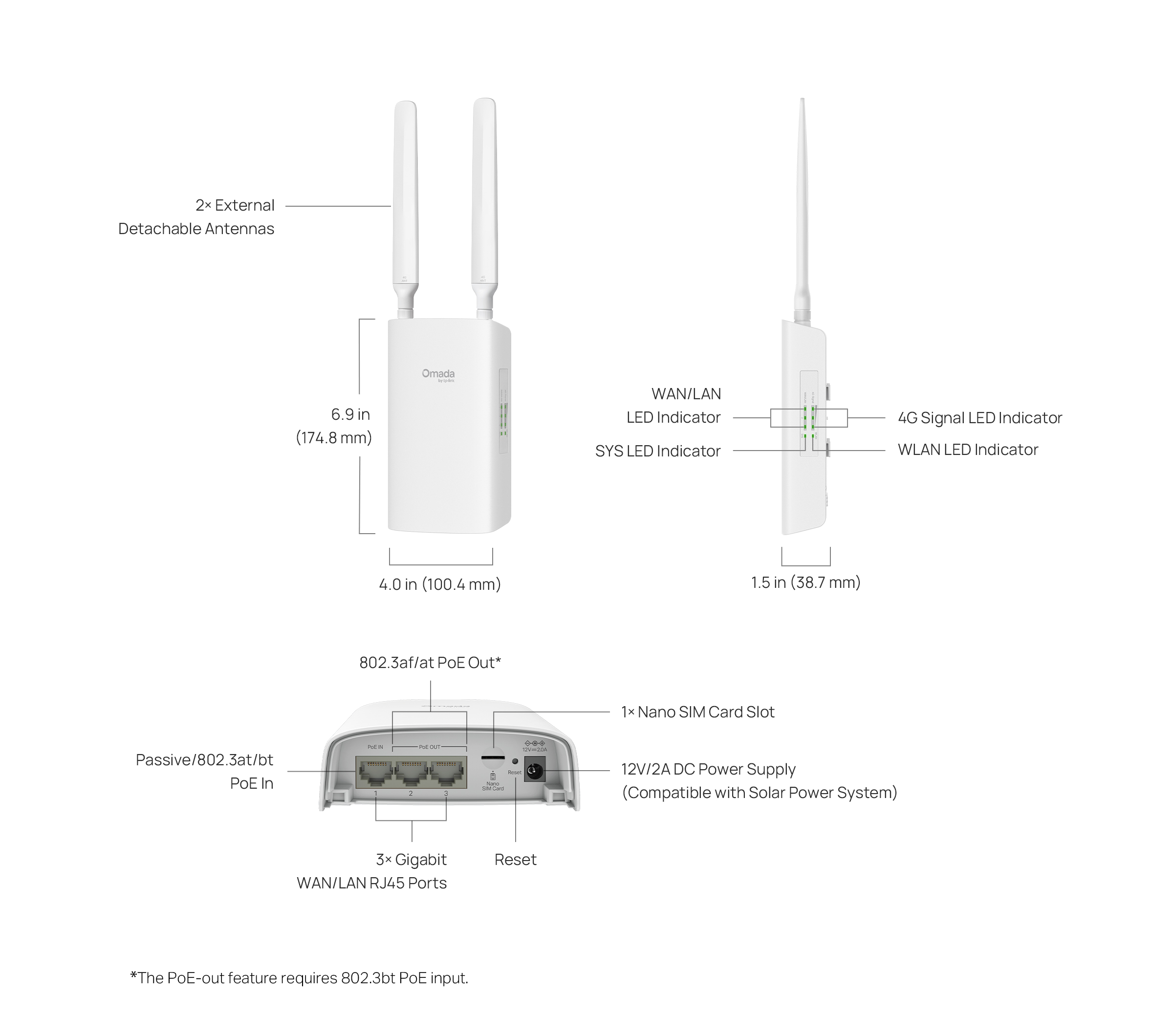

| Dimensions ( W x D x H ) | 4.0 × 1.5 × 6.9 in (100.4 × 38.7 × 174.8 mm) (excluding antennas) |

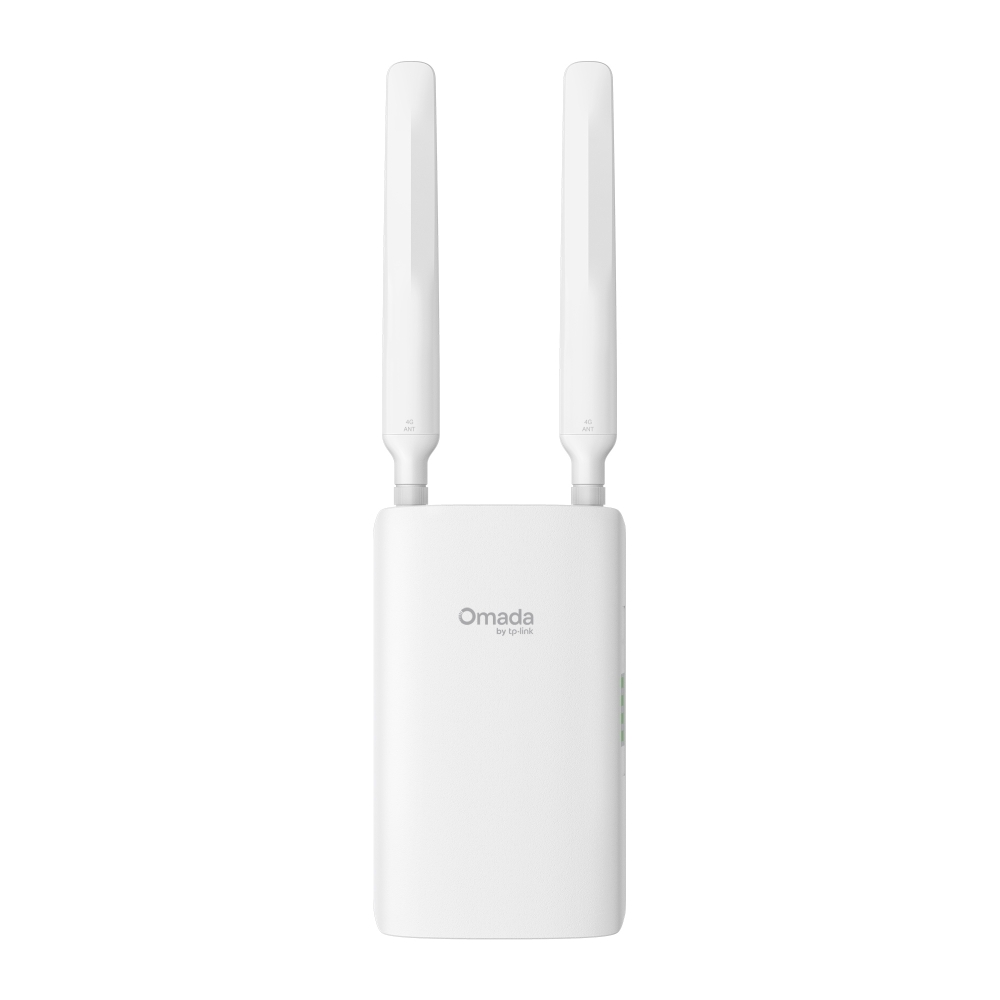

| Antenna | • 2 internal Wi-Fi antennas• 2 external LTE antennas |
| Surge Protection | 4 kV surge protection |
| Mounting | Pole/Wall Mounting |
| Max. Power Consumption | • 14.5W without PoE• 63W with PoE |
| PERFORMANCE | |
|---|---|
| Concurrent Session | 120,000 |
| New Sessions /Second | 3,800 |
| NAT (Static IP) | 945.9 Mbps / 950.2 Mbps |
| NAT(DHCP) | 947.3 Mbps / 949.4 Mbps |
| NAT(PPPoE) | 916.9 Mbps / 946.3 Mbps |
| NAT (L2TP) | 878.9 Mbps / 778.9 Mbps |
| NAT (PPTP) | 852.2 Mbps / 775.9 Mbps |
| 66 Byte Packet Forwarding Rate | 1,453,489 pps / 1,453,489 pps |
| 1,518 Byte Packet forwarding rate | 81275 pps / 81275 pps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 568.3 Mbps• ESP-SHA256-AES256: 559.8 Mbps• ESP-SHA384-AES256: 565.6 Mbps• ESP-SHA512-AES256: 550.0 Mbps |
| GRE | • Unencrypted: 450.3 Mbps• Encrypted: 277.6 Mbps |
| WireGuard VPN | 462.8Mbps |
| OpenVPN | 85.1 Mbps |
| L2TP VPN Throughput | • Unencrypted: 858.7 Mbps• Encrypted: 467.0 Mbps |
| PPTP VPN Throughput | • Unencrypted: 876.2 Mbps• Encrypted: 182.6 Mbps |
| DPI Throughput | • TCP: 1131 Mbps• UDP: 974 Mbps |
| SSL VPN Throughput | 86.6 Mbps |
| WIRELESS FEATURES | |
|---|---|
| Advanced Features | • Seamless Roaming• Mesh (with EAP that supports Mesh)• OFDMA• Beamforming• MU-MIMO• Rate Limit: Based on SSID/Client• Airtime Fairness• Automatic Channel Selection Algorithm• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise• Multiple SSIDs: 16 in total (8 per radio)• Load Balance• Airtime Fairness• Band Steering• RADIUS Accounting• MAC Authentication• Reboot Schedule• Wireless Schedule |
| Guest Network | Support |
| BASIC FUNCTIONS | |
|---|---|
| LAN DNS | √ |
| WAN Connection Type | • Static IP• Dynamic IP• PPPoE (supports MRU Configuration)• PPTP• L2TP |
| MAC Clone | Modify WAN Address |
| DHCP | • DHCP Server • DHCPv6 PD Server§• DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP• WAN DHCP 60 |
| Stateful ACL | √ |
| Quality of Service | √ |
| Bridge VLAN | √ |
| SMS | Receive/Send SMS |
| mDNS Repeater | √ |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| Advanced Features | |
|---|---|
| Access Control | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | • Static Routing• Policy Routing• RIP§• OSPF§ |
| Bandwidth Control | IP-Based Bandwidth Control |
| Load Balance | • Intelligent Load Balance• Application Optimized Routing• Link Backup(Timing, Failover)• Online Detection |
| NAT | • One-to-One NAT• Multi-Net NAT• Virtual Server• Port Triggering§• NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG• UPnP• Disable NAT |
| Session Limit | IP-Based Session Limit |
| VPN | |
|---|---|
| GRE | √ (Only in Standalone Mode) |
| SD-WAN | √ (Only in Controller Mode) |
| SSL VPN | 50 Tunnels |
| IPsec VPN | • 100 IPSec VPN Tunnels• LAN-to-LAN, Client-to-LAN• Main, Aggressive Negotiation Mode• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm• IPsec Failover• IKE v1/v2• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm• NAT Traversal (NAT-T)• Dead Peer Detection (DPD)• Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server• PPTP VPN Client (10)***• 50 Tunnels• PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server• L2TP VPN Client (10)***• 50 Tunnels• L2TP over IPSec |
| OpenVPN | • OpenVPN Server• OpenVPN Client (5)***• 55 OpenVPN Tunnels• "Certificate + Account" Mode• Full Mode |
| WireGuard VPN | • 20 Tunnels |
| AUTHENTICATION | |
|---|---|
| Web Authentication | • No Authentication• Simple Password• Hotspot (Local User/Voucher‡/SMS‡/Radius‡)• External Radius Sever• External Portal Sever‡• LDAP |
| Management Features | |
|---|---|
| Omada App | Yes. |
| Centralized Management | • Omada Cloud Essentials• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface• Remote Management• Export & Import Configuration• SNMP v1/v2c/v3• Diagnostics (Ping & Traceroute)• NTP Synchronize§• Port Mirroring• CLI§• Syslog Support |
| Management Features | • Automatic Device Discovery• Intelligent Network Monitoring• Abnormal Event Warnings• Unified Configuration• Reboot Schedule• Captive Portal Configuration• ZTP (Zero-Touch Provisioning) |
| OTHER | |
|---|---|
| Network Services Enabled by Default | Web ServerManage and configure device through web (HTTP/HTTPS)• Port: 80/443 Protocol: TCP_____________________________________________________TDP ServerDevice discovery• Port: 20003 Protocol: UDP_____________________________________________________DHCP ServerHandle DHCP packets• Port: 67 Protocol: UDP_____________________________________________________DNSHandle DNS packets• Port: 53 Protocol: TCP/UDP |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |

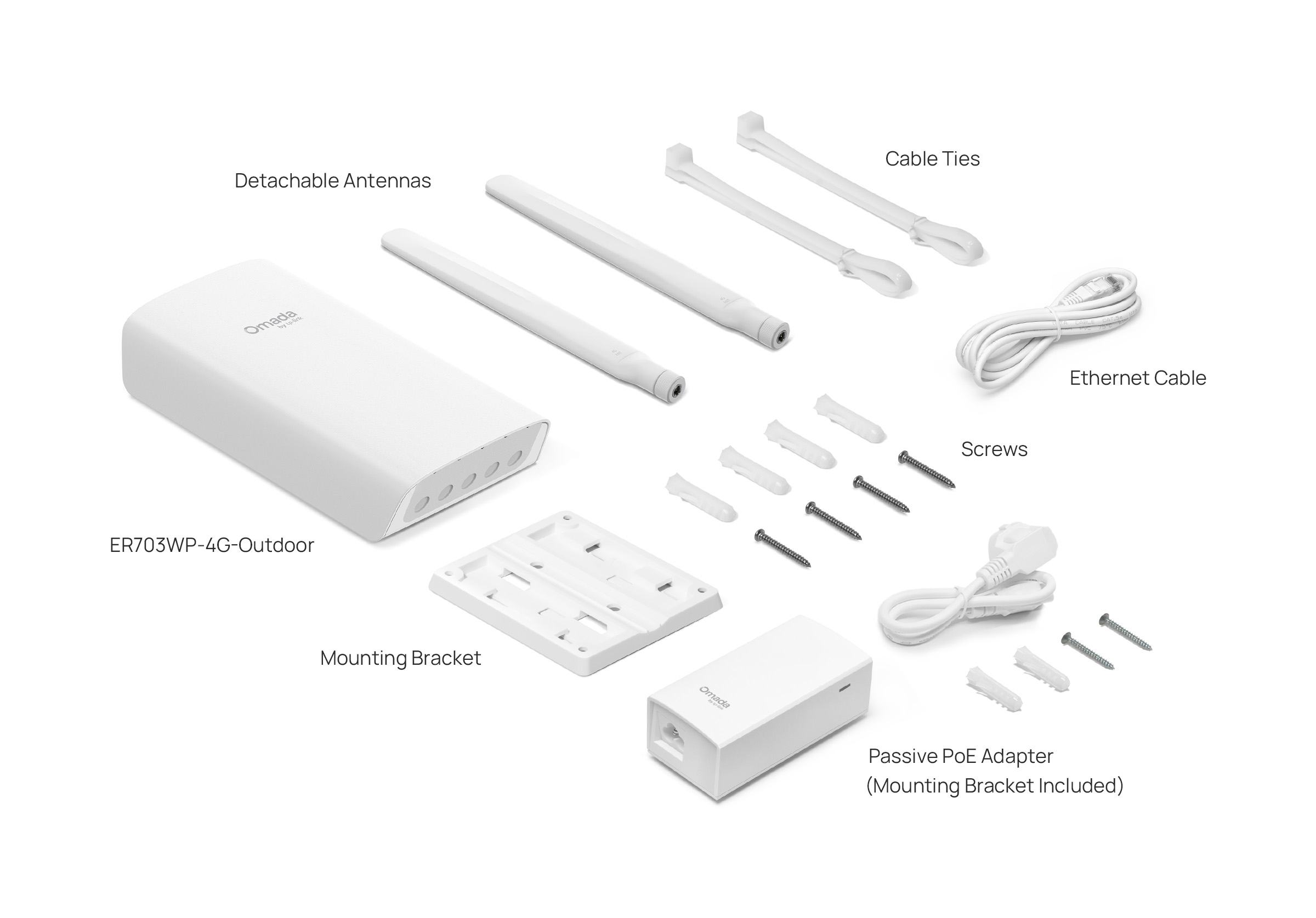

| Package Content | • ER703WP-4G-Outdoor• Mounting Kits• Passive PoE Adapter• Quick Installation Guide |
| System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11• MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)• Operating Humidity: 5% to 95% non-condensing• Storage Humidity: 5% to 90% non-condensing |
*Actual 4G downlink speeds vary between buildings. Factors affecting 4G speeds include the internet service plan, real-time network capacity, equipment and client limitations, and environmental factors.
**Protection against lightning may be achieved through proper product setup, grounding, and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.
***For PPTP VPN and L2TP VPN, the gateway can connect with up to 10 VPN servers. For OpenVPN, the gateway can connect with up to 5 VPN servers.
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary.
‡Use of Wi-Fi 6 and other features including OFDMA, MU-MIMO, 1024-QAM, and BSS Color requires clients to also support the corresponding features.
△These features require the use of an Omada controller.
§These features are supported only in Standalone Mode.
#These features are supported only in Controller Mode.
※The PoE-out feature requires 802.3bt PoE input.
