EAP773
BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
- BE11000 Tri-Band Wi-Fi 7: 5760 Mbps (6 GHz) + 4320 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Buffering will no longer be a problem.†
- 1× 10G Port: Unlock the full potential of Wi-Fi 7.
- Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.
- 320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.‡
- Low Latency and Interference: Multi-Link Operation, and Multi-RUs ensure high performance of your network.‡
- Advanced Functions：Supports centralized management, mesh, and AI roaming.△
Learn more about Omada Cloud SDN>
-
Next-Gen
WiFi 7 -
Wi-Fi Speeds up to
11 Gbps† -
Multi-Link
Operation (MLO) -
1× 2.5GbE Port
-
802.3at PoE
-
Ultra-Thin
Design -
Centralized Cloud
Management -
Omada Mesh
Technology
Ultra-Thin Design for Flexible Deployment
The overall design of EAP772 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.
8.7 in
1.3 in
Wi-Fi 7: Swifter, Smoother, Stronger
-
6 GHz 5760 Mbps
-
5 GHz 4320 Mbps
-
2.4 GHz 574 Mbps
WiFi 7 Supersized Throughput
-
1024409610 bits/symbol12 bits/symbol802.11ax802.11be
4096-QAM for Higher Capacity
-
Simultaneous MLO*Alternating MLO**6 GHz5 GHz6 GHz5 GHzAggregationSeamless Switching
MLO for Lower Latency
*STR-MLMR MLO Mode (Simultaneous Transmit and Receive Multi-Link Multi-Radio Operation Mode) **E-MLSR MLO Mode (Enhanced Multi-Link Single Radio Operation Mode)
Software Defined Networking (SDN) with Cloud Access
AccessPoint EAP773
Plate AP
Outdoor AP
Controller
Controller
Controller
Boosted Network Security
-
Secure Guest
Network with up
to 24 SSIDs -
Boost Your
Business with
SMS Login -
WPA3 for
Worry-Free Open
Public Networks -
Rogue AP
Detection
| HARDWARE FEATURES | |
|---|---|

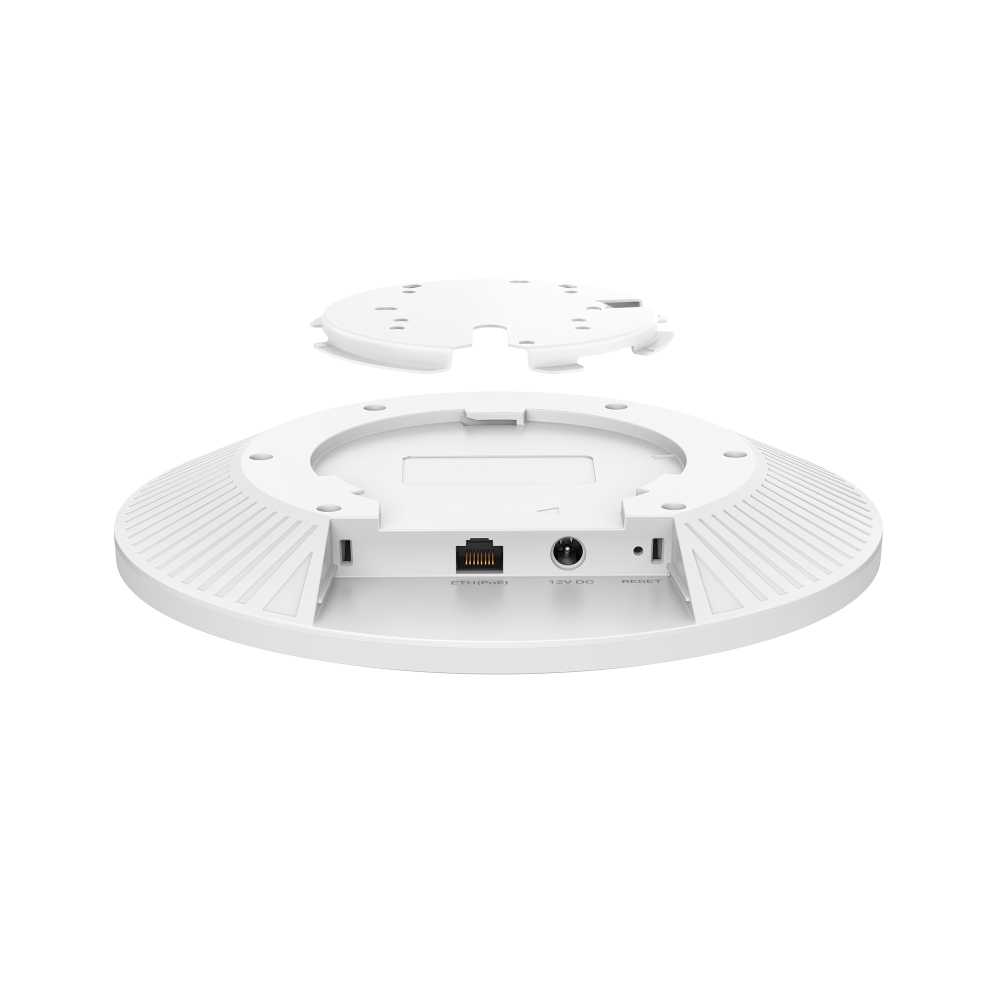

| Interface | 1× 10G Ethernet Port |
| Button | Reset |
| Power Supply | • 802.3at PoE • 12V/2.5A DC Notice: • Due to the software update, the power supply has been updated from 802.3bt to 802.3at. • DC Power adapter is not included. DC power interface: 12V, accepts 2.1 mm / 5.5 mm center-positive circular plug with 9 mm length. |
| Max. Power Consumption | • 25.44 W (For PoE)• 22.57 W (For DC) |
| Dimensions ( W x D x H ) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antenna | • 2.4 GHz: 2× 4.0 dBi• 5 GHz: 2× 5.0 dBi • 6 GHz: 2× 5.0 dBi |
| Bluetooth | 1 × 4.0 dBi, Bluetooth 5.2*Firmware update may be required. |
| Mounting | Ceiling / Wall Mounting (Kits Included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 140㎡(1500 ft²)§ |
| Concurrent Clients | 380+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate | 574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)† |
| Wireless Functions | • MLO‡• 4K-QAM‡• Seamless Roaming(802.11k/v/r)• MU-MIMO (2*2 DL/UL MU-MIMO)‡• HE320‡• Mesh△• BSS Coloring‡• OFDMA‡• Load Balance• Band Steering• Beamforming• Airtime Fairness• Multiple SSIDS:24(8 on each band)• Wireless Schedule• Reboot Schedule• QoS(WMM)• Rate Limit• Static IP/Dynamic IP• RADIUS Accounting• MAC Authentication |
| Wireless Security | • Captive Portal Authentication△• Access Control• Maximum number of MAC Filter: 4,000• Wireless Isolation Between Clients• VLAN• Rogue AP Detection• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | < 25 dBm (2.4 GHz)< 25 dBm (5 GHz)< 23 dBm (6 GHz) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software Controller |
| Cloud Access | Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| Web-based Management | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, IC |
| Package Content | • EAP773• Installation Guide• Ceiling/Wall Mounting KitsNote: Power Adapter is NOT included. |
| Environment | • Operating Temperature: 0 °C–40 °C (32 °F–104 °F);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing; |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for WiFi 6 routers. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 6 GHz, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO and BSS Color requires clients to also support the corresponding features.
*Zero-Touch Provisioning and Auto Channel Selection and Power Adjustment require the use of Omada Cloud-Based Controller. Go to /us/omada-cloud-based-controller/product-list/ to confirm which models are compatible with Omada Cloud-Based Controller.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
§Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
△Omada Mesh, AI Roaming, Captive Portal, and Cloud Access require the use of an Omada SDN controller. Please refer to the User Guides of Omada SDN controllers for configuration methods.
