Beam Bridge 5 UR KIT
NewOmada 5GHz 867Mbps Ultra-Range Indoor/Outdoor Wireless Bridge
- Business-Grade up to 9.3 mi (15 km) Ultra-Range Wireless Transmission: With 23dBi high-gain directional antennas.*
- Plug-and-Play with Preconfigured Kit: Preconfigured for instant PtP auto-pairing, the bridges deliver instant connectivity right out of the box.
- App-Guided Alignment: Visualized app-guided alignment for long-distance setups and instant speed testing for installation verification.
- Simple PoE Deployment and Power Supply: 1× Gigabit PoE port supports both 802.3af PoE and Passive PoE for simplified wiring and lower deployment costs.
- Designed for Outdoor Durability & Reliability: IP65 weatherproof enclosure, 6 kV lightning protection and operating range of -40 °C to +70 °C.**
- Remote Monitoring & Management: Standalone mode or Omada SDN mode for remote centralized management via Web UI or App†
-
Up to 9.3 mi (15 km) Wireless Transmission
-
23 dBi High-Gain Antennas
-
Auto-Pairing with Preconfigured Kit
-
Effortless App-Guided Alignment
-

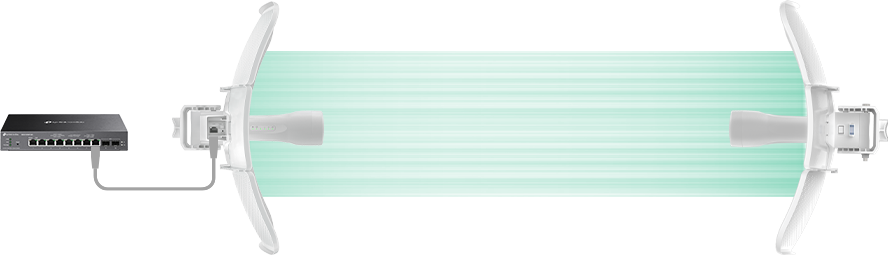

PtP Network
Connection -
802.3af PoE or 24V/48V Passive PoE
-
IP65 Weatherproof &
6 kV Lightning Protection -
Centralized
Management via
Web or APP
Business-Grade 15-km Ultra-Range Wireless Connectivity
Delivers reliable Wi-Fi with low latency and strong signal integrity, equipped with 23 dBi high-gain directional antennas for ultra-range, uninterrupted wireless transmission.
Perfect for Remote Outdoors
-
Forest
(Fire Monitoring) -
Construction Sites or Mining Areas
(Construction Safety Monitoring) -
Island
(Meteorological Data Transmission) -
Power Towers & Substations
(Equipment Monitoring and Data Transmission)
Plug-and-Play Effortless Installation
-
Auto-PairingAuto-Pairing,
No Manual Setup Needed -

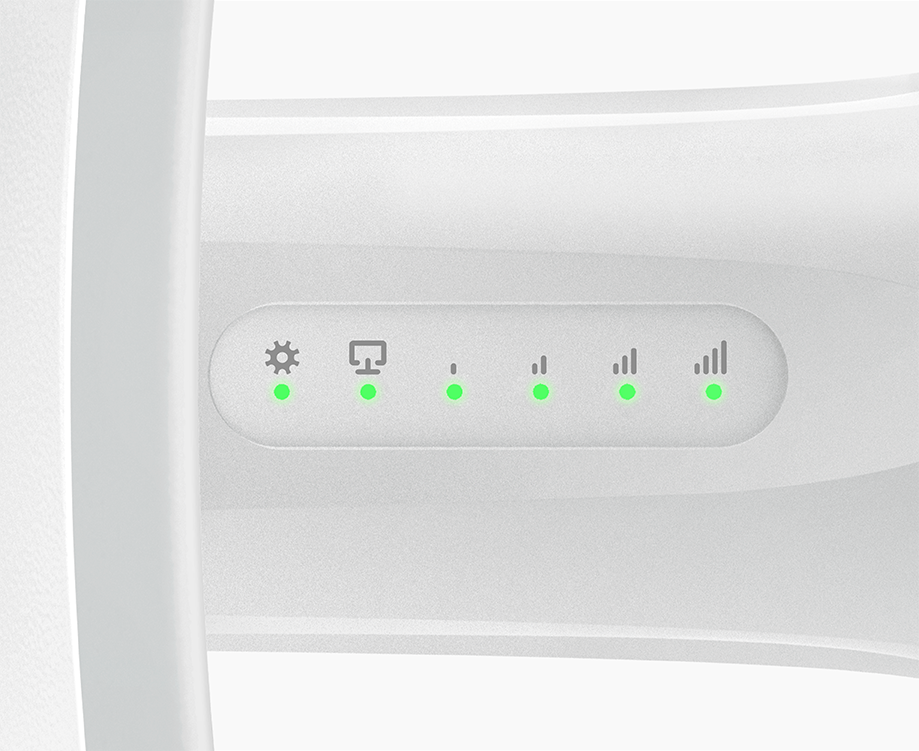

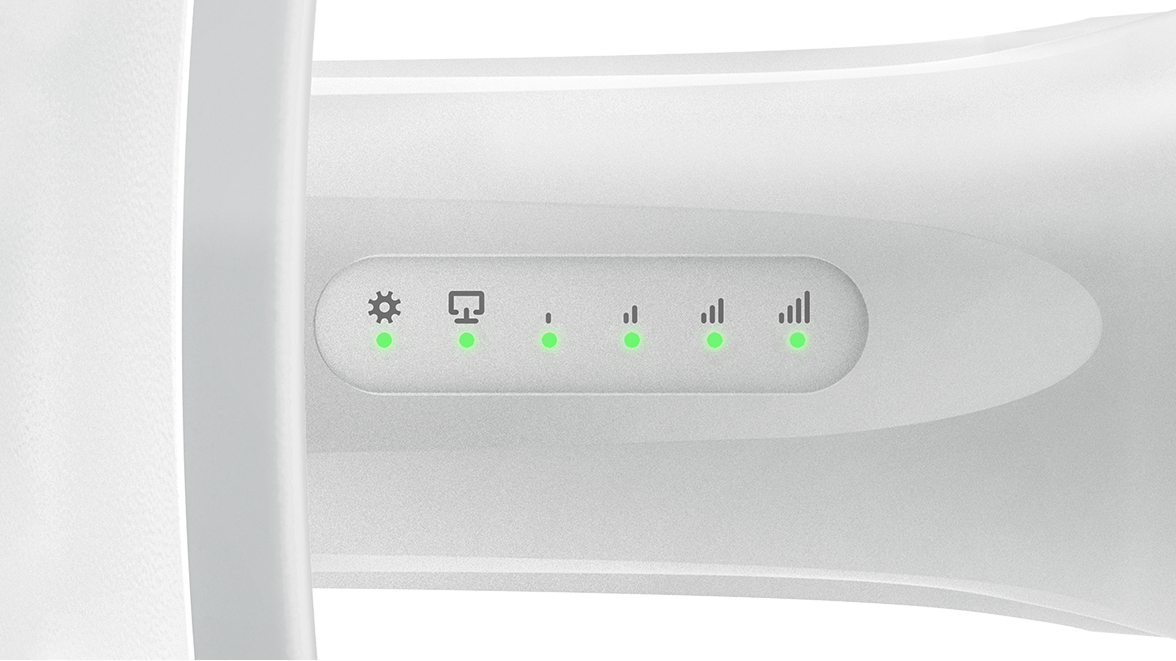

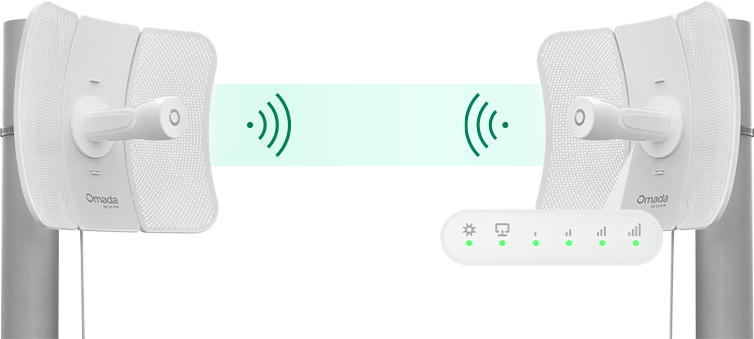

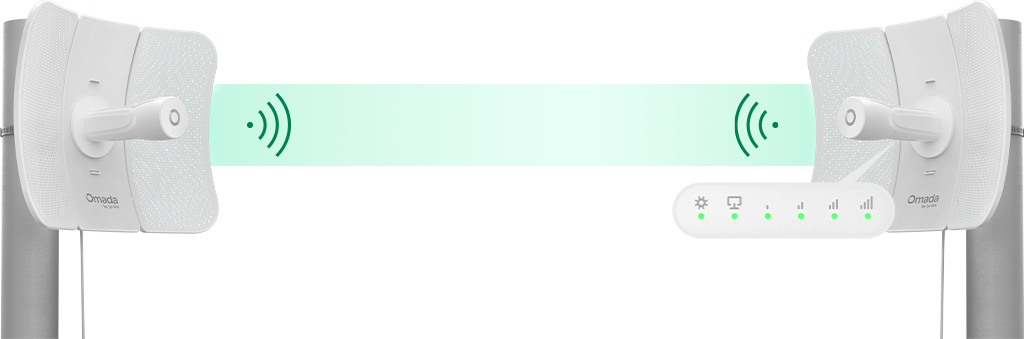

Agile LED Signal Indicators
for Easy Alignment

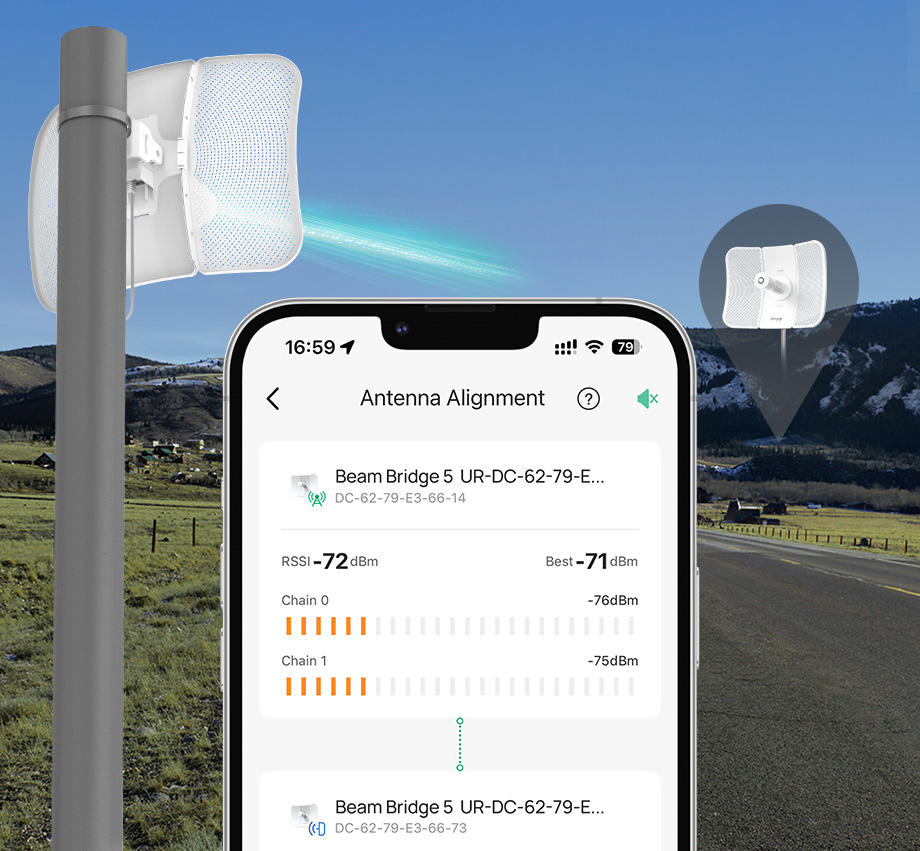

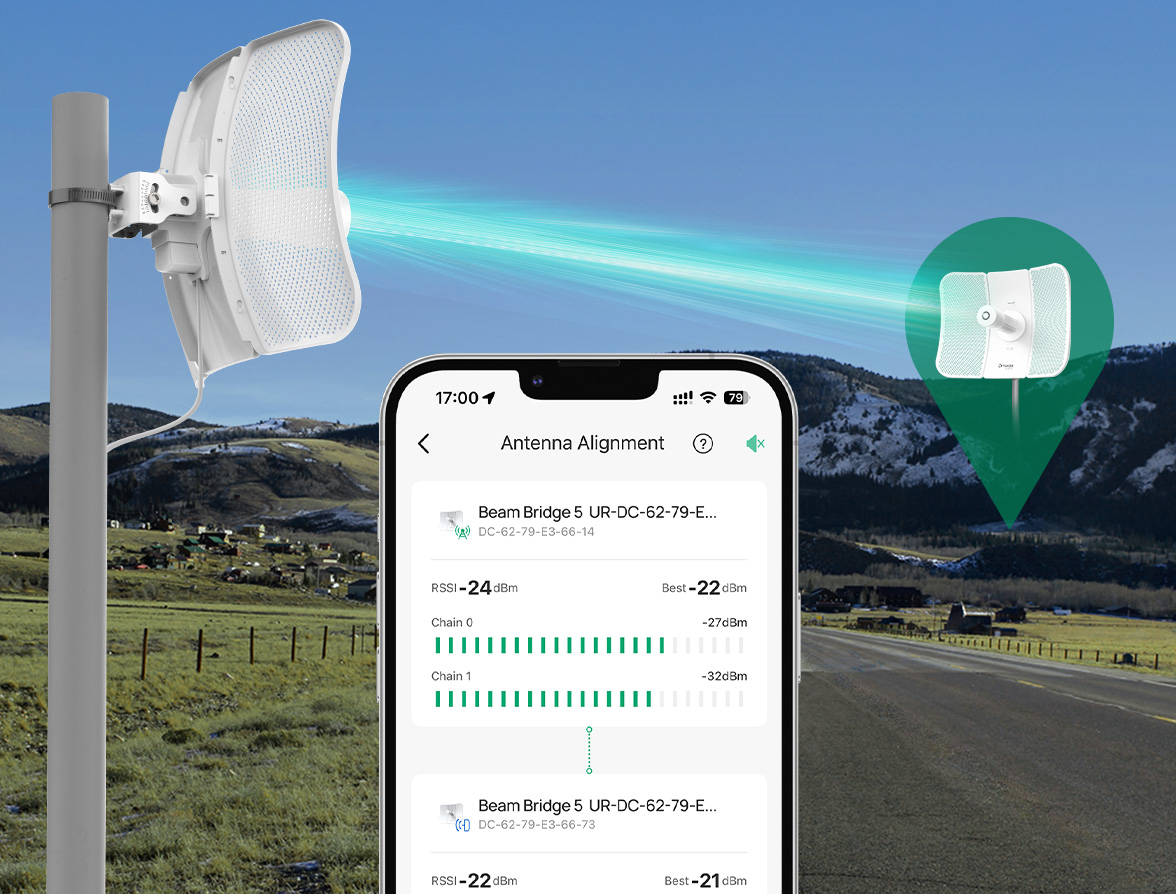

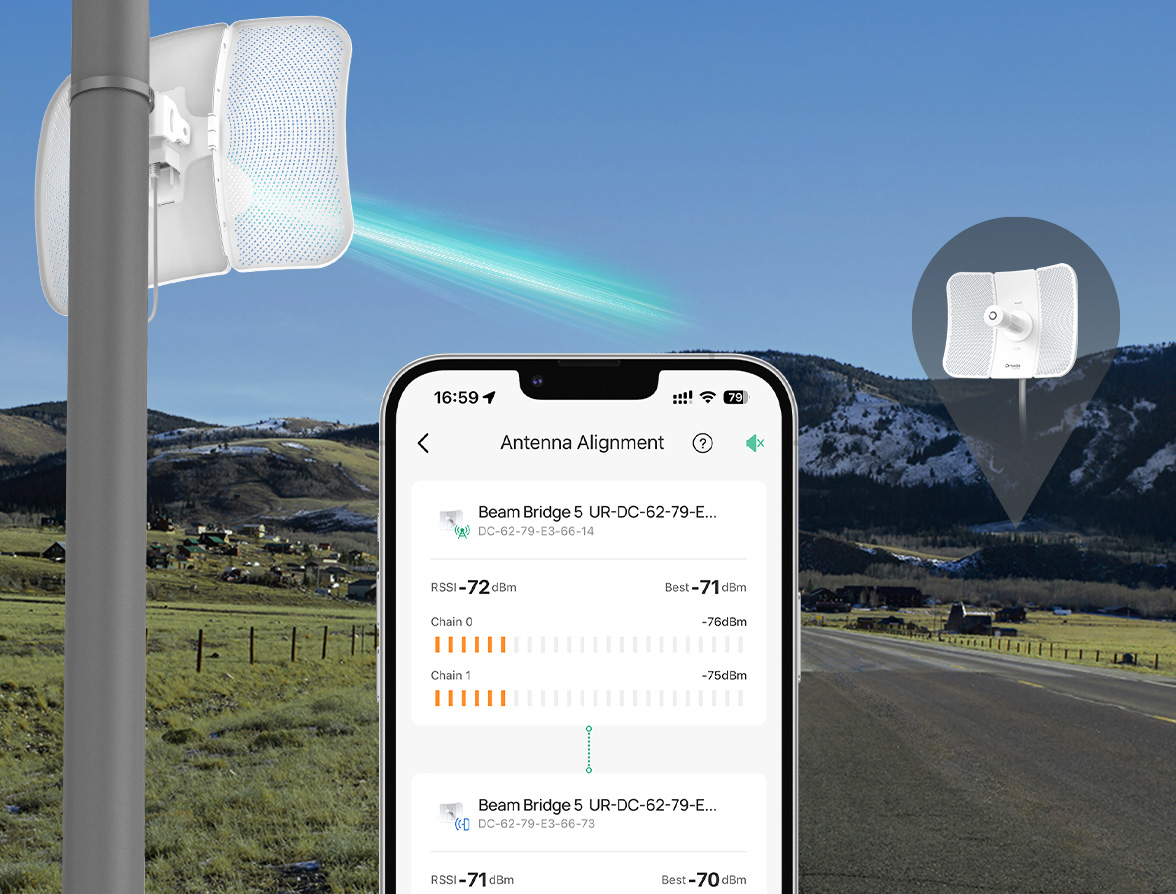

App-Guided Alignment for Optimal Performance
-
Before Alignment
-
After Alignment

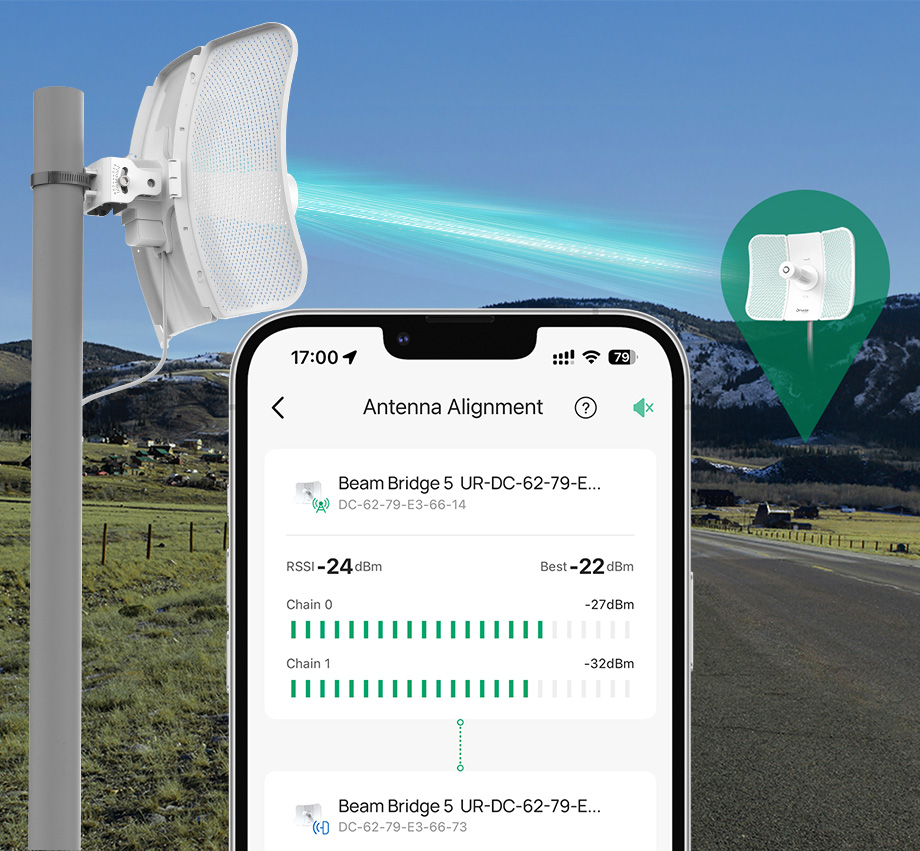

Effortless App-Guided Alignment

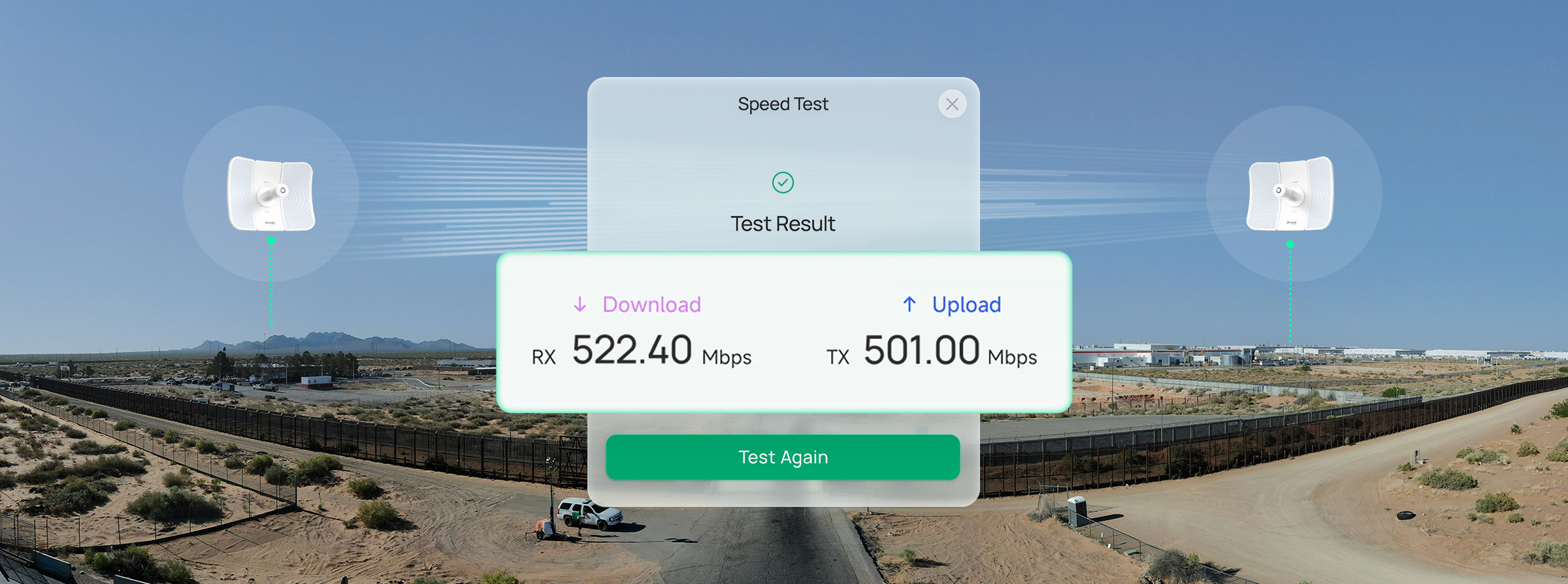

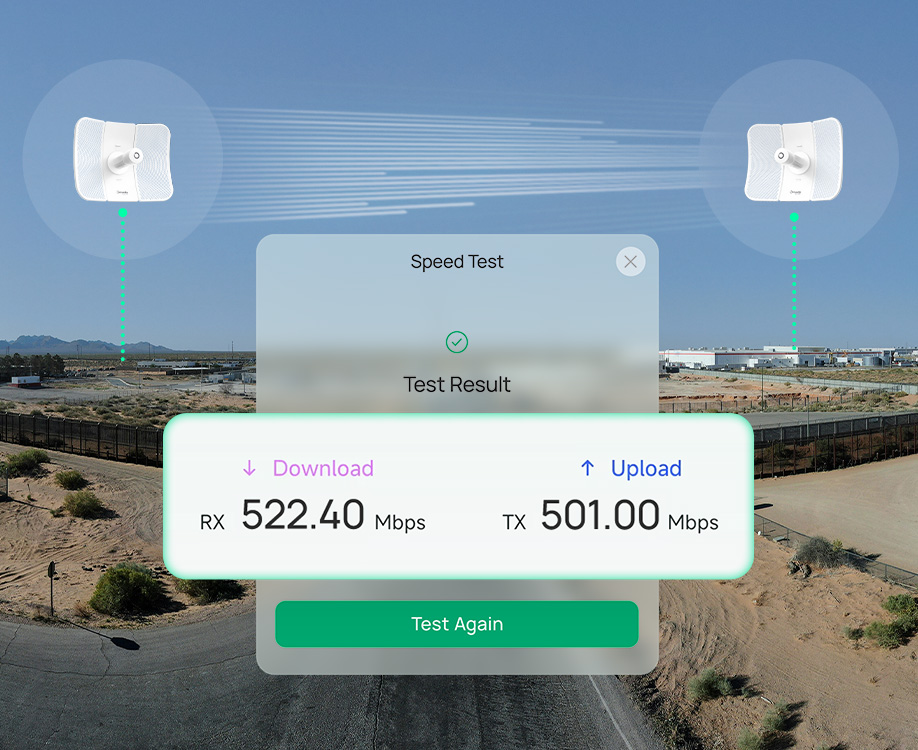

Instant Speed Testing for Installation Verification at Your Fingertips
Versatile Power & Connectivity for Expanded Surveillance
Supports 802.3af and 24v or 48v Passive PoE through a single Gigabit port, simplifying installation. 24V Passive PoE adapter included.
1× Gigabit Ethernet Port
PoE
PoE Switch
or
PoE Injector
Powered with PoE Switch or PoE Injector
PoE Adapter
Powered with Passive PoE Adapter

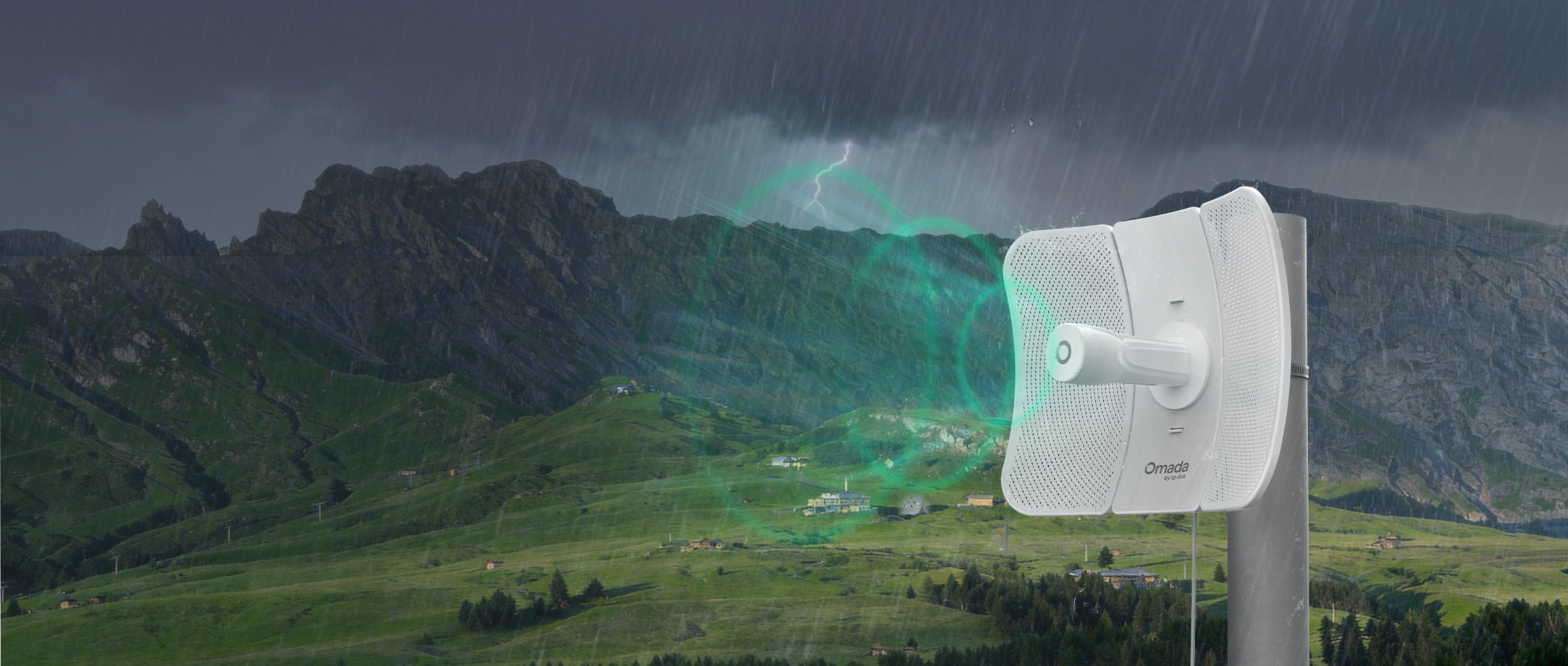

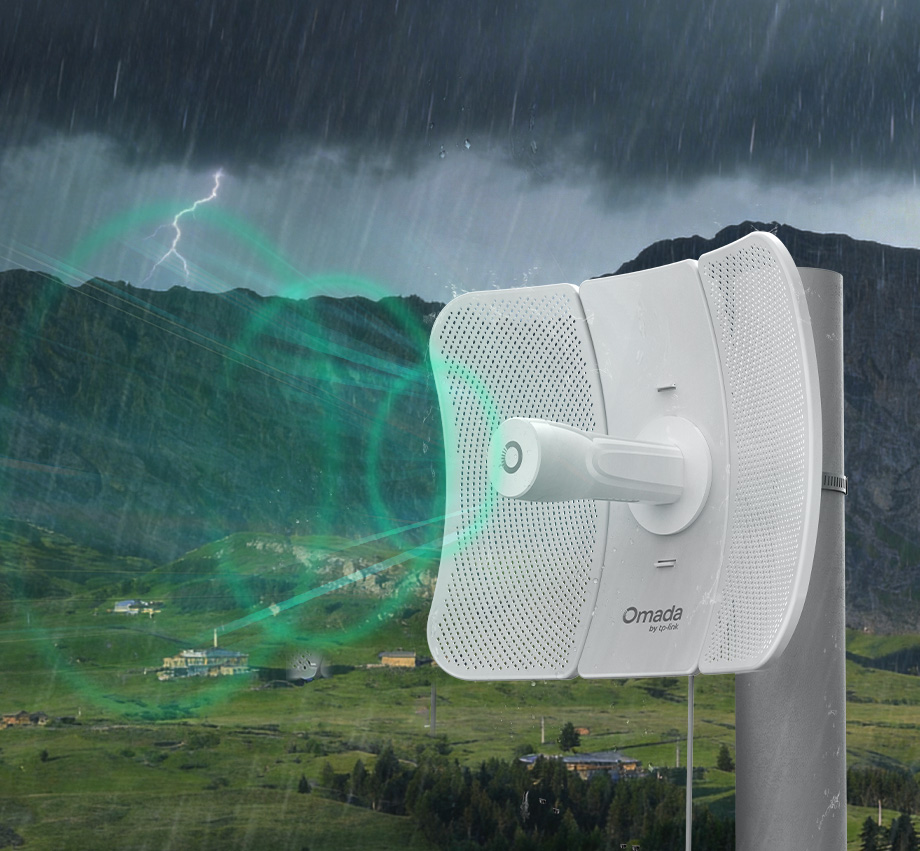

Outdoor-Ready IP65 Weatherproof Design
-
IP65
Weatherproof -
6 kV Lightning
Protection -
-40 °C to 70 °C
Working Range -
Wind
Resistance

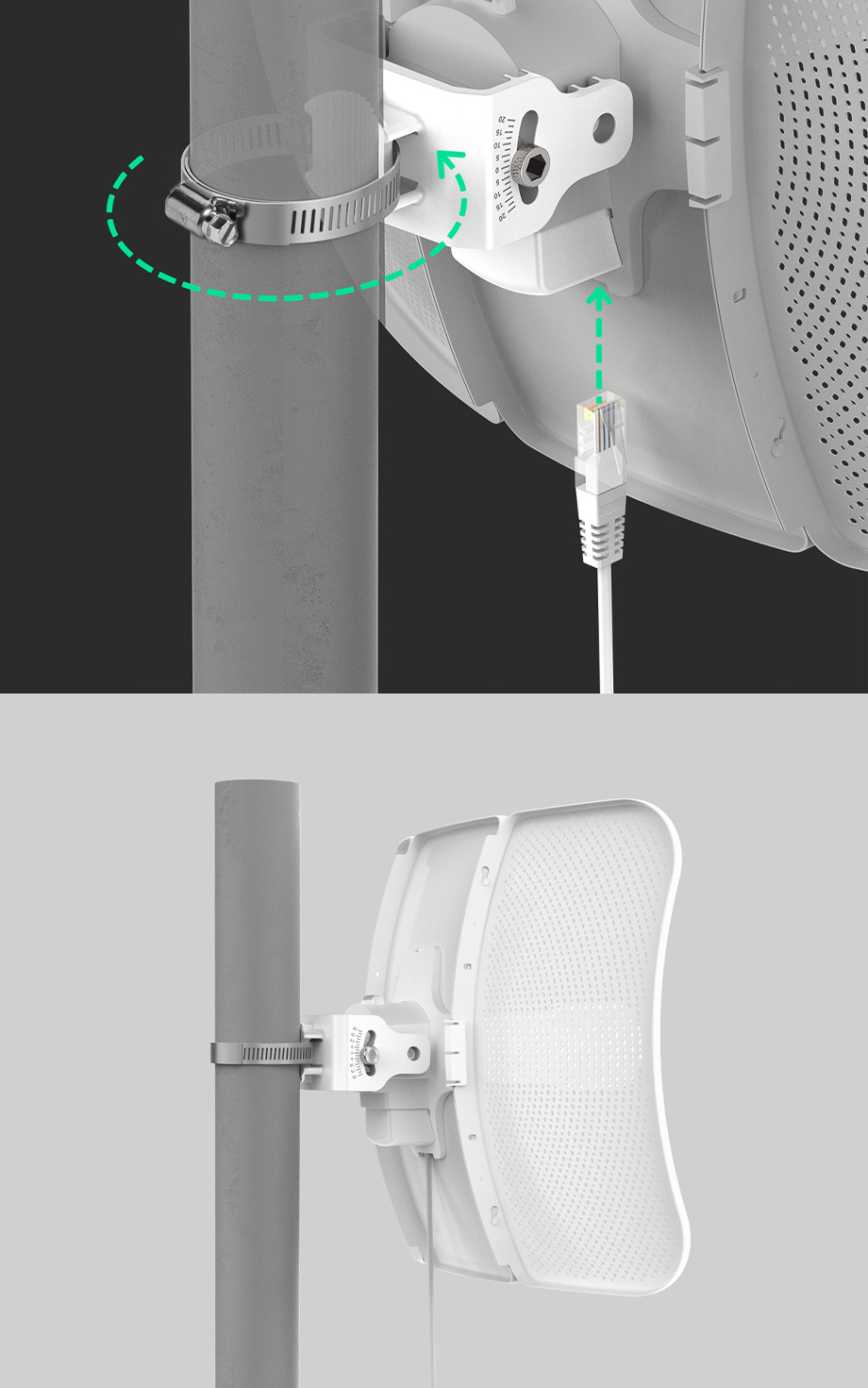

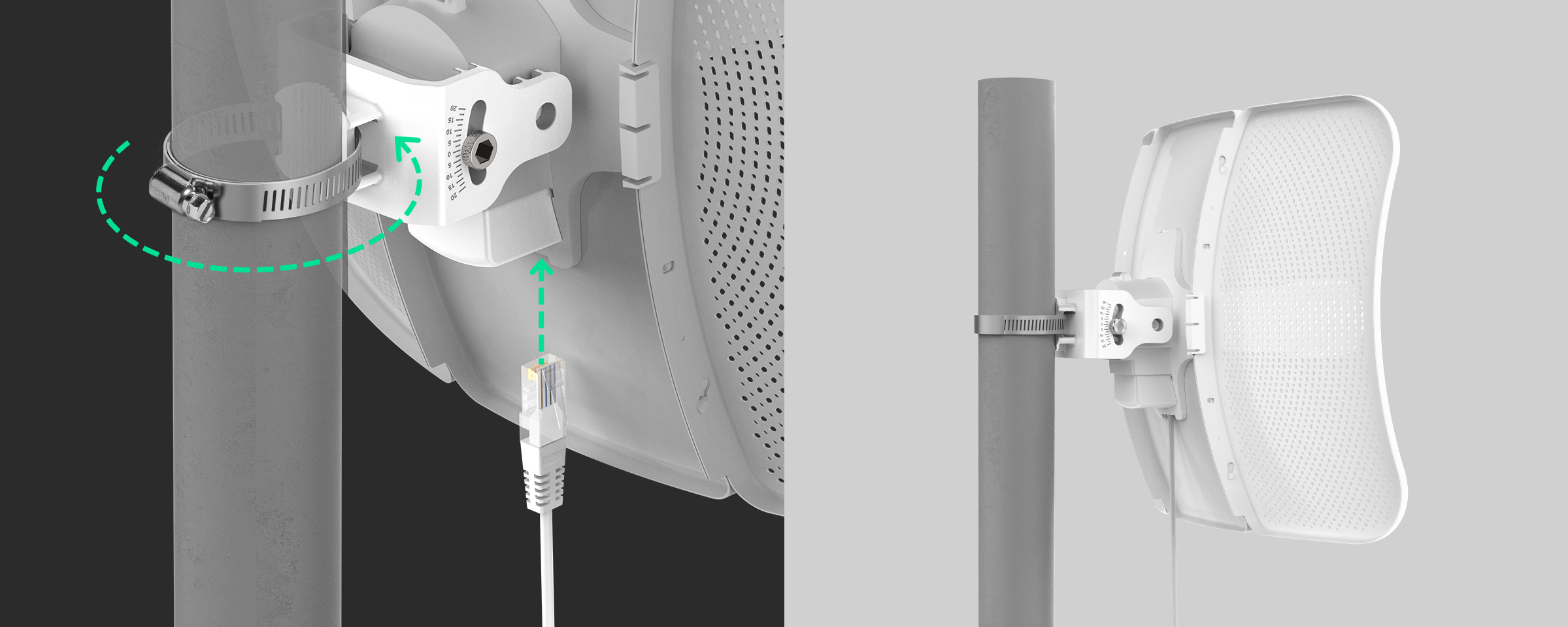

Easy Installation Through Pole Mount
Standalone Simplicity or Omada SDN
for Batch Deployment and Remote Management

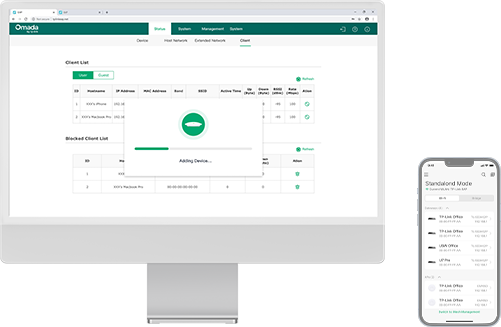

Simple Setup for Individual Scenarios

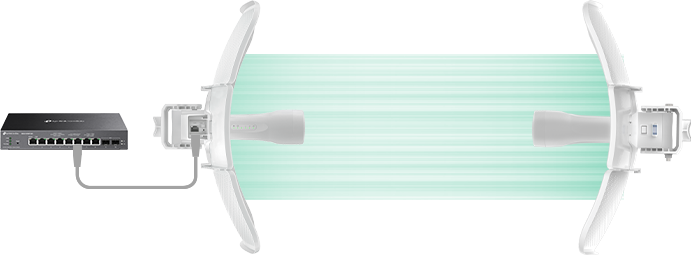

1. Power on both bridges and connect one to the network via cable to make it the main bridge.
(PoE IN)
2. Set up the main bridge using the Omada app or Web UI, then configure the sub-bridge step by step.
3. Deploy the sub-bridge at the remote location, align it using the LED Signal Indicators, and optimize with the app if needed.
Faster Batch Deployment and Remote Management
Batch Provisioning

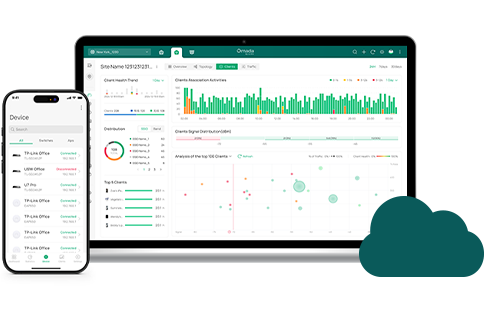

Centralized and Remote Management
*Omada SDN centralized and remote management requires the use of Omada SDN controller.
| HARDWARE FEATURES | |
|---|---|
| Interface | 1 x 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE In |
| Button | 1 × Reset Button1 × System Mode Selection Button |
| DIP Switch | Role Switch |
| Power Supply | 802.3af PoE (1,2pins; 3,6pins)24V or 48V Passive PoE (+4,5pins; -7,8pins) (Passive PoE Adapter Included) |
| Max. Power Consumption | 15.8W |
| Dimensions ( W x D x H ) | 14.4 × 11.0 × 8.1 in (366 × 280 × 207 mm) |
| Antenna | External 2×2 Dual-Polarized Directional MIMO Antennas5 GHz: 23 dBi |
| Antenna Beamwidth | Horizontal: 9°, Vertical: 7° |
| Weatherproof Enclosure | IP65 |
| Bandwidth | 5 GHz: 20 MHz/40 MHz/80 MHz |
| Mounting | Pole Mounting (Kits Included) |
| WIRELESS FEATURES | |
|---|---|
| PtP | Yes |
| Transmission Distance | 15 km (9.3 mi) |
| Wireless Standards | IEEE 802.11 a/n/ac |
| Frequency | 5 GHz |
| Signal Rate | 5 GHz: Up to 867 Mbps |
| Wireless Functions | • MU-MIMO: 5G 2x2 MU-MIMO DL • Maximum number of associated STAs: 8• Speed Test• Channel Optimization• Antenna Alignment• ACS (Automatic Channel Selection)• Rate Limit• Guest Network |
| Wireless Security | • VLAN• Rogue AP Detection• Maximum number of MAC Filter: 4,000• Wireless Encryption |
| Transmission Power | • CE: <23 dBm (5 GHz, U-NII-1/2A, ERIP)<30 dBm (5 GHz, U-NII-1/2C, ERIP)• FCC: <27 dBm (5 GHz, U-NII-1)<27 dBm (5 GHz, U-NII-3) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Central (Cloud-Based)• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| Zero-Touch Provisioning | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • Beam Bridge 5 UR KIT• Installation Guide• Mounting Kit• Passive PoE Adapter• Power Cord |
| Lightning Protection | Ethernet Ports: ±6 kV |
| Environment | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing |
| Weight | 1.1 kg (2.43 lb) |
Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
*The advertised coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of the performance of the equipped antennas, client limitations, and environmental factors.
**Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding, and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.
†These functions require the use of an Omada controller.
