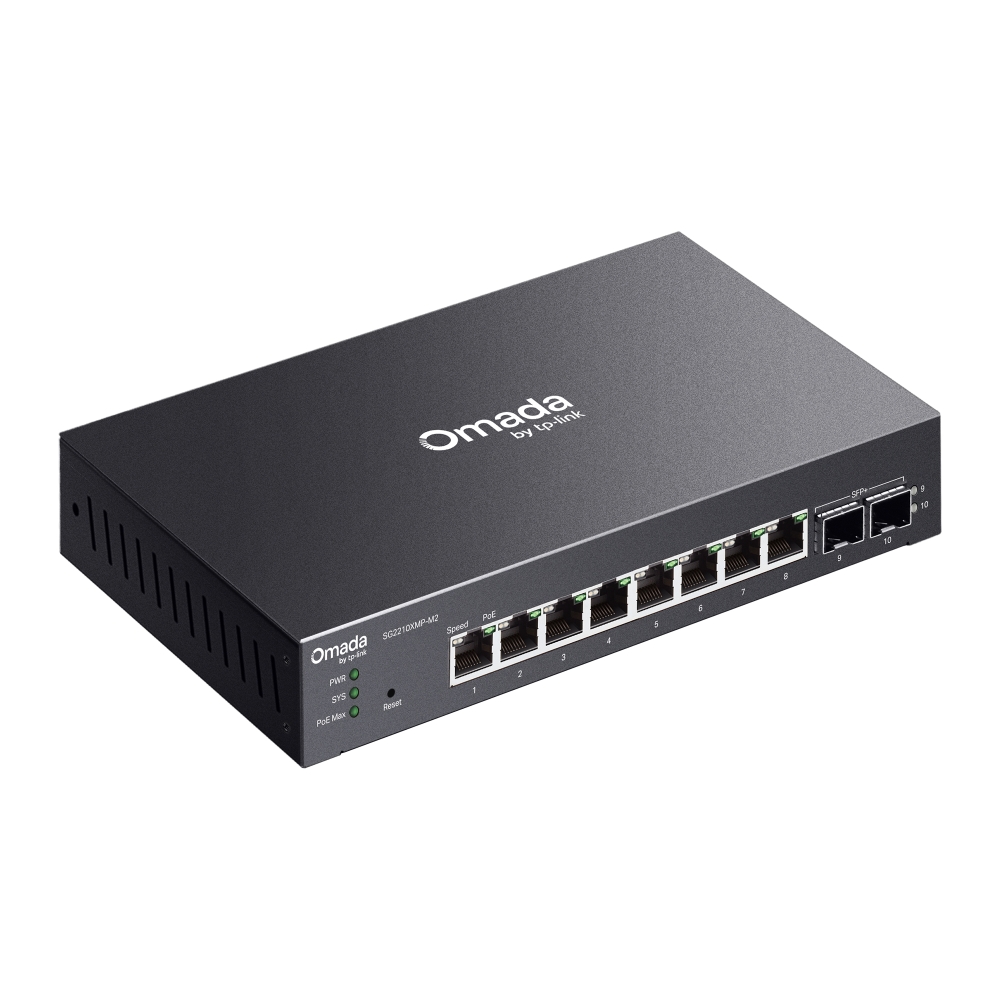

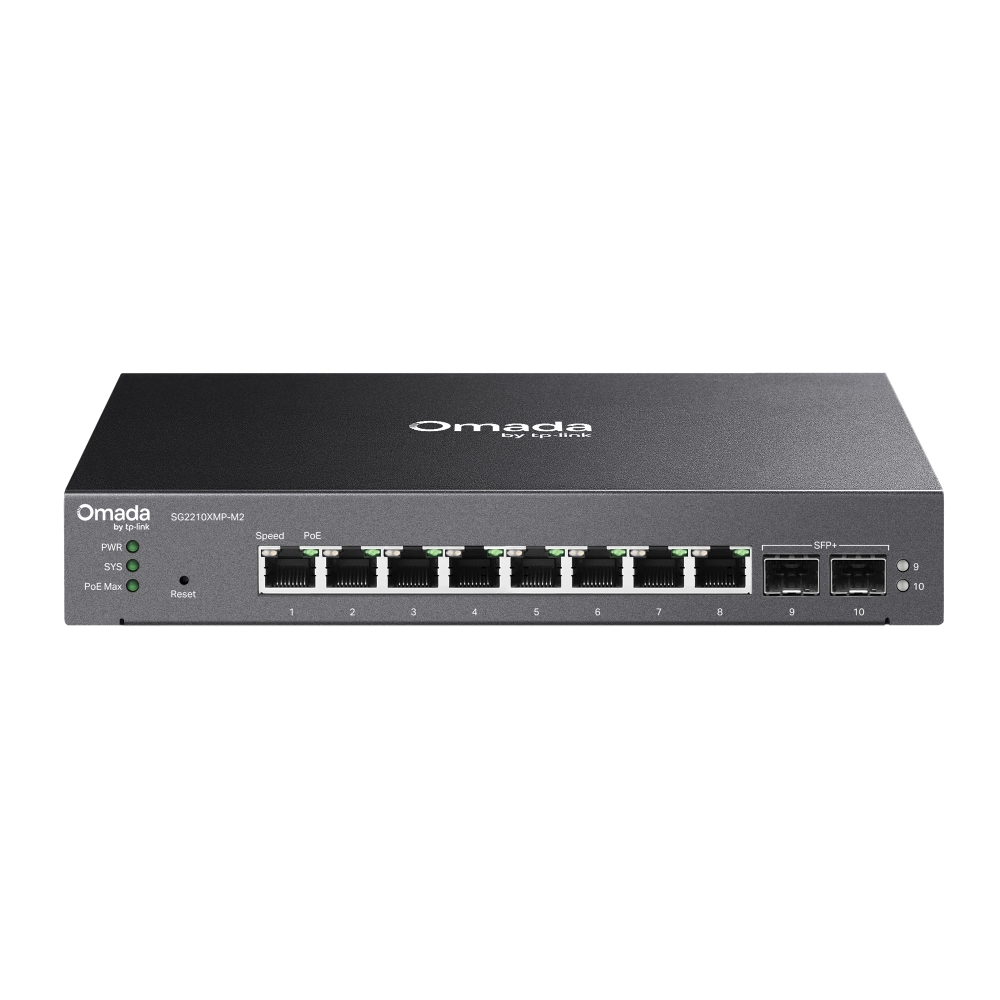

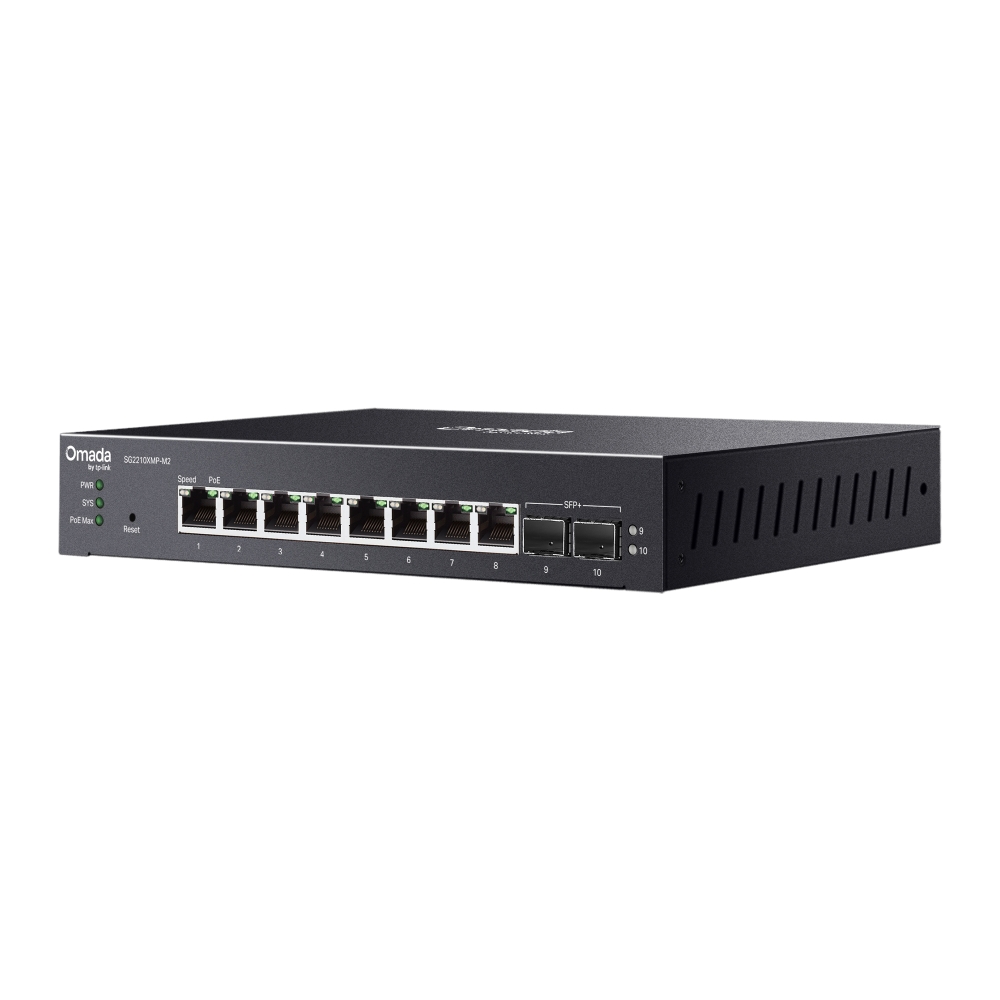

Omada Access Pro 8-Port 2.5G and 2-Port 10GE SFP+ Switch with 8-Port PoE+
- 8× 2.5 Gbps 802.3at/af-compliant PoE+ ports
- 2× 10G SFP+ Slots
- 160 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via web or the Omada app†
- Supports standalone management
- Static Routing
- Fanless design for quiet operation
- Desktop/Wall-Mounting
Learn more about Omada PoE technology >
Omada Access Pro 8-Port 2.5G
and 2-Port
10GE SFP+ Switch
with
8-Port PoE+

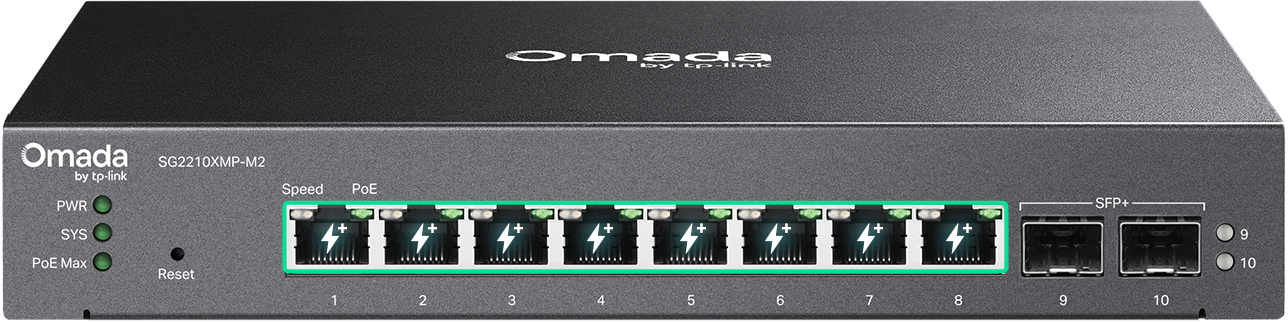

SG2210XMP-M2
-
8× 2.5 Gbps
RJ45 Ports -
2× 10 Gbps
SFP+ Slots -
160W Total PoE
Budget* -
Fanless Design for
Silent Operation -
Centralized
Management† -
Omada
App† -
Static
Routing -
Traffic
Separation
Empowering the Real
Wi-Fi 7/6 with 2.5G
PoE+ Ports
8× 2.5 Gbps
PoE+
RJ45 Ports
Up to
30W
PoE per Port
Total
160W
PoE Power
Budget*
Compatible with
802.3af/at
PoE and non-PoE
Devices
2.5G
Wi-Fi 7/6 APs
2.5G
NAS/Server
2.5G
Workstation
2.5G Network
Interface Card
Easily Build a Whole 10G Multi-gigabit Network
Switch
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Cloud-Based Controller
Standard Version or Essentials Version
On-Premises Controllers
or
or
Software
Hardware
Internet
Omada Gateway
Omada
PoE Switch
PoE Switch
PoE
PoE
Cloud Access to Omada Controller
Web Browser
Omada App
Omada
Access Points
Access Points
IP Camera
| HARDWARE FEATURES | |
|---|---|

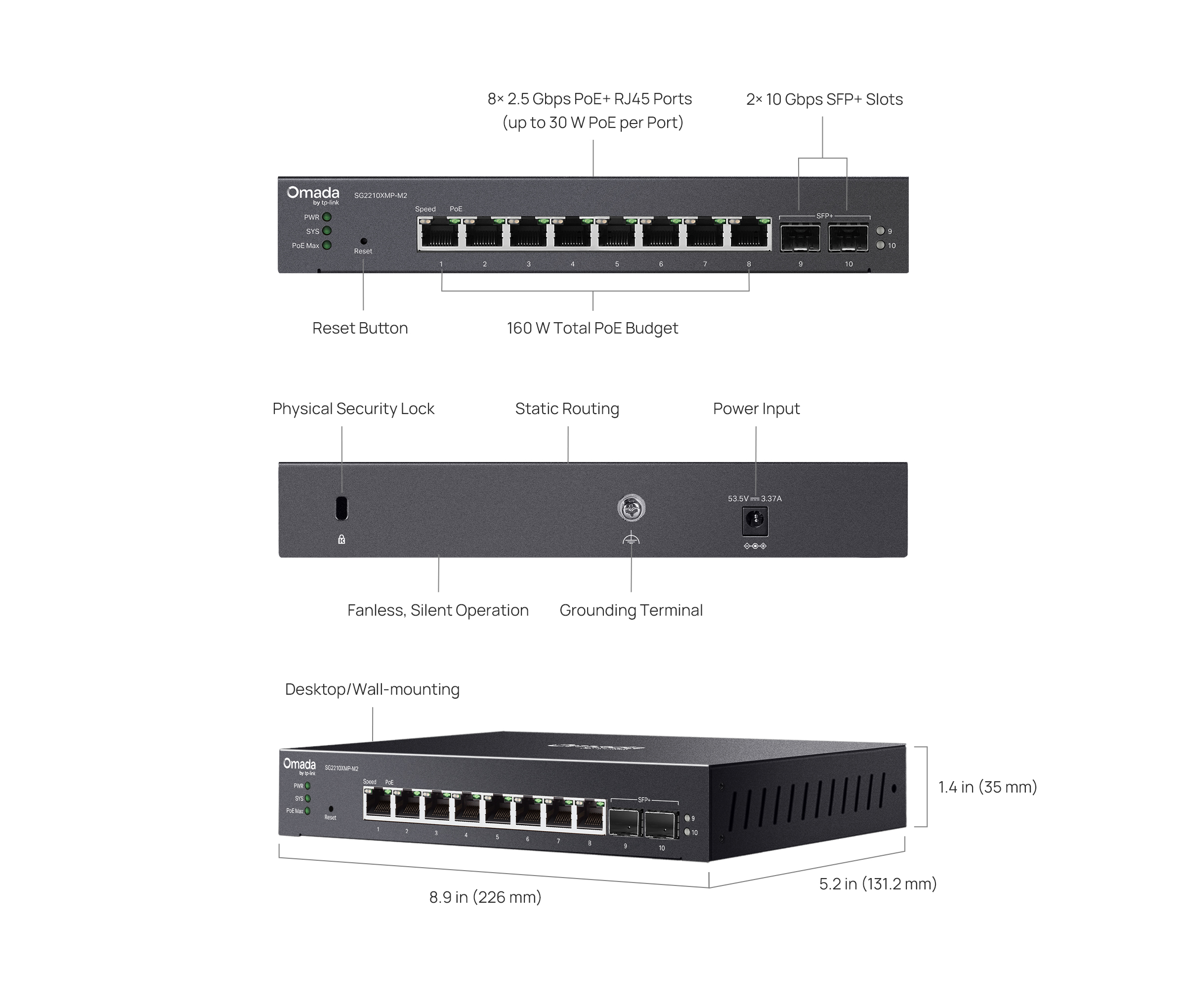

| Interface | • 8× 10/100/1000/2500 Mbps RJ45 PoE+ Ports• 2× 10G SFP+ Slots |
| Fan Quantity | Fanless |
| Physical Security Lock | √ |
| Power Supply | AC/DC Adapter (Input: 100-240V AC; Output: 53.5V DC/3.37A) |
| PoE Ports (RJ45) | • Standard: 802.3at/af compliant• PoE+ Ports: 8 Ports• PoE Power Budget: 160 W*• Fast PoE• Perpetual PoE |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |

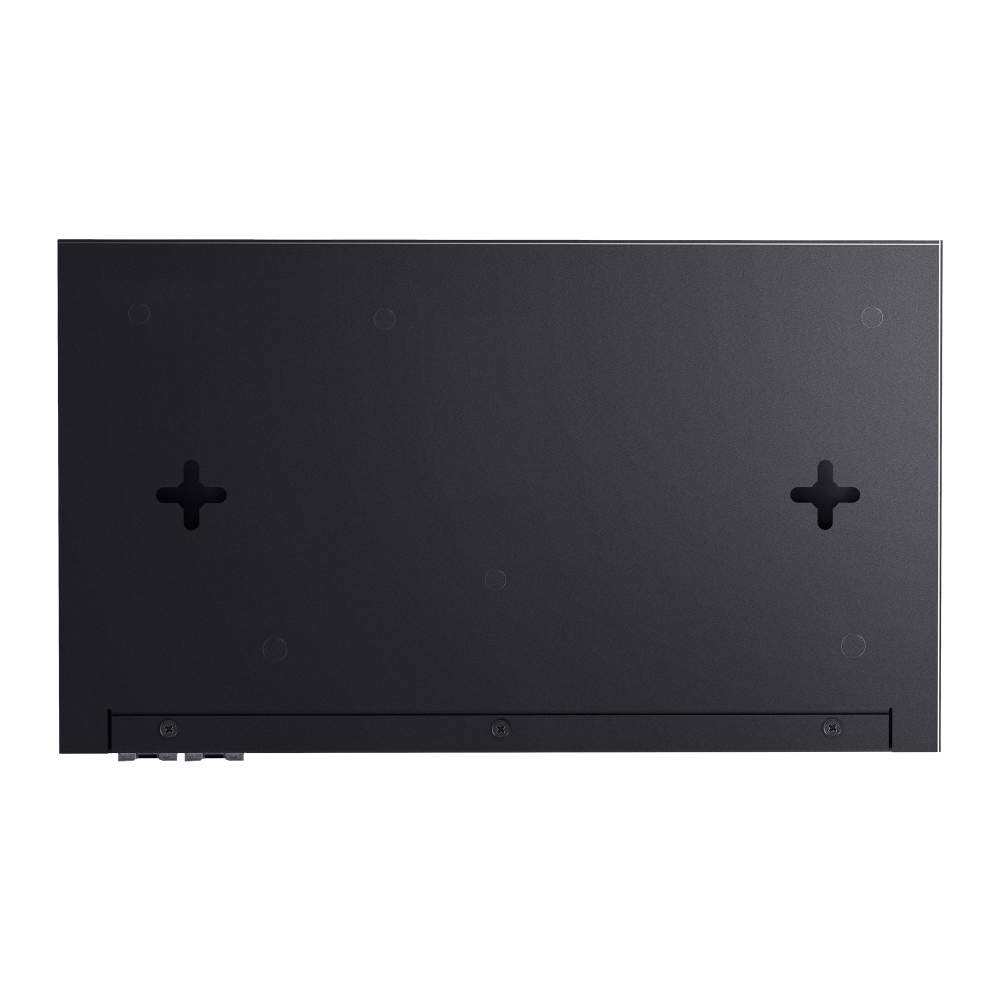

| Mounting | Desktop/Wall-Mounting |
| Max. Power Consumption | • 193.3 W (220 V/50 Hz @ 25 °C) (with 160 W PD connected)• 195.7 W (110 V/60 Hz @ 25 °C) (with 160 W PD connected) |
| Max Heat Dissipation | • 657.19 BTU/hr (220 V/50 Hz @ 25 °C) (with 160 W PD connected)• 665.38 BTU/hr (110 V/60 Hz @ 25 °C) (with 160 W PD connected) |
| PERFORMANCE | |
|---|---|
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| Switching Capacity | 80 Gbps |
| Packet Forwarding Rate | 59.52 Mpps |
| MAC Address Table | 16 K |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • 802.1p CoS/DSCP priority• 8 priority queues• Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control: Port/Flow-based Rating Limit• Smoother Performance• Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control |
| L2 and L2+ Features | • 32 IP Interfaces: Support IPv4/IPv6 Interface• Static Routing: 32 IPv4/IPv6 Static Routes• DHCP Server• DHCP Relay- DHCP Interface Relay- DHCP VLAN Relay• DHCP L2 Relay• Static ARP• Proxy ARP• Gratuitous ARP• Link Aggregation• Spanning Tree Protocol• Loopback Detection• 802.3x Flow Control• Mirroring• Device Link Detect Protocol (DLDP)• 802.1ab LLDP/ LLDP-MED• Spanning Tree- STP (802.1d)- RSTP (802.1w)- MSTP (802.1s)- STP Security: TC Protect, BPDU Filter/Protect, Root Protect |
| L2 Multicast | • 511 IPv4, IPv6 shared multicast groups• IGMP Snooping• Multicast VLAN Registration (MVR)• Multicast Filtering• Limited IP Multicast (256 profiles and 16 entries per profile) |
| Advanced Features | • Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Intelligent Network Monitoring†• Abnormal Event Warnings†• Unified Configuration†• Reboot Schedule† |
| VLAN | • VLAN Group - Max 4K VLAN Groups• 802.1Q Tagged VLAN• MAC VLAN: 12 Entries• Protocol VLAN• GVRP• Voice VLAN |
| Access Control List | • Support up to 230 entries• Time-Range• Time-based ACL• MAC ACL• IP ACL• IPv6 ACL• Combined ACL• Rule Operation: Permit/Deny• Policy Action- Mirroring- Redirect- Rate Limit- QoS Remark• ACL Rules Binding- Port Binding- VLAN Binding |
| Security | • IP-MAC-Port Binding• AAA• 802.1X- Port based authentication- MAC (Host) based authentication- Authentication Method includes PAP/EAP-MD5- MAB- Guest VLAN- Support Radius authentication and accountability• IP/IPv6-MAC Binding- 512 Binding Entries- DHCP Snooping- DHCPv6 Snooping- ARP Inspection- ND Detection- ND Snooping• IP Source Guard- 253 Entries- Source IP+Source MAC• IPv6 Source Guard- 183 Entries- Source IPv6 Address+Source MAC• DoS Defend• DHCP Filter• Static/Dynamic/Permanent Port Security- Up to 64 MAC addresses per port• Broadcast/Multicast/Unicast Storm Control• Port Isolation• Secure web management through HTTPS with SSLv3/TLS 1.2• Secure Command Line Interface (CLI) management with SSHv1/SSHv2• IP/Port/MAC based access control |
| IPv6 | • IPv6 Static Routing and ACL• IPv6 Dual IPv4/IPv6• IPv6 Interface• Multicast Listener Discovery (MLD) Snooping• IPv6 neighbor discovery (ND)• Path maximum transmission unit (MTU) discovery• Internet Control Message Protocol (ICMP) version 6• TCPv6/UDPv6• IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet(v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP |
| MIBs | • MIB II (RFC1213)• Interface MIB (RFC2233)• Ethernet Interface MIB (RFC1643)• Bridge MIB (RFC1493)• P/Q-Bridge MIB (RFC2674)• RMON MIB (RFC2819)• RMON2 MIB (RFC2021)• Radius Accounting Client MIB (RFC2620)• Radius Authentication Client MIB (RFC2618)• Remote Ping, Traceroute MIB (RFC2925)• Support TP-Link private MIB |
| Management Features | |
|---|---|
| Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later)• Omada Hardware Controller (Requires built-in version 5.15.20 or later)• Omada Software Controller (Requires built-in version 5.15.20 or later) |
| Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI• Command Line Interface (CLI) through telnet• SNMPv1/v2c/v3• SNMP Trap/Inform• RMON (1,2,3,9 groups)• SDM Template• DHCP/BOOTP Client• Dual Image, Dual Configuration• CPU Monitoring• Cable Diagnostics• EEE• SNTP• System Log• Dying Gasp• ONVIF• Digital Diagnostic Monitoring (DDM) |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |

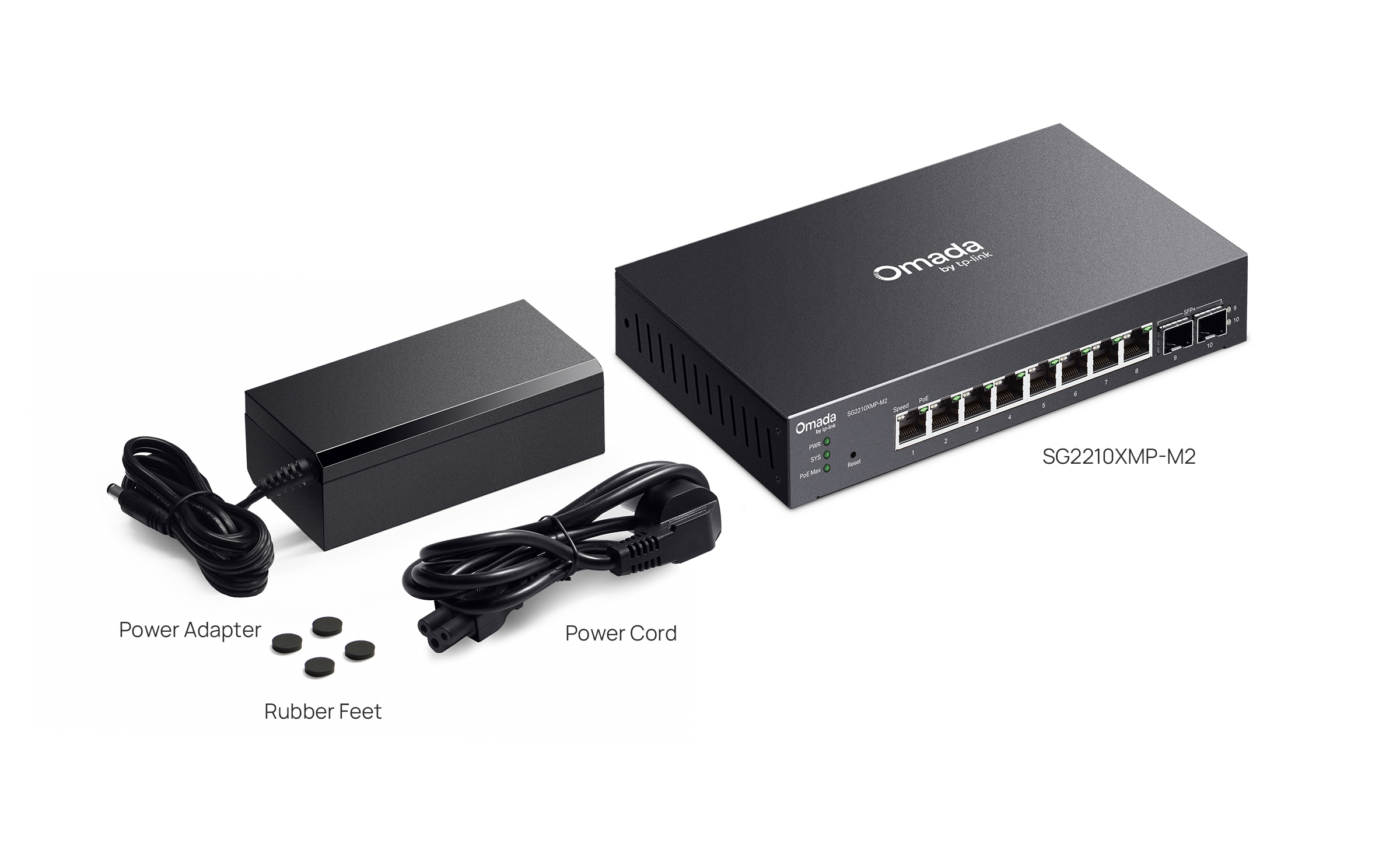

| Package Content | • SG2210XMP-M2 Switch• Power Adapter• Power Cord• Rubber Feet• Quick Installation Guide |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: -5–40 ℃ (23–104 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
†These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
