Omada Access Pro 16-Port 2.5G and 2-Port 10GE SFP+ Switch with 4-Port PoE++ & 12-Port PoE+
- 4× 2.5G PoE++ ports (up to 90 W PoE out per port)*
- 12× 2.5G PoE+ ports (up to 30 W PoE out per port)
- 2× 10G SFP+ slots
- 240 W total PoE budget**
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
Learn more about Omada PoE technology >
Learn more about Omada Cloud SDN>
Learn more about Omada Multi-Gig technology >
Omada Access Pro
16-Port
2.5G and
2-Port 10GE SFP+
Switch with 4-Port
PoE++
& 12-Port PoE+

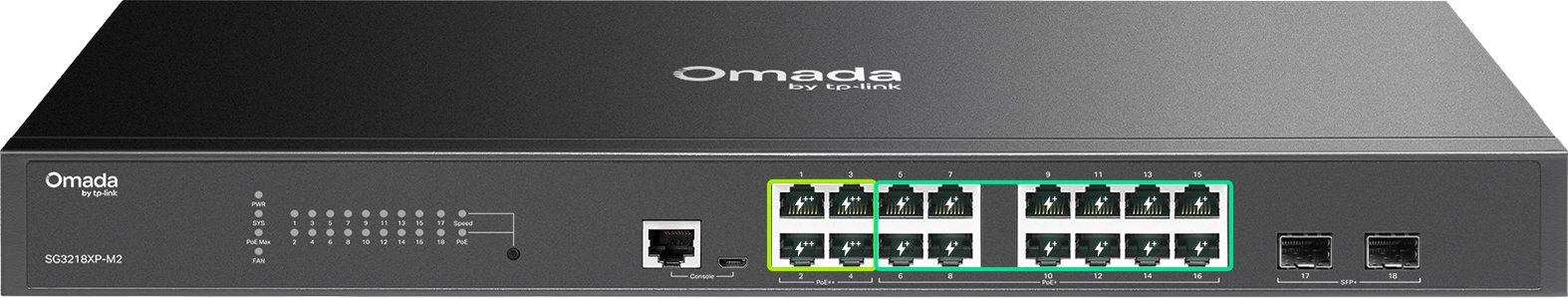

SG3218XP-M2
-
16× 2.5 Gbps RJ45 Ports
(4× PoE++ , 12× PoE+) -
2× 10 Gbps
SFP+ Slots -
240W Total PoE
Budget* -
Centralized
Management† -
Omada
App† -
Zero-Touch
Provisioning† -
Ethernet Ring
Protection Switching -
Static
Routing
Empowering the Real Wi-Fi 7/6
with 2.5G PoE Ports
4× 2.5 Gbps
PoE++
RJ45 Ports
12× 2.5 Gbps
PoE+
RJ45 Ports
Total
240W
PoE Power
Budget*
Compatible with
802.3af/at/bt
PoE and non-PoE
devices
2.5G
Wi-Fi 7/6 APs
2.5G
NAS/Server
2.5G
Workstation
2.5G Network
Interface Card
Easily Build a Whole 10G Multi-gigabit Network
Switch
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Cloud-Based Controller
Standard Version or Essentials Version
On-Premises Controllers
or
or
Software
Hardware
Internet
Omada Gateway
Omada
PoE Switch
PoE Switch
PoE
PoE
Cloud Access to Omada Controller
Web Browser
Omada App
Omada
Access Points
Access Points
IP Camera
| HARDWARE FEATURES | |
|---|---|

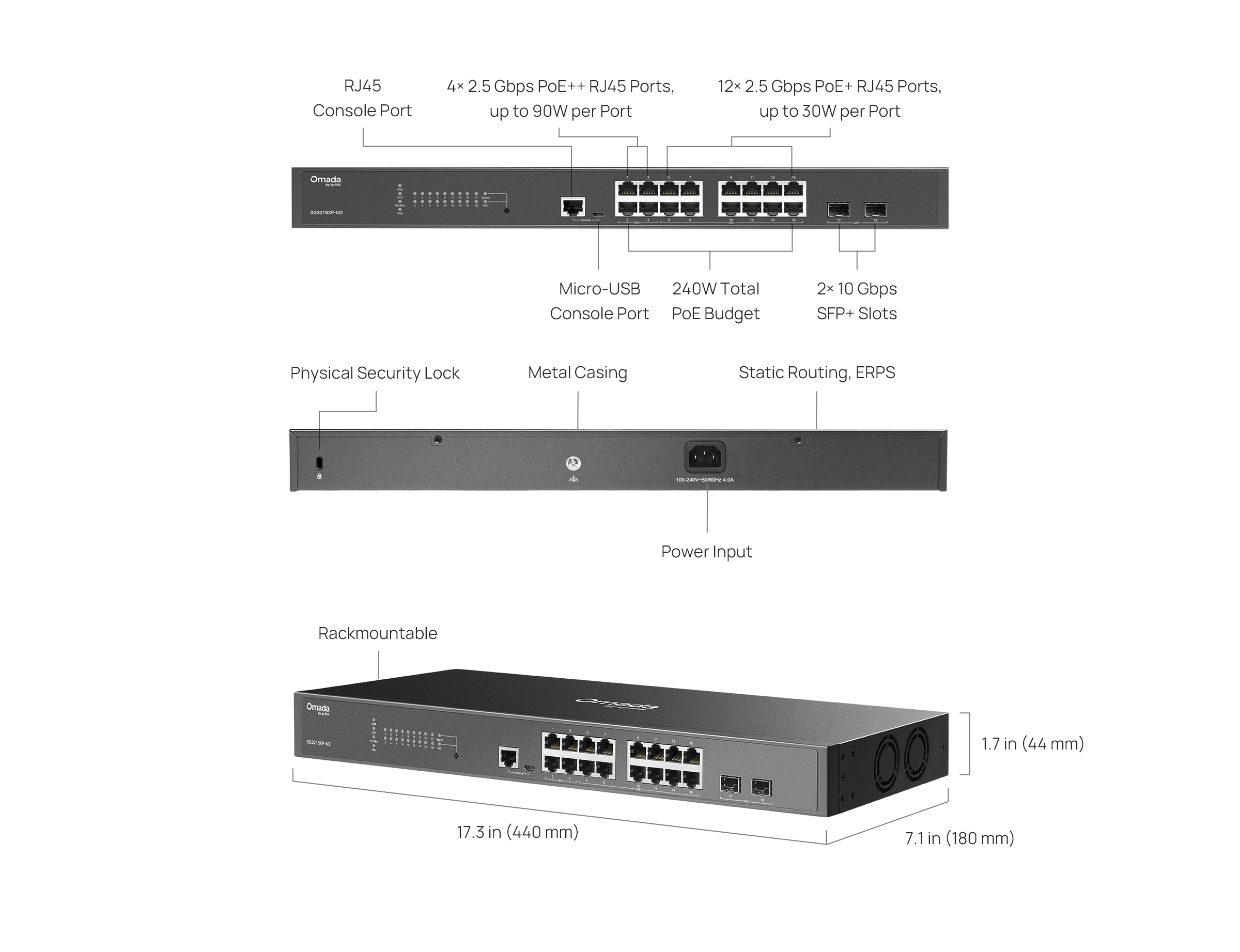

| Interface | • 16× 2.5 Gbps RJ45 Ports (4× PoE++, 12× PoE+)• 2× 10G SFP+ Slots• 1× RJ45 Console Port• 1× Micro-USB Console Port |
| Fan Quantity | 2 |
| Physical Security Lock | √ |
| Power Supply | 100-240 V~ 50/60 Hz |
| PoE Ports (RJ45) | • Standard: 802.3af/at/bt compliant• PoE++ Ports (802.3af/at/bt PoE): 4 Ports, up to 90 W per port*• PoE+ Ports(802.3af/at PoE): 12 Ports, up to 30 W per port• Power Budget: 240 W**• Fast PoE• Perpetual PoE |
| Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Surge Protection | 6 kV |
| Mounting | Rack Mountable |
| Max. Power Consumption | 291.16 W (110V/60Hz)(with 240 W PD connected) |
| Max Heat Dissipation | 989.94 BTU/h (110 V/60 Hz)(with 240 W PD connected) |
| PERFORMANCE | |
|---|---|
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| Switching Capacity | 120 Gbps |
| Packet Forwarding Rate | 89.28 Mpps |
| MAC Address Table | 16 K |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • 8 priority queues• 802.1p CoS/DSCP priority• Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR• Bandwidth Control: Port/Flow-based Rating Limiting• Smoother Performance• Action for Flows: QoS remark (802.1P Remark, DSCP Remark) |
| L2 and L2+ Features | • 32 IP Interfaces: Support IPv4/IPv6 Interface• Static Routing: 48 IPv4/IPv6 Static Routes• Static ARP: 128 static entries• 512 ARP Entries• Proxy ARP• Gratuitous ARP• DHCP Server• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay• DHCP L2 Relay• Link Aggregation• Spanning Tree Protocol• Loopback Detection• 802.3x Flow Control• Mirroring |
| L2 Multicast | • Supports 511 (IPv4, IPv6) IGMP groups• IGMP Snooping• IGMP Authentication• Multicast VLAN Registration (MVR)• MLD Snooping• Multicast Filtering: 256 profiles and 16 entries per profile |
| Advanced Features | • Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Intelligent Network Monitoring†• Abnormal Event Warnings†• Unified Configuration†• Reboot Schedule†ISP Features***:• L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP)• PPPoE ID Insertion• ERPS• 802.3ah Ethernet Link OAM• DDM |
| VLAN | • VLAN Group: Max 4K VLAN Groups• 802.1Q Tagged VLAN• MAC VLAN: 256 Entries• Protocol VLAN: Protocol Template 16, Protocol VLAN 16• GVRP• VLAN VPN: VLAN Mapping, VLAN Replace• Voice VLAN |
| Access Control List | • Time-based ACL• MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type• IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS• Combined ACL• Packet Content ACL• IPv6 ACL• Policy: Mirroring, Redirect, Rate Limit, QoS Remark• ACL applies to Port/VLAN |
| Security | • IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard: 100 Entries• IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - IPv6 Source Guard: 100 Entries• DoS Defend• DHCP Filter• Static/Dynamic Port Security: Up to 64 MAC addresses per port• Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode• 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - Radius authentication and accountability support• AAA (including TACACS+)• Port Isolation• Secure web management through HTTPS with SSLv3/TLS 1.2• Secure Command Line Interface (CLI) management with SSHv1/SSHv2• IP/Port/MAC based access control |
| IPv6 | • IPv6 Dual IPv4/IPv6• Multicast Listener Discovery (MLD) Snooping• IPv6 ACL• IPv6 Interface• Static IPv6 Routing• IPv6 neighbor discovery (ND)• Path maximum transmission unit (MTU) discovery• Internet Control Message Protocol (ICMP) version 6• TCPv6/UDPv6• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| MIBs | • MIB II (RFC1213)• Interface MIB (RFC2233)• Ethernet Interface MIB (RFC1643)• Bridge MIB (RFC1493)• P/Q-Bridge MIB (RFC2674)• RMON MIB (RFC2819)• RMON2 MIB (RFC2021)• Radius Accounting Client MIB (RFC2620)• Radius Authentication Client MIB (RFC2618)• Remote Ping, Traceroute MIB (RFC2925)• Support TP-Link private MIB |
| Management Features | |
|---|---|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later)• Omada Hardware Controller (Requires built-in version 5.15.20 or later)• Omada Software Controller (Requires built-in version 5.15.20 or later) |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI• Command Line Interface (CLI) through the console port, telnet• SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups)• SDM Template• DHCP/BOOTP Client• 802.1ab LLDP/LLDP-MED• DHCP AutoInstall• Dual Image, Dual Configuration• CPU Monitoring• Cable Diagnostics• IEEE 802.3az Energy Efficient Ethernet (EEE)• Password Recovery• SNTP• System Log |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |

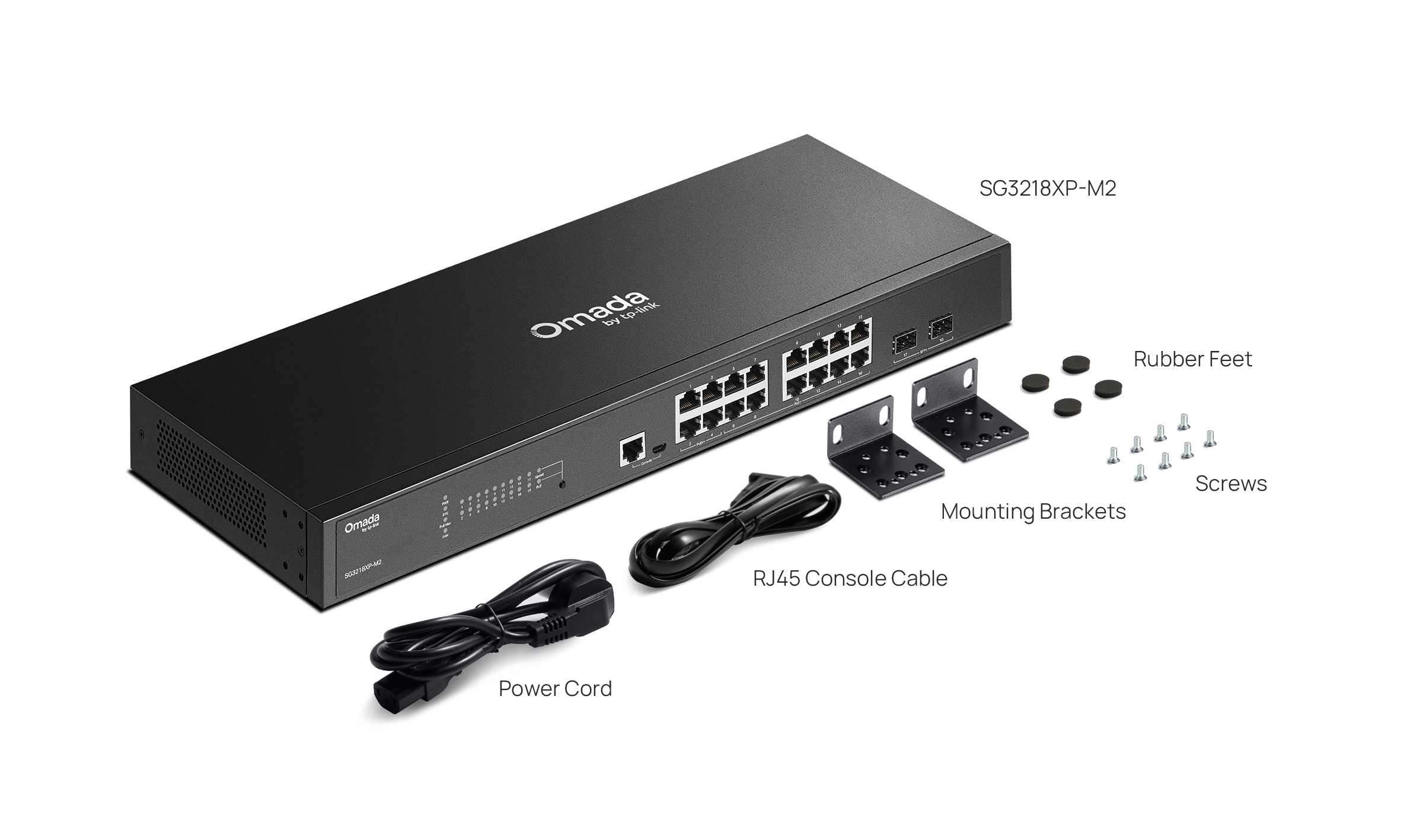

| Package Content | • SG3218XP-M2 Switch• Power Cord• Console Cable• Mounting Brackets• Rubber Feet• Screws• Quick Installation Guide |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: -5–50 ℃ (23–122 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
*SG3218XP-M2 is incompatible with Passive PoE and other non-standard PoE devices. The standards refer to IEEE 802.3af/at/bt.
**PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
†These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.
**ISP features can only be configured in standalone mode.
Attention: It is recommended to use only one SM5310-T module for the SG3218XP-M2.
