Omada Access 28-Port Gigabit Switch with 16-Port PoE+
- 16× Gigabit 802.3af/at PoE+ ports
- 8× Gigabit non-PoE RJ45 ports and 4× Gigabit SFP slots
- 150 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Fanless design for quiet operation
- Durable metal casing and rackmountable design
Learn more about Omada PoE technology >
Learn more about Omada Cloud SDN>
Omada 액세스
28포트 기가비트 스위치 (16× PoE+ 포트)
28포트 기가비트 스위치 (16× PoE+ 포트)
SG2428LP
(16× PoE+),
4× 기가비트 SFP 슬롯
150 W*
분리
클라우드를 통해 Omada 컨트롤러 액세스
웹 브라우저
Omada 앱
클라우드 기반
컨트롤러
컨트롤러
인터넷
Omada
라우터
라우터
Standard 버전 또는 Essentials 버전
Omada PoE 스위치
또는
온프레미스
컨트롤러
컨트롤러
IP 카메라
PoE
소프트웨어
또는
하드웨어
Omada
액세스 포인트
액세스 포인트
클라우드 기반 컨트롤러
인터넷
클라우드를 통해 Omada 컨트롤러 액세스
웹 브라우저
Omada 앱
Standard 버전 또는 Essentials 버전
또는
Omada 라우터
Omada
PoE 스위치
PoE 스위치
IP 카메라
온프레미스 컨트롤러
소프트웨어
또는
PoE
하드웨어
Omada
액세스 포인트
액세스 포인트
다양한 사용 환경
보안감시
IP 카메라와 호환
컨퍼런스 콜
IP 전화와 호환
Wi-Fi 커버리지
액세스 포인트와 호환
유선 연결
PC, 프린터 등
PoE 미지원 장치와 호환
such as PCs
and Printers
PoE 미지원 장치와 호환
such as PCs
and Printers

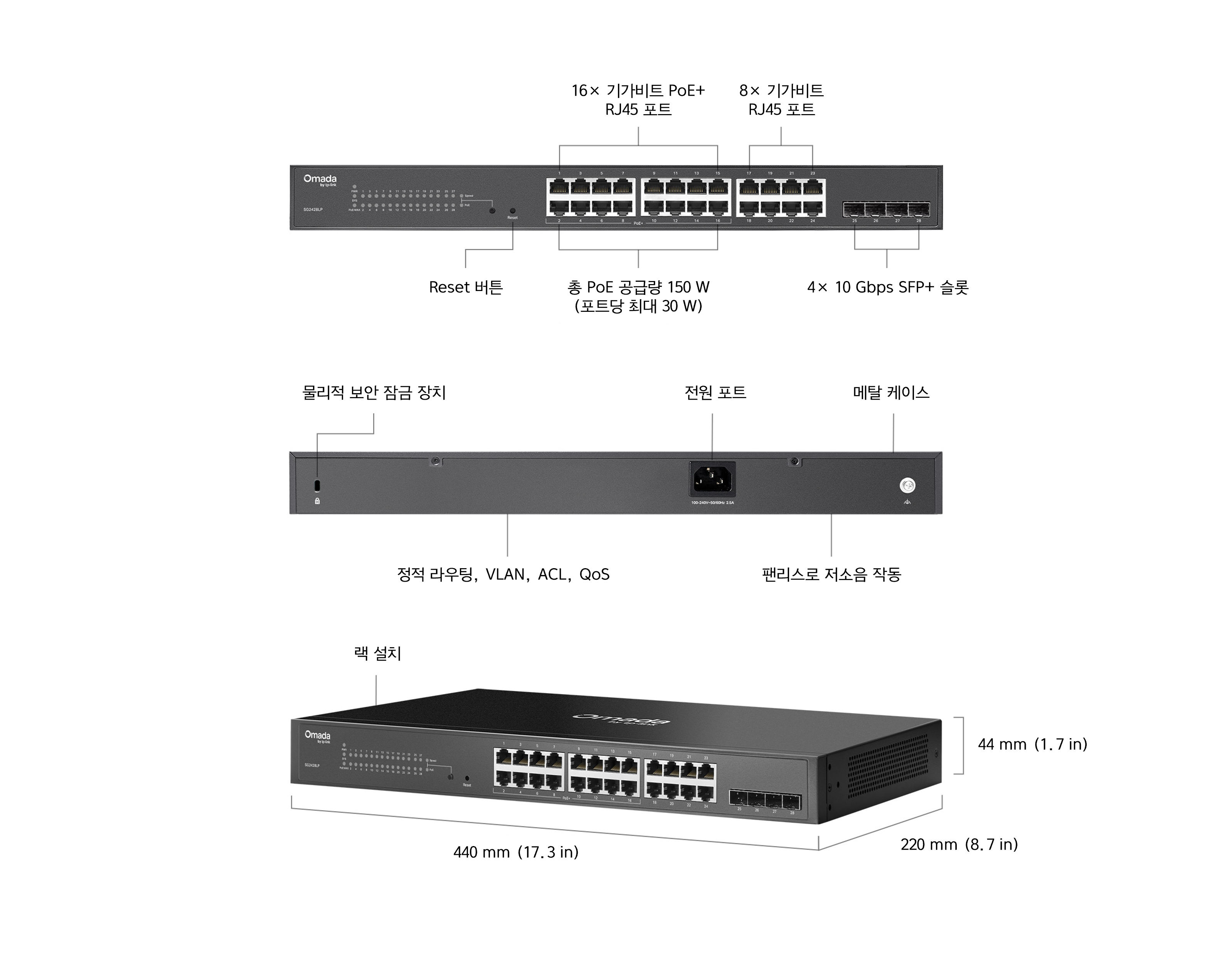

| 하드웨어 사양 | |
|---|---|
| 인터페이스 및 주요 사양 | • 16× 10/100/1000Mbps PoE+ RJ45 Ports• 8× 10/100/1000Mbps non-PoE RJ45 Ports• 4× Gigabit SFP Slots |
| 팬(Fan) 수량 | Fanless |
| 물리적 보안 잠금 장치 | √ |
| 전원 공급 | 100-240V AC, 50/60Hz |
| PoE 포트 (RJ45) | • Standard: 802.3at/af compliant• PoE+ Ports: 16 Ports (up to 30 W PoE Output per Port)• PoE Power Budget: 150 W* |
| 크기 ( 가로 x 세로 x 높이 ) | 17.3×8.7×1.73 in (440×220×44 mm) |
| 서지 보호 | ±6 kV |
| 마운트 | Rack Mountable |
| 최대 전력 소모량 | • 184.5 W (220 V/50 Hz @ 25 °C) (with 150 W PD connected)• 188.8 W (110 V/60 Hz @ 25 °C) (with 150 W PD connected) |
| 최대 방열수치 | • 627.23 BTU/hr (220 V/50 Hz @ 25 °C) (with 150 W PD connected)• 641.92 BTU/hr (110 V/60 Hz @ 25 °C) (with 150 W PD connected) |
| 성능 | |
|---|---|
| 패킷 버퍼 메모리 | 4.1 Mbit |
| 점보 프레임 | 9 KB |
| 스위칭 용량 | 56 Gbps |
| 패킷 전달 속도 | 41.66 Mpps |
| MAC 주소 테이블 | 8K |
| 소프트웨어 기능 | |
|---|---|
| 서비스 품질(QoS) | • 802.1p CoS/DSCP priority• 8 priority queues• Priority Schedule Mode - Strict Priority (SP) - Weighted Round Robin (WRR)• Queue Weight Config• Bandwidth Control - Port/Flow based Rating Limit• Smoother Performance• Storm Control - Multiple Control Modes (kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control |
| L2 기능 | • 32 IPv4/IPv6 Interfaces• Static Routing: 32 IPv4/IPv6 Static Routes• DHCP Server• DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay• DHCP L2 Relay• Static ARP• Proxy ARP• Gratuitous ARP• Link Aggregation• Spanning Tree Protocol• Loopback Detection• 802.3x Flow Control• Mirroring• Device Link Detect Protocol (DLDP)• 802.1ab LLDP/ LLDP-MED |
| L2 멀티캐스트 | • Supports 511 (IPv4, IPv6) IGMP groups• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - Static Group Config• Multicast VLAN Registration (MVR)• Multicast Filtering• Multicast Listener Discovery (MLD) Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config• Limited IP Multicast - 256 profiles and 16 entries per profile |
| 고급 기능 | • Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Intelligent Network Monitoring†• Abnormal Event Warnings†• Unified Configuration†• Reboot Schedule† |
| VLAN | • VLAN Group: Max. 4K VLAN Groups• 802.1Q Tagged VLAN• MAC VLAN: 12 Entries• Protocol VLAN (IEEE 802.1v)• GVRP• Voice VLAN |
| 액세스 컨트롤 리스트 | • Support up to 230 entries• Time-Range• Time-based ACL• MAC ACL• IP ACL• IPv6 ACL• Combined ACL• Rule Operation: Permit/Deny• Policy Action - Mirroring - Redirect - Rate Limit - QoS Remark• ACL Rules Binding - Port Binding - VLAN Binding• Actions for flows |
| 보안 | • Authentication, Authorization, Accounting (AAA)• 802.1X - Port based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication andaccountability• IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - Dynamic ARP Inspection (DAI) - ND Detection - ND Snooping• IP Source Guard - 253 Entries - Source IP+Source MAC• IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC• DoS Defend• DHCP Filter• Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port• Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode• Port Isolation• Secure web management through HTTPS withSSLv3/TLS 1.2• Secure Command Line Interface (CLI)management with SSHv1/SSHv2• IP/Port/MAC based access control |
| IPv6 | • IPv6 Static Routing and ACL• IPv6 Dual IPv4/IPv6• IPv6 Interface• MLD Snooping• IPv6 neighbor discovery (ND)• Path maximum transmission unit (MTU) discovery• Internet Control Message Protocol (ICMP) version 6• TCPv6/UDPv6• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| MIBs | • MIB II (RFC1213)• Bridge MIB (RFC1493)• P/Q-Bridge MIB (RFC2674)• Radius Accounting Client MIB (RFC2620)• Radius Authentication Client MIB (RFC2618)• Remote Ping, Traceroute MIB (RFC2925)• Support TP-Link private MIBs• RMON MIB(RFC1757, rmon 1,2,3,9) |
| 관리 | |
|---|---|
| Omada 앱 | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| 중앙 집중식 관리 | • Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later)• Omada Hardware Controller (Requires built-in version 5.15.20 or later)• Omada Software Controller (Requires built-in version 5.15.20 or later) |
| 클라우스 액세스 | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| 제로 터치 프로비저닝 | Yes. Requiring the use of Omada Cloud-Based Controller |
| 관리 기능 | • Web-based GUI• Command Line Interface (CLI) through telnet• SNMPv1/v2c/v3• SNMP Trap/Inform• RMON (1,2,3,9 groups)• SDM Template• DHCP/BOOTP Client• Dual Image, Dual Configuration• CPU Monitoring• Cable Diagnostics• IEEE 802.1az Energy Efficient Ethernet (EEE)• SNTP• System Log• Dying Gasp• ONVIF• Digital Diagnostic Monitoring (DDM) |
| 기타 | |
|---|---|
| 인증 | CE, FCC, RoHS |

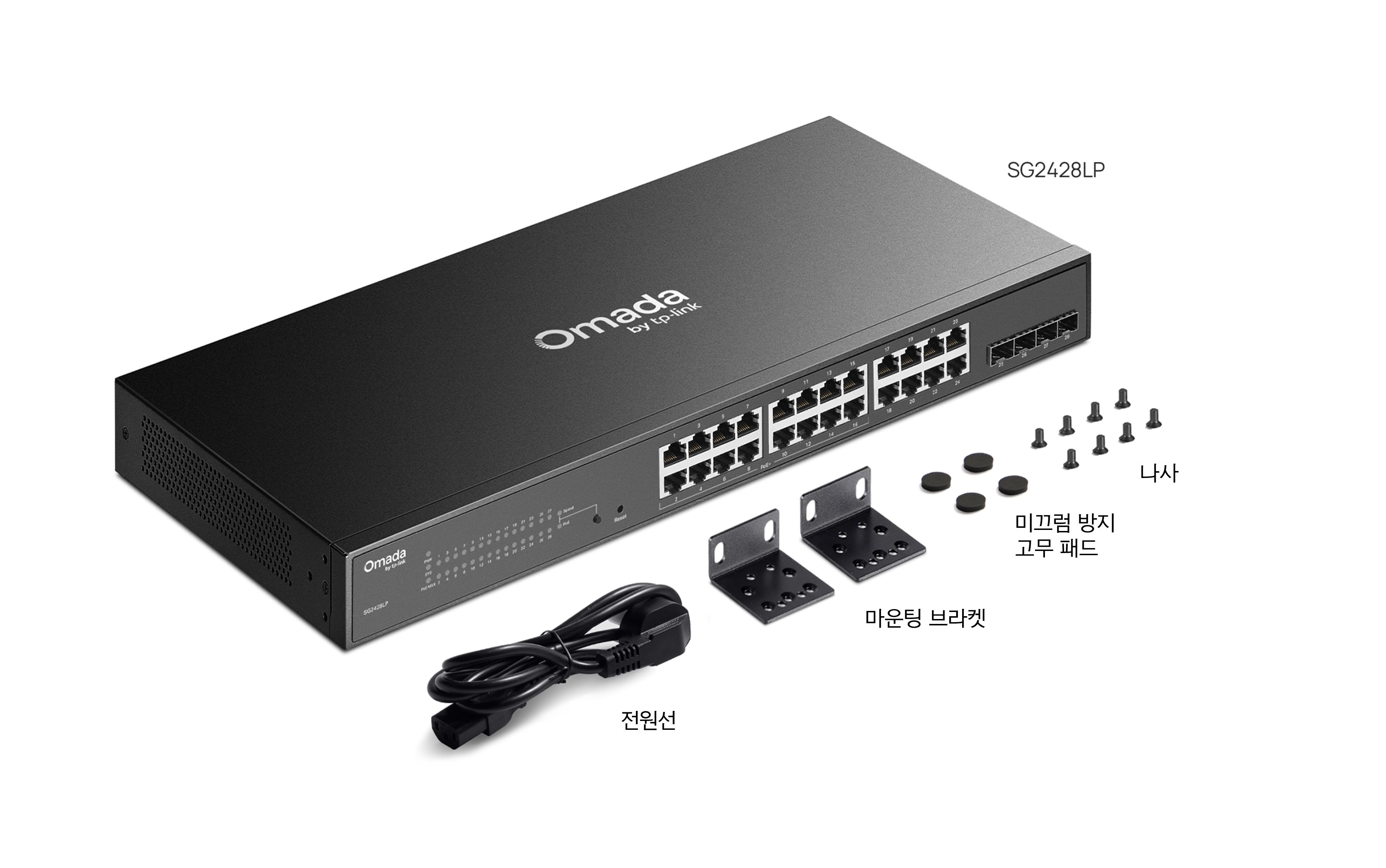

| 패키지 구성품 | • SG2428LP• Power Cord• Mounting Brackets• Rubber Feet• Screws• Installation Guide |
| 운영 체제 | Microsoft® Windows® XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| 사용 환경 | • Operating Temperature: -5 ̊C–45 ̊C (23 ̊F–113 ̊F;• Storage Temperature: -40 °C–70 ℃ (-40 °F–158 ℉)• Operating Humidity: 10%–90% RH non-condensing• Storage Humidity: 5%–90% RH non-condensing |
†These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller.
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.
