EAP650-Desktop
곧 출시Omada AX3000 Desktop Wi-Fi 6 Access Point
- Blazing-Fast AX3000 Wi-Fi 6 Speeds: 2402 Mbps on 5GHz and 574 Mbps on 2.4 GHz totals 2976 Mbps Wi-Fi speeds.†
- Easy and Quick Installation: Plug-and-play on the desk or easy mounting on the wall.
- Multiple Gigabit Ports: Connect multiple devices with 4× Gigabit Ethernet Ports.
- Convenient Deployment: Supports both 802.3bt PoE++ and DC (adapter included) for easy and quick deployment.
- Low Latency and Interference: 160 MHz bandwidth, OFDMA, MU-MIMO, and 1024-QAM ensure high performance for your network.‡
- Advanced Functions: Omada Mesh, Seamless Roaming, Centralized Cloud Management.§
- More Connections and Wider Coverage: Supports 250+ concurrent connections** and covers up to 1500 ft² (140 m²)* .
| 하드웨어 사양 | |
|---|---|
| 인터페이스 및 주요 사양 | 4× 1 Gbps Ethernet Ports + 1× FXS Port(One Ethernet port supports PoE Out: 802.3at/af output at 802.3bt input, 802.3af class 2 output at 802.3at input) |
| 버튼 | • Reset• LED |
| 전원 공급 | 802.3 af/at/bt PoE or 12 V/1.5 A DC*PoE Out requires 802.3at/bt PoE power supply |
| 전력 소모 | • DC power (PoE Out off)EU: 15.8 WUS: 16.8 W• 802.3at/bt (PoE Out off)EU: 18.7 WUS: 19.9 W• 802.3af (PoE Out off)EU: 10 WUS: 12 W |
| 무게 | 0.5 kg (excluding mounting base) |

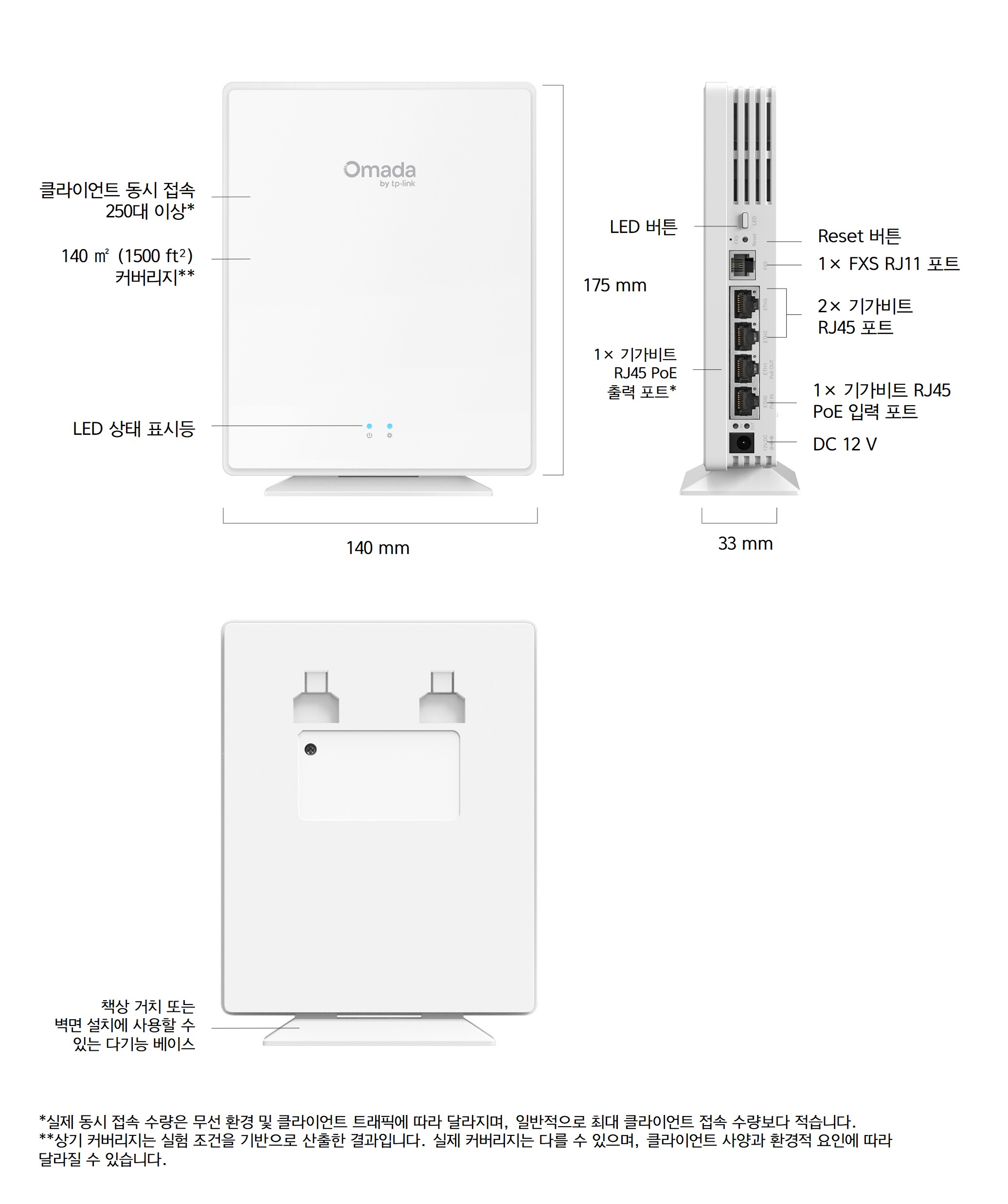

| 크기 ( 가로 x 세로 x 높이 ) | 6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm) |
| 안테나 | Internal Omni• 2.4 GHz: 2× 5 dBi• 5 GHz: 3× 4.7 dBi |
| 지원 범위 | 1500 ft² (140 ㎡)* |
| 마운트 | Desktop / Wall Mouting (Kits included) |
| 무선 기능 | |
|---|---|
| 동시 접속 클라이언트 | 250+** |
| 무선 표준 | IEEE 802.11 a/b/g/n/ac/ax |
| 주파수 | 2.4 GHz and 5 GHz |
| 신호 속도 | • 5 GHz: 2402 Mbps†• 2.4 GHz: 574 Mbps |
| 무선 기능 | • 2×2 (2.4G & 5G) MU-MIMO‡• HE160 (160 MHz Bandwidth)‡• OFDMA‡• Omada Mesh• Seamless Roaming§• Multiple SSIDs (16 SSIDs, 8 on each band)• Enable/Disable SSID Broadcast• Enable/Disable Wireless Radio• Guest Network• Automatic Channel Assignment• Beamforming• Rate Limit (Based on SSID/Client)• Band Steering• Load Balance• Airtime Fairness • Transmit Power Control (Adjust Transmit Power on dBm)• QoS (WMM)• RADIUS Accounting• MAC Authentication• Reboot Schedule• Wireless Schedule and Statistics• Static IP/Dynamic IP |
| 무선 보안 | • Captive Portal Authentication§• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• VLAN • Rogue AP Detection• 802.1X Support• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| 전송 강도 | • CE<20 dBm(2.4 GHz, EIRP)<23 dBm(5 GHz, band 1 & band 2, EIRP)<29 dBm(5 GHz, band 3, EIRP)• FCC<26 dBm (2.4 GHz)<27 dBm (5 GHz) |
| 관리 | |
|---|---|
| Omada 앱 | Yes |
| 중앙 집중식 관리 | • Omada Hardware Controller • Omada Software Controller• Omada Cloud-Based Controller |
| 클라우스 액세스 | Yes. Require the use of an Omada controller. |
| 이메일 경보 | Yes |
| LED 켜기/끄기 제어 | Yes |
| 관리 MAC 액세스 컨트롤 | Yes |
| SNMP | v1, v2c, v3 |
| 시스템 로깅 로컬/리모트 시스로그 | System Log |
| SSH | Yes |
| 웹기반 관리기능 | Yes |
| 제로 터치 프로비저닝 | Yes.Reauire the use of Omada Cloud-Based controller |
| 기타 | |
|---|---|
| 인증 | CE, FCC, RoHS, IC |

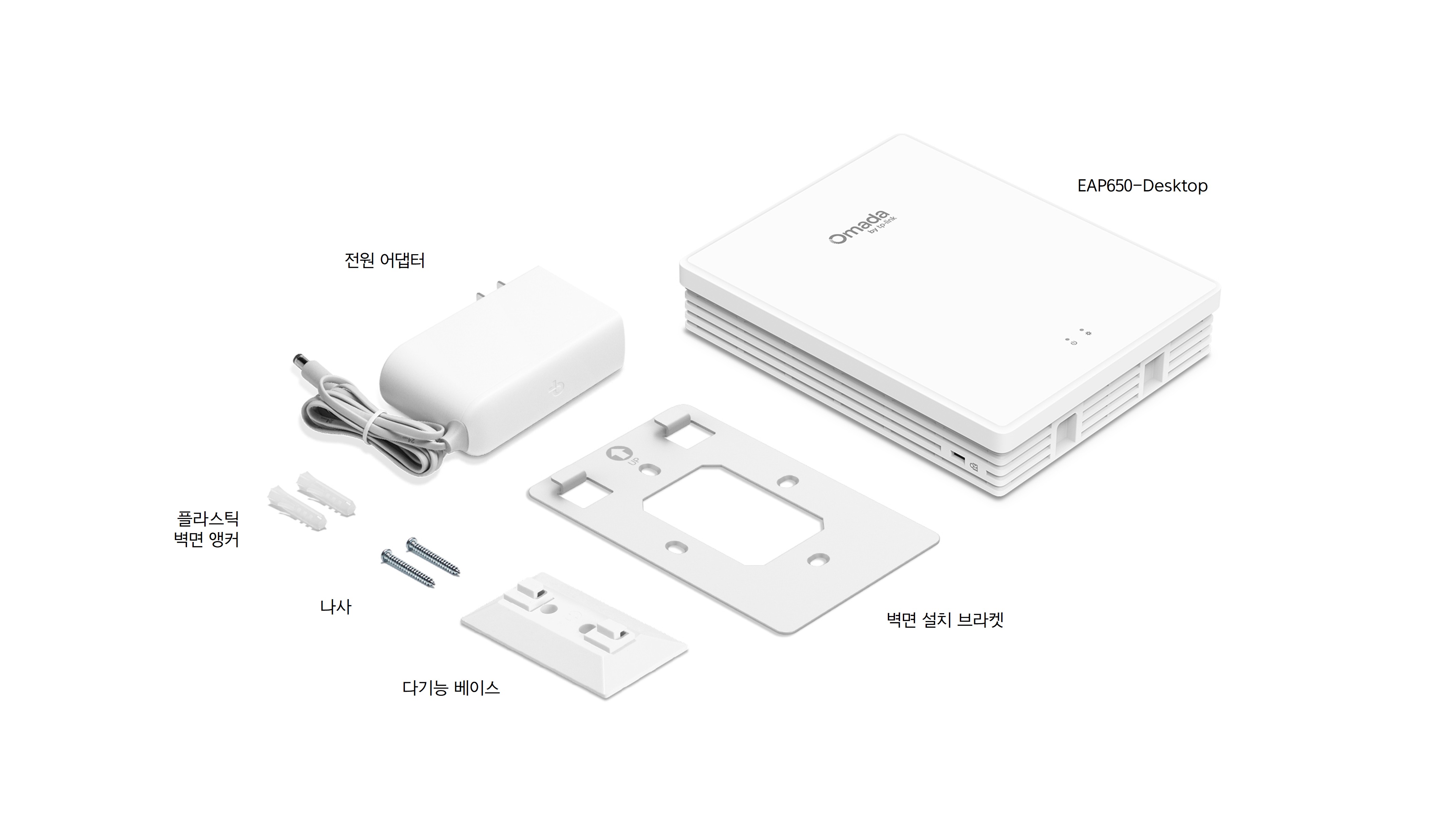

| 구성품 | • EAP650-Desktop• Desktop/Wall Mounting Kit• Installation Guide• Power Adapter |
| 사용 환경 | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 6 (802.11ax) and its features like MU-MIMO, requires clients to support the corresponding features. The 160 MHz bandwidth is only available on 5 GHz band and may be unavailable in some regions/countries due to regulatory restrictions.
§These features require the use of Omada SDN controllers.
*Coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
