PSM200-AC(UN)_V1_Datasheet

200 W AC Power Supply Module

MODEL: PSM200-AC

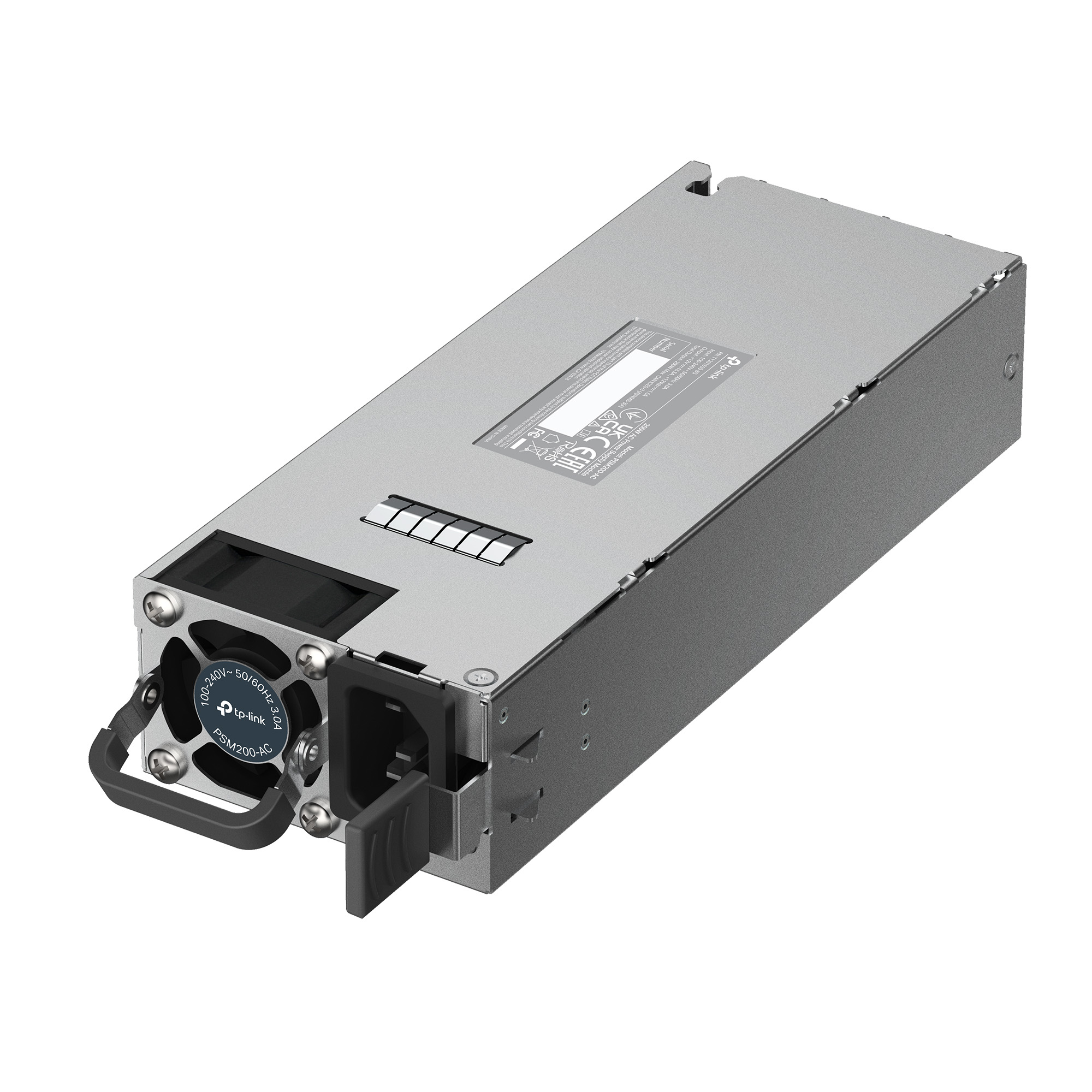

Image of PSM200-AC power supply module

Highlights

Up to 200 watts output power
Output over-voltage/under-voltage/short circuit/over-current protection
Hot swappable
Suitable for OLT DS-P7500-16

Overview

The TP-Link Power Supply Module PSM200-AC is an AC-input and DC-output power supply module. It can convert the input voltage to 12 Volts with the maximum output power of 200 Watts.

The power supply module is fully hot swappable, ensuring no system interruption during installation or replacement. PSM200-AC is applicable to TP-Link OLT products, such as DS-P7500-16.

Product Pictures

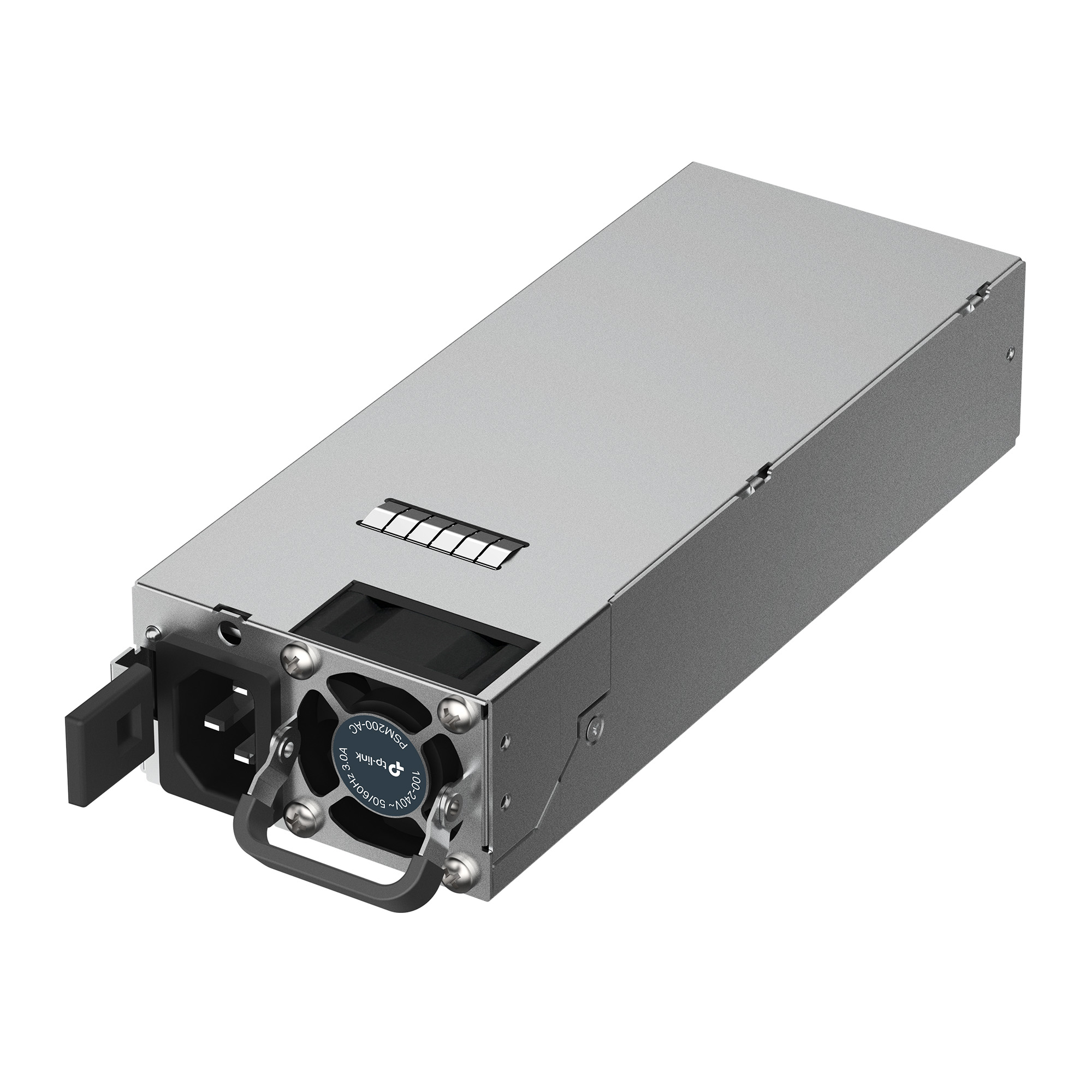

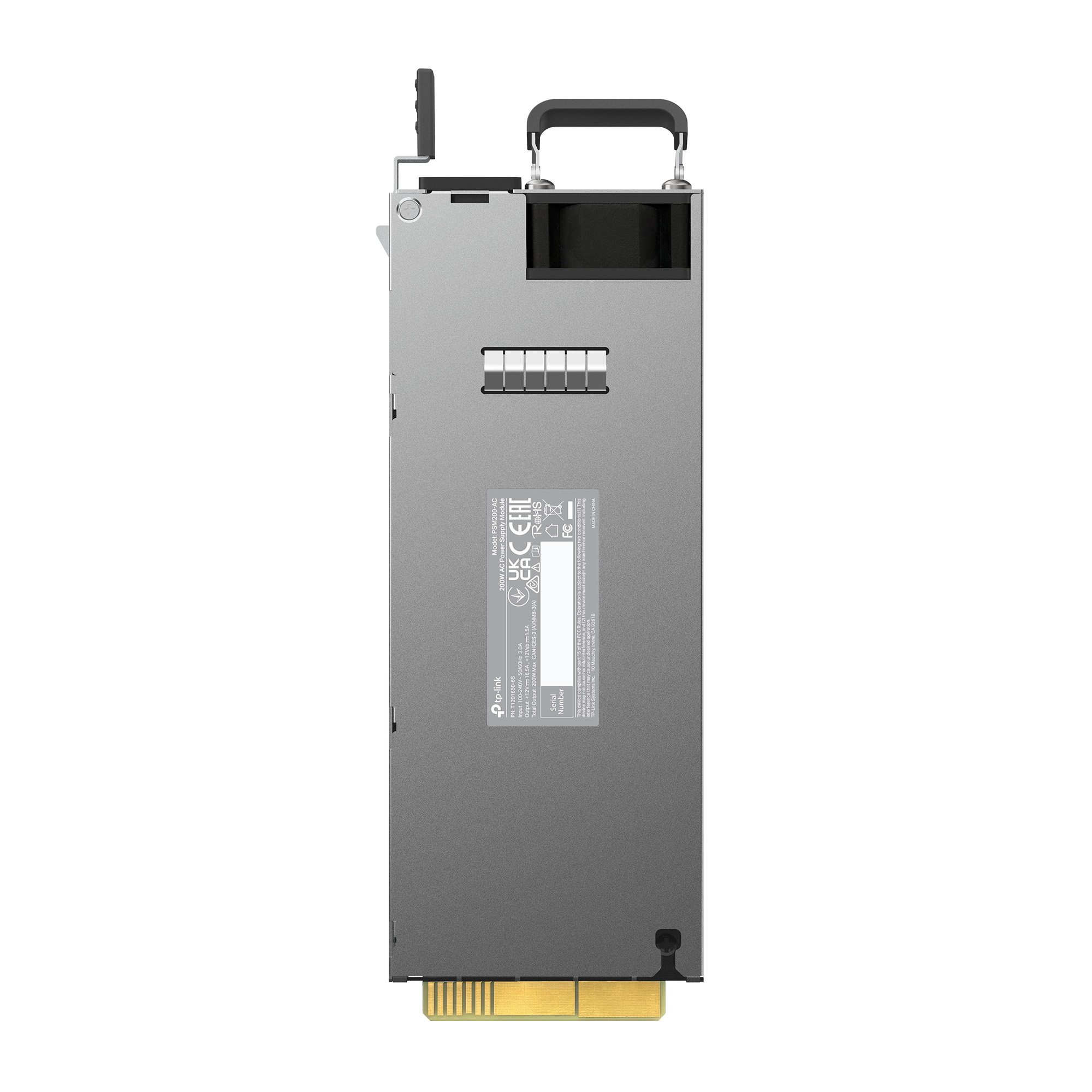

Image of the AC slot for PSM200-AC Top view image of the power supply module

Specifications

Model		PSM200-AC
General	Power Input	100V - 240V ~ 50/60Hz
	Output Voltage/Current	Output1: 12V ⎓ 16.5A Output2: 12Vsb ⎓ 1.5A
	Total Output Power	200W MAX
	LED	1× Multi-function indication LED
	Dimensions	73.5 × 185 × 40 mm (2.9 × 7.3 × 1.6 in)
	Surge Protection	±6 kV
Environmental & Physical
	Operating Temperature & Altitude	0 °C to 50 °C (32 °F to 122 °F) (sea level to 4000 m)
	Storage Temperature	-40°C to 70°C (-40°F to 158°F)
	Operating Humidity	10% to 90% RH Non-condensing
	Storage Humidity	5% to 90% RH Non-condensing

Specifications are subject to change without notice. All brands and product names are trademarks or registered trademarks of their respective holders.
