PSM200-DC_V1_Datasheet
200W DC Power Supply Module
MODEL: PSM200-DC
Highlights
-
Up to 200 watts output power
-
Output over-voltage/under-voltage/short circuit/over-current protection
-
Hot swappable
-
Suitable for OLT DS-P7500-16
Overview
The TP-Link Power Supply Module PSM200-DC is an DC-input power supply module. It provides a DC power supply of 36V to 72V, with a maximum output current of 16.5A (+12V) or 1.5A (+12Vsb).
The power supply module is fully hot swappable, ensuring no system interruption during installation or replacement. PSM200-DC is applicable to TP-Link OLT products, such as DS-P7500-16.

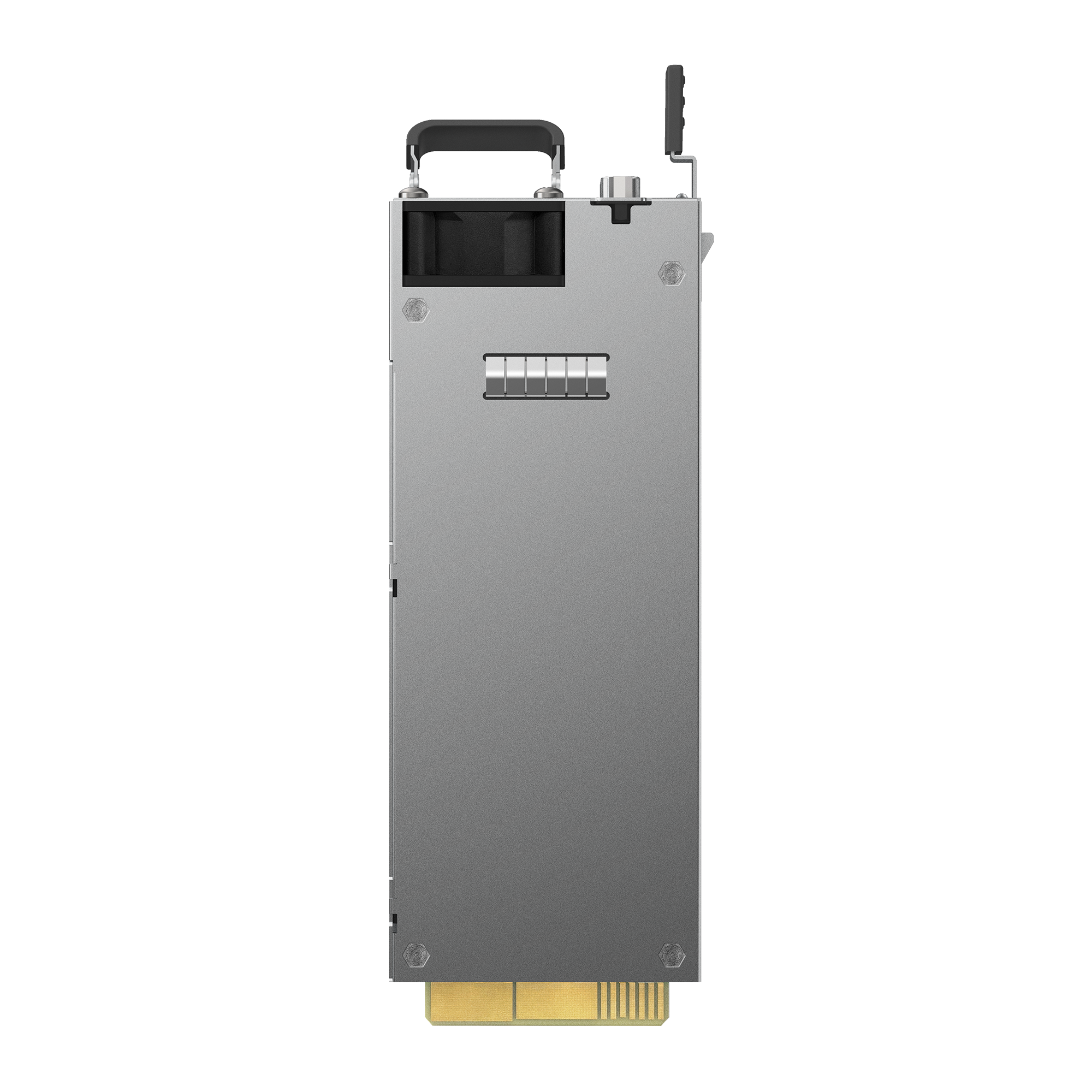

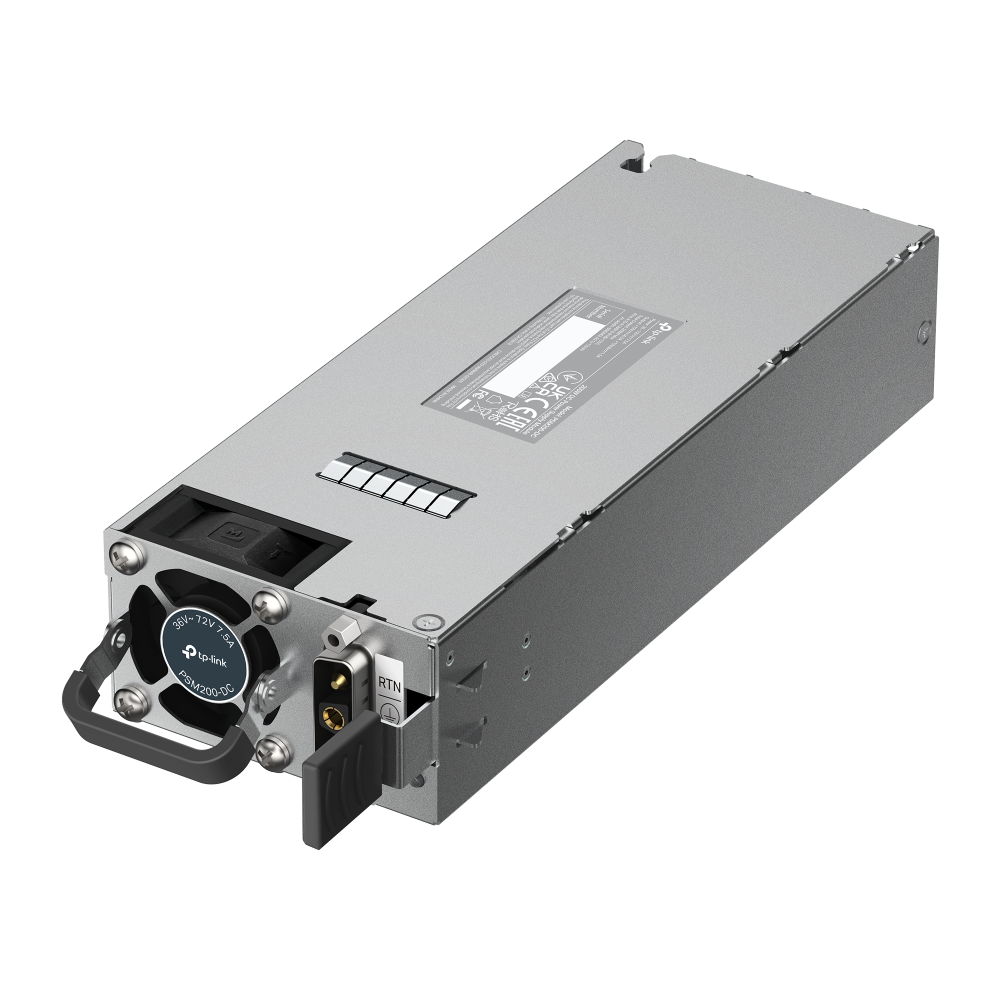

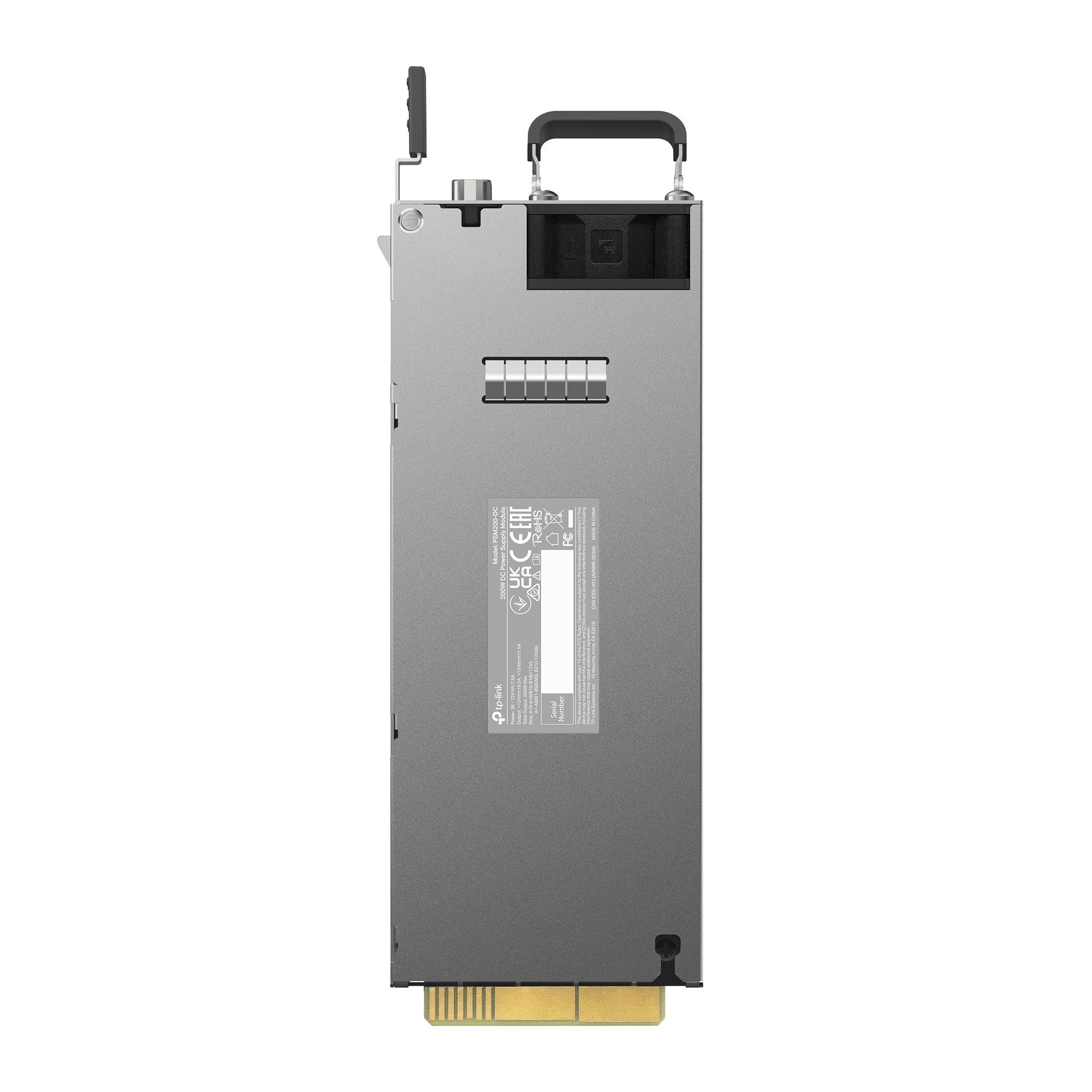

Product Pictures
Specifications
| Model | PSM200-DC | |
|---|---|---|
| General | Power Input | 36 - 72V ⎓ 7.5A |
| Output Voltage/Current | Output1: +12V ⎓ 16.5A Output2: +12Vsb ⎓ 1.5A |
|
| Total Output Power | 200W MAX | |
| LED | 1× Multi-function indication LED | |
| Dimensions | 185 × 73.5 × 40 mm (7.3 × 2.9 × 1.6 in) | |
| Surge Protection | ±4 kV | |
| Environmental & Physical | ||
| Operating Temperature & Altitude | 0 °C to 50 °C (32 °F to 122 °F) (sea level to 4000 m) | |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) | |
| Operating Humidity | 10% to 90% RH Non-condensing | |
| Storage Humidity | 5% to 90% RH Non-condensing | |
Specifications are subject to change without notice. All brands and product names are trademarks or registered trademarks of their respective holders.
