NE200-Outdoor_V2_Datasheet

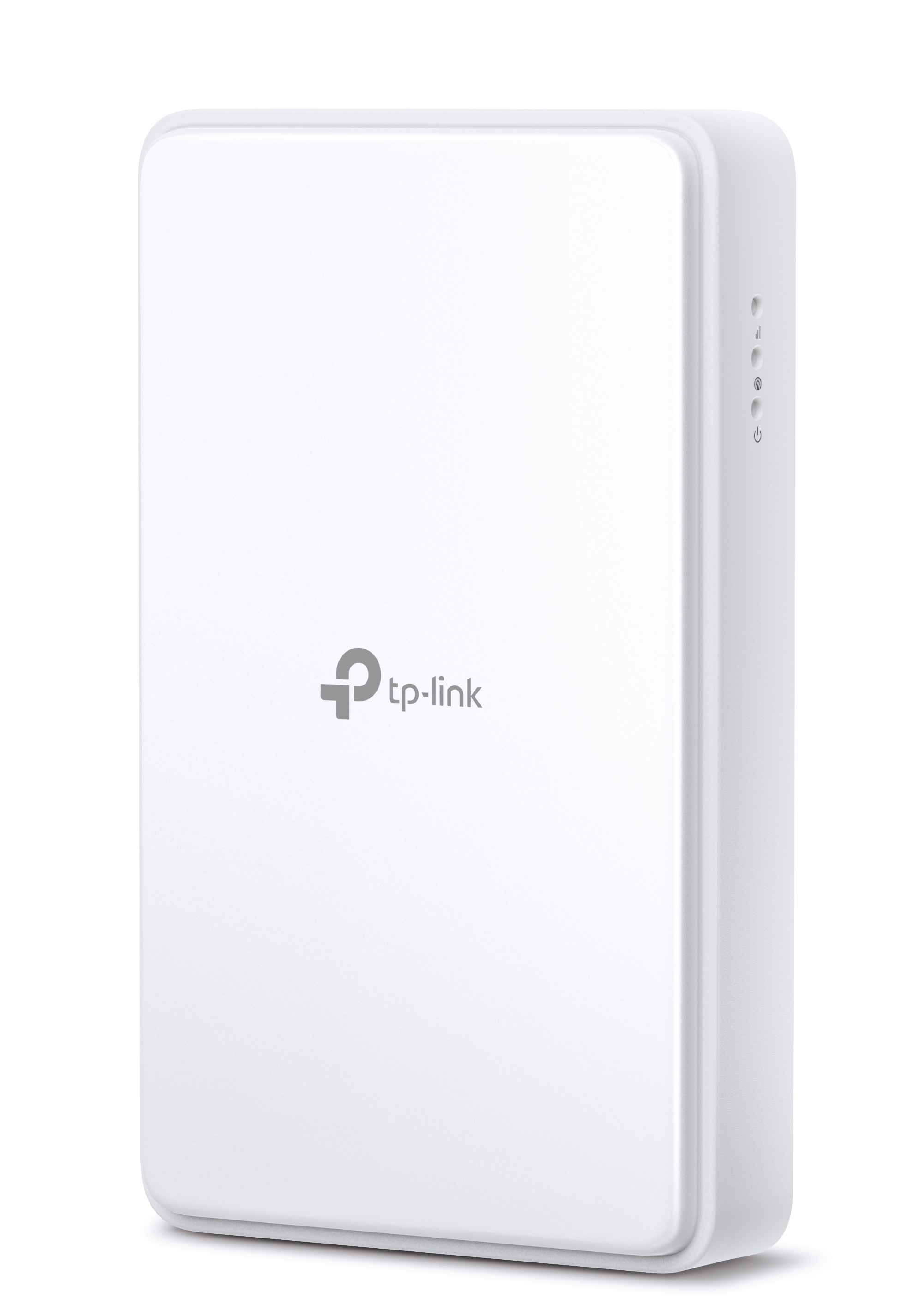

5G Outdoor Router
 |
Unrivaled 5G Speeds up to 4.67 Gbps† |  |
 |
2.5 Gbps Wired Connection‡ | |
 |
PoE Power Supply | |
 |
Wall/Pole/Window Mounting | |
|
|
SIM Card Plug and Play◇ |
Highlights
|

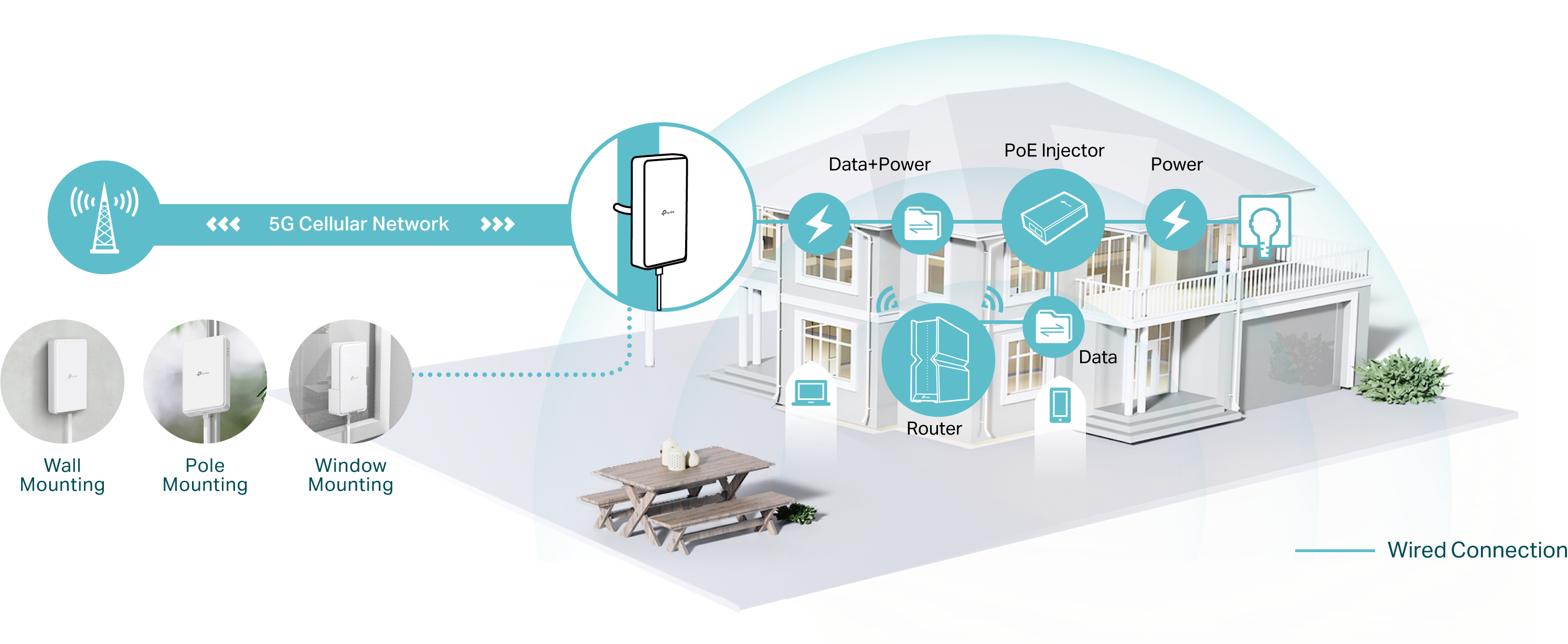

Experience Reliable Connectivity Indoors and Outdoors |
||
|---|---|---|
|

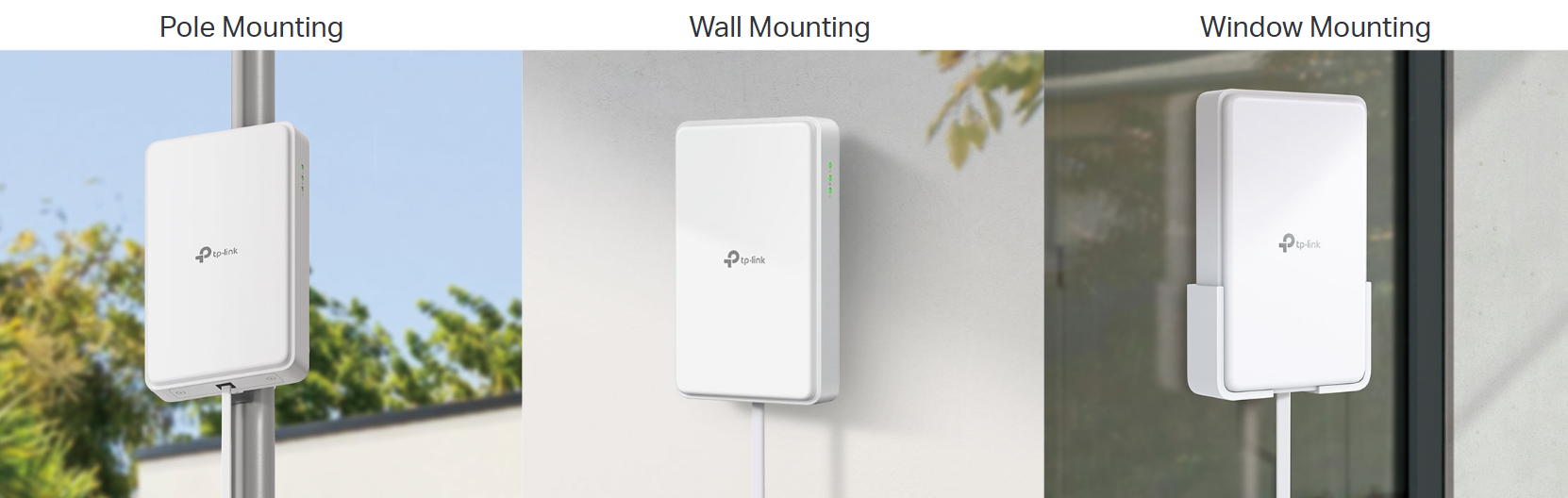

Versatile Mounting Solutions for Diverse Environments The NE200-Outdoor supports versatile mounting on a pole, wall, or window, adapting easily from urban to rural settings. This flexibility helps you find the optimal location for strong signal reception, ensuring fast and reliable 5G connectivity.
Ultra-Fast 5G for Seamless Connections Insert a SIM card to enjoy 5G download speeds up to 4.67 Gbps and CAT19 speeds up to 1.6 Gbps*. Experience rock-solid, high-speed connectivity for HD streaming, online gaming, and large file transfers—without lag or delays.
Robust Protection for Reliable Outdoor Performance The NE200-Outdoor is built to withstand harsh conditions with IP66 weatherproof rating, operates in a wide temperature range of -30℃~+60℃, and protection against up to 6kV lightning and 15kV ESD (Electrostatic Discharge), ensuring long-term, fault-free operation, and providing a dependable network connection.
|
|
2.5 Gbps Wired Connection |  |
PoE Power Supply |  |
Plug and Play |
|
Enjoy ultra-fast connectivity through a 2.5 Gbps port for smoother streaming, faster downloads, and enhanced online gaming performance.‡ |
Supports 802.3af/802.3at PoE and passive PoE, providing a reliable power supply and effortless network deployment. |
|
Internet setup made simple. Just plug in an activated SIM card and you're ready to browse. ◇ |
Features
 |
5G Network · 5G – Ideal for cutting-edge 5G network · Backward Compatible – Compatible with 4G network |
|---|---|
 |
Easy of Use · Intuitive Web UI – Ensures quick and simple installation without hassle · Hassle-free Management with Tether App – Network management is made easy with the TP-Link Tether App, available on any Android and iOS device · Online Upgrade – Keeps you informed of the latest firmware and allows online upgrade on the web UI |
 |
Two Modes in One · 3G/4G/5G Router Mode – Creates an instant private network by connecting devices via wired connections |
Specifications
|
Hardware |
|
|---|---|
|
Interface |
1× 2.5 Gbps PoE/LAN Port 1 × Nano SIM Card Slot 1 × Type-C Port (only for debug) |
|
Buttons |
RESET Button |
|
Waterproof |
IP66 |
|
Antennas |
Internal 5G NR/LTE Antennas |
|
External Power Supply |
Power: 48V/0.375A 802.3af PoE: 36-57V/0.35A |
|
Dimensions (W x D x H) |
7.2 × 4.3 × 1.4 in (183 × 110 × 36 mm) |
|
Wireless |
|
|
Network Type |
5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N75/N76/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/1500/1500/3700/3500 MHz) 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1500 MHz) 3G: DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
|
Software |
|
|
Operating Modes |
3G/4G/5G Router, IP Passthrough |
|
DHCP |
Server, DHCP Client List, Address Reservation |
|
Port Forwarding |
ALG, Virtual Server, Port Triggering, UPnP, DMZ |
|
Dynamic DNS |
TP-Link, DynDns, NO-IP |
|
VPN Server |
PPTP VPN, IPSec VPN, OpenVPN |
|
Firewall Security |
DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding |
|
Protocols |
IPv4, IPv6 |
|
Management |
Local Management, Remote Management, reboot schedule |
|
Others |
|
|
Certification |
CE, RoHS |
|
Requirements |
• Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser • Nano SIM Card |
|
Environment |
• Operating Temperature: -30℃~60℃ (-22°F~140°F) • Storage Temperature: -40°C~70°C (-40 °F~158 °F) • Operating Humidity: 5%~95% RH • Storage Humidity: 5%~95% RH |
|
Package Contents |
• 5G Outdoor Router NE200-Outdoor • PoE Adapter • AC Power Cord • Grounding Terminal • 10-meter Flat RJ45 Ethernet Cable • Quick Installation Guide • Window/Pole/Wall Mounting Kits |
Disclaimer
Specifications are subject to change without notice.
†Maximum 5G download and upload speeds depend on external factors such as the local 5G network coverage, data plan, real-time network capacity, client limitations, and environmental factors. Actual supported frequency bands may vary slightly in different regions due to certification.
‡Actual network speed may be limited by the rate of the product's Ethernet LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
△This product has an IP66 dustproof and waterproof rating; however, it is not designed for prolonged immersion or exposure to high-pressure water jets. Please install and use it according to the quick installation guide to ensure the protective features function properly.
§Tested under controlled laboratory conditions. Per CE certification, protection levels are: Lightning/Surge Protection at 2kV for Differential Mode (DM) and 4kV for Common Mode (CM), and ESD Protection at 4kV for Contact Protection and 8kV for Air Protection. For optimal protection, please follow the setup instructions in the quick installation guide.
◇ This device requires an activated SIM card without a PIN lock. If the SIM is locked, please consult the quick installation guide for unlocking instructions.
