Tapo D130_Datasheet

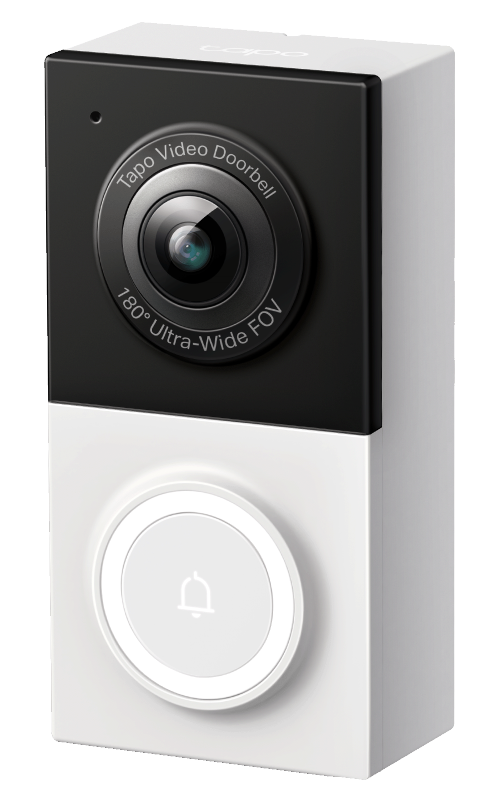

Tapo Wired Video Doorbell

Overview

See Wider, even Stand Closer

Highlights

Head-to-Toe View
Receive head-to-toe views even when visitors stand too close to the doorbell with a 180° ultra-wide diagonal FOV and 4:3 aspect ratio—no more cropped images and lost details like with a traditional 16:9 aspect ratio and 160° field of view.

Smart AI Detection and Notifications
Smart AI identifies people, packages, pets and vehicles, notifying users as needed.

Features

2K 5MP Ultra-Clear Images

Always know what happens in front of your door through the Tapo app. With the starlight sensor and 2K 5MP resolution, check all the fine details captured even in low-light environments.

180° Ultra-Wide Diagonal FOV*

Receive head-to-toe views even when visitors stand too close to the doorbell with a 180° ultra-wide diagonal FOV and 4:3 aspect ratio—no more cropped images and lost details like with a traditional 16:9 aspect ratio and 160° field of view.

Hard-Wired Installation

Installation and Existing Doorbell Wires Required.

IP65 Weatherproof

Offers excellent waterproof and dustproof performance for outdoor scenarios.

Full-Color Night Vision

With the embedded spotlight and starlight sensor, Tapo D130 reveals high-fidelity details and color at night.

Two-Way Audio

Communicate in real time through a built-in microphone and speaker.

Quick Response

Respond to your deliveries without saying a word with customizable responses through the Tapo app.

Indoor Chime Provided

Up to 98dB alarm with a variety of ringtones.

Customizable Activity Zones

Set customizable activity zones to receive more accurate notifications.

Specifications

Camera
Image Sensor	1/2.7’’ Progressive Scan CMOS Sensor
Lens	Focal Length: 1.18 mm Aperture: F1.8 Field of View: 180° Diagonal
Night Vision	850 nm IR LED (25 ft / 7.6 m) Full-Color Night Vision
Day/Night Switch	IR-Cut Filter with Auto-Switching
Lighting	Built-in Spotlights
Interface & Button	1× RESET Button 1× Doorbell Button 1× microSD Card Slot
Chime
Interface & Button	1× RESET/SYNC Button 1× Volume Button 1× Music Button
Video & Audio
Maximum Resolution	2K (2560 × 1920 px)
Frame Rate	Default 15 fps
Digital Zoom	16x
Live View	Yes
Video Compression	H.264
Image Enhancement	3DNR WDR
Audio Input & Output	Built-in Microphone and Speaker
Audio Communication	Two-Way Audio with Noise Cancellation
Storage
Local Storage	microSD Card Slot on Doorbell (Up to 512 GB) (SD Card Purchased Separately)
Cloud Storage	Tapo Care Cloud Storage Services (Subscription required)
Detection & Notification
AI Detection	Motion Detection Line-Crossing Detection Tamper Detection Person Detection Pet Detection Vehicle Detection Package Detection
Activity Zones	Yes
Output Notification	System Notification System Notification with Snapshot (Subscription Required)
Network
Network Connectivity	Connect via Wi-Fi
Wireless Connectivity	IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
Transmission Rate	11b: 11 Mbps 11g: 54 Mbps 11n: 65 Mbps
Protocol	TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP
Ethernet Port	No
Security
Security	On-Device Machine Learning 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK
Power
Power Source	Hardwired Only
Input Voltage	Hardwired:8-24V ~1.2A 50/60Hz
Typical Power Consumption	Doorbell Typical Power Consumption: 3.5 W Chime Typical Power Consumption: 0.6 W
Maximum Power Consumption	Doorbell Max Power Consumption: 5.0 W Chime Maximum Power Consumption: 4 W
General
Certifications	CE, RoHS, KC, FCC, IC, ETL
Smart Integration	Google Assistant, Amazon Alexa
Weather Resistance	IP65
Mounting Options	Stick to a Wall Mount to a Wall
Operating Temperature	-20℃~45℃ (-4℉ ~ 113℉)
Storage Temperature	-20℃~60℃ (-4℉ ~140℉)
Operating Humidity	10%~90% RH, Non-condensing
Storage Humidity	5~90% RH, Non-condensing
Dimensions	Doorbell Dimensions: 3.35 × 1.67 × 1.28 in (85 × 42.5 × 32.5 mm) Chime Dimensions: US/CA Version: 2.87×1.85×1.71 in (73×46.9×43.5 mm) UK Version: 2.87 × 2.15 × 1.89 in (73 × 54.6 × 48 mm)
Package Contents	Tapo D130 Wired Video Doorbell ×1 Tapo Doorbell Chime ×1 Mounting Screws ×3  Mounting Anchors ×3 Mounting Wedge Screws ×3 Wire Nuts ×2 Mounting Bracket ×1 Mounting Template ×1 Doorbell Detaching Pin ×1 Horizontal Mounting Wedge ×1 Vertical Mounting Wedge ×1 3M Adhesive ×1 Foam Pad ×1 Extension Wires ×2 Jumpers for Existing Chime ×2 Quick Start Guide

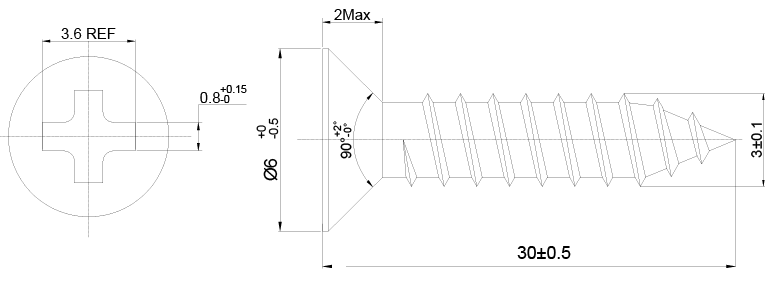

Mounting Screw Size

^†microSD card purchased separately. Actual storage capacity depends on the size of the microSD card used.
^‡Subscribe for cloud storage service at http://www.tapo.com/tapocare
^△Compatible with Alexa and Google Assistant supported displays. User experience is dependent on the connected services.
^§Chime can only be used indoors.
