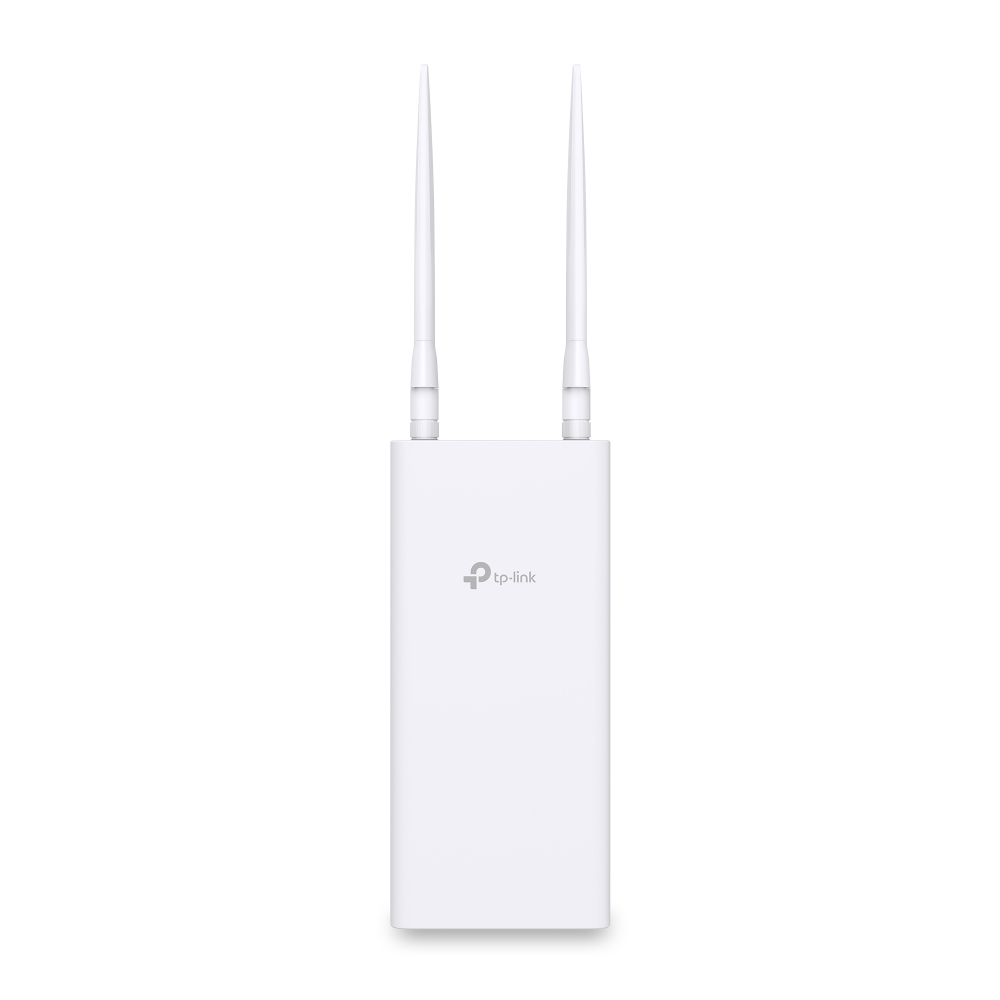

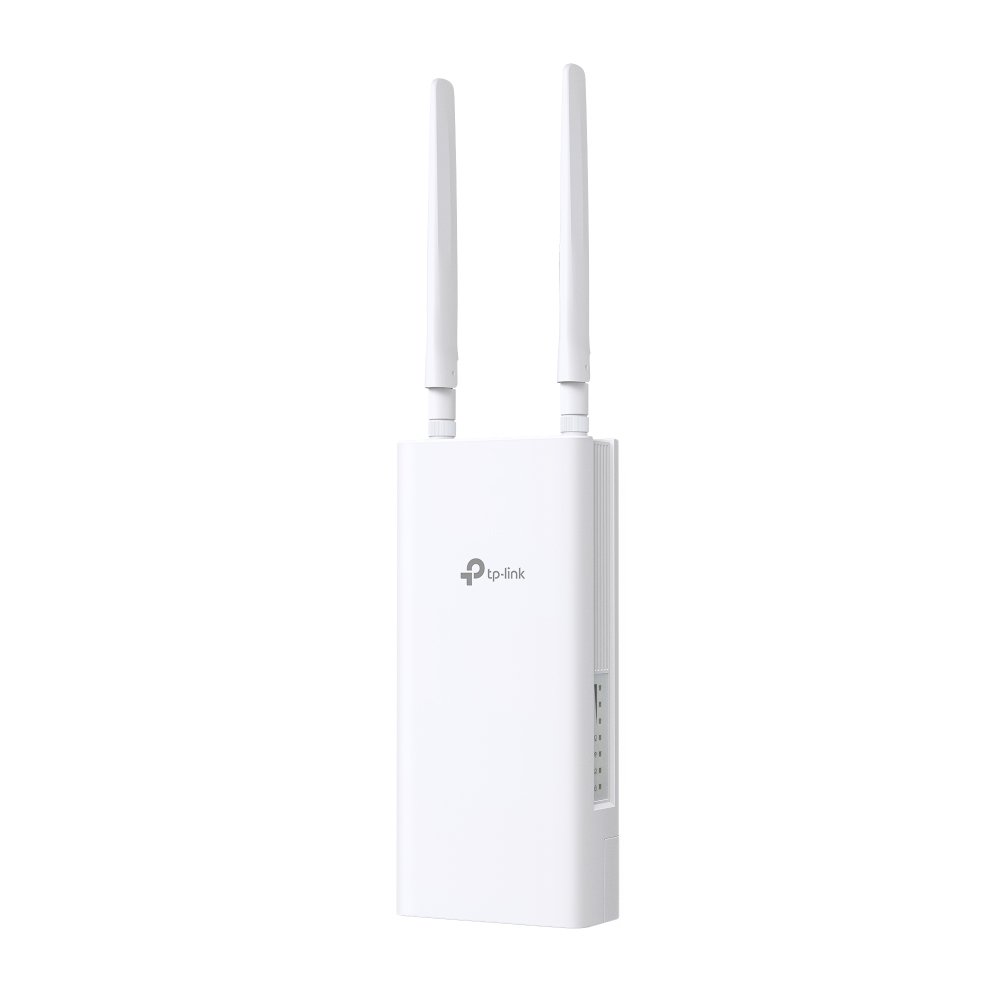

Archer MR500-Outdoor
New4G+ AC1200 Dual Band Wi-Fi Outdoor Router
- Fast 4G LTE Speed - Supports LTE up to 300 Mbps download speed and 50 Mbps upload speed.*
- 1200 Mbps Dual Band Wi-Fi Speed - Up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz
- Durable Outdoor Enclosure - Robust outdoor connectivity and reliability with IP65 weatherproof protection** and ±6kV lightning protection & ±15kV ESD protection§.
- Multiple Mounting Installation - Install easily anywhere with pole, wall, or window mounting for flexible, convenient use.
- PoE/DC Power Supply - Supports 802.3af/802.3at and passive PoE, enabling easy deployment.
- Plug and Play - Plug in a SIM card to get instant internet access anywhere.
- Simplified Setup - Easily set up and manage your network with the Tether app.
- EasyMesh-Compatible - Co-work with EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.

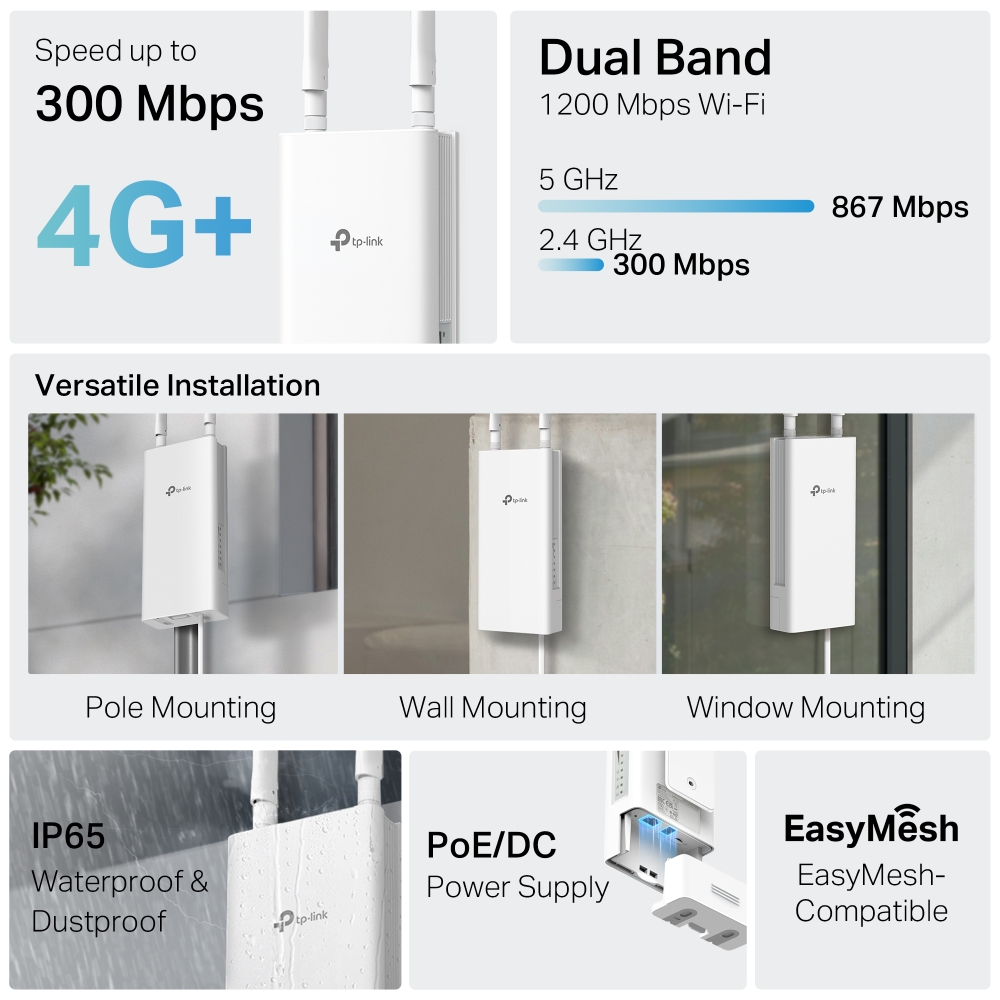

Enhanced 4G+, Reliable Internet Anywhere 4G+ Outdoor/Indoor AC1200
Dual Band Wi-Fi Router
Dual Band Wi-Fi Router
Archer MR500‑Outdoor
300 Mbps
Speed up to
Versatile Installation
Dual Band 1200 Mbps Wi-Fi
IP65
Waterproof & Dustproof
PoE/DCPower Supply
EasyMesh-Compatible

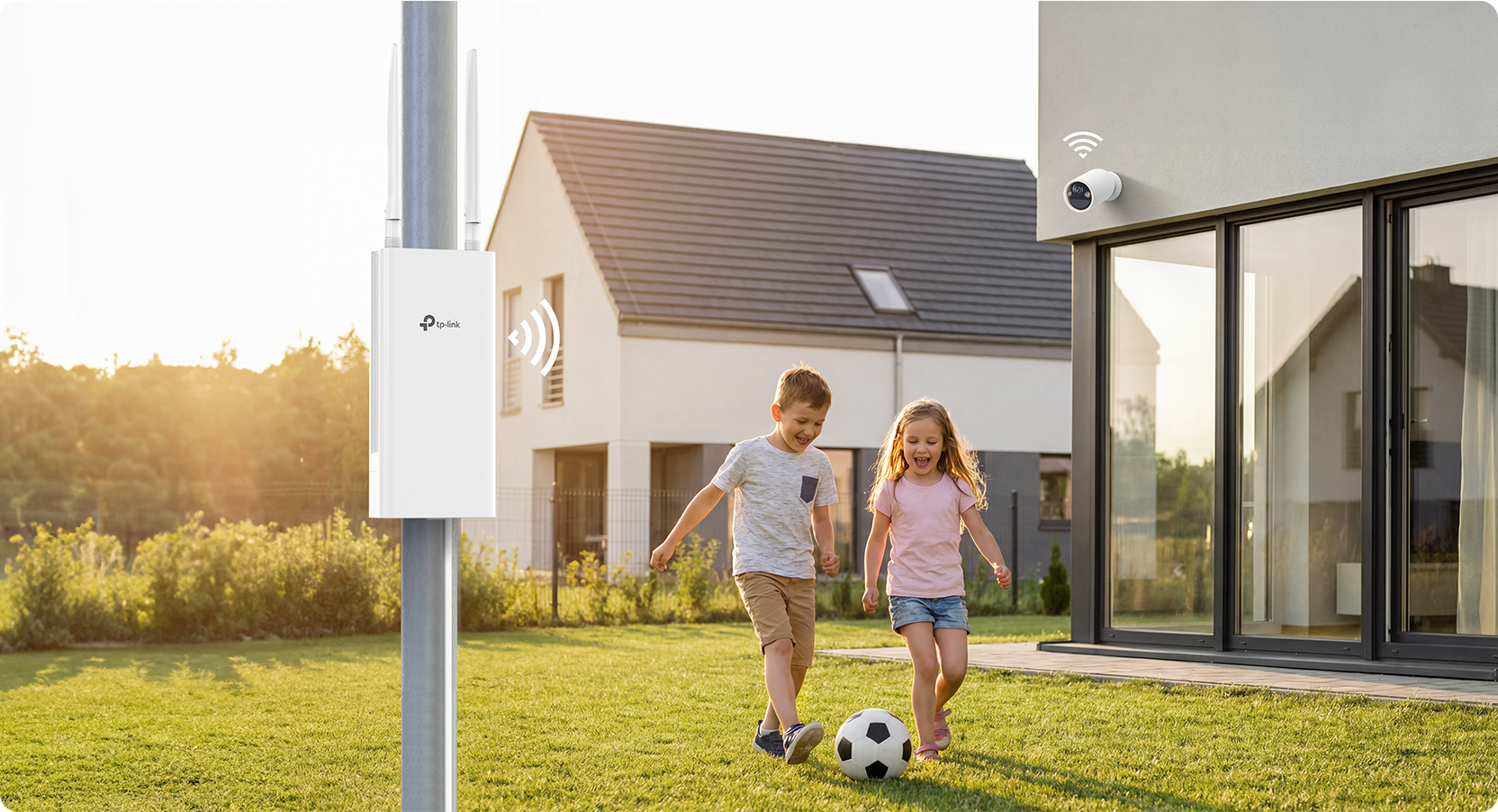

Robust WiFi for Various Outdoor Spaces Durable and versatile, the Archer MR500‑Outdoor delivers reliable connectivity across diverse outdoor settings, seamlessly powering all your outdoor devices and activities.
Holiday Home
Outdoor Café
Motorhome

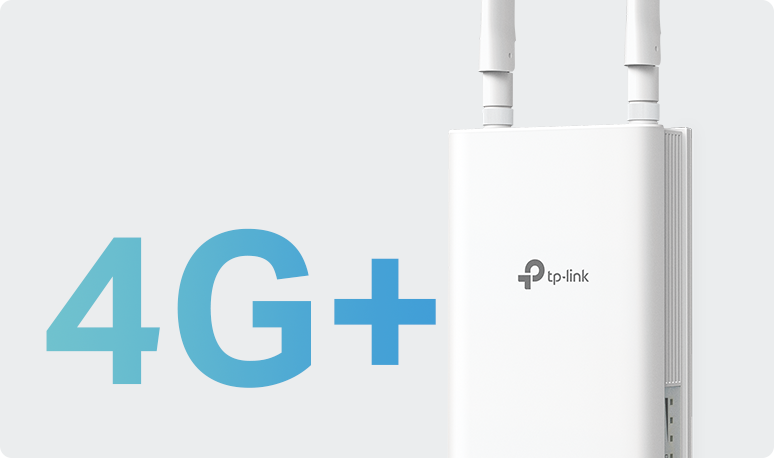

Superfast 4G+ & Dual‑Band Wi‑Fi The Archer MR500‑Outdoor converts 4G+ signals into high‑speed dual‑band Wi‑Fi for fast, stable connectivity indoors and outdoors. Just insert a Nano SIM card to get online quickly.*◇
4G+
Wireless
300 Mbps
Download Speed
50 Mbps
Upload Speed
Download Speed
50 Mbps
Upload Speed
867 Mbps
on 5 GHz
300 Mbps
on 2.4 GHz
on 5 GHz
300 Mbps
on 2.4 GHz
◇ This device requires an activated SIM card without a PIN lock. If the SIM is locked, please consult the quick installation guide for unlocking instructions.

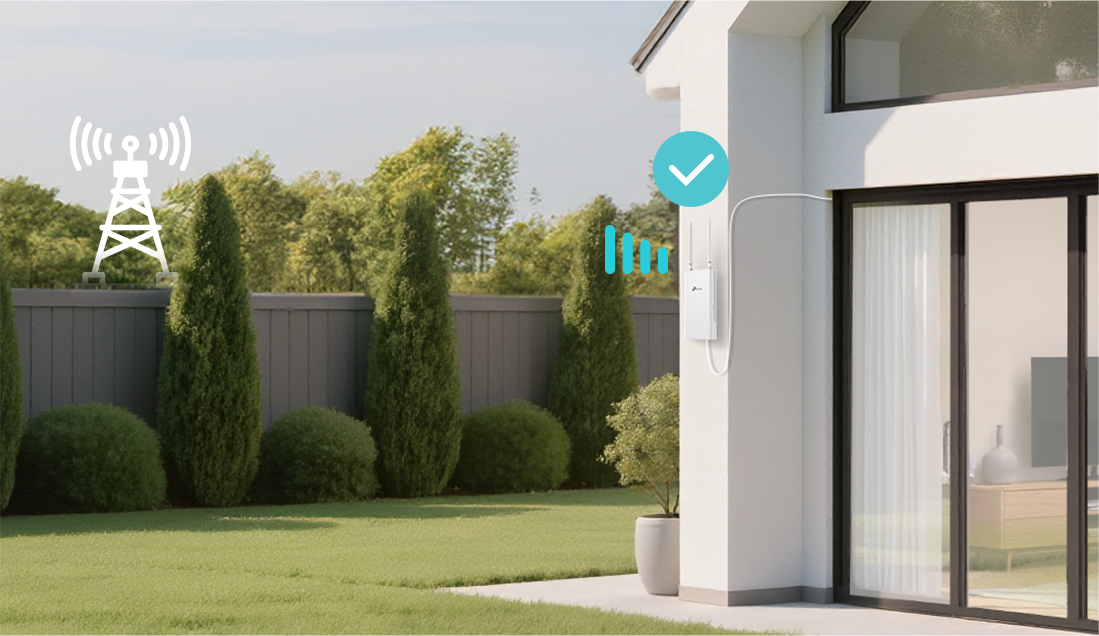

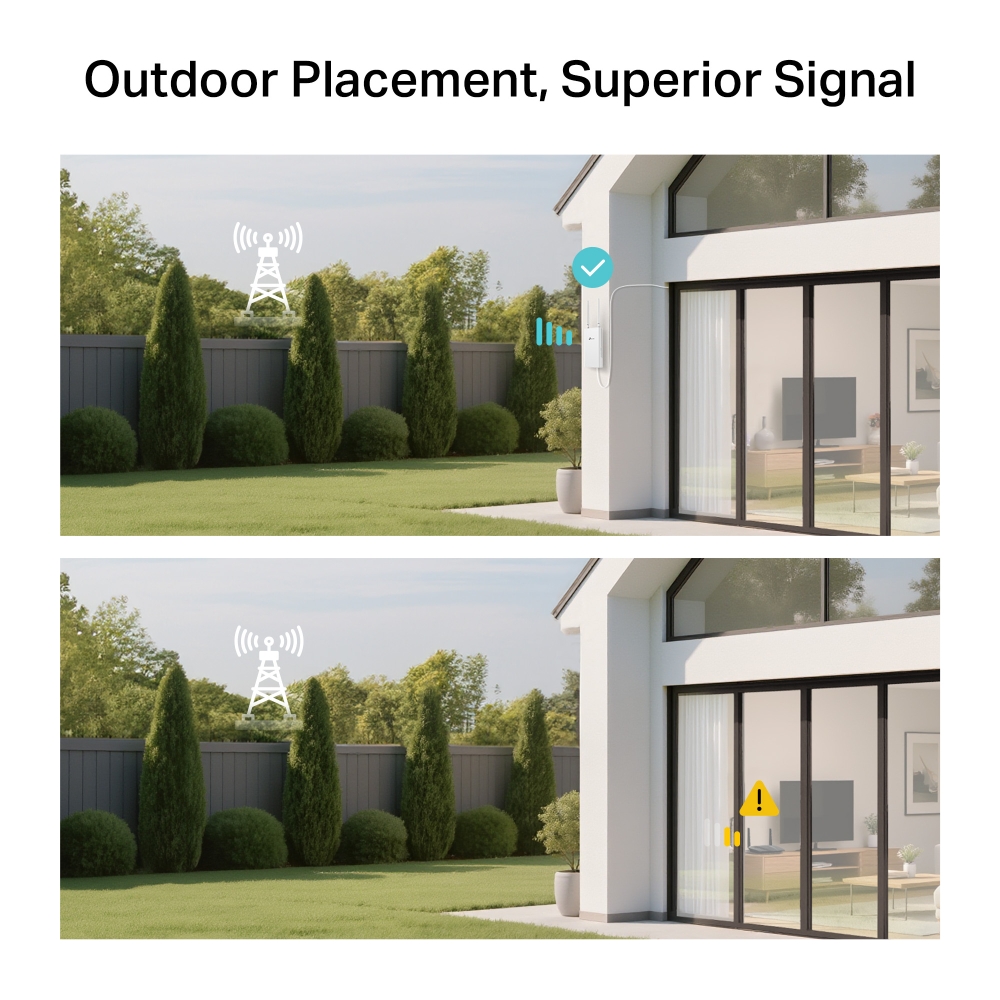

Outdoor Placement, Superior Signal Installing outdoors captures stronger 4G+ signals by reducing loss from walls and obstructions—ensuring a reliable connection even in areas with weaker coverage.

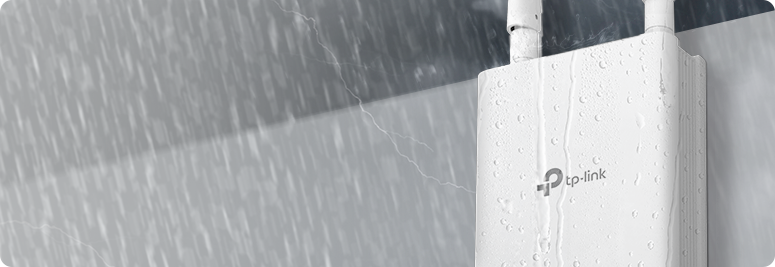

Durable Outdoor Design for Stable Performance The IP65‑rated Archer MR500‑Outdoor operates from ‑30°C to +60°C, with 6kV lightning and 15kV ESD protection for robust connectivity in harsh outdoor settings.
-30°C~+60°C
Operating Temperature
Operating Temperature
Dust Resistant
Water Resistant
6kV Lightning Protection and 15kV ESD Protection

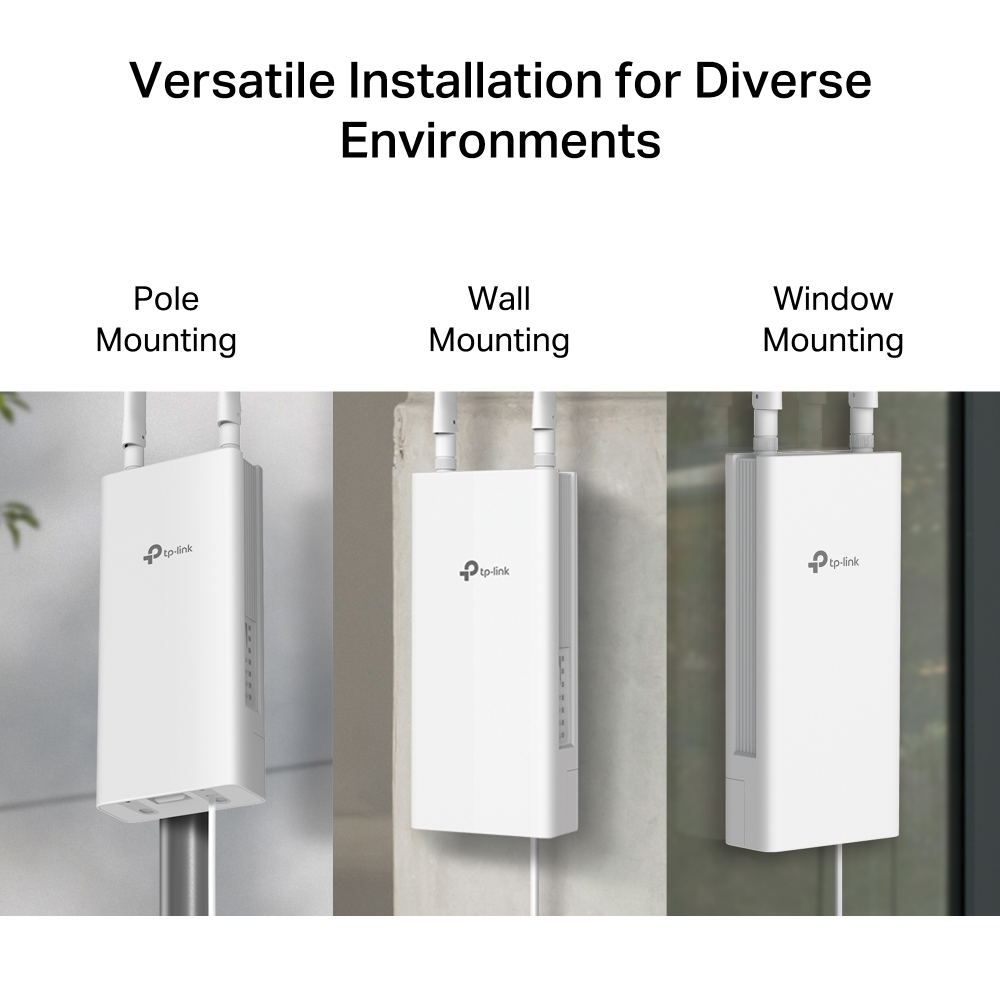

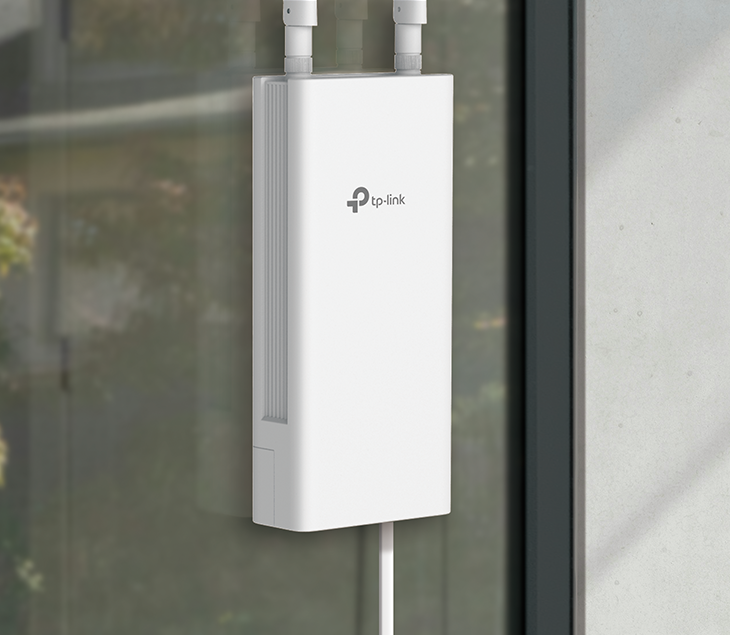

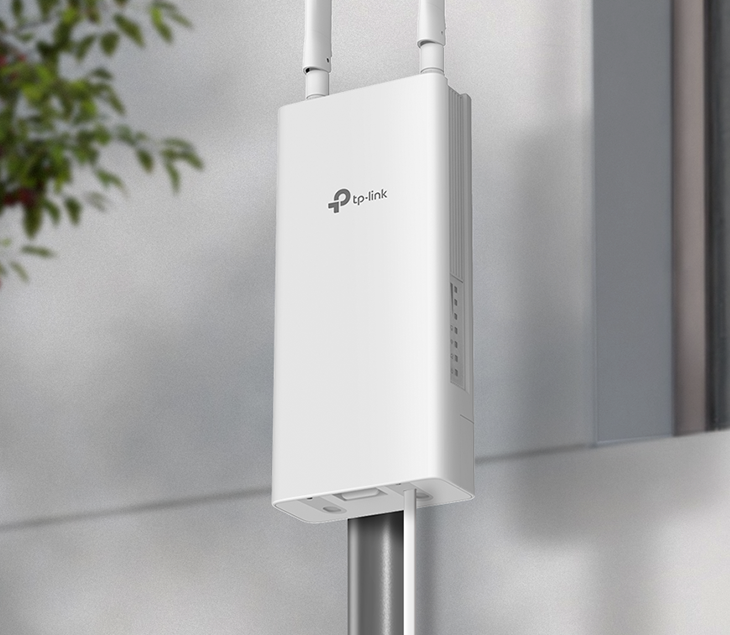

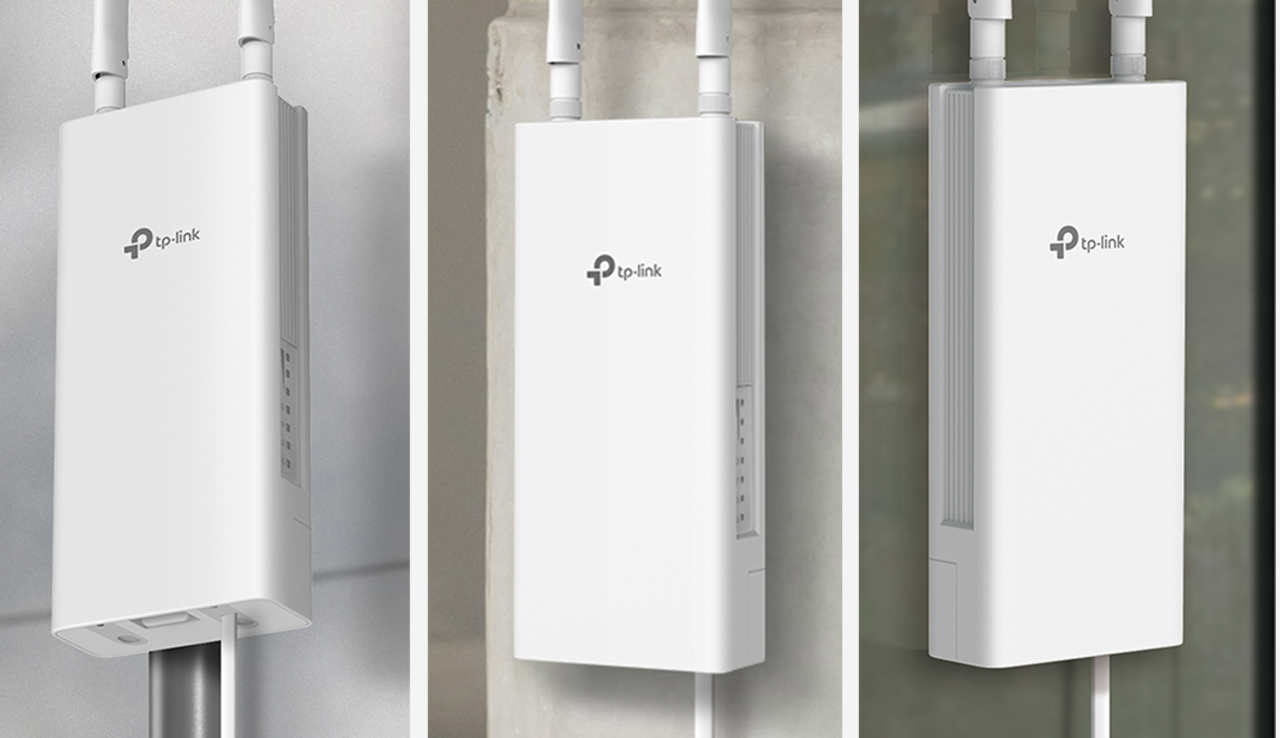

Versatile Installation for Diverse Environments The Archer MR500‑Outdoor supports various mounting options, adapting seamlessly to urban and rural environments for optimal signal reception and enhanced network performance.
Pole

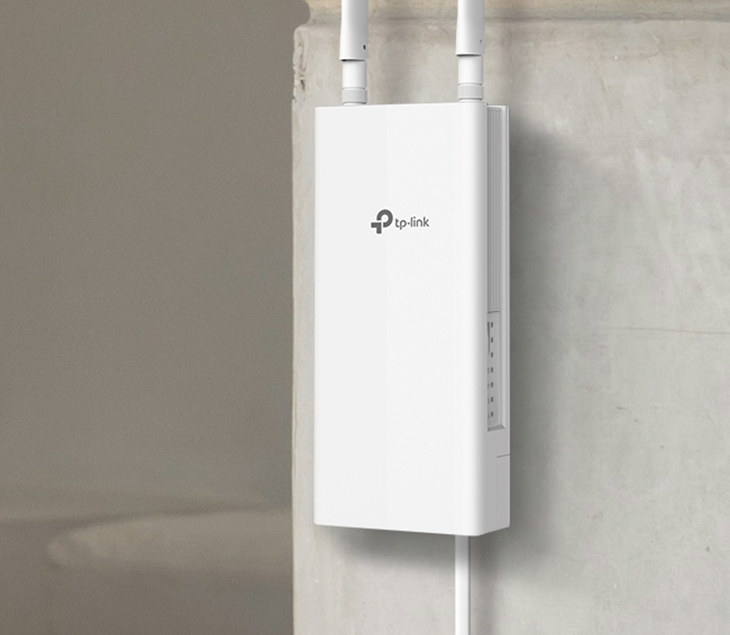

Mounting Wall
Mounting Window
Mounting
Mounting Wall
Mounting Window
Mounting

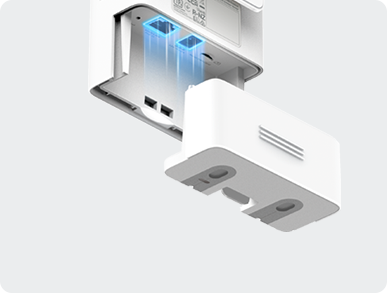

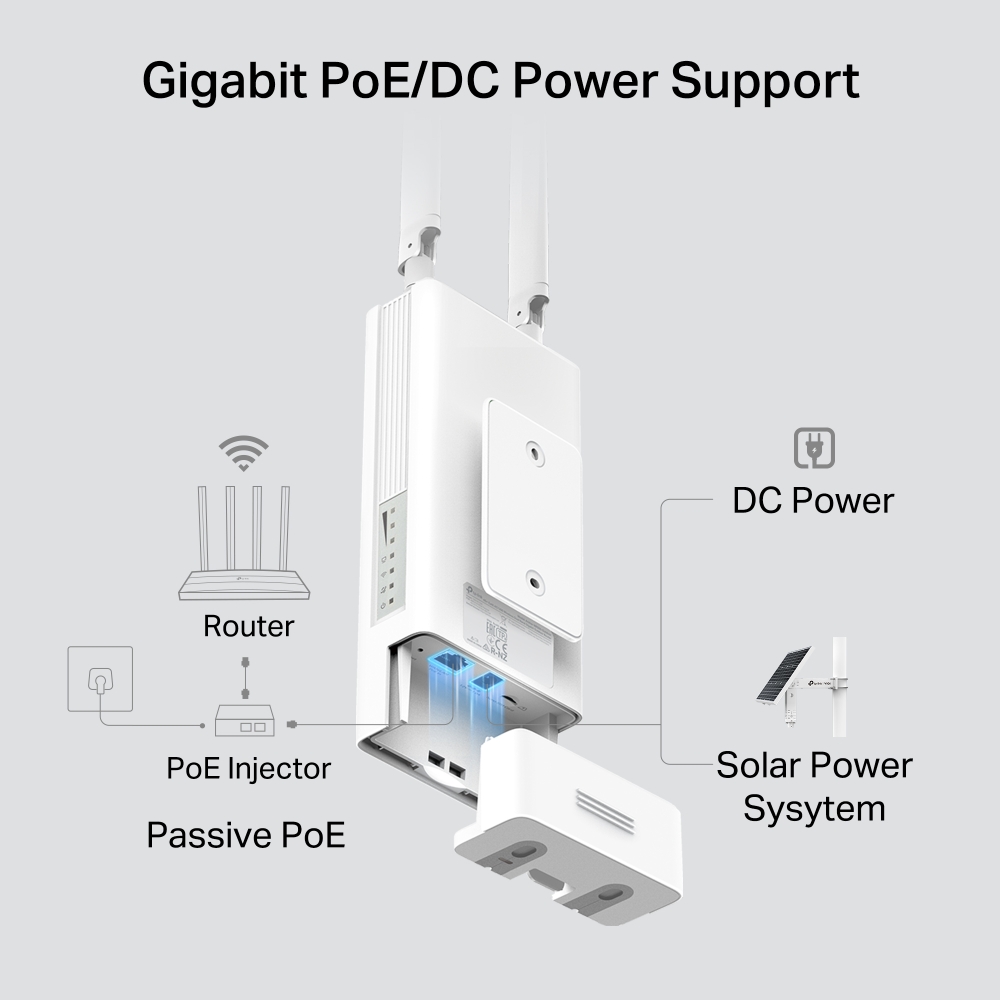

Gigabit PoE/DC Power Support The Archer MR500‑Outdoor supports both Gigabit PoE and DC power input. Delivering power and data over a single cable, Gigabit PoE streamlines outdoor cabling and installation for smooth, flexible deployment outdoors.
PoE Injector
Router
Passive PoE
DC Power
Solar Power
System
System
△ The Archer MR500-Outdoor also supports IEEE 802.3af/802.3at PoE or can be powered using a 12V DC 1A adapter.
Outdoor Ready, Wi-Fi Everywhere Archer MR500‑Outdoor optimizes 4G+ reception outdoors and extends strong, stable WiFi indoors via mesh or wired backhaul for seamless whole‑home coverage.
4G+
Archer MR500‑Outdoor
Passive PoE
PoE Injector
Wi‑Fi Router
Connects up to
64 Devices
64 Devices

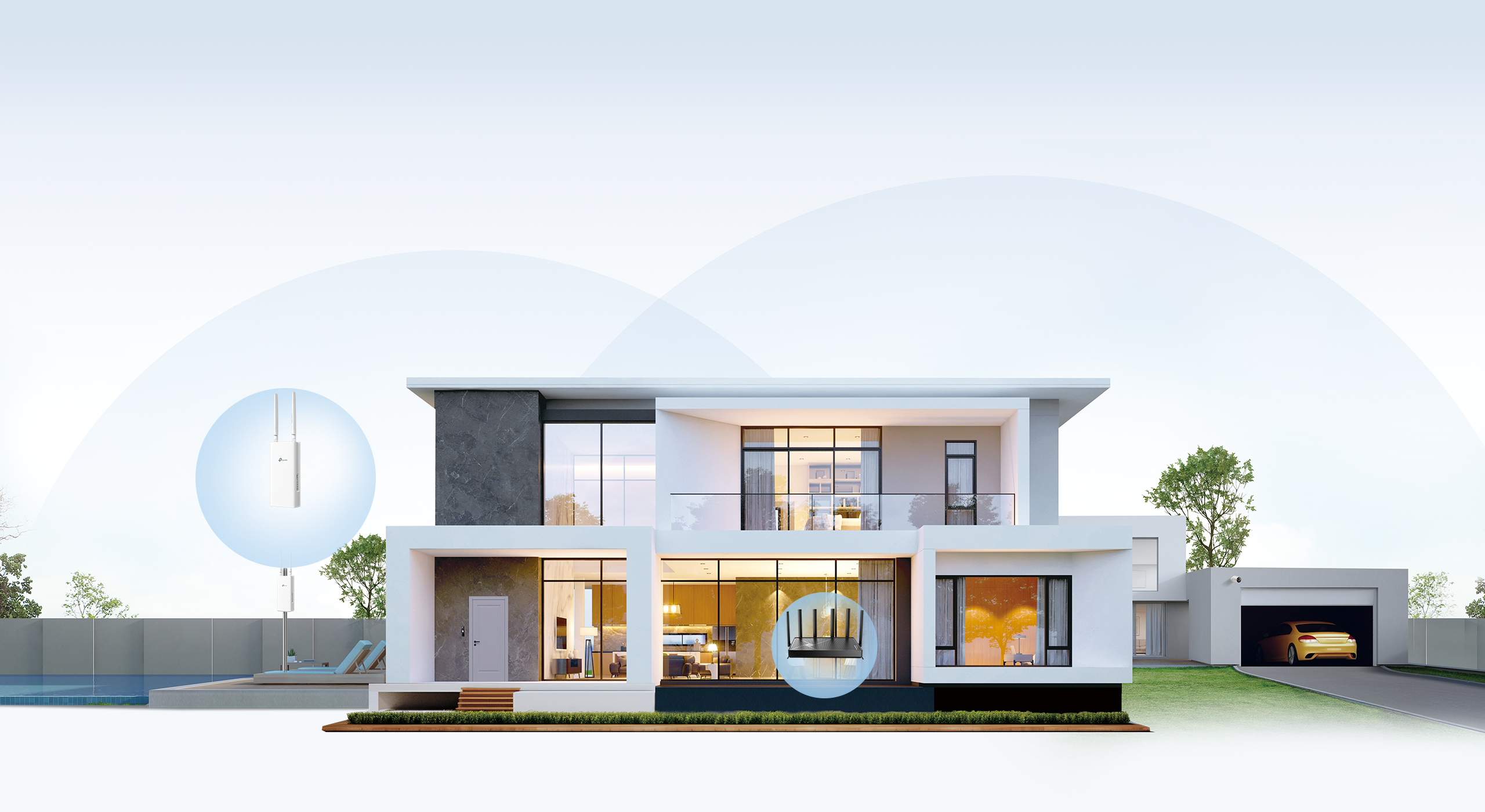

Flexibly Create Whole Home Mesh WiFi If you have any dead zones at home, just add another EasyMesh‑Compatible router/range extender to further form your whole home multi‑gigabit mesh WiFi. No more searching for a stable connection.* Learn more about EasyMesh>>
Wi-Fi Dead Zone Killer
Eliminate weak signal areas with Wi-Fi coverage for the whole houseSmart Roaming
Uninterrupted streaming when moving from room to roomOne Wi-Fi Name
No more switching Wi-Fi network namesArcher
MR500‑Outdoor
Wi‑Fi Router

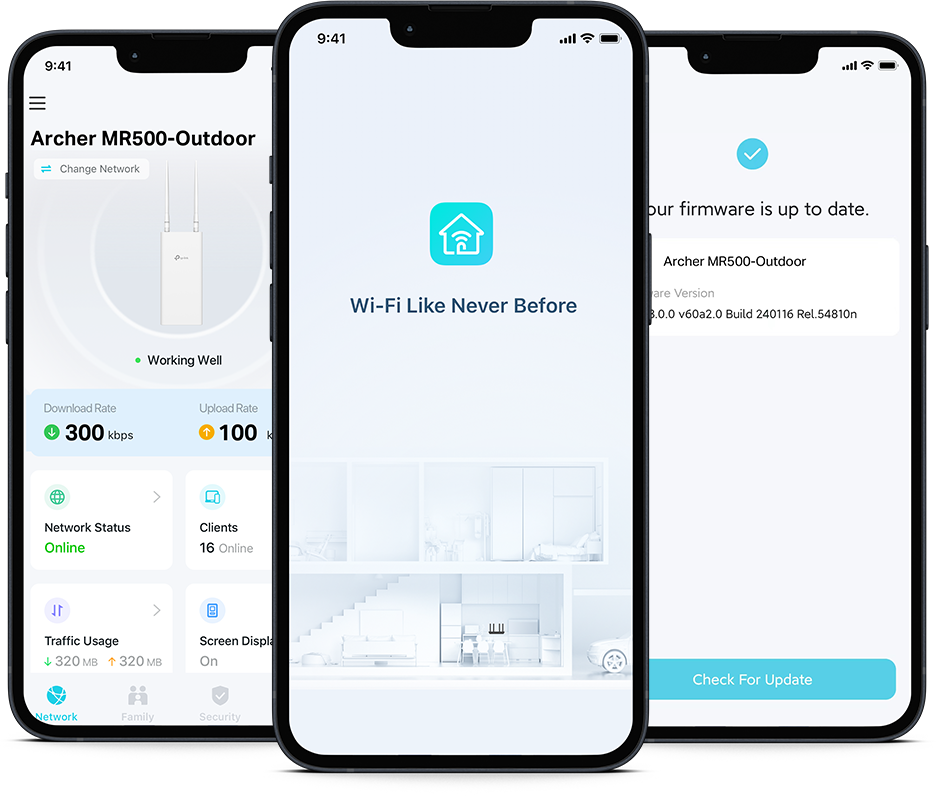

Easy Setup and Management Set up the Archer MR500‑Outdoor in minutes via its web interface or Tether app. Then manage settings like parental controls and access control from any iOS/Android device. Tether also delivers automatic firmware updates for optimal performance and security. Learn more about Tether app>>
| Network Type | 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)3G: DC-HSDPA/HSPA+/HSPA/UMTS:B1/B5/B8 (2100/850/900 MHz) |
|---|---|
| Speed | Download Speed 300 MbpsUpload Speed 50 Mbps |
| SIM Type | 1× Nano SIM Card |
| Quality of Service | WMM, QoS |
|---|---|
| Security | DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding |
| Operating Modes | 3G/4G Router, Wireless Router |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management Features | Access Control, Local Management, Remote Management, Reboot Schedule |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | TP-Link DDNS, DynDns, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec |
| Access Control | Parental Controls, Local Management Control, Host List, Access Control |
| Protocols | IPv4, IPv6 |
| Guest Network | 2.4 GHz guest network x 1, 5 GHz guest network x 1 |
| VPN Server | PPTP VPN, IPSec VPN, OpenVPN |

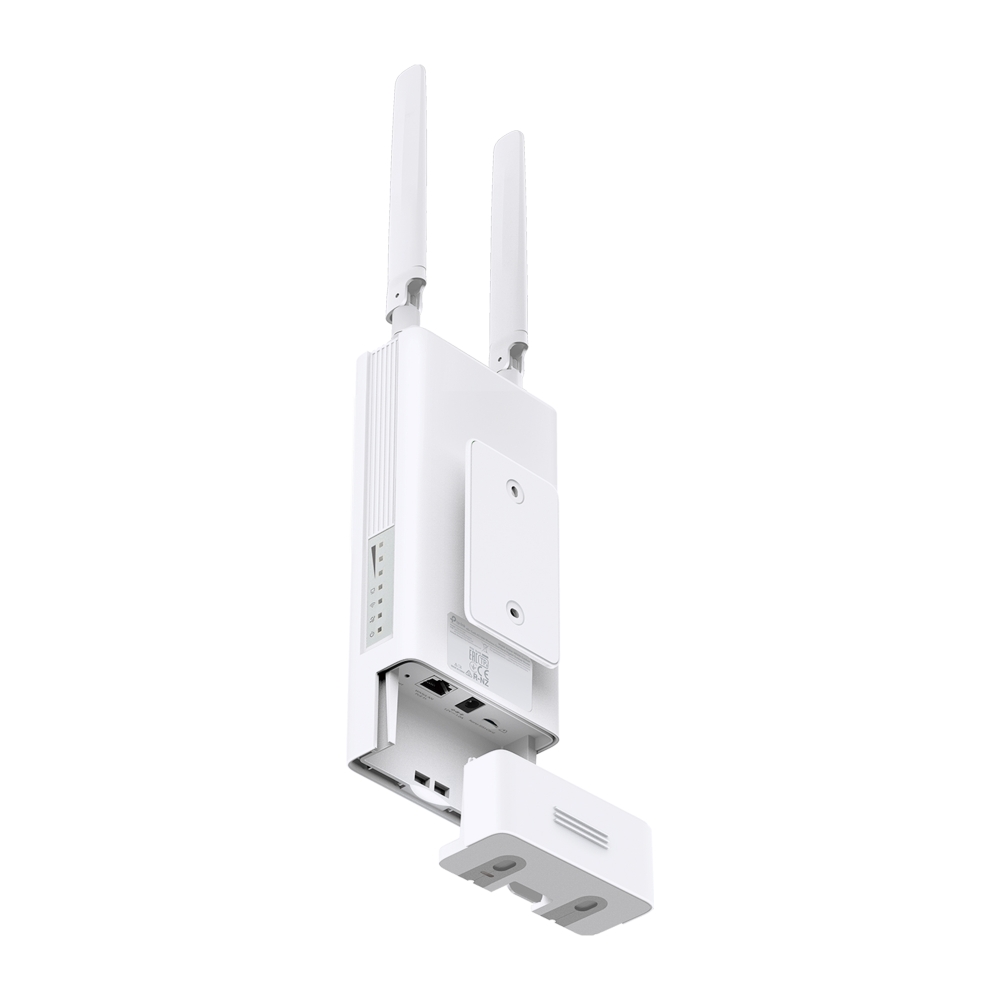

| Interface | 1× 10/100/1000 Mbps WAN/LAN Port (PoE In) 1× Nano SIM Card Slot1 × DC Port |
|---|---|
| Power | 12V/1.5A48V/0.375A Passive PoE44-57V/0.35A 802.3af |
| Buttons | Reset Button |
| Antennas | 2 × Detachable LTE Antennas |
| Wireless Standards | IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
|---|---|
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz |
| Reception Sensitivity | 5 GHz:11a 54M: -77 dBm11ac VHT20 MCS0: -95.5 dBm11ac VHT20 MCS8: -73 dBm11ac VHT40 MCS0: -93 dBm11ac VHT20 MCS9: -68 dBm11ac VHT80 MCS0: -90 dBm11ac VHT20 MCS9: -65 dBm2.4 GHz:11g 54M: -74.5 dBm11n HT20 MCS0: -92 dBm11n HT20 MCS7: -73 dBm11n HT40 MCS0: -89 dBm11n HT40 MCS7: -70 dBm |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Package Content | • AC1200 Wireless Dual Band 4G LTE Outdoor Router Archer MR500-Outdoor• 10-meter RJ45 Ethernet Cable• PoE Adapter• AC Power Cord• Quick Installation Guide• Window/Pole/Wall Mounting Kits• DC power adapter sold separately |
|---|---|
| Requirements | • Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser *You are recommended to use the latest version• Nano SIM Card |
| Certifications | CE, RoHS |
| Environment | Operating Temperature: -30°C~60°C (-22°F~140°F)Storage Temperature: -40°C~70°C (-40 °F~158 °F)Operating Humidity: 10%~90% RHStorage Humidity: 5%~90% RH |
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
**This product has an IP65 dustproof and waterproof rating; however, it is not designed for prolonged immersion or exposure to high-pressure water jets. Please install and use it according to the quick installation guide to ensure the protective features function properly.
***Actual network speed may be limited by the rate of the product‘s Ethernet LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
§Tested under controlled laboratory conditions. Per CE certification, protection levels are: Lightning/Surge Protection at 2kV for Differential Mode (DM) and 4kV for Common Mode (CM), and ESD Protection at 4kV for Contact Protection and 8kV for Air Protection. For optimal protection, please follow the setup instructions in the quick installation guide.
