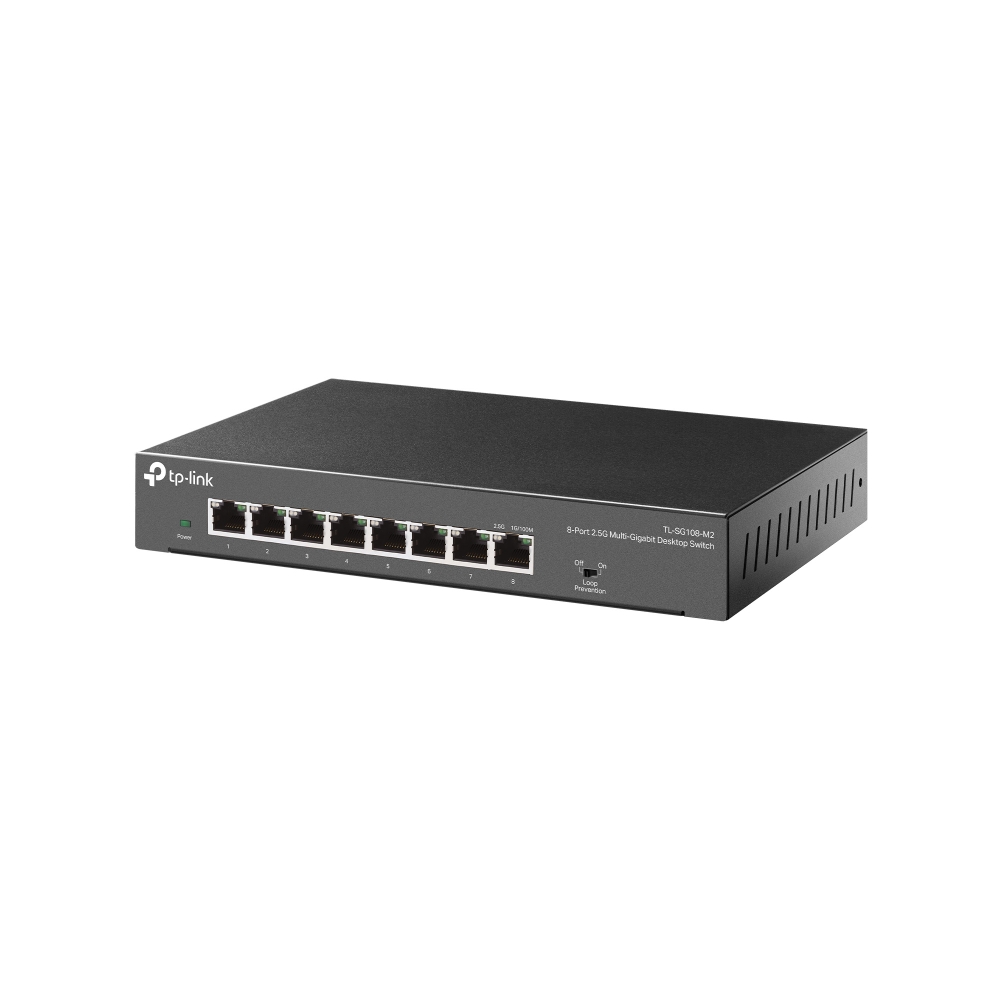

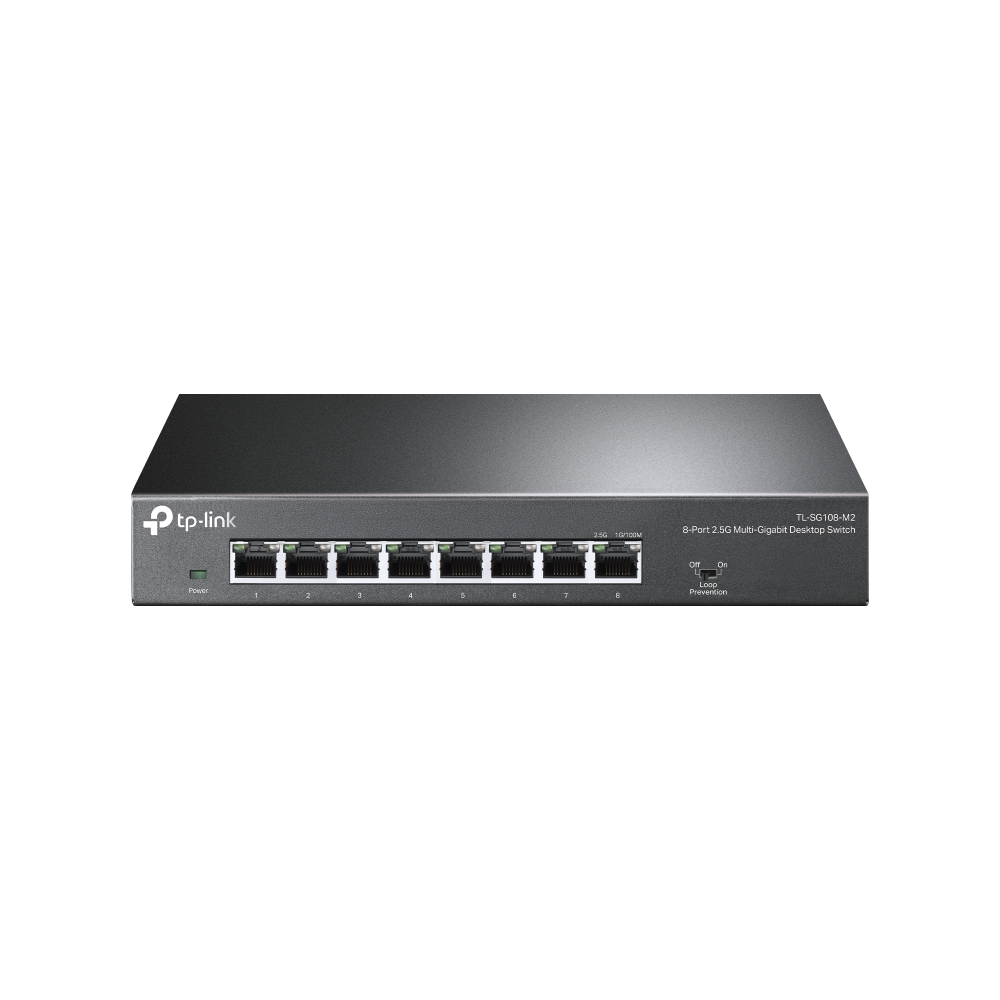

8-Port 2.5G Desktop Switch

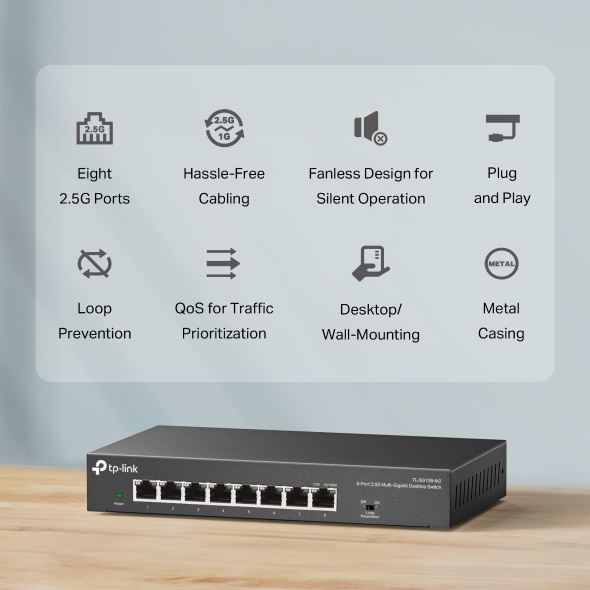

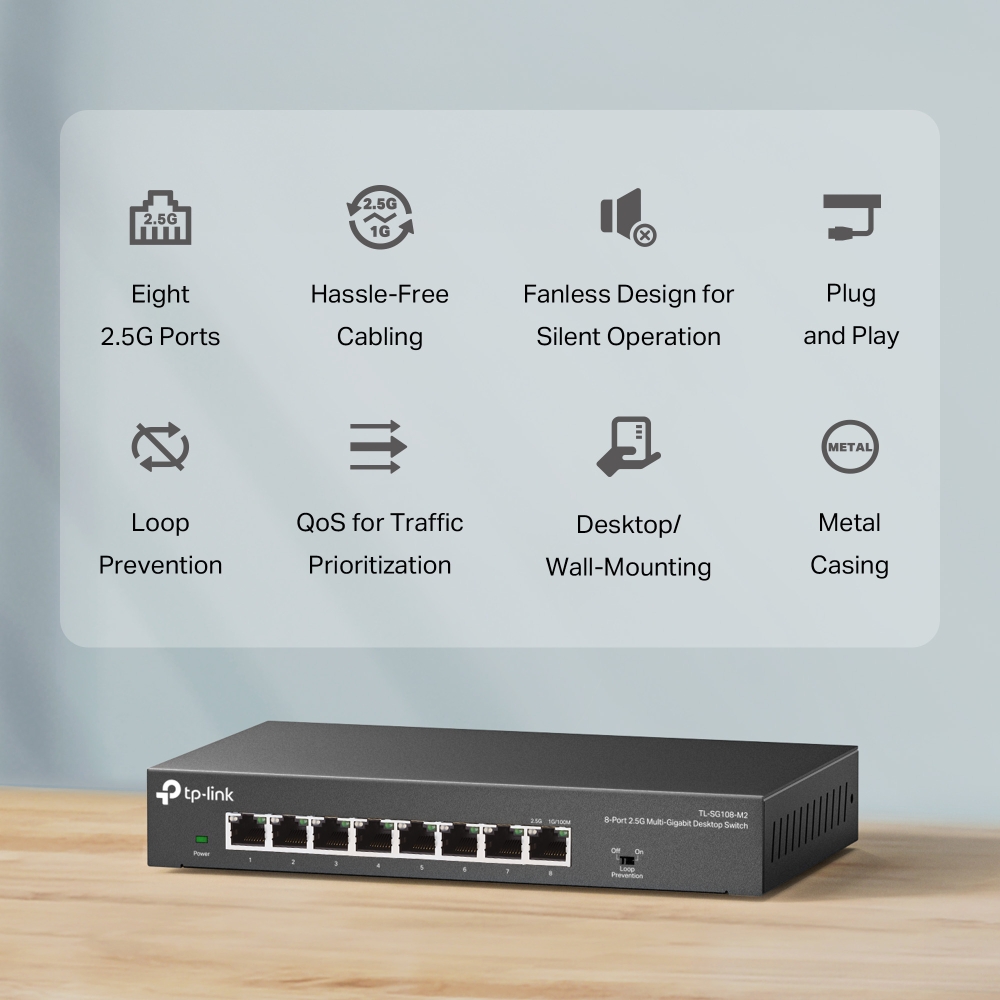

- Eight 2.5 Gbps Ports. 8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 40 Gbps of switching capacity.

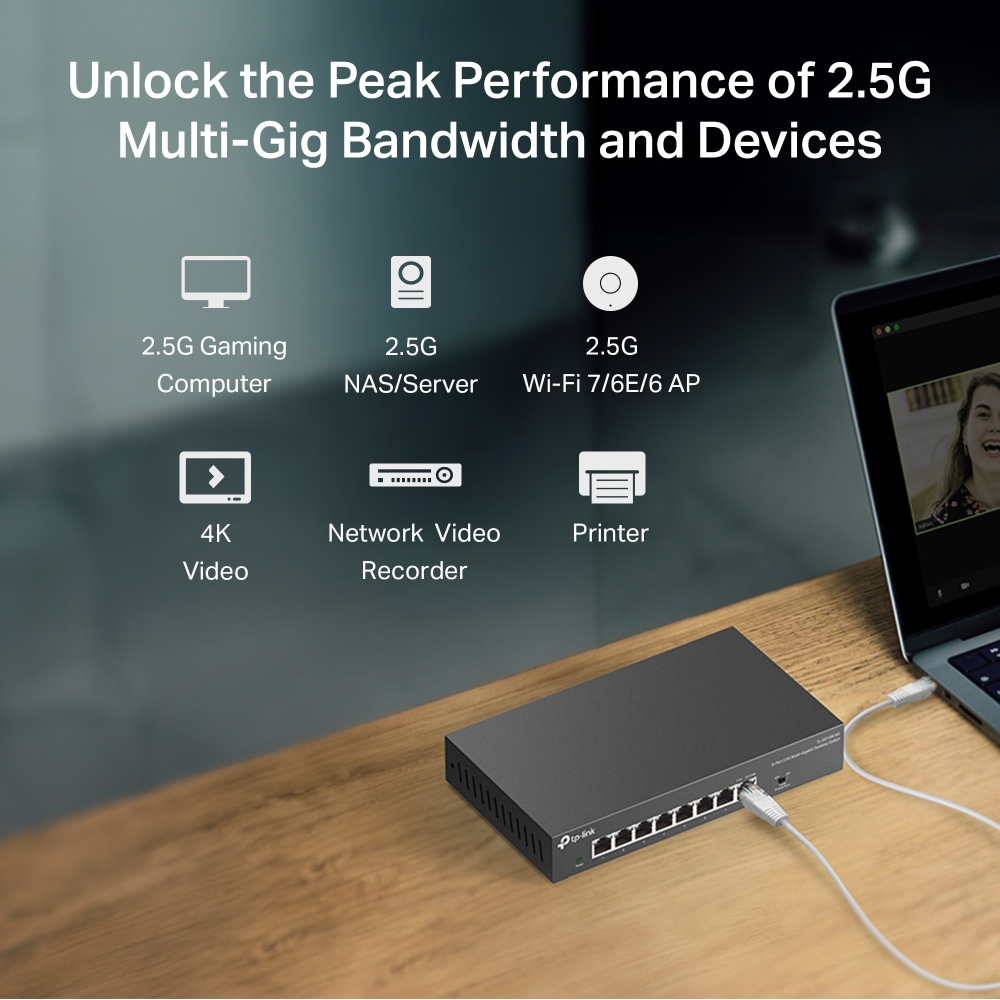

- Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 7/6 AP, 4K video, and more.
- Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations.
- Loop Prevention: Ensures a stable and reliable network by automatically detecting and blocking network loops.
- Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.*
- Silent Operation. Industry-leading fanless design ensures silent operation, ideal for any home or business.

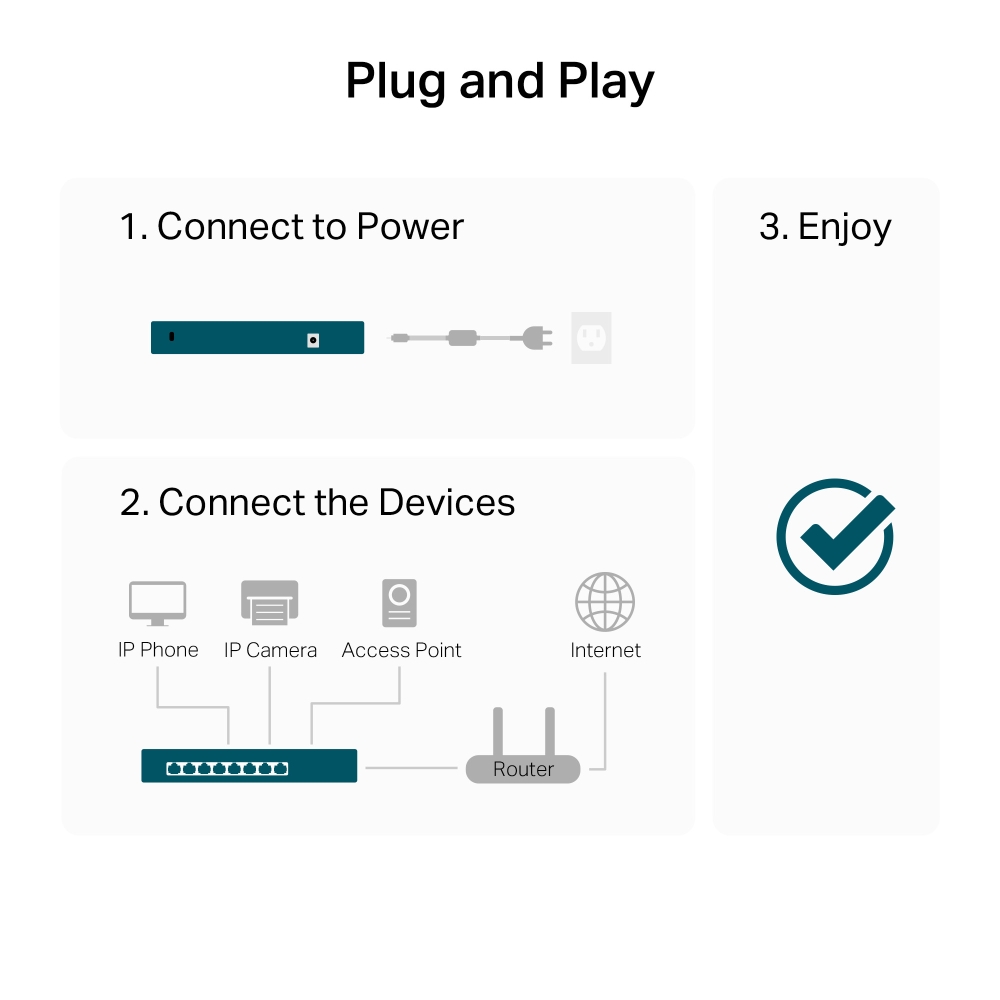

- Plug and Play. Allows for easy deployment without the need for a technician.

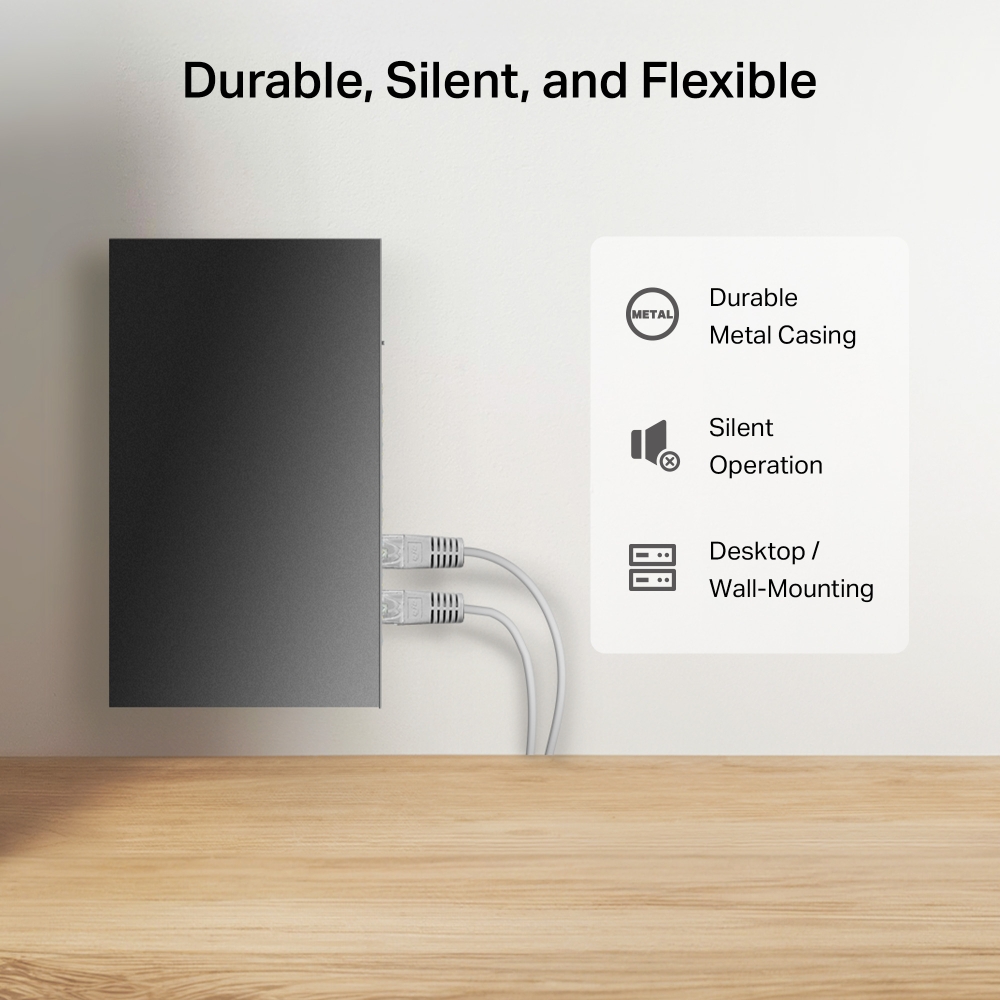

- Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
| 표준 및 프로토콜 | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz |
|---|---|
| 인터페이스 및 주요 사양 | 8× 100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX |
| 팬(Fan) 수량 | Fanless |

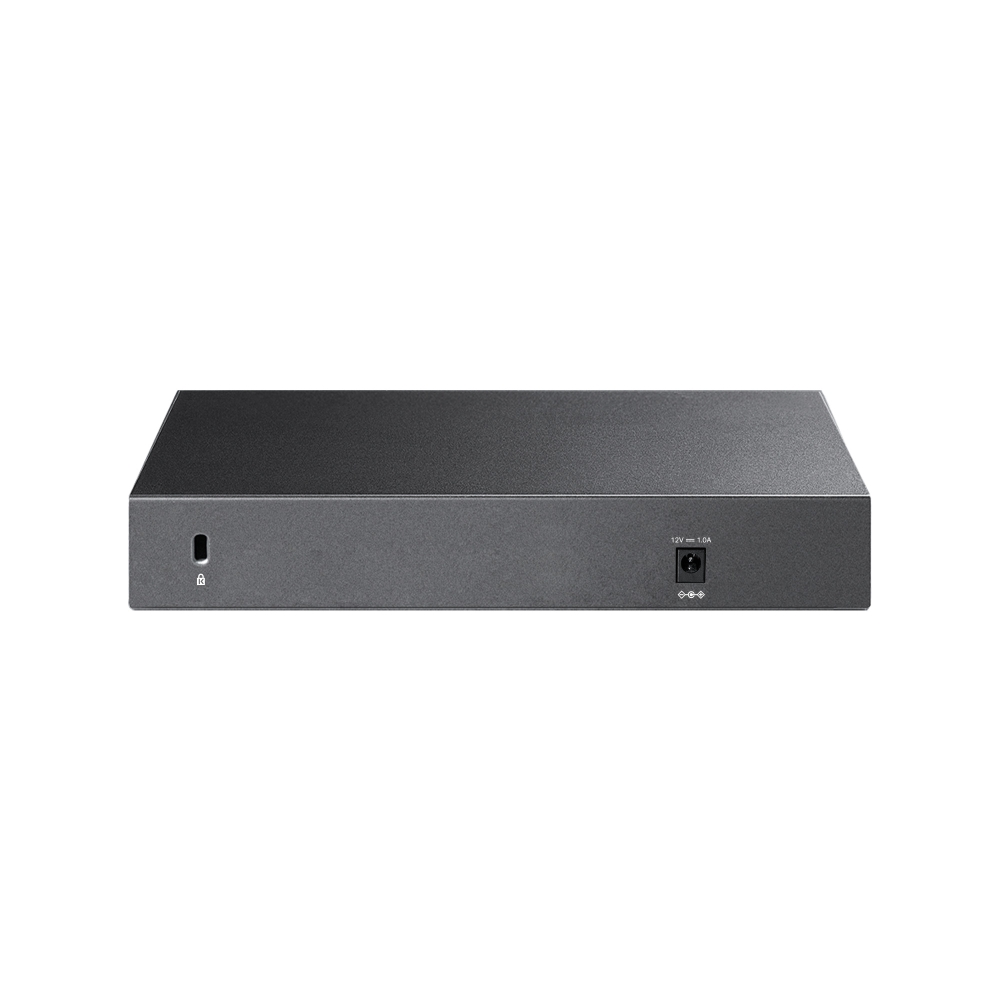

| 외부 전원 공급 | External Power Adapter (Output: 12 VDC / 1.0 A) |
| LED | • Power• Link/Act Indicators |
| 크기 ( 가로 x 세로 x 높이 ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
| 최대 전력 소모량 | 8.93 W |
| 최대 방열수치 | 30.36 BTU/h |
| 스위칭 용량 | 40 Gbps |
|---|---|
| 패킷 전달 속도 | 29.76 Mpps |
| MAC 주소 테이블 | 4 K |
| 점보 프레임 | 12 KB |
| 고급 기능 | • Loop Prevention• 802.3X Flow Control• 802.1p/DSCP QoS• IGMP Snooping |
|---|---|
| 전송 방법 | Store and Forward |
| 인증 | CE, FCC ,RoHS |
|---|---|
| 구성품 | • 8-Port 2.5G Multi-Gigabit Desktop Switch TL-SG108-M2• Power Adapter• Installation Guide• Rubber Feet |
| 사용 환경 | • Operating Temperature: -5–40 °C (23–104 °F)• Storage Temperature: -40–70 °C (-40–158 °F)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
*Only Cat5e or better cables do not need to be replaced.
