InSight S345-4G
VIGI 4MP Outdoor Full-Color 4G Bullet Network Camera
- 4MP Super-High Definition and 24h Full-Color
- 4G Mobile Networking*1
- 3 LAN Ports for Downstream Devices
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- H.265+ Compression Technology
- IP66 Weatherproof
4G and 3 LAN Ports, Hassle-free Deployment
4MP Outdoor Full-Color 4G Bullet Network Camera
InSight S345-4G
3 LAN Ports Meet Minimal Deployment Effort
Explore VIGI Solar Power Systems >>
InSight S345-4G offers industry-first three LAN ports, enabling simultaneous connectivity for up to three devices as you need. It is ideal for coupling with solar power systems to eliminate additional wiring deployments.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
Learn more about VIGI AI technology >>
- Human & Vehicle Classification
- Human Detection
- Only Vehicle Classification On
Alarm Triggered
Alarm Filtered
Alarm Triggered
Alarm Filtered
Alarm Triggered
Alarm Filtered
LightPro Night Vision Technology
The VIGI LightPro Night Vision Technology intelligently switches between IR night vision and full-color night vision by detecting people or vehicles. This allows the camera to capture clearer and more critical details with the white light on, and to reduce light pollution and energy consumption with the IR light on at most time, effectively adapting to a broader range of scenarios.
-
When no vehicle and person are monitored, only IR night vision is displayed.
IR Light On -
When a vehicle or a person is being monitored, full-color night vision is displayed.
White Light OnPlease get out of here -
When a vehicle or a person leaves, switches back to IR night vision.
IR Light On
-
More Details
-
Less Light Pollution
-
More Deterrence
-
More Concealment
Smart Video Enhancement Technology
-
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.△
-
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
-
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
-
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.*
| 카메라 | |
|---|---|
| 이미지 센서 | 1/2.7“ Progressive Scan CMOS |
| 셔터 속도 | 1/3 to 1/10000 s |
| 슬로우 셔터 | Yes |
| 최소 조도 | 0.005 Lux; 0 Lux with IR/White Light |
| 주간/야간 메커니즘 | IR Cut Filter |
| 주간/야간 전환 | Unified/ Scheduled/ Auto |
| 렌즈 | |
|---|---|
| 유형 | Fixed Focal Lens |
| 초점 거리 | 4 mm |
| 조리개 | F1.6 |
| FOV | Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7° |
| 렌즈 마운트 | M12 |
| DORI 거리 | Detect: 80 m (262 ft)Observe: 33 m (109 ft)Recognize: 16 m (52 ft)Identify: 8 m (26 ft) |
| 각도 변경(수동) | |
|---|---|
| 범위 | • Pan: 0° to 360°• Tilt: 0° to 90°• Rotate: 0° to 360° |
| 일루미네이터 | |
|---|---|
| IR LED | • Quantity: 2• Range: 50m• Wavelength: 850nm |
| 백색 LED | • Quantity: 2• Range: 30m |
| 일루미네이터 켜기/끄기 제어 | Auto/Scheduled/Always on/Always off |
| 비디오 | |
|---|---|
| 최대 해상도 | 2688x1520 |
| 메인 스트림 | • Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution: 2688x1520,2560x1440,2304x1296,2048x1280,1920x1080,1280x720 |
| 서브 스트림 | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution: 848x480,704x576, 640x480, 640x360,352x288, 320x240Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| 비트 레이트 제어 | CBR, VBR |
| 비디오 압축 | • Main Stream: H.265+/H.265/H.264+/H.264• Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| 비디오 비트 레이트 | • Main Stream: 256 Kbps to 6 Mbps• Sub-Stream: 64 Kbps to 512 Kbps |
| 이미지 | |
|---|---|
| 이미지 설정 | • Mirror• Brightness• Contrast• Saturation• Sharpness• Exposure• WDR• White Balance• Prevent Overexposure to Infrared Light |
| 이미지 보강 | BLC/3D DNR/HLC/SmartIR |
| 광역 역광 보정 | 120dB |
| 이미지 매개변수 스위치 | Yes |
| 프라이버시 마스크 | Up to 4 Masks |
| ROI | 1 Region |
| OSD 설정 | Yes |
| 오디오 | |
|---|---|
| 오디오 커뮤니케이션 | Two-Way Audio |
| 오디오 입력 | Yes (Built-in Microphone) |
| 오디오 출력 | Yes (Built-in Speaker) |
| 오디오 압축 | Yes |
| 오디오 샘플링 레이트 | 8KHz |
| 환경 노이즈 필터링 | Yes |
| 오디오 비트 레이트 | 64 Kbps(G.711 alaw) |
| 네트워크 | |
|---|---|
| 프로토콜 | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/G/T) |
| 실시간 동시 시청 | 3 Main Streams & 3 Sub-Streams |
| 클라이언트 | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client |
| 웹 브라우저 | • Google Chrome® 57 and above• Firefox® 52 and above• Safari® 11 and above• Microsoft® Edge 91 and above |
| 클라우드 | Yes |
| 보안 | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| 4G | |
|---|---|
| Standard | LTE-TDD/LTE-FDD/WCDMA |
| SIM Type | Nano SIM*1 |
| Category | 4 |
| Frequency | • LTE-FDD: B 1/3/5/7/8/20/28• LTE-TDD: B 38/40/41• WCDMA: B 1/5/8 |
| Uplink and Download Data Rate | Uplink: 50 Mbps, Downlink: 150 Mbps |
| Antenna | • Quantity: 2• Type: 690~960&1710~2690MHz Dipole Omni-Directional Antenna• Gain:Ant1：0.84dBi@690~960MHz, 2.85dBi@1710~2690MHzAnt2：0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz |
| 알람 및 이벤트 관리 | |
|---|---|
| 스마트 이벤트 | • Intrusion Detection• Line-Crossing Detection• Region Entering Detection• Region Exiting Detection• Object Abandoned Detection• Object Removal Detection• Loitering Detection• People Detection• Vehicle Detection• Abnormal Sound Detection• Scene Change Detection |
| 기본 이벤트 | • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)• Video Tampering Detection• Exception (Illegal Login) |
| 알람 링크 | • Memory Card Video Recording• Message Push• Audible Warning• White Light Flashing• Upload to FTP server• Send to Alarm Server• Email Alarm |
| 인터페이스 | |
|---|---|
| 네트워크 인터페이스 | 3 RJ45 10/100M LAN Ports |
| 알림 | N/A |
| Reset 버튼 | Yes |
| 전원 | DC Power Port |
| 내장 스토리지 | Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB*1 |
| Built-in Nano-SIM Card Slot | Yes |
| 내장 마이크 | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| 내장 스피커 | Yes |
| 오디오 | N/A |
| 일반 | |
|---|---|
| 작동 온도 | -30 °C to 60 °C (-22 °F to 140 °F) |
| 보관 온도 | -40 °C to 60 °C (-40 °F to 140 °F) |
| 작동 습도 | 95% or Less (Non-Condensing) |
| 보관 습도 | 95% or Less (Non-Condensing) |

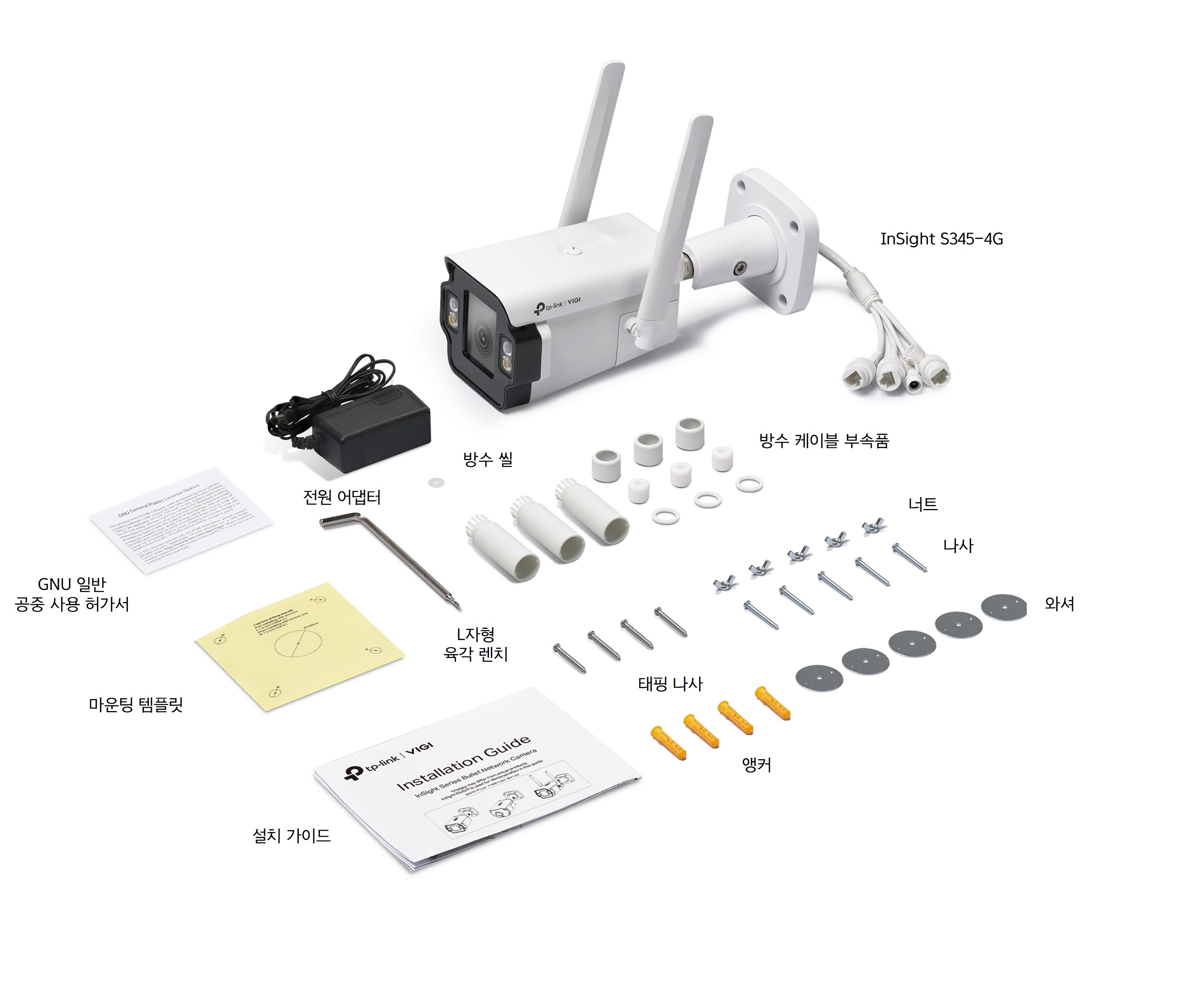

| 패키지 구성품 | • VIGI Network Camera• Quick Start Guide• Waterproof Cable Attachments• Mounting Accessories• Power Adapter |
| 재질 | Metal |
| 순중량 | 1.09 Kg |
| 전원 공급 | • 12V DC/1 A, 5.5 mm Coaxial Power Plug |
| Antenna | |
| 보호 | IP66 Weatherproof |
| 제품 크기 (L x W x H) | 10 × 4.8 × 4.0 in (256 × 122 × 101 mm) (excluding antennas) |
| 인증 | WPS, WHQL, Energy Star, RoHS, CE, NCC,NTRA,KC,RCM,ONVIF, IP66 |
*1MicroSD card and Nano-SIM card are not included in the package.
**Maximum power consumption test conditions are: IPC 4G streaming preview, supply network to three IPCs, turn on IR lights and the sound-light alarm.
**Typical power consumption test conditions are: IPC wired preview and 4G streaming preview without white light on (Day Mode), with IR light on (Night Mode with IR LED), with white light on (Night Mode with White LED). The results are for reference only and may vary due to changes in the test environment.
